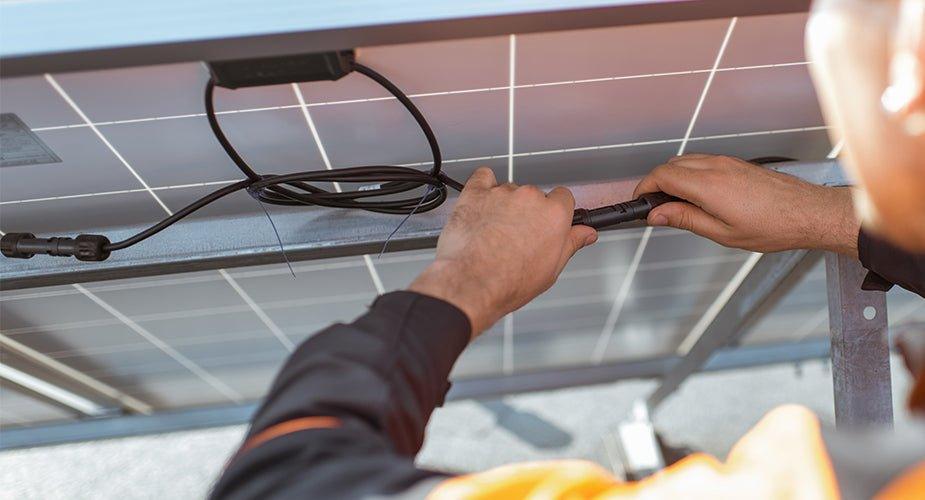

Solar Panel Connectors

Want to ensure the success of your solar energy system? If so, you have to know more about solar panel connectors, which are one of the most critical components of any solar system.

Table of Content [ Show ]

Are you considering switching to solar energy as a power backup for your home? If so, then one of the things that you should know to ensure the success and efficiency of your solar system is solar panel connectors.

Solar panel connectors are one of the most critical components of any solar system for a number of reasons. However, to explain quickly, solar panel connectors enable a seamless energy transfer from the solar panels to other electrical components. In this blog, we will dive into solar panel connectors, their types and uses, and what to consider when buying.

Why are solar panel connectors important?

As mentioned earlier, solar panel connectors are an essential link between the solar panels and the rest of the solar energy system. These connectors enable a safe and efficient transfer of energy generated by the solar panels to other components of the solar system, like the inverters and batteries. In essence, solar panel connectors create an intricate web in your solar system that transforms sunlight into usable power.

How do solar panel connectors work?

With such a critical role in your solar system, learning a thing or two about solar panel connectors is definitely beneficial. Understanding solar panel connectors will ensure your system operates efficiently and safely, delivering clean and sustainable energy to your home.

As the solar panels generate direct current or DC electricity from sunlight, the connectors enable the seamless interconnection of the individual solar panels. These connectors typically feature male and female components that securely lock together. Most of these solar panel connectors incorporate additional security and stability mechanisms.

Depending on your desired configuration, solar panels can be connected in series or parallel to adjust voltage and current levels. The connectors ensure a secure electrical connection through crimping, where conductive metal parts are attached to exposed wires using a specialized tool. The solar connectors also facilitate the link between the solar panels and the inverter, which converts DC to AC (alternating current), which is used by households.

In addition to facilitating efficient energy transfer, solar panel connectors also contribute to system safety by preventing electrical hazards and ensuring the overall reliability of your solar system setup. Again, understanding the functionality of solar panel connectors is critical for properly installing, operating and maintaining your solar energy system.

What are the different types of solar panel connectors?

Selecting which type of solar panel connectors depends on your requirements, which we will discuss later. But first, let’s take a look at the commonly used solar panel connectors.

MC3 Connector
MC3 Connectors

The MC3 solar panel connectors were once widely used in solar installations. These connectors feature both male and female leads that connect to positive and negative leads of solar panels that allow the flow of electricity. MC3 connectors have a flexible seal that provides weatherproofing and resistance to disconnections. Although other types of connectors are gaining more popularity, MC3 connectors remain to be part of some existing solar energy systems.



MC4 Connector
MC4 Connectors
The MC4 is arguably the most popular type of solar panel connector, particularly in modern solar energy systems such as Nature Generator’s Powerhouse systems. These connectors are known for their high Ingress Protection or IP rating (IP67) and UV-resistant materials, which means they can withstand extreme weather conditions even in areas with humid climates. The unique locking mechanism of MC4 connectors ensures that they are securely locked. A specialized tool is needed to unlock these connectors, adding an extra layer of security.
T4 Connector
T4 Connectors

Another commonly used solar panel connector is the T4 connector. They are quite similar to MC4 connectors and also feature a positive locking mechanism. These connectors have a high IP rating (IP68), which means they can perform well even if they are exposed to rain, dust and hot temperatures. Like the MC4, T4 connectors also require an unlocking tool to remove the connection.

Tyco Connector

SolarLok Connectors

Also referred to as Tyco connectors, SolarLok connectors were prevalent in earlier solar panel installations. However, these types are obsolete compared to more modern alternatives like the MC4 connectors. SolarLok connectors were typically used for solar panels in series or parallel configurations, contributing to the overall structure of the solar array.

XT60 Connectors

XT60 Connectors

Finally, the XT60 connectors are designed for applications that require high current flow. They are not exclusively solar connectors but can be used in solar setups where high power transfer is essential. The unique polarity key design of these connectors prevents accidental reverse polarity connections, which minimizes the risks of short circuits and fires. Like their modern counterparts, XT60 connectors are efficient, durable, and easy to install.

What is the difference between MC3 and MC4 connectors?

The difference between MC3 and M4 connectors is basically their designs and features. MC3 connectors have a unique three-pin design (one male, two female) and have weatherproofing seals. MC4 connectors, on the other hand, have a two-pin design (one male, one female) and have a built-in locking mechanism to secure connections. M4 connectors are superior to MC3 in terms of IP ratings, which means they are more resistant to environmental elements. In fact, MC4 connectors are recognized as an industry standard because of their reliability, ease of use, and widespread adoption in newer installations.

What are the things to consider when buying solar panel connectors?

Choosing the right solar panel connectors is fundamental for the efficiency and safety of your solar energy system; here are key factors to consider if you’re looking to buy:

  1. Current and Voltage Ratings
    You must ensure that the connectors can handle the maximum current and voltage of your solar panels to prevent issues with electrical conductivity.

  2. Temperature Resistance
    Naturally, solar panels are exposed to various environmental conditions. For long-term reliability, you must choose connectors that can withstand extreme temperatures and climate.

  3. Contact Material
    The material used in solar panel connectors affects durability, so opt for connectors coated with robust materials such as PC or polycarbonate.

  4. Contact Resistance
    Lower contact resistance enhances energy efficiency; therefore, select connectors with low resistance to maximize solar energy output.

  5. Ingress Protection Rating
    Consider the IP rating when choosing which solar panel connector to use. A higher IP rating means it performs better in harsh environments and conditions.

Understanding the different types of solar panel connectors and their characteristics is crucial in creating a reliable and efficient solar energy system. By making informed decisions about connectors and other components, you ensure a robust and sustainable energy source for the years to come.

If you feel clueless about where to start with your solar journey, our support team at Nature’s Generator will be happy to answer your inquiries.



* We want to give credit where credit is due. Professional writer, Ishna Sablaya, contributed research and content to this blog titled: Solar Panel Connectors Thank you, Ishna, for your contributions!
