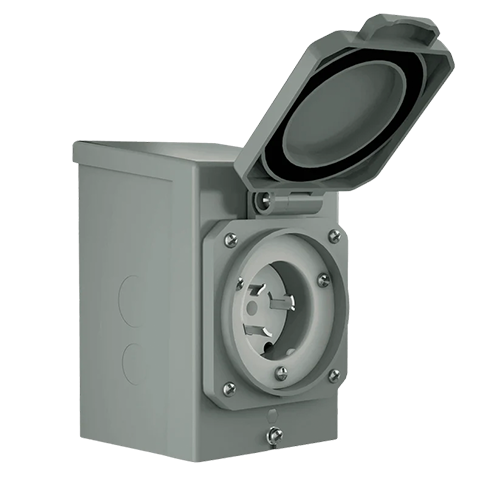

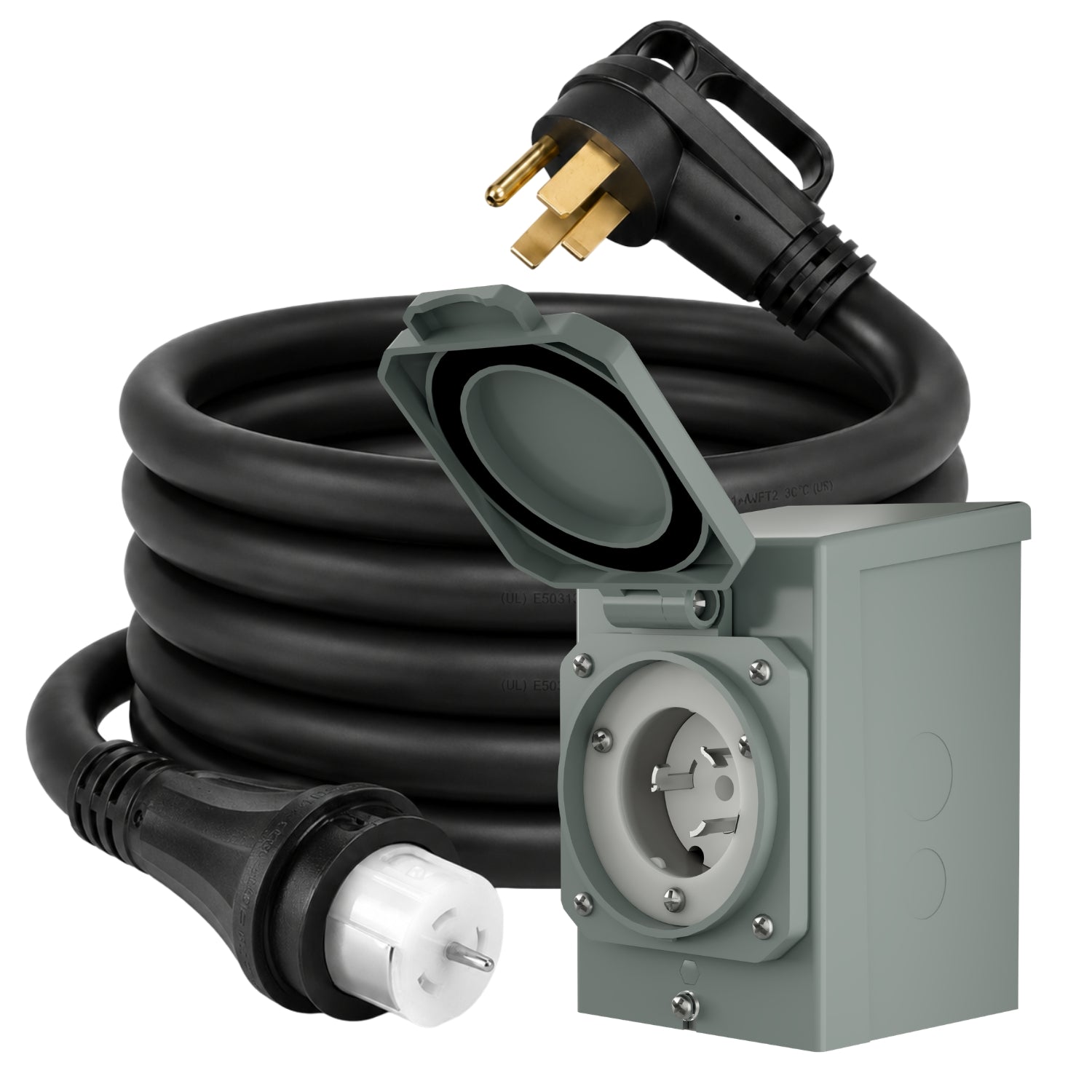

Nature's Generator 50A Power Inlet Box
Nature's Generator 50A Power Inlet Box
SKU:NGNLT2450
• 50 Amp Power Inlet: Provides a safe, seamless connection between your generator cord and a manual or automatic transfer switch or electrical panel.

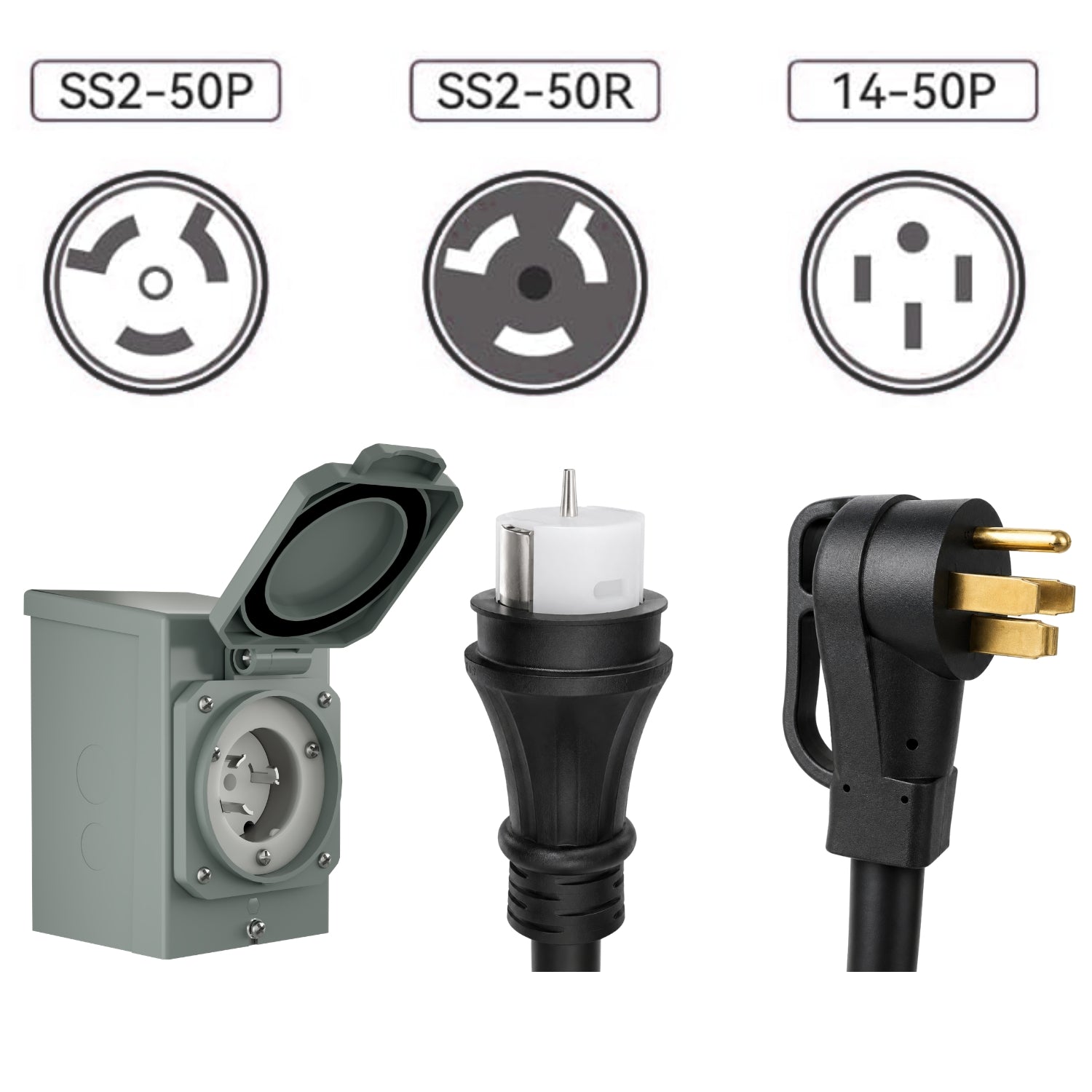

• CS6375 Inlet Connector: Compatible with SS-50P twist-lock plugs for reliable and versatile generator connections.
• High-Capacity Rating: Supports up to 50 A at 125/250 V AC for dependable performance with heavy electrical loads.
• 12,500 W Maximum Load: Engineered to power high-demand appliances and essential home circuits.
• Durable Construction: Heavy-duty, weather-resistant housing built for long-term outdoor use.
• Outdoor-Ready Design: Weatherproof enclosure helps protect internal components from rain, dust, and harsh conditions.
• Easy Installation: Designed for quick and straightforward setup with backup power systems.
• Meets UL Standard: Certified to UL 498 and CSA C22.2 No. 42-10 safety standards. Here is certificate
• Installation Made Easy: Learn how to install with our step-by-step video guide or user guide.
Compatibility Chart
| Model | Compatible | Notes |
|---|---|---|
| Mygrid 10,000W | ✔ | Full support |
| Lithium 6000W | ✔ | Need combiner |
Couldn't load pickup availability
You may also like
Innovative renewable solutions for a sustainable tomorrow.
Join us in building a greener world.
Weather-Resistant Durability
Designed with water-resistant and dust-resistant protection to help safeguard the power inlet box from harsh outdoor conditions and everyday exposure.
Waterproof
Built with a weather-resistant enclosure that helps protect the power inlet from rain, moisture, and outdoor elements for dependable performance.
Dustproof
Designed to keep dust, dirt, and debris out of the enclosure, helping maintain reliable electrical connections and extending product durability.
Designed for Safe, Simple & Reliable Performance
Explore the essential specifications, user-friendly installation, and built-in safety features designed to deliver dependable performance and peace of mind.

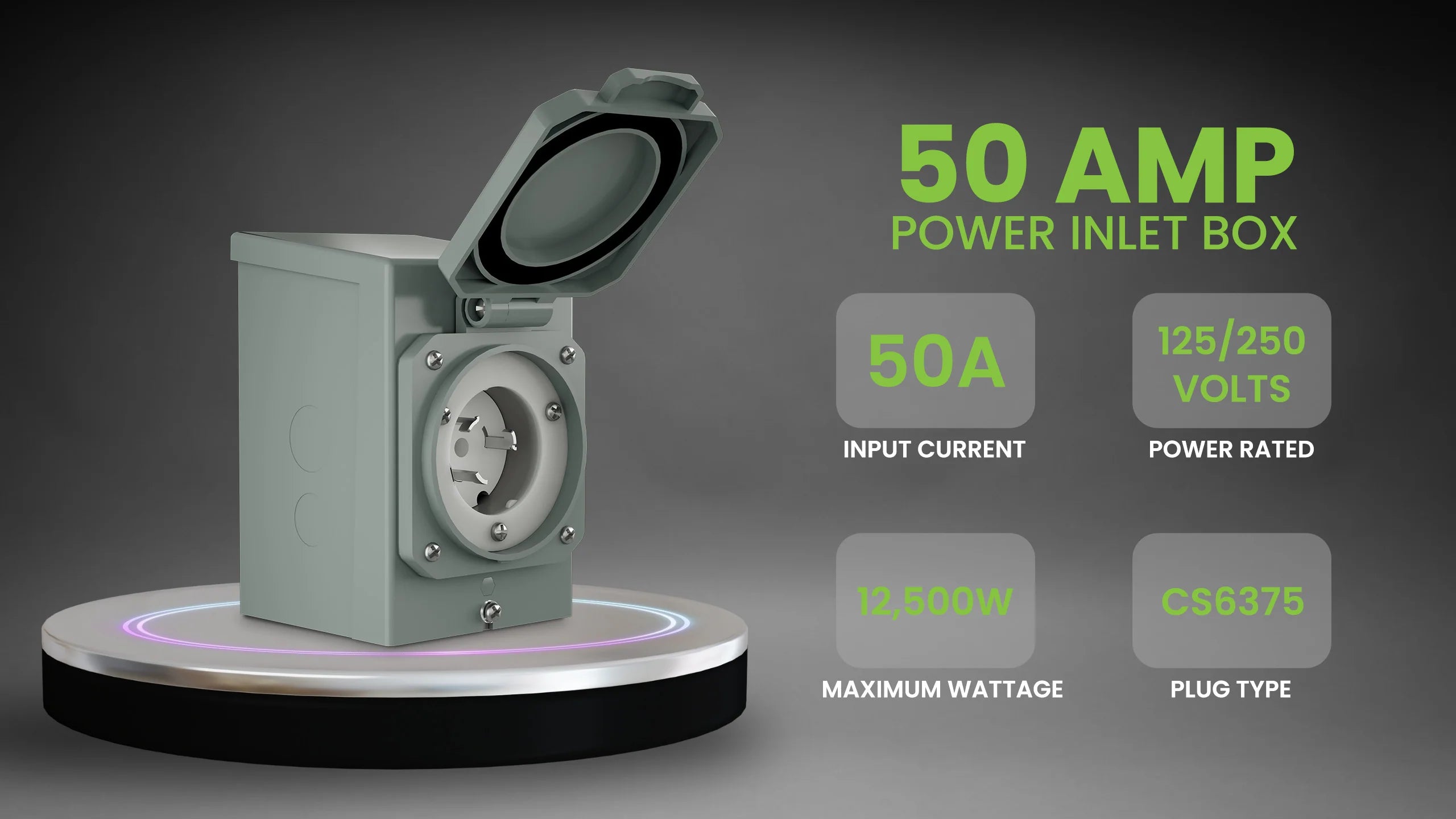

50A Inlet Box Quick Spec

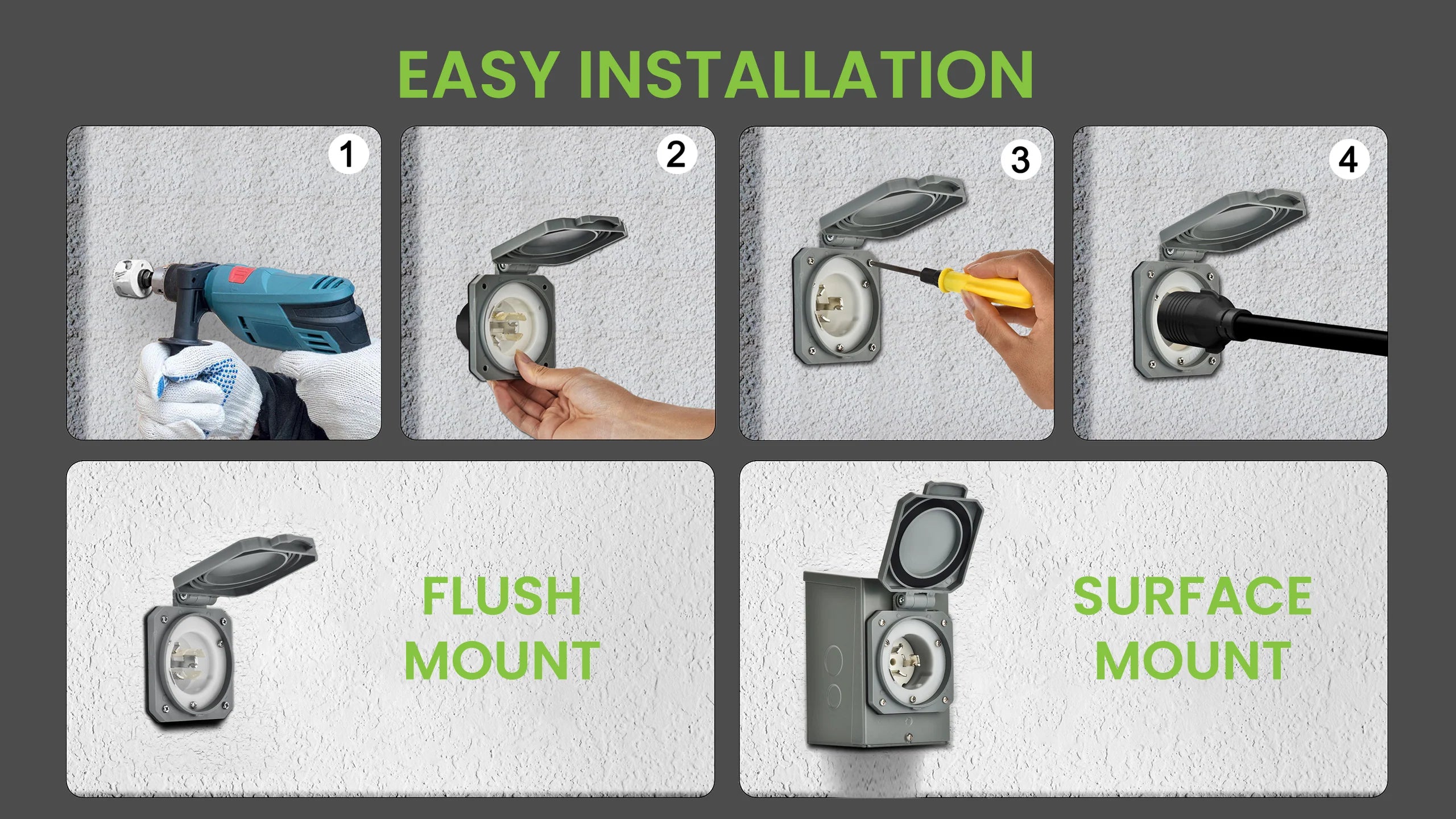

Easy Installation
Safety Features

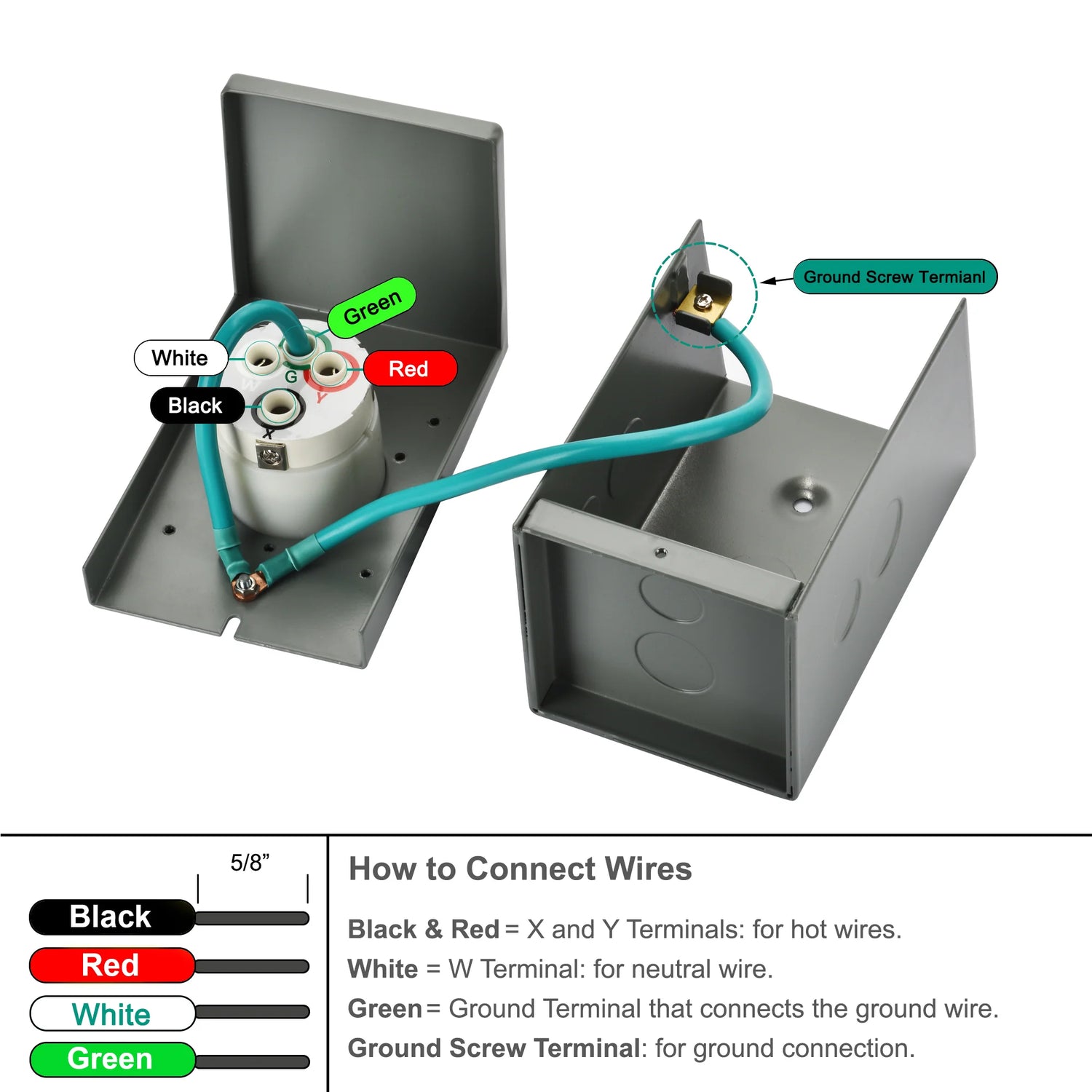

Wiring Instructions
A clear overview of the wire connections to help ensure a safe, accurate, and hassle-free installation.
Tech Specs
Everything you need to know about 50A inlet box technical specifications, performance, and ratings.
Specification
Input Current
50A
Rated Power
125V/250V
Plug Type
CS6375
Maximum Wattage
12,500W
Dimension and Weight
Dim in inches
6.5" x 3.8" x 4.9"
Dim in mm
165 x 97 x124
Weight
2.97lbs (1.35kg)
User Guide
Questions & Answers
Have a Question?
-
what are the dimensions?
Hi Ken,
Thank you for reaching out! The dimension of the outside diameter of the 50A inlet is provided below. If you have any follow-up questions, you may reach our support directly via (800) 975-7909, or email us at support@naturesgenerator.com. We'll be more than happy to assist you!
Dimensions:
161 mm in height
113mm in depth
97 in width
Regards,
Nature's Generator Support Team -
Would this work with a 14-50r
Hi Sam,
Thank you for reaching out! The inlet that the 50A power inlet box use is a CS6375 inlet. You might need to use an adapter to make it compatible with your 14-50r or consult to your electrician to check the best option for your needs. If you have any follow-up questions, you may reach our support directly via (800) 975-7909, or email us at support@naturesgenerator.com. We'll be more than happy to assist you!Regards,
Nature's Generator Support Team
