Features
Discover the key capabilities that make the Lithium 3600 a dependable backup and off-grid power solution.
Robust Energy Solution
Delivers 3600W of reliable power for home backup, RVs, off-grid setups, and outdoor use.
Advanced LiFePO4 Battery Chemistry
Its 3072Wh LiFePO4 battery provides a longer lifespan, improved safety, and stable high-power performance.
Expandable Design
Easily expand with Power Pods for more capacity or solar panels for more charging power.
Built for Mobility
A durable, easy-to-move design ensures you can bring dependable power wherever you need it.
Reliable Home Energy, All Day Long
Engineered for whole-home backup, giving you steady, reliable backup when you need it most.
Kitchen
Living Room
Outdoor Adventures
Get Your Estimated Runtime
Input power cannot exceed 3600W. Runtime shown below is based on the selected option.
Solar Panel Compatibility Check – Base Product Only
Charge Your Way, Anywhere
Choose your charging source and keep going.
Solar Charging: 2400W
AC Charging: 600W or 1800W
Wind Charger: 150W (shared port)
Control Panel Overview
Easily access all power options through the intuitive control panel featuring clearly labeled ports, outlets, and buttons for seamless operation.
Tech Specs
Find all the essential technical details of the Lithium 3600, including power output, capacity, and system specifications.
Inverter
Output Continuous Power
3600W
Output Peak Power
7200W
Output Voltage
120V Single Phase
Output Frequency
60Hz
Waveform
Pure Sine Wave
Auto Switch Mode
<10ms
Battery
Capacity
51.2V 60Ah (3072Wh)
Expandable Capacity
18,432Wh(w/ 5x Power Pod)
Cell Chemistry
Lithium Iron Phosphate (LiFePO4)
Self-discharge:
Recommend to recharge every 6 months
Life Cycles
>70% after 3000 Cycles
Charges
Solar Charger
2400W
Wind Charger
150W (shared port)
AC Charger
600W, 1800W
Charge mode:
MPPT
Ports
AC Outlet
4x NEMA 5-20R Outlet
1x TT-30R Outlet
USB Port
2x USB-A Ports - 5V 2.4A 12W per port
2x USB-A Fast Charge Ports - 20V 3A 60W per port
2x USB-C Ports - 20V 5A 100W per port
DC Port
1x 12V DC Socket - 12V 10A 120W
1x 12V DC Barrel - 12V 10A 120W
1 x Built-in Expansion Port
General
Weight
97 lbs (44 kg)
Operating temperature
68 – 86°F (20 – 30°C)
Storage Temperature
14 – 113°F (-10 – 45°C)
Discharging Temperature
14 – 113°F (-10 – 45°C)
Dimensions
18.5 x 14.0 x 17.6 inches (469*356*446mm)
Warranty
1-Year Limited Warranty
Certification
Battery
Capacity
51.2V 60Ah (3072Wh)
Cell Chemistry
Lithium Iron Phosphate (LiFePO4)
Self-discharge:
Recommend to recharge every 6 months
Life Cycles
> 3000 cycles
Charges
Solar Charger
1000W
Wind Charger
150W (shared port)
Charge mode
MPPT
Battery Level LED light
5 LED Lights
General
Weight
84 lbs (38 kg)
Operating temperature
68 – 86°F (20 – 30°C)
Storage Temperature
14 – 113°F (-10 – 45°C)
Discharging Temperature
14 – 113°F (-10 – 45°C)
Dimensions
18.5 x 14.0 x 17.6 inches (469*356*446mm)

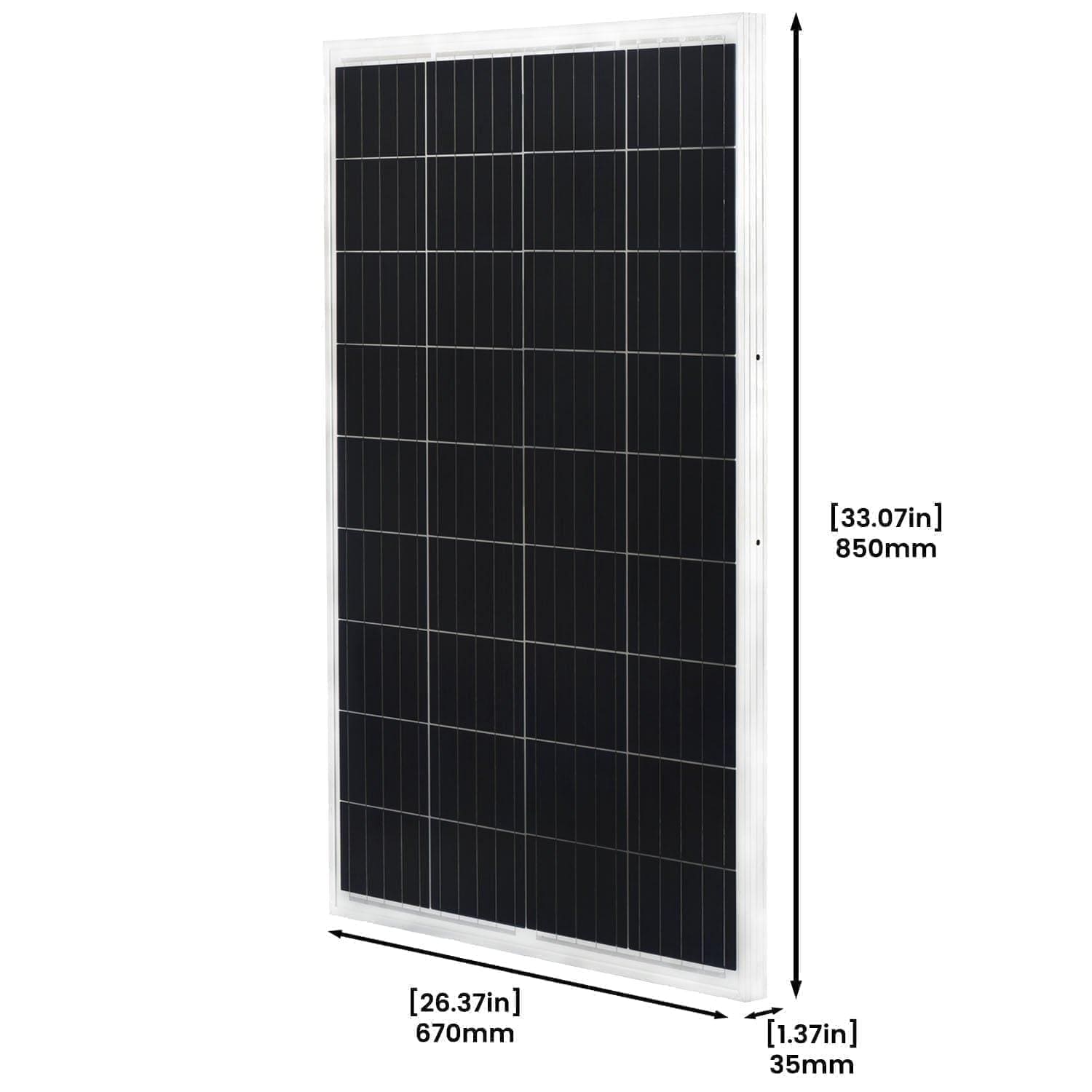

Power Rating
Max. Power Output Pmax (@STC)
100W
Open Circuit Voltage
21.7V
Short Circuit Current
6.03A
Max. Power Voltage
18.6V
Max. Power Current
5.38A
Max. Fuse
10A
Dimensions & Weight
Dimensions
33.1 x 26.4 x 1.4 inch (840 x 670 x 35 mm)
Weight
Solar Panel: 13.7 lbs (6.2 kg)
Panel Stand: 2.6 lbs (1.2 kg)
General
Silicon Material
Mono crystalline
Connector
MC4
Cable Length
3 feet (90 cm)
Cable Size
12 AWG (4mm²)
Waterproof Level
IP65
Operating Temperature
-4°F to +60 °F (-20°C to +60°C)
Power Rating
Max. Power Output Pmax (@STC)
200W
Open Circuit Voltage
20.4V
Short Circuit Current
12.3A
Max. Power Voltage
17.1V
Max. Power Current
11.7A
Max. Fuse
20A
Dimension & Weight
Folded
24*23*3.4inch (600*588*85mm)
Unfolded
88*23*1.4inch (2233*588*35mm)
Weight
13.2Ib (6.0Kg)
General
Silicon Material
Mono crystalline
Connector
MC4
Cable Length
4 ft 11 in (150 cm)
Cable Size
12 AWG
Waterproof Level
IP67
Operating Temperature
-4°F to +60 °F (-20°C to +60°C)
Power Rating
Max. Power Output Pmax (@STC)
400W
Open Circuit Voltage
39.77V
Short Circuit Current
12.21A
Max. Power Voltage
34.41V
Max. Power Current
11.62A
Max. Fuse
20A
Dimension & Weight
Folded
38.3*24*3.4inch (972*605*85mm)
Unfolded
97*38.3*1.4inch (2462*972*35mm)
Weight
17Ib (7.8kg)
General
Silicon Material
Mono crystalline
Connector
MC4
Cable Length
4 ft 11 in (150 cm)
Cable Size
12 AWG
Waterproof Level
IP67
Operating Temperature
-4°F to +60 °F (-20°C to +60°C)

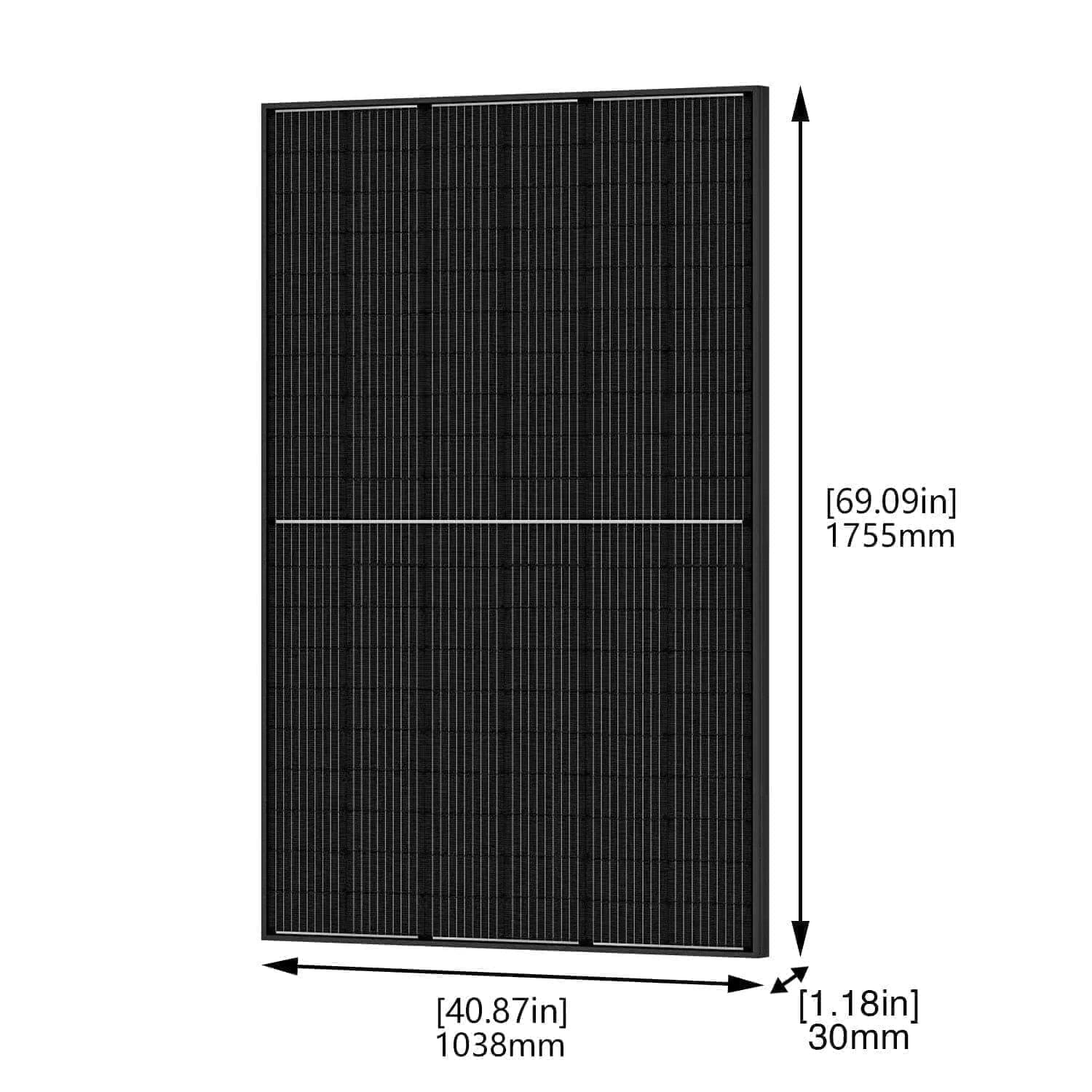

Power Rating
Maximum Power (Pmax)
440W
Maximum Power Voltage (Vmp)
32.30
Maximum Power Current (Imp)
13.63
Open-circuit Voltage (Voc)
38.80
Short-circuit Current (Isc)
14.39
Module Efficiency STC (%)
22.53%
Dimensions & Characteristics
1722*1134*30mm(67.8*44.6*1.2 inch)
Cell Type
N-Type TOPCon 182×91mm
No.of Half-cells
108 (6×18)
Frame
Anodized Aluminum Alloy - All Black
Weight
24.5 kg (54 lbs)
Glass
2.0 mm+2.0mm, High Transmission, AR Coated Heat Strengthened Glass
Operation Temperature
-40℃~+85℃ (-40°F ~+185°F )
Junction Box
IP68 Rated, connector compatible with MC4
Output Cables
4 mm² ,350mm (With Connectors)
What's In The Box?
Lithium 3600 Power Station
L3600 Power Station User Guide
L3600 Power Pod User Guide
100W Rigid Panel User Guide
200W Folding Panel User Guide
400W Folding Panel User Guide
U.S. & Canada Safety Certified ANSI/CAN/UL 2743
