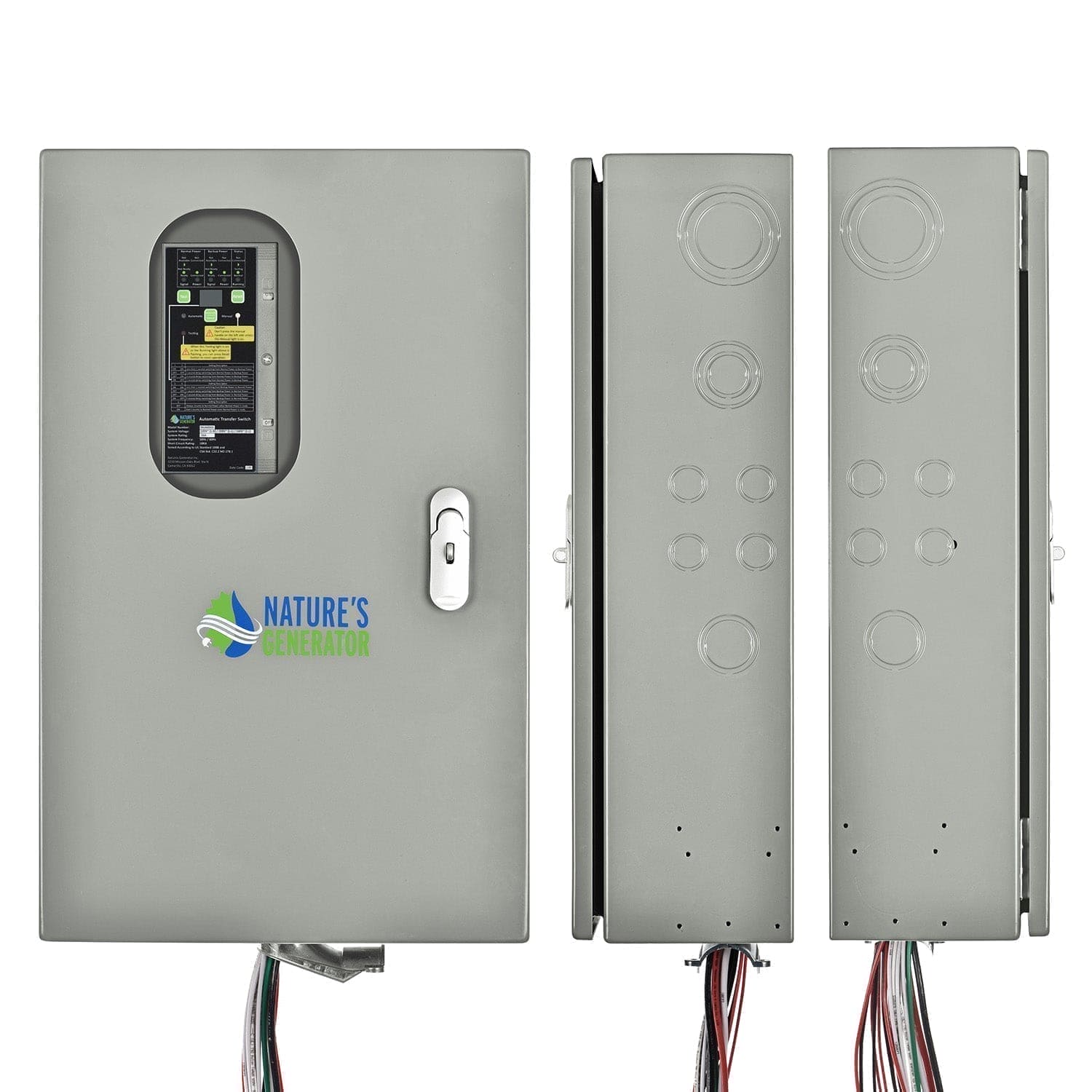

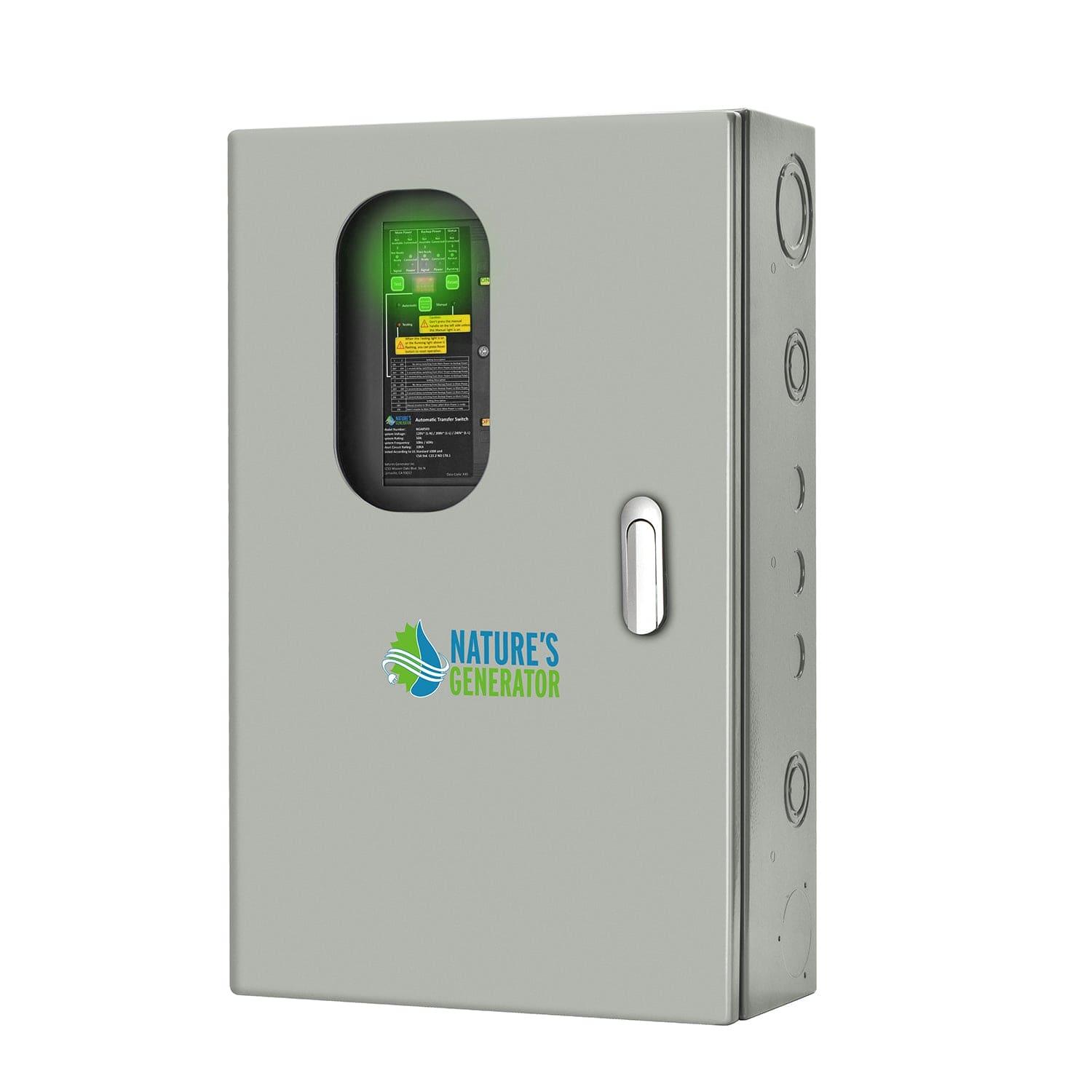

30A Automatic Generator Transfer Switch
30A Automatic Generator Transfer Switch
SKU:NGA03030816N
• Reliable Automatic Power Switching: Seamlessly transfers selected circuits from utility power to backup power during an outage—no manual intervention required.

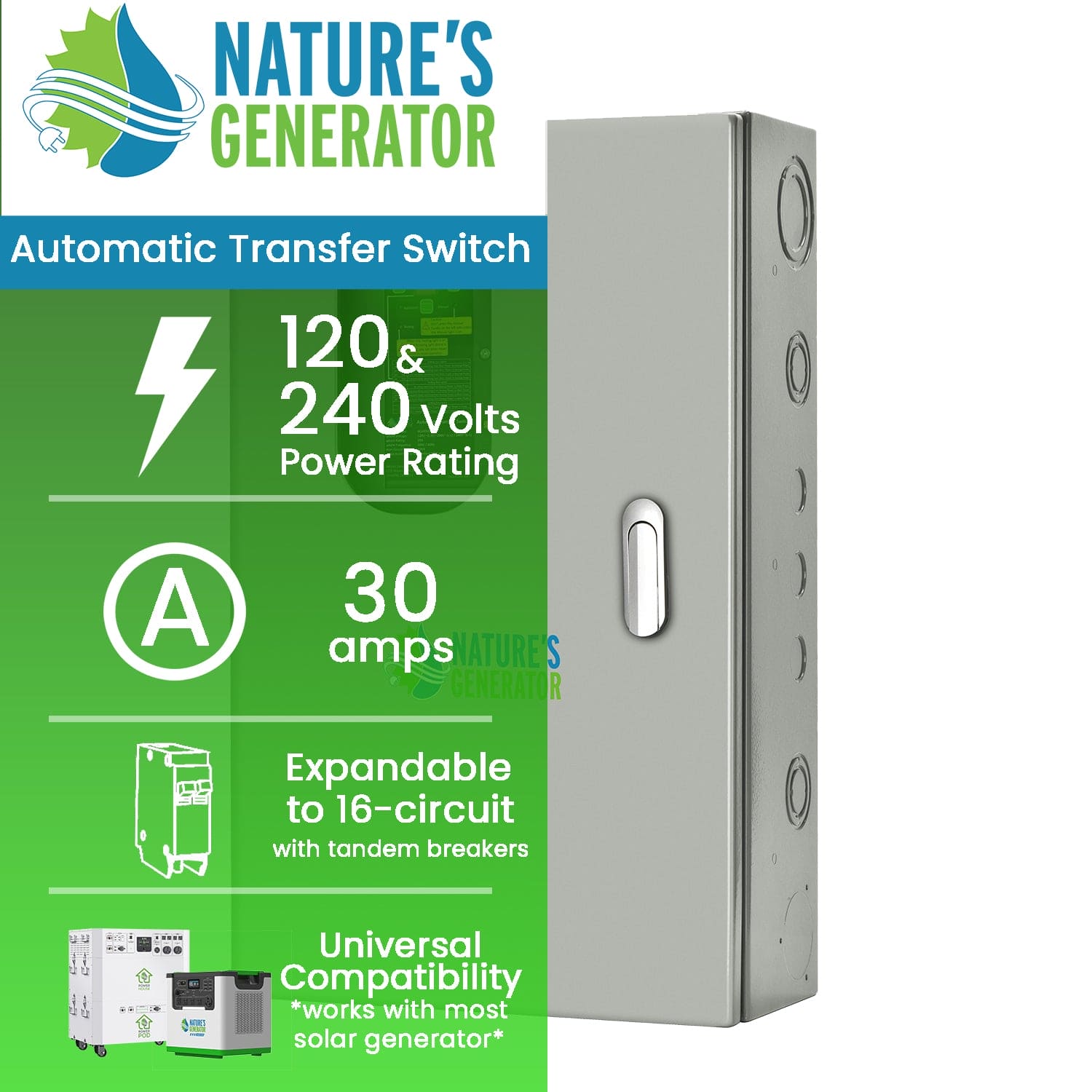

• 50A Bus Bar with 30A Backup Support: Built with a 50A-rated bus bar for full-capacity handling of normal utility power, while safely limiting backup power to 30A. Compatible with most solar generators, battery backup systems, and gas generators. Supports 120V, 120/240V, and 120/208V systems, and is fully compatible with AFCI and GFCI breakers.
• Essential Circuit Coverage: Manages up to 16 circuits, allowing essential appliances and systems to stay powered during outages.
• Durable, Heavy-Duty Enclosure: Built with a rugged enclosure designed for dependable performance and long-term reliability in demanding installation environments.
• Complete Connection & Control System: Includes a L14-30P 30A inlet and 30A power cord, plus a centralized control console for system monitoring, testing, and manual power source override.
• Certified for Safety & Code Compliance: Meets rigorous safety and performance standards including UL 1008 and CAN/CSA C22.2 No. 178.1, with documentation showing compliance under ISO/IEC Guide 17067.
30A Automatic Transfer Switch Flush Mount
Couldn't load pickup availability
You may also like
Innovative renewable solutions for a sustainable tomorrow.
Join us in building a greener world.

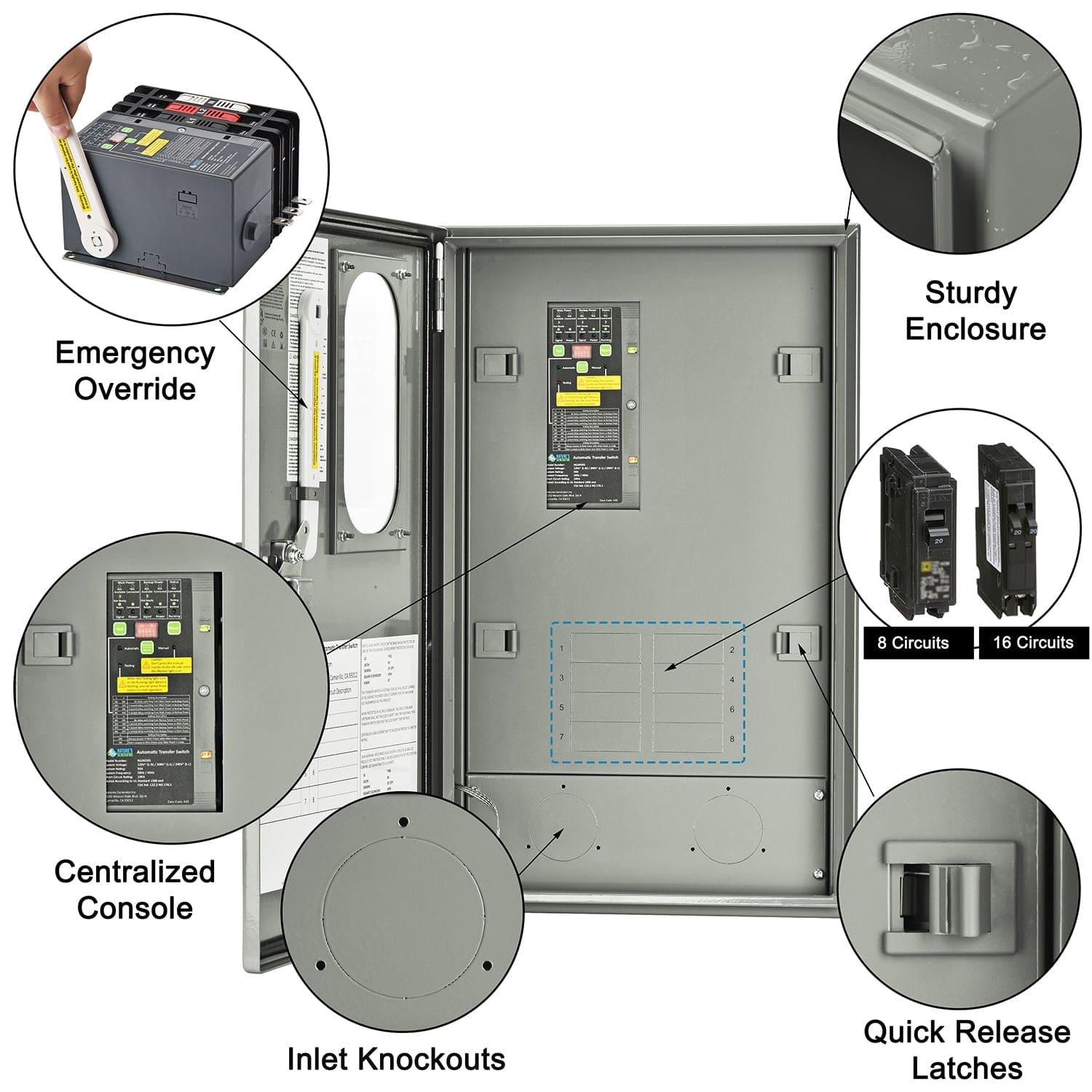

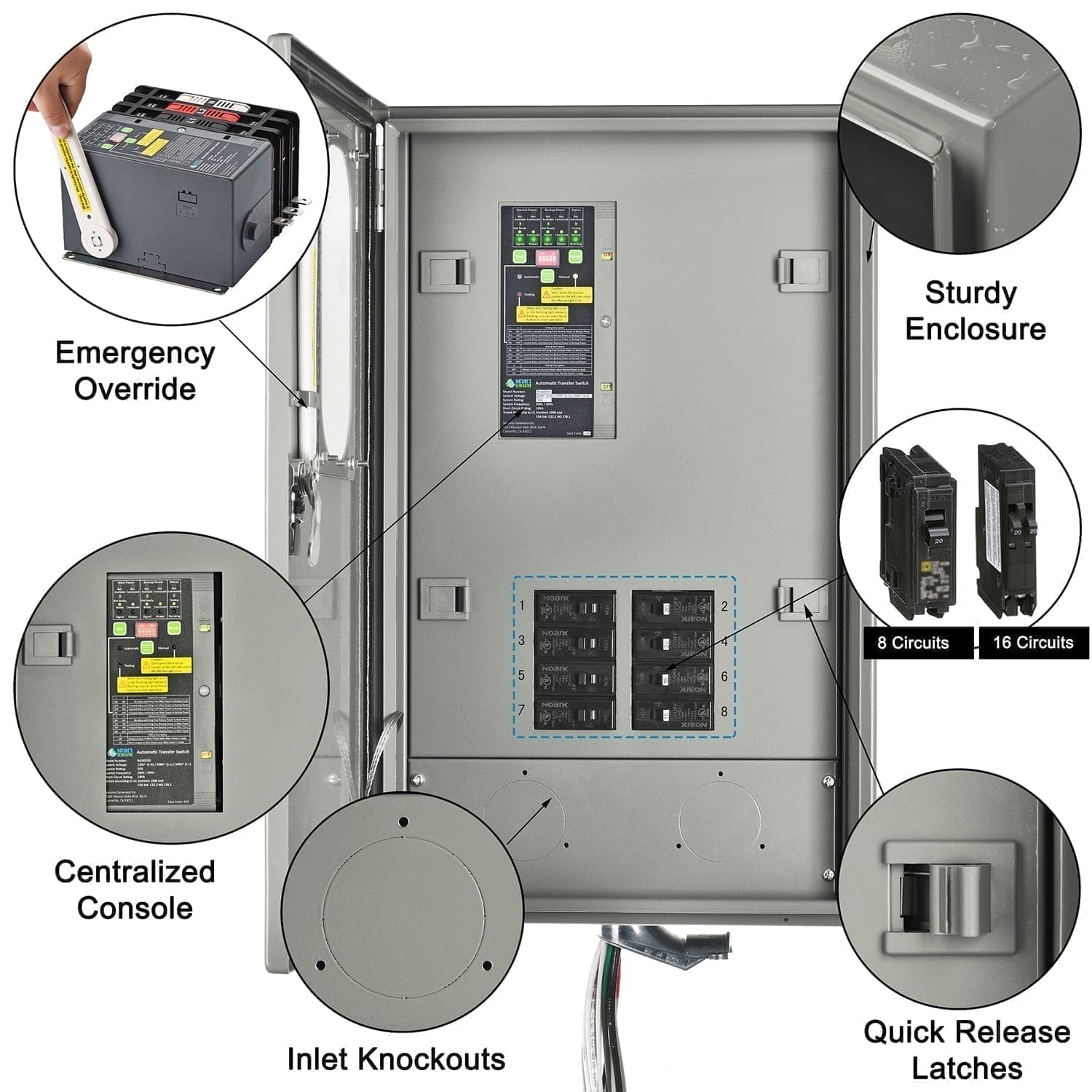

Features
Explore the built-in capabilities designed to deliver safe, reliable, and seamless power switching for home and backup systems.
Manual Override
Allows you to safely switch power sources manually when automatic operation is not preferred or unavailable.
Centralized Console
Provides a single, easy-to-access control point for monitoring and managing your home’s power flow.
NEMA 3R Enclosure
Built for indoor or outdoor installation, offering protection against rain, dust, and harsh weather conditions.
Supports Up to 16 Circuits with Tandem Breakers
Designed to manage a large number of household circuits, giving you flexible and organized power distribution.
ATS Model Comparison: Find Your Perfect Match
Find the perfect ATS solution for your needs. Compare features and specifications to make a confident, informed decision.
ATS Specifications
Generator Matching
Compatible Accessories

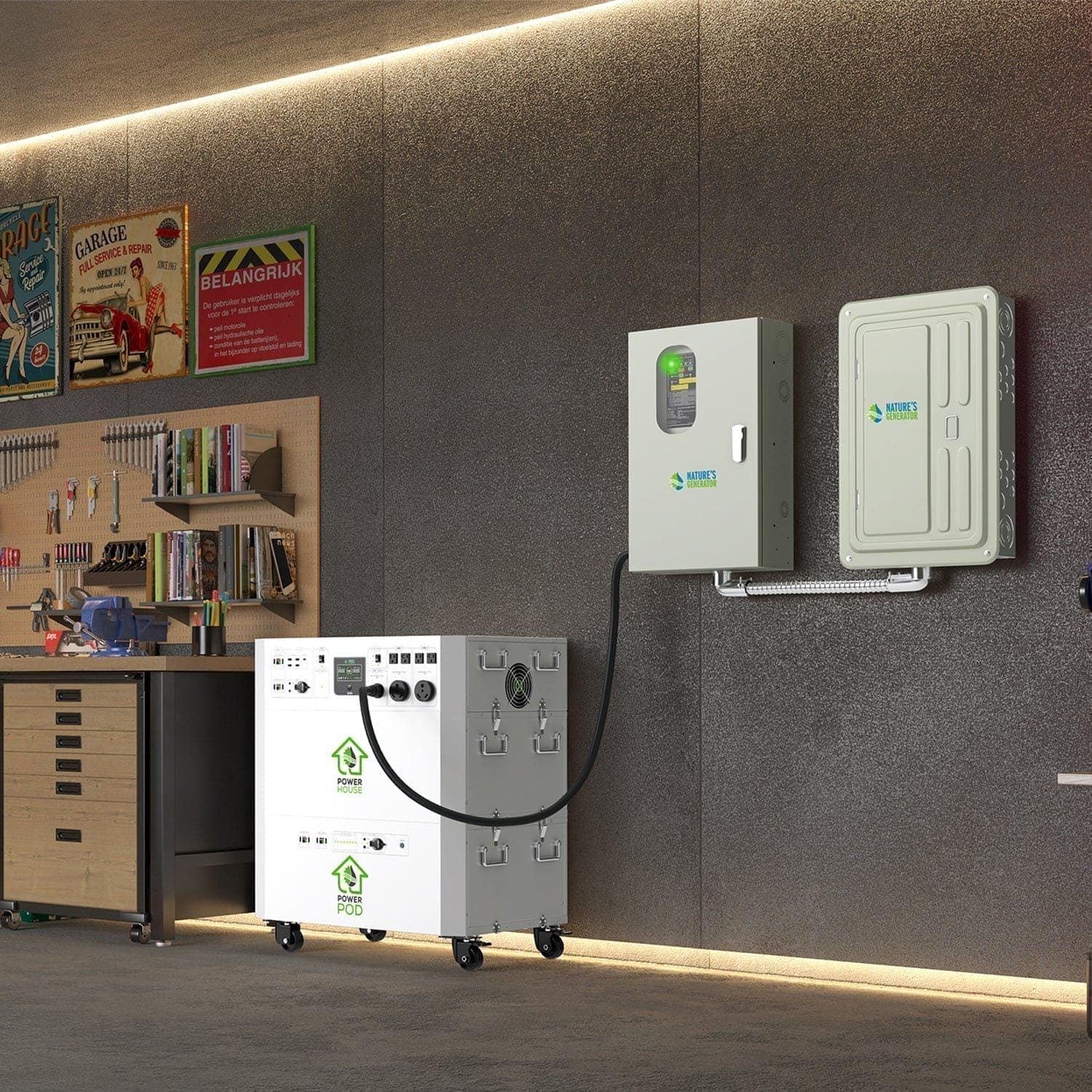

Easy to Install. Flexible to Use. Ready for Whole-Home Power.
Designed for quick setup, flexible system compatibility, and reliable power management to support whole-home backup needs.
Built for Whole-Home Backup
Versatile Applications
Easy Installation
Built for Whole-Home Backup
Versatile Applications
Easy Installation
30A Automatic Transfer Switch
Built for scalable home power, offering flexible circuit expansion and clean, organized control.
Tech Specs
Find all the essential technical details of your automatic transfer switch, including amperage, voltage compatibility, and installation features.
Specification
Power Rating
30A
System Voltage
120 V~ (L-N) / 208V~ (L-L) / 240V~ (L-L)
Number of Spaces
8 spaces
Number of Circuits
Expandable to 16 circuits with tandem breakers

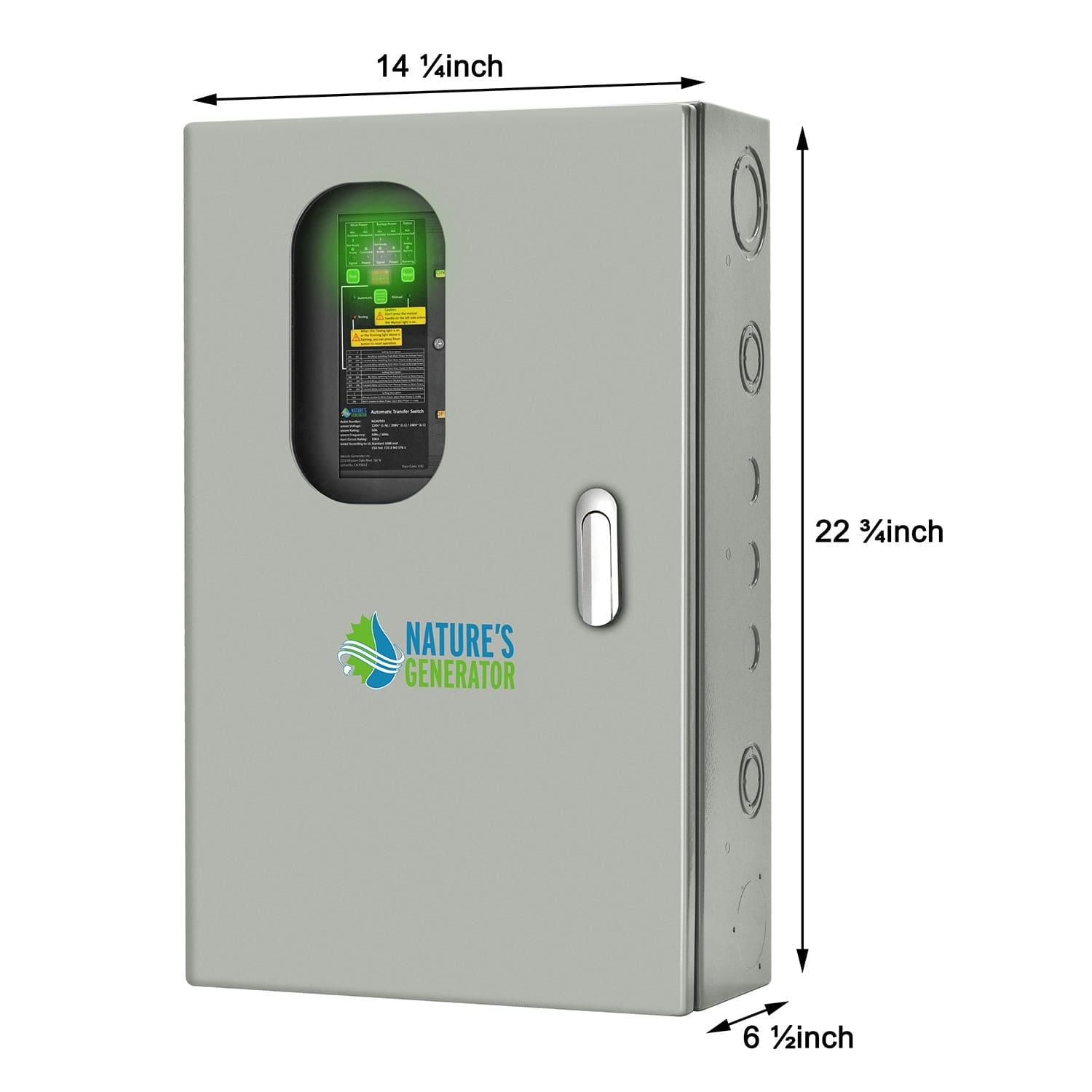

Dimension and Weight
600*360*160mm
(22 3/4*14 1/4*6 1/2 inches)
48 lbs(21.6 kg)
Certification*

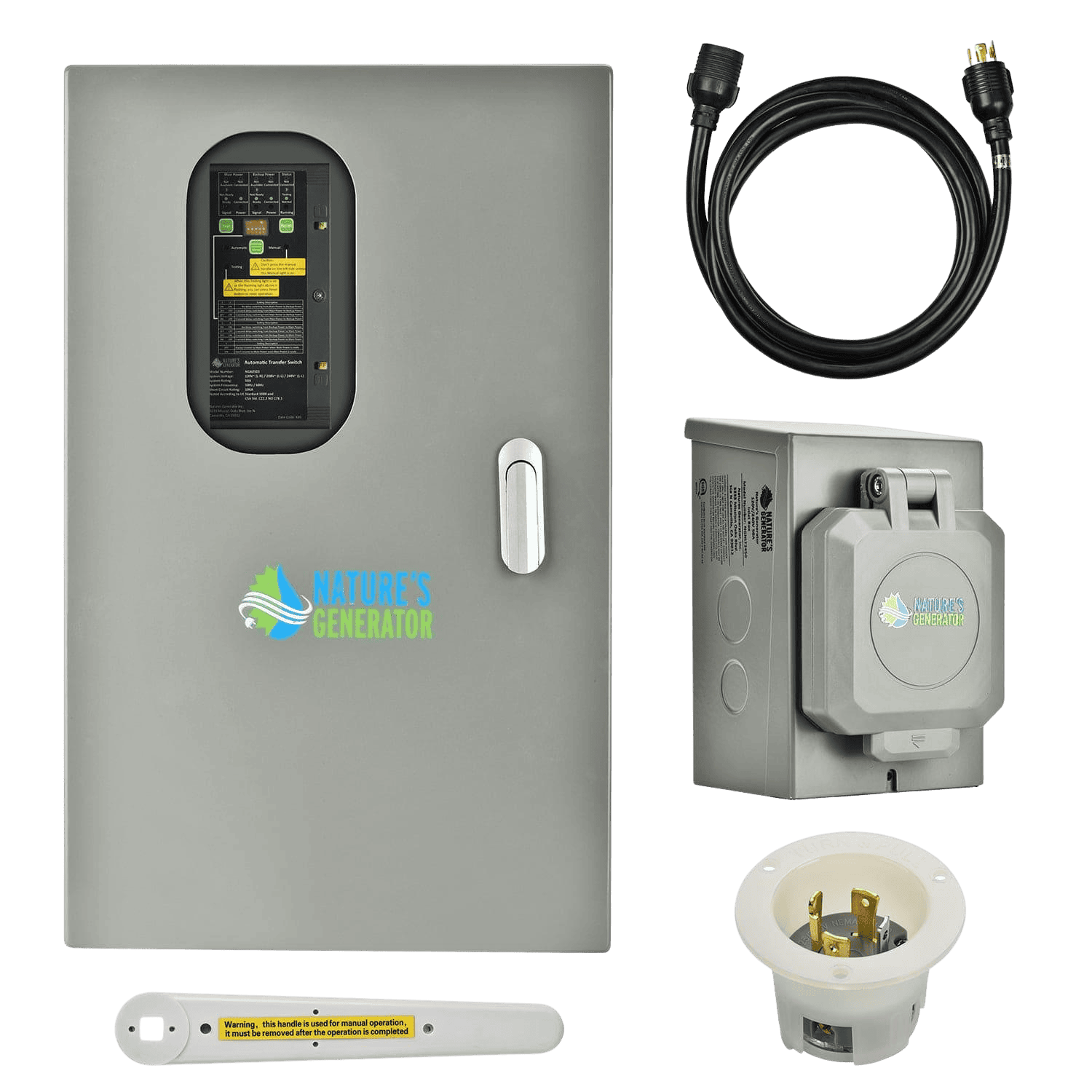

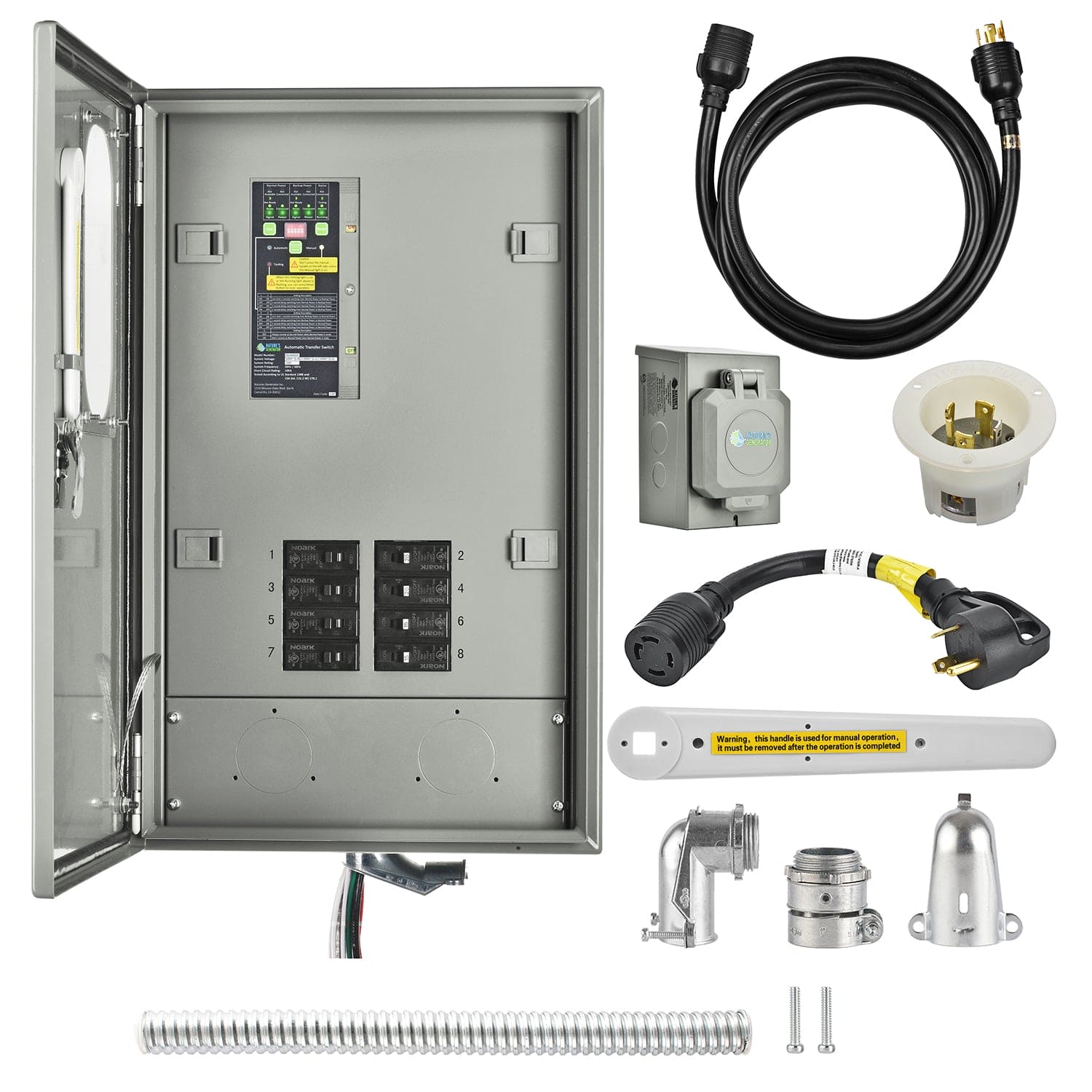

What's In The Box?
30A Automatic Transfer Switch
1* 30A Automatic Transfer Switch
1* Manual Override Handle
1* 30A Power Inlet Box
1* Power Cord
1* User Manual

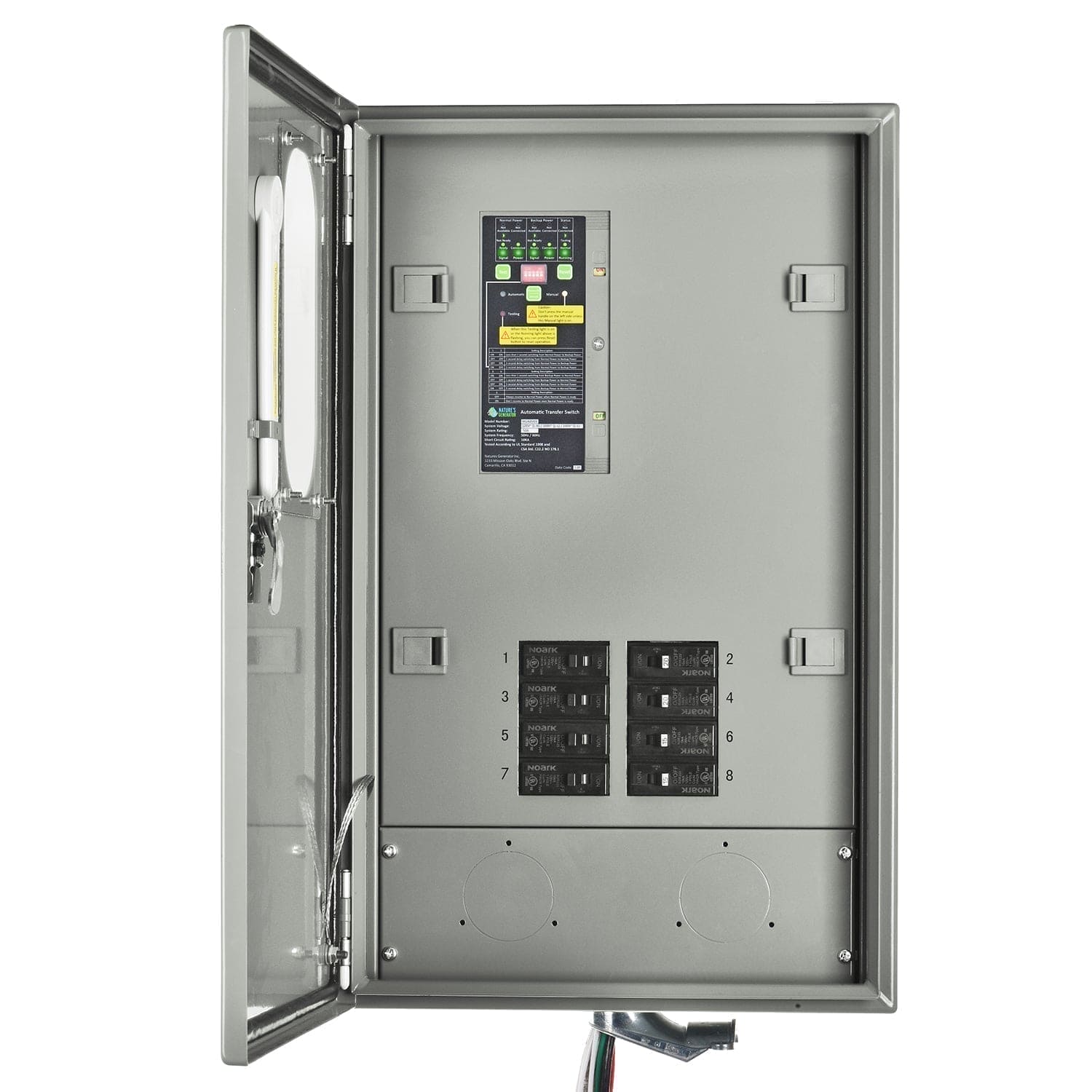

1* Pre-wired 30A Automatic Transfer Switch
1* Manual Override Handle
1* 30A Power Inlet Box
1* Power Cord
1* User Manual
