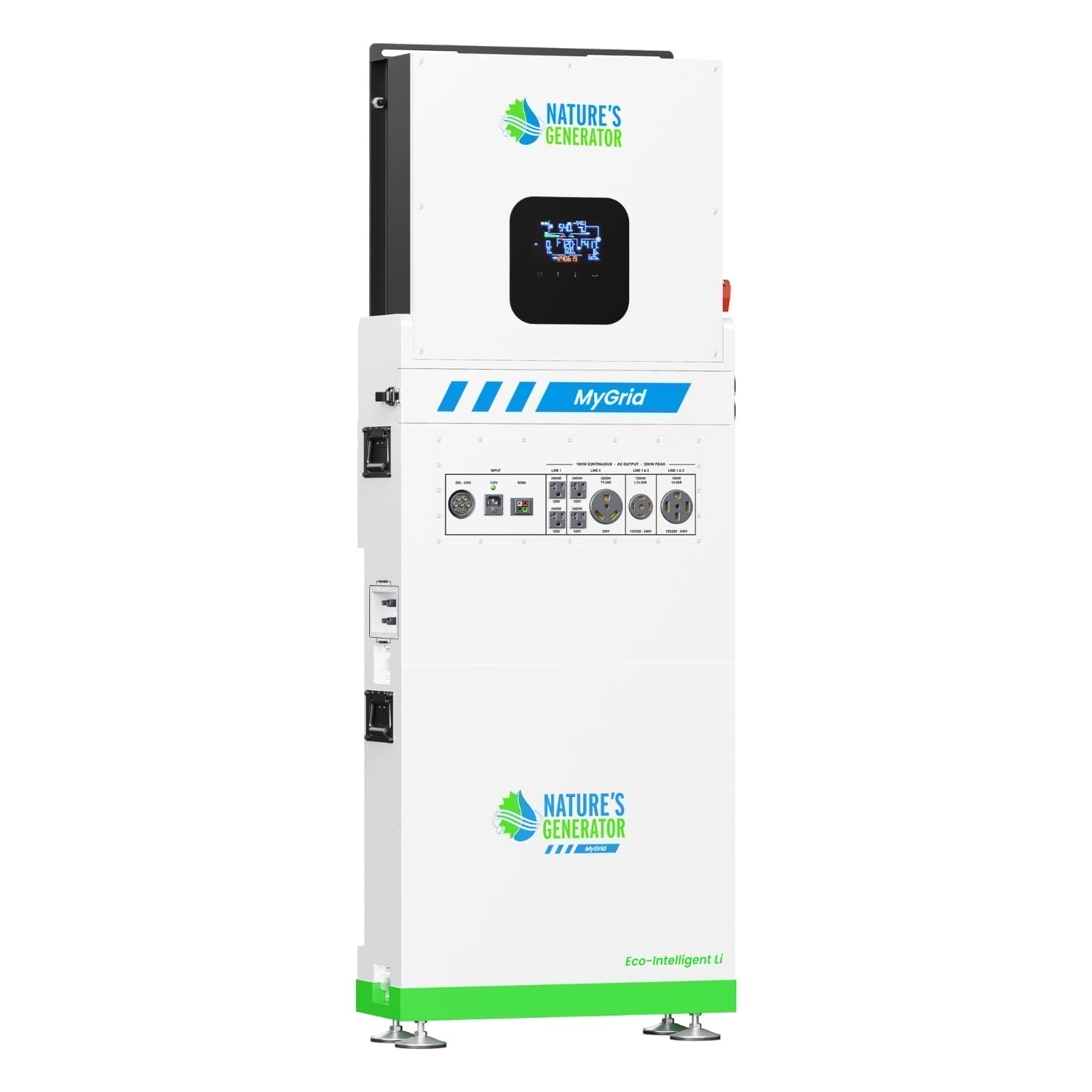

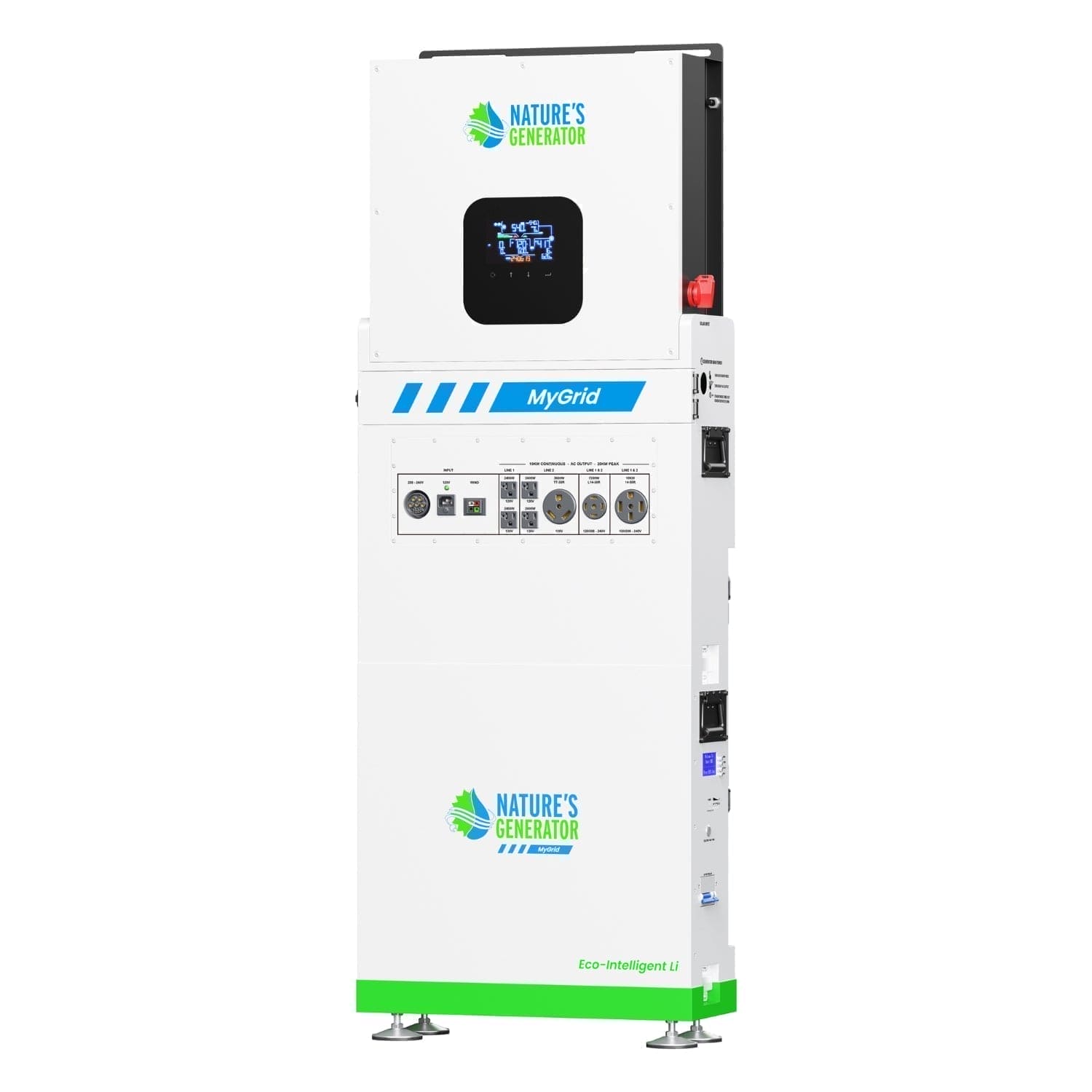

MyGrid 10K Solar and Wind Generator for Home
MyGrid 10K Solar and Wind Generator for Home
You Save Extra 5% when you apply the coupon above.

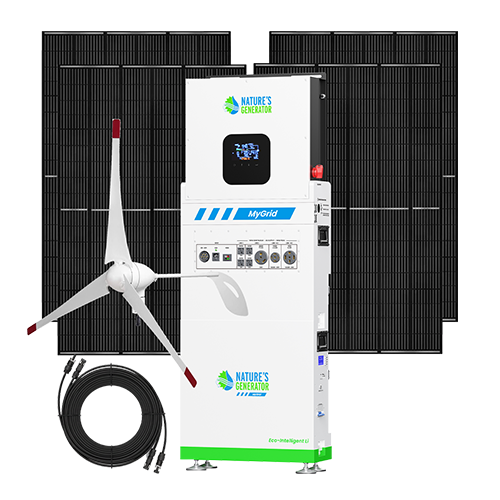

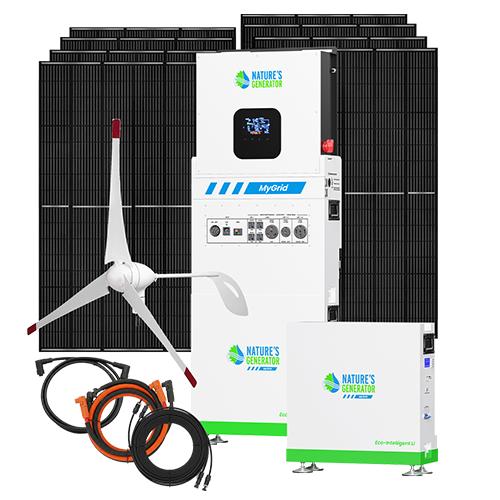

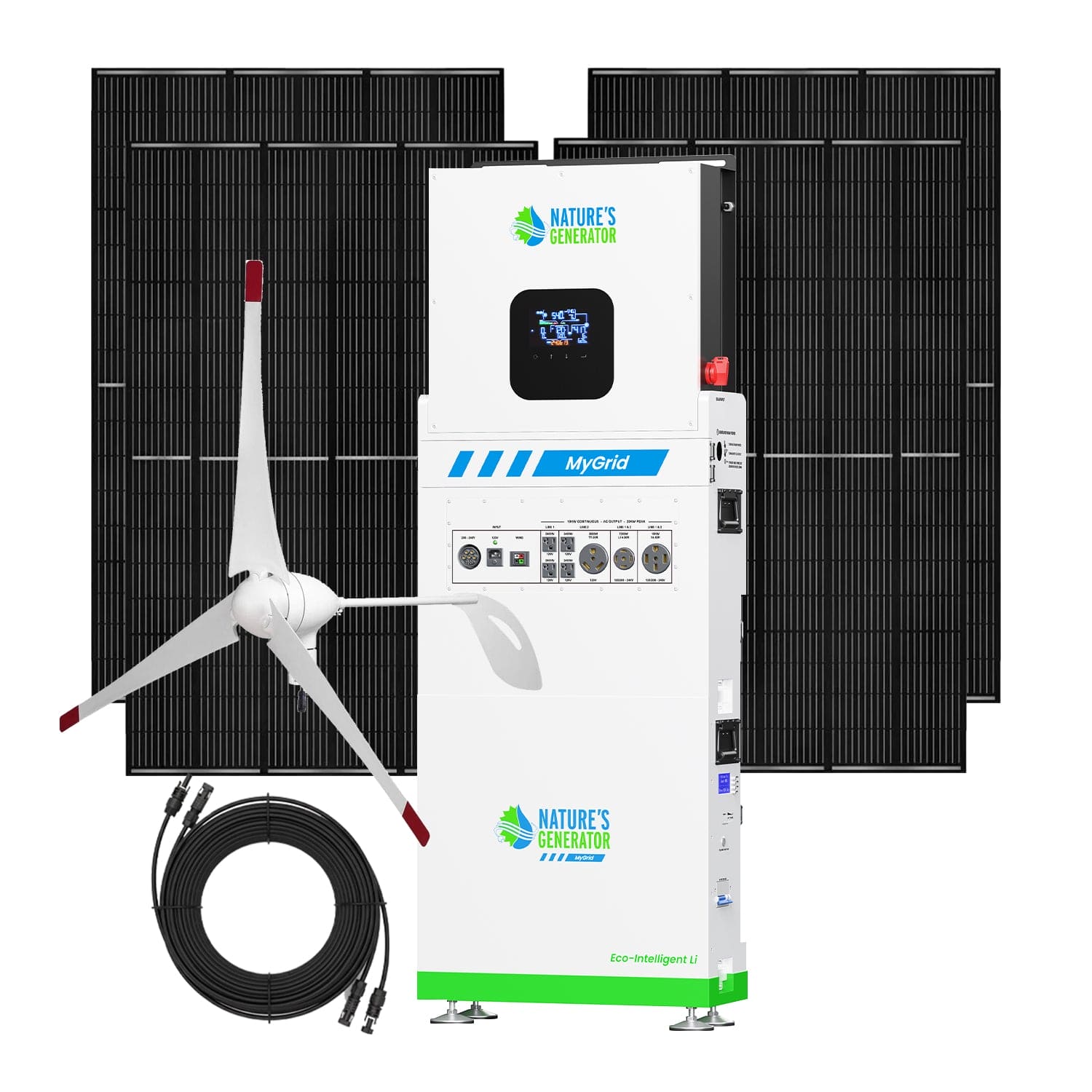

• Complete Solar + Wind Power Bundle: Comes ready with MyGrid 10K whole‑home generator plus solar panels and a 350 W wind turbine, giving you dual renewable charging sources right out of the box. Wind turbine offers supplemental charging during cloudy days or at night.

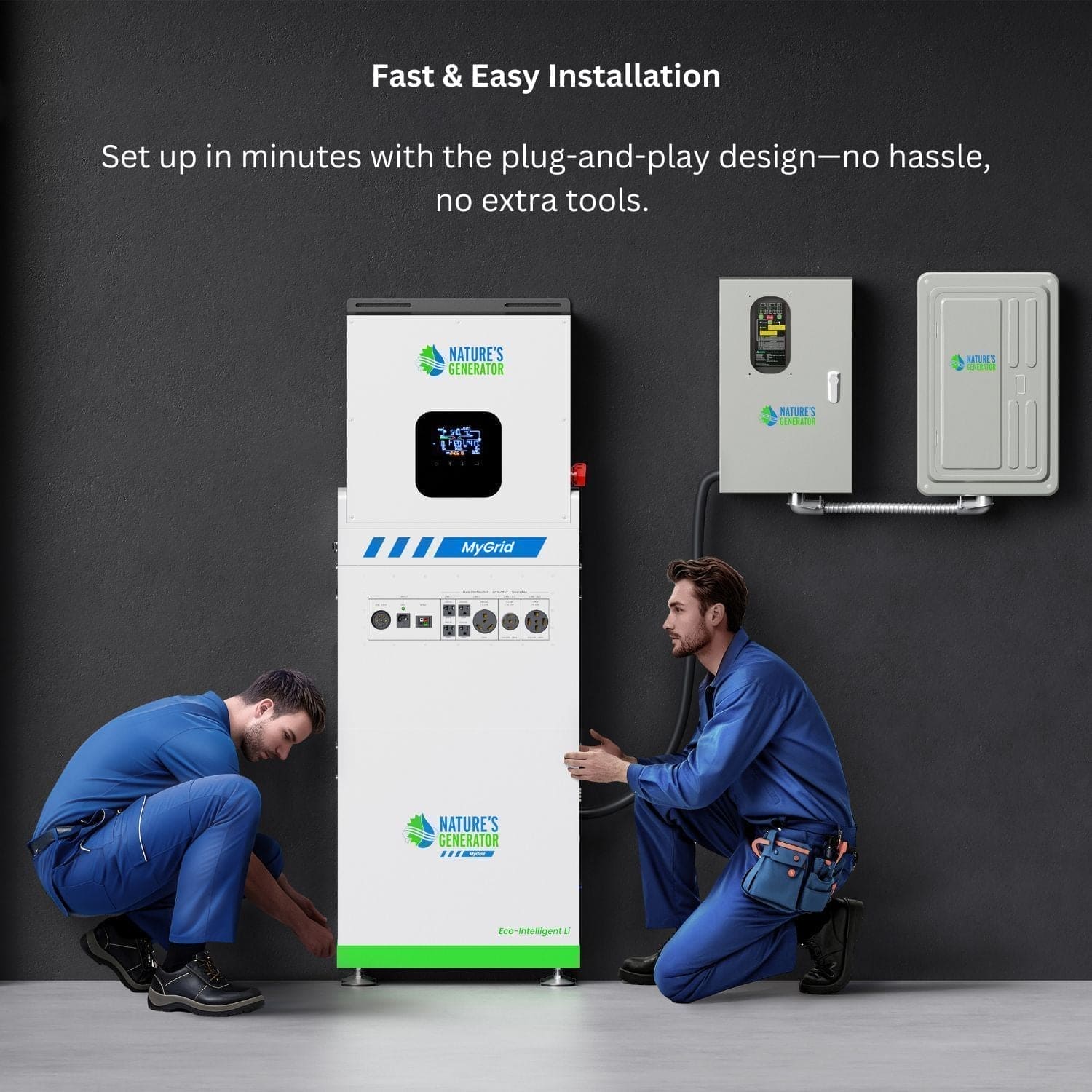

• Fast & Easy Installation: Plug-and-play design ensures quick setup, lower installation cost and hassle-free relocation, providing flexibility for homeowners and renters.
• Reliable Whole-Home Performance: 10,000 W continuous output with a 10,496 Wh LiFePO₄ battery, dependable whole-home power for outages or off grid use or uninterrupted power supply.

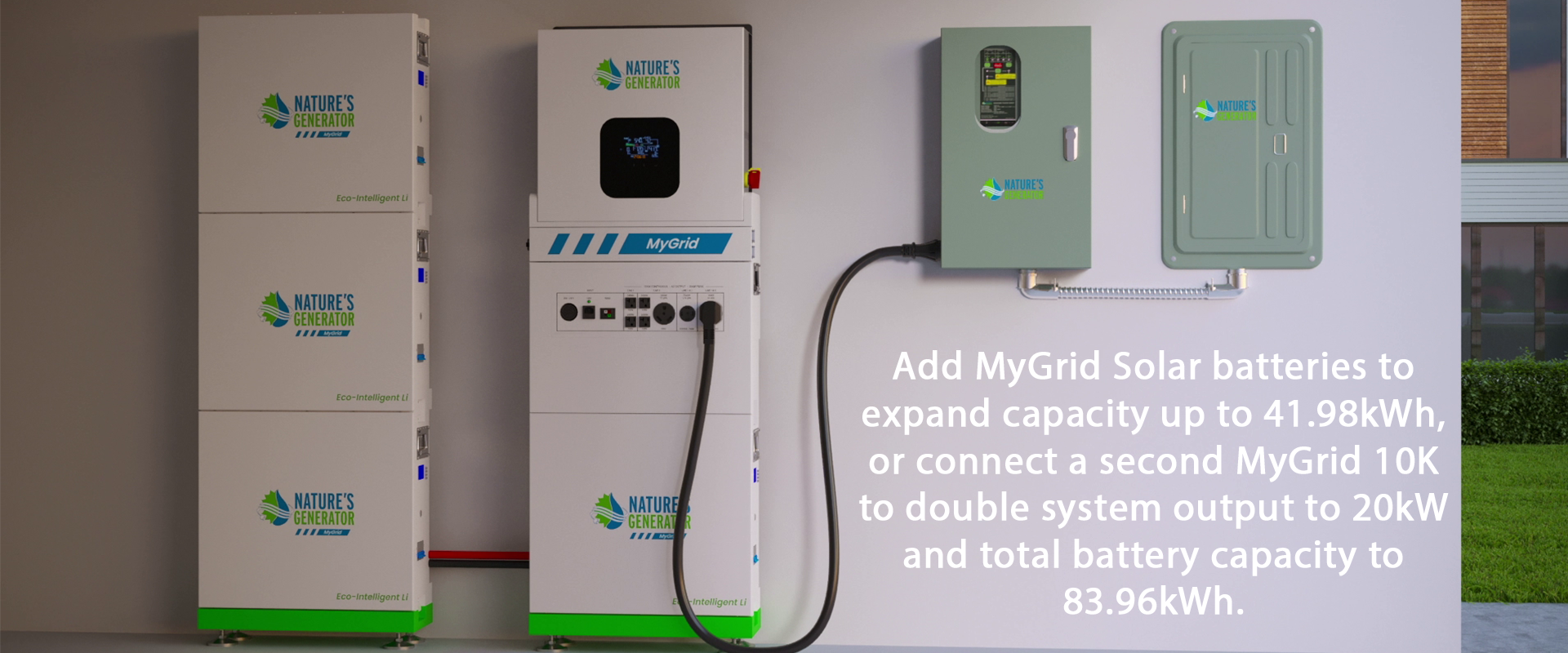

• Expandable for Growing Needs: Combine two units for 20,000W output, expand battery capacity to 73,742Wh, and integrate up to 12,000W solar panels as energy needs grow.

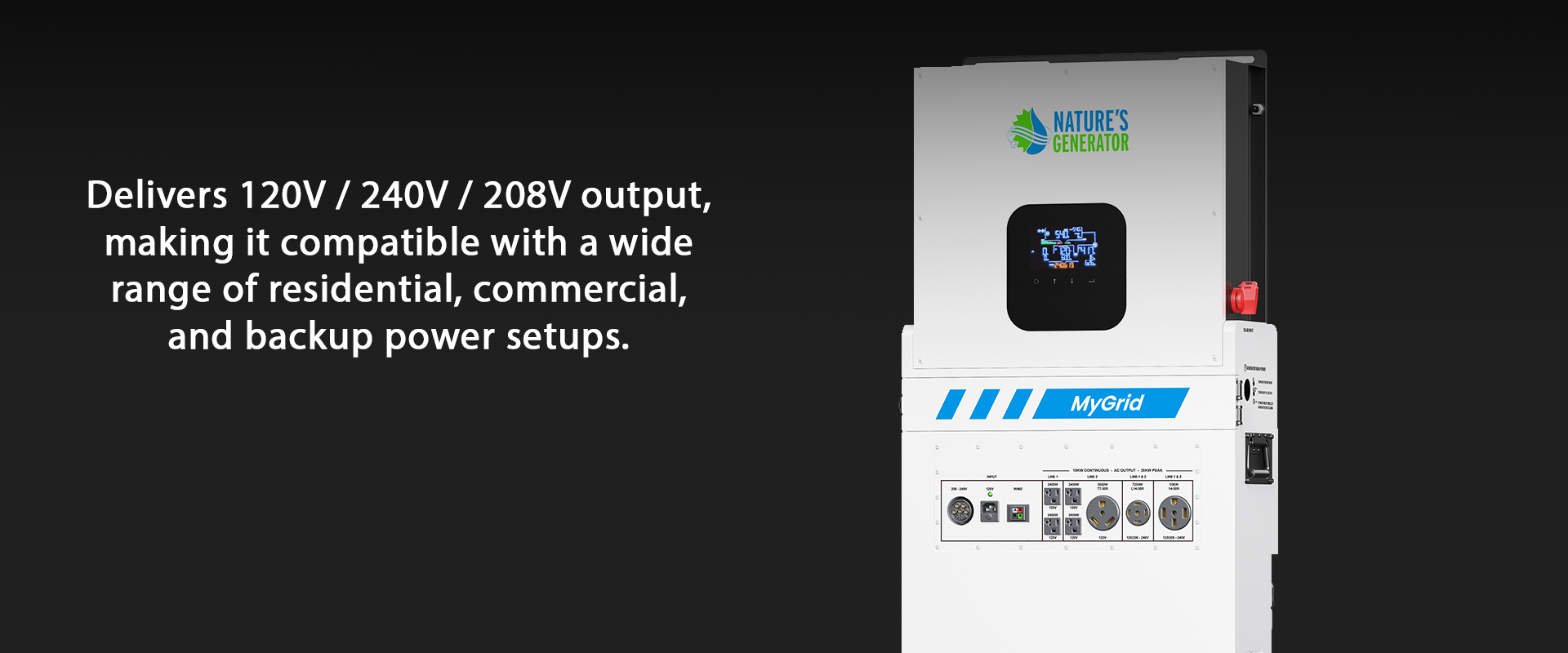

• Dual Voltage Compatibility: Supports 120V, 120/240V and 120/208V charging and discharging, suitable for residential, light commercial and AC coupling applications.
• Fast Recharge Performance: Advanced charging technology enables up to 80% charge in approximately 2 hours, minimizing downtime

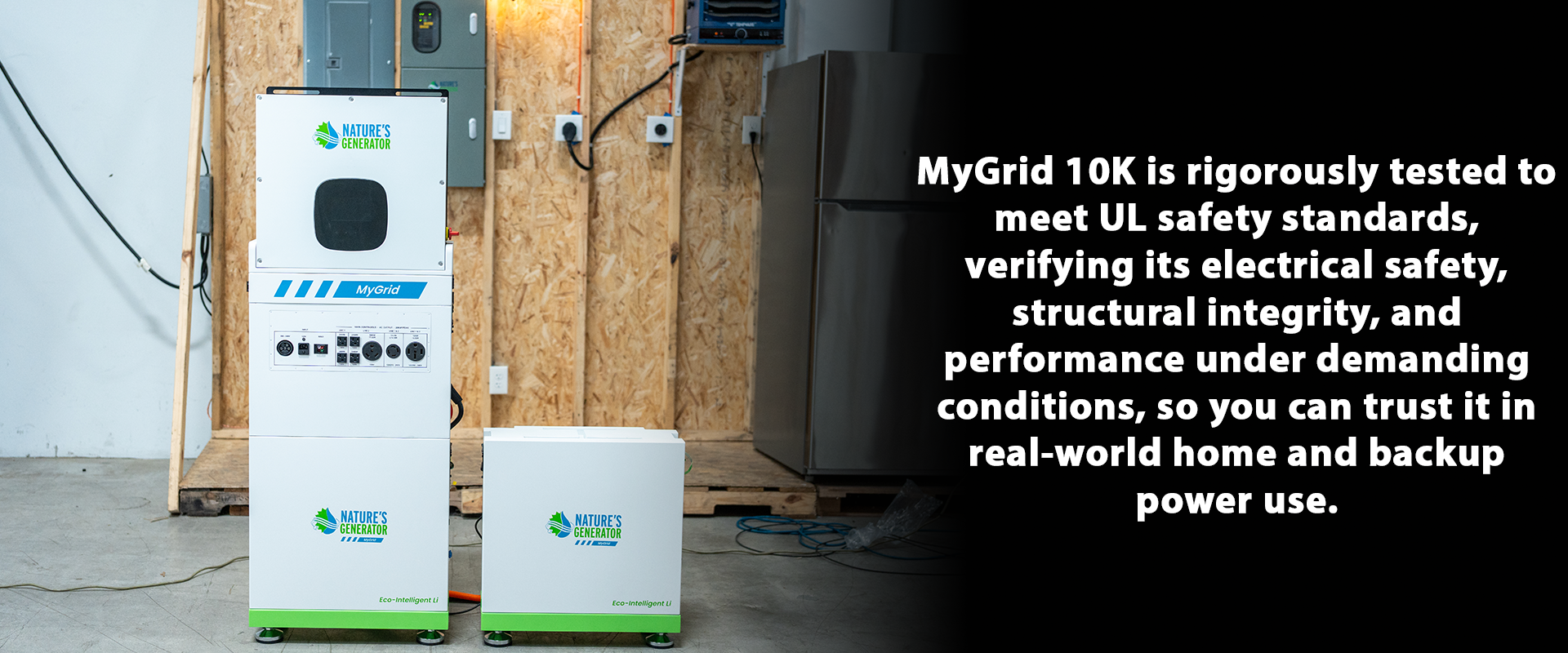

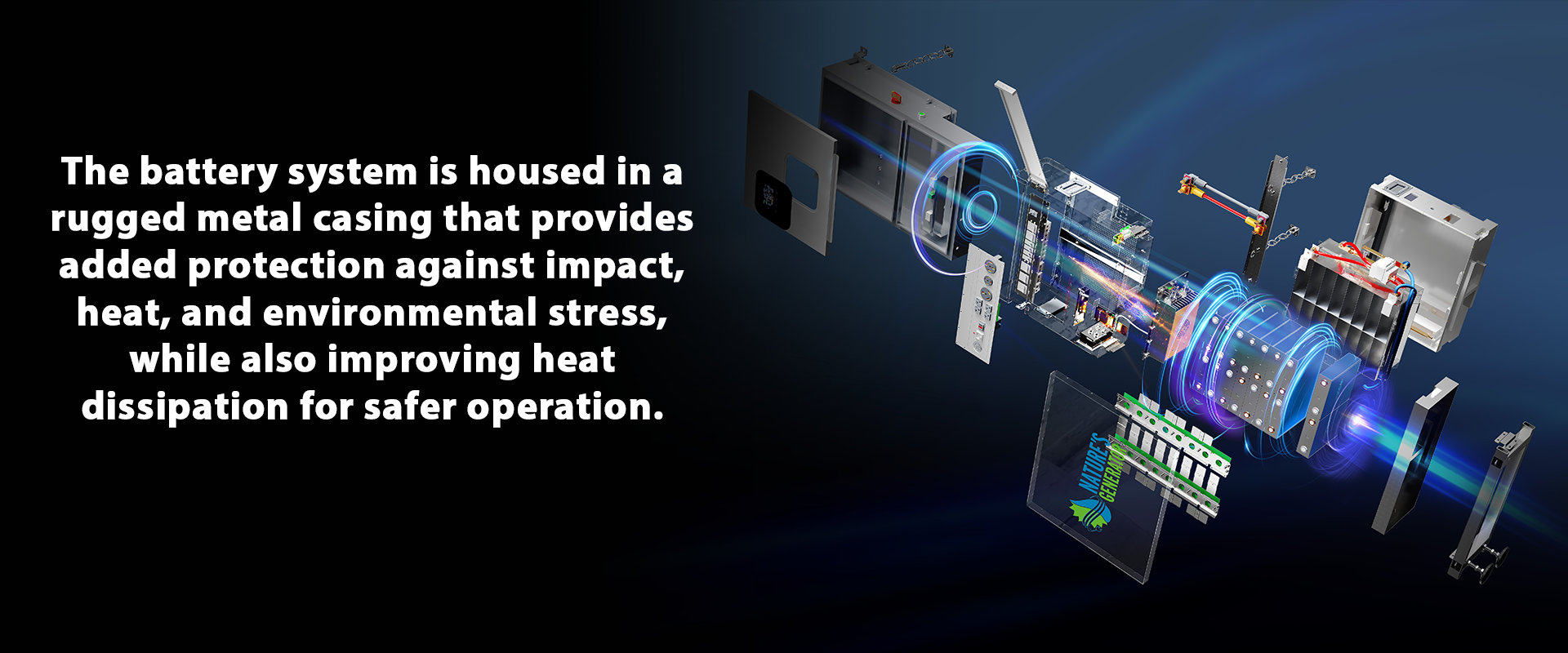

• Smart Protection & Compact Safe Design: Integrated Battery Management System (BMS) continuously monitors and protects battery health for long life, while the compact, eco-friendly, and UL 1741 certified system ensures safe, sustainable home energy.
Couldn't load pickup availability
You may also like
Innovative renewable solutions for a sustainable tomorrow.
Join us in building a greener world.
Features
Engineered for whole-home capability, the MyGrid 10K delivers high-capacity power, flexible charging, and reliable performance for any energy demand.
Setup in minutes
Get instant home backup power with a fast, hassle-free installation.
Renter Friendly
Enjoy whole-home power without permanent wiring or modifications.
EV to Home Compatible
Easily transfer energy between your EV and home for ultimate flexibility
Powerful 10KW 10,496Wh
Delivers robust, long-lasting energy to support essential circuits and heavy loads.
Keep Everything Running, No Limits
Enjoy uninterrupted power for up to several days, anytime you need it.

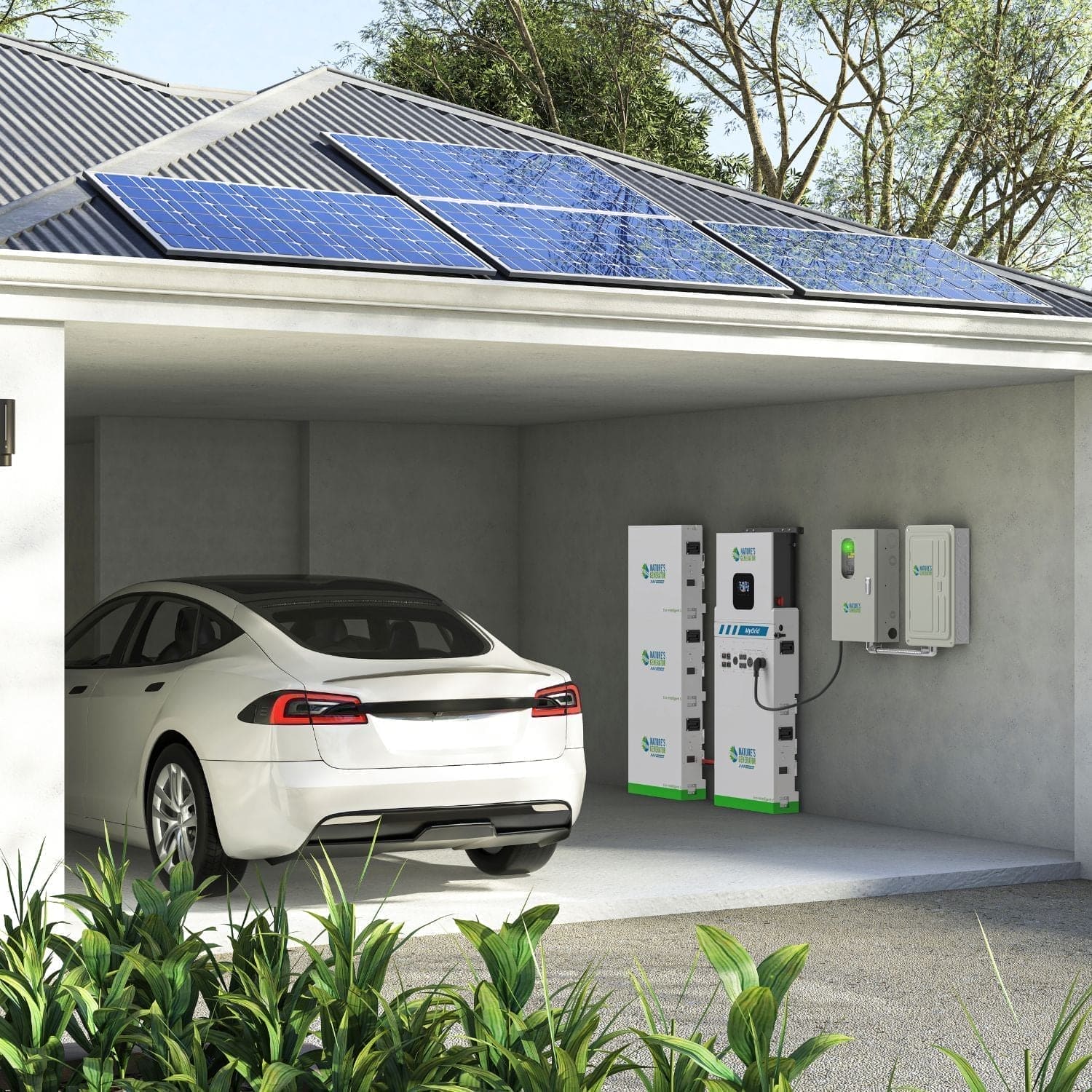

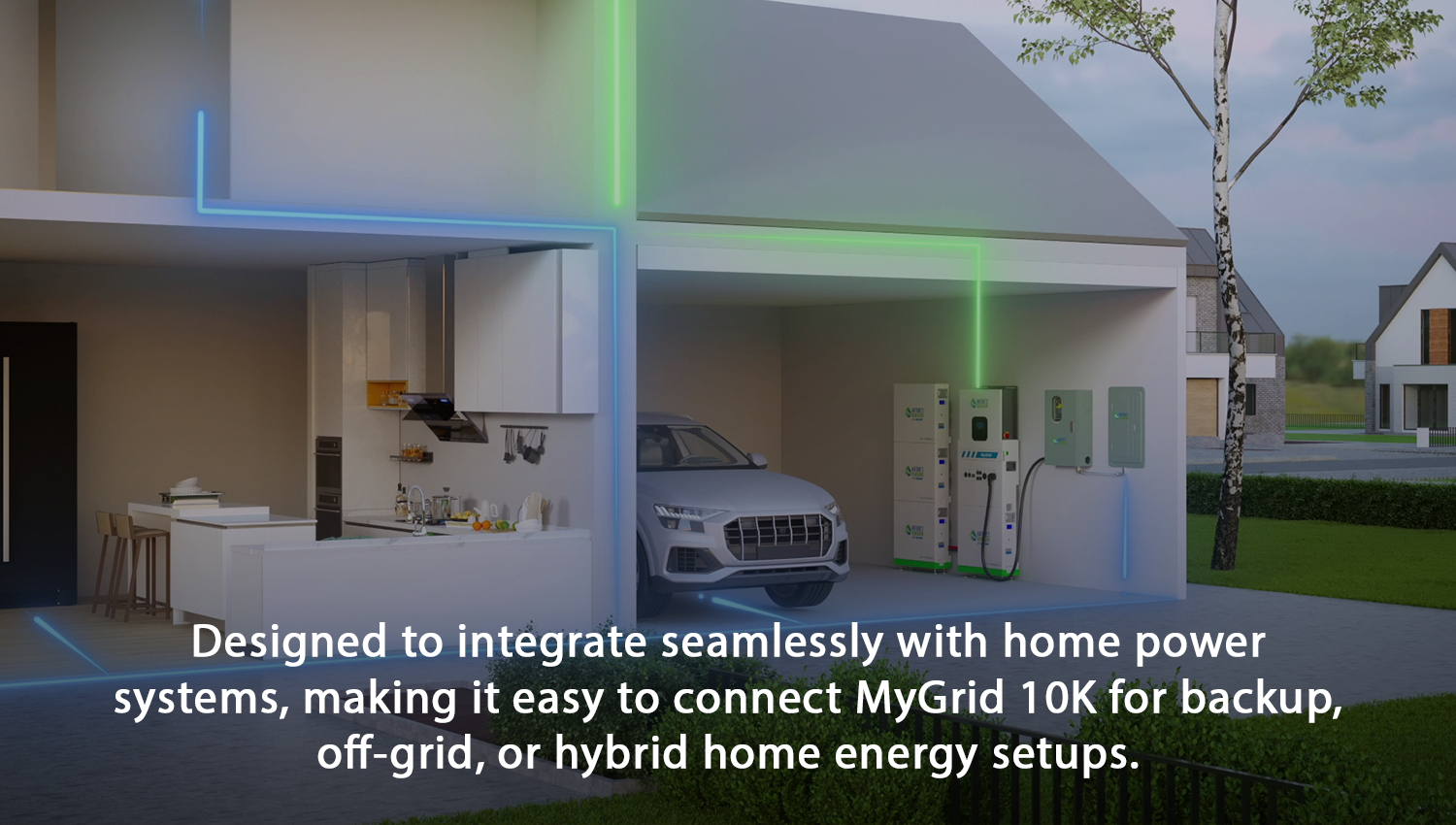

Whole Home

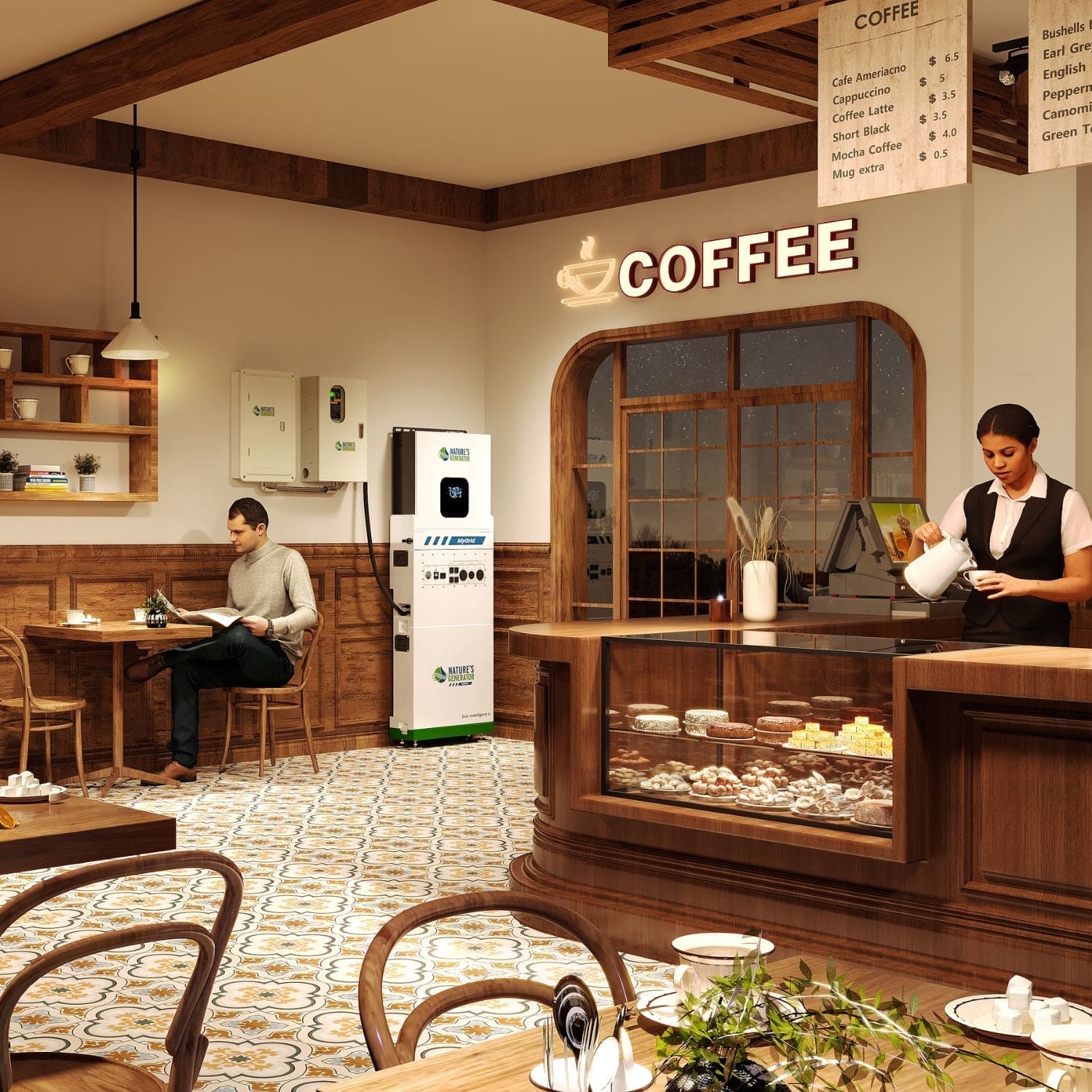

Business
Off-Grid

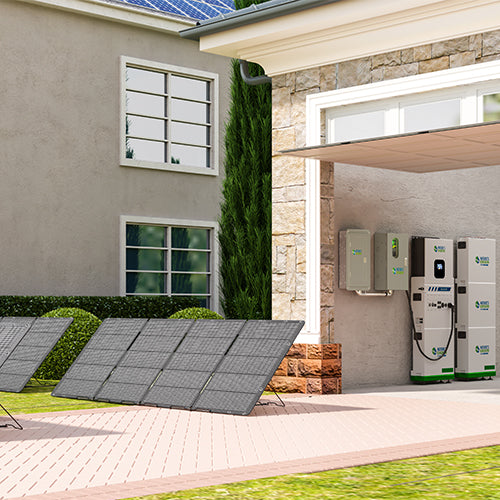

Versatile Charging for Every Setup
Multiple Ways to Charge, Never Run Out of Power
Solar Charger:12,000W 120Vdc-550DVdc

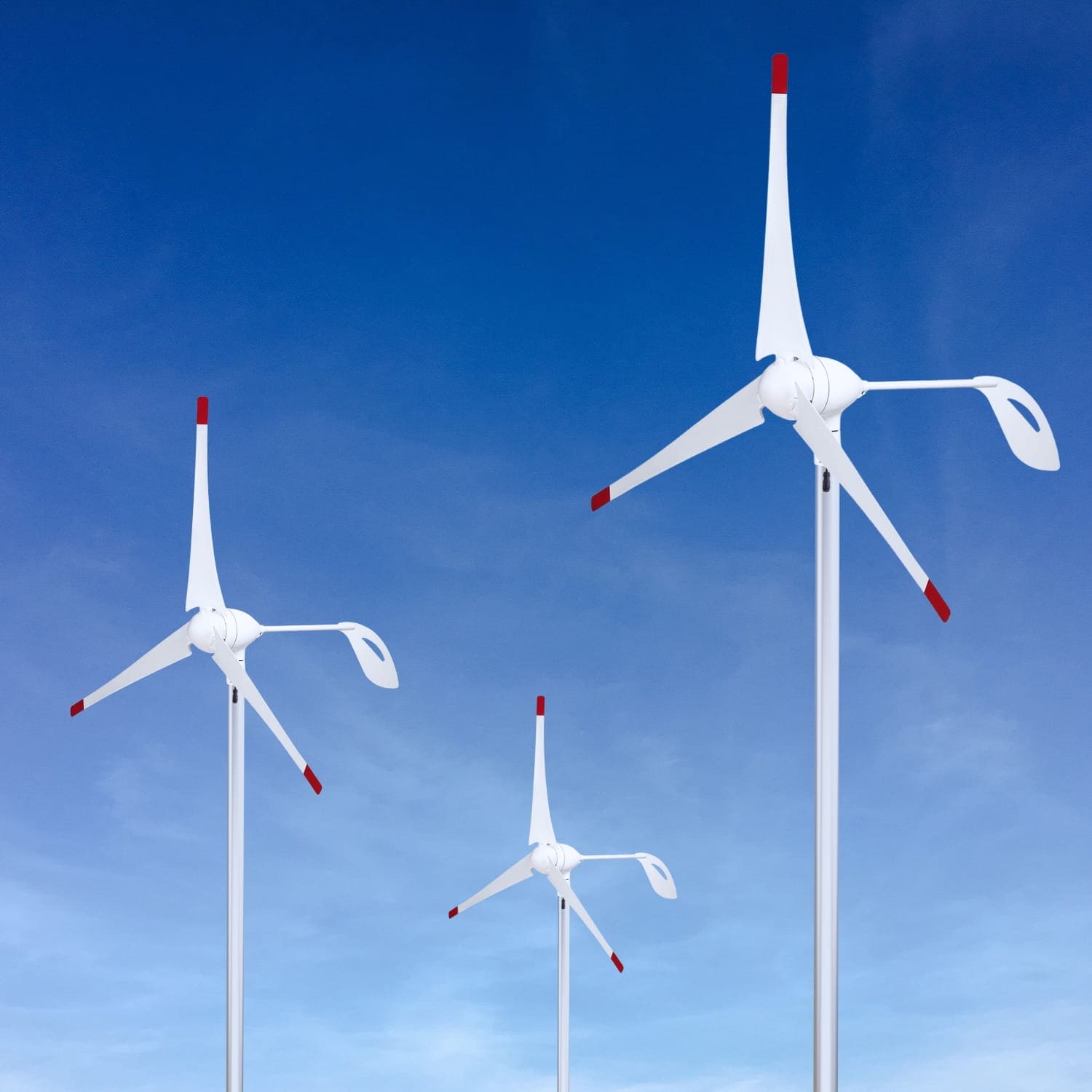

Wind Charger:350W
120V AC charging: 1000W

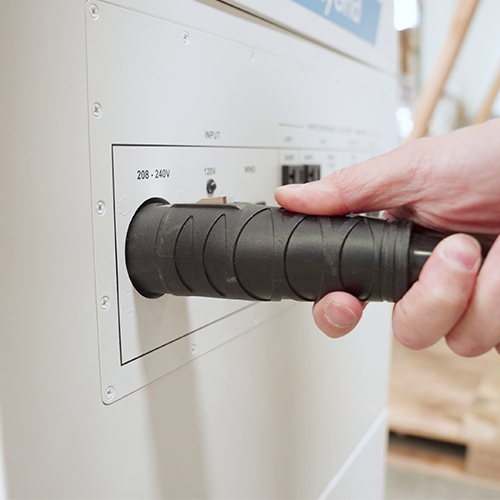

208Vac or 240Vac Charger: 4500W
Solar Charger:12,000W 120Vdc-550DVdc
Wind Charger:350W

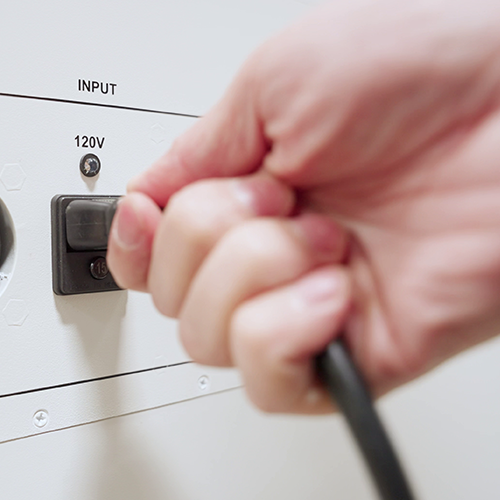

120V AC charging: 1000W
208Vac or 240Vac Charger: 4500W

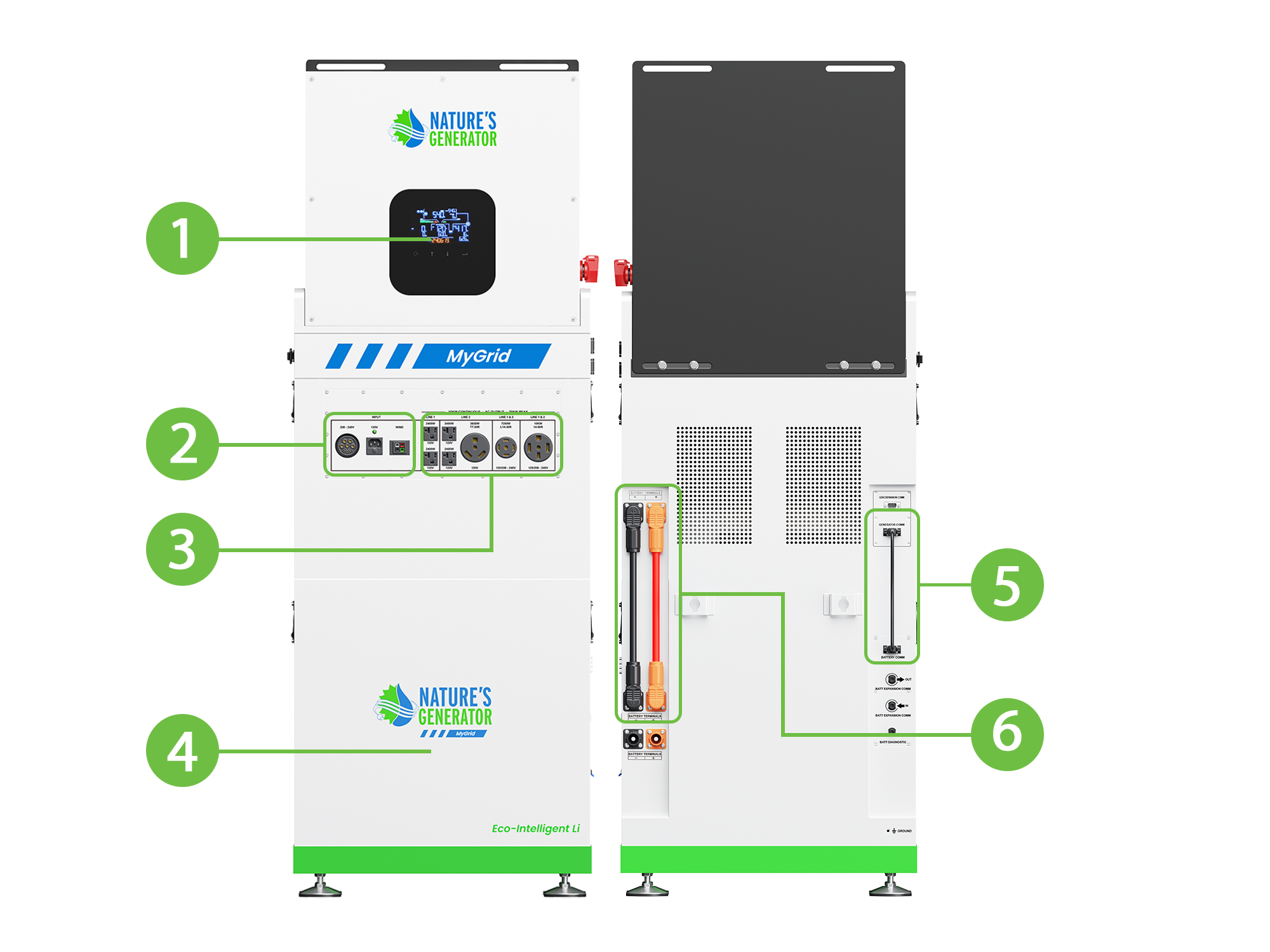

Control Panel Overview
Easily access all power options through the intuitive control panel featuring clearly labeled ports, outlets, and buttons for seamless operation.
Tech Specs
Find all the essential technical details of the MyGrid 10K, including power output, capacity, and system specifications.
Inverter
Output Continuous Power
10,000W
Output Peak Power
20,000W
Output Voltage
120V/240V Split Phase or 120V/208V 2 of 3 Phases
Output Frequency
60Hz
Output Power Form
Pure Sine Wave
Auto Switching
<20ms
Battery
Capacity
51.2V 205Ah (10496Wh)
Cell Chemistry
Lithium Iron Phosphate (LiFePO4)
Cycle life
>6000 Cycles
Self Discharge
Recommended recharging every 6 months
Charges
120Vac Charger
1000W
208Vac or 240Vac Charger
4500W
Wind Charger
350W
Solar Charger
12,000W 120Vdc-550DVdc
Solar Charge Mode
MPPT
Ports
Output Ports:
4* NEMA 5-20R Outlet
1* NEMA TT-30R Outlet
1* NEMA L14-30R Outlet
1* NEMA 14-50R Outlet
Input Ports:
2* Solar Input Ports
1* Wind Input Port
1* 120Vac Input Port
1* 208Vac or 240Vac Input Port
General
Optimal Operating Temperature
68 – 86°F (20 – 30°C)
Storage Temperature
14 – 113°F (-10 – 45°C)
Battery Charging Temperature
32 – 113°F (0 – 45°C)
Battery Discharging Temperature
14 – 113°F (-10 – 45°C)
Warranty
3+2 Years
Certification:

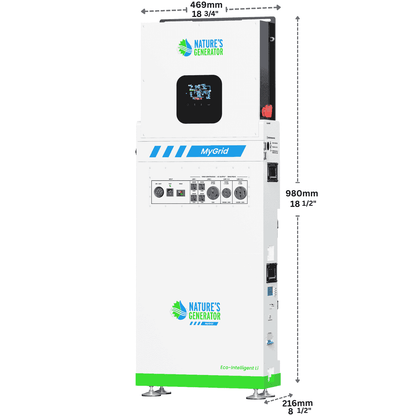

Dimension and Weight

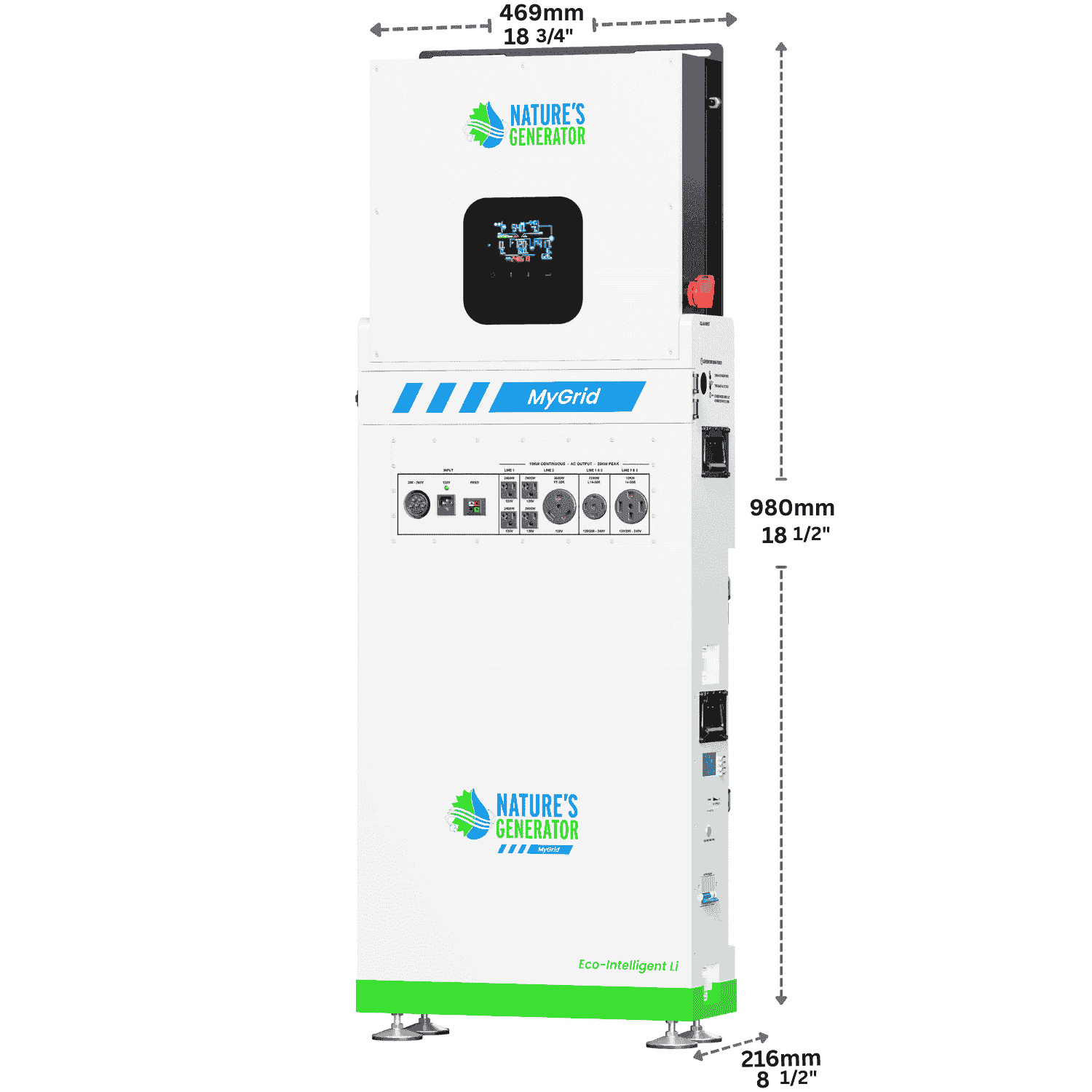

Generator Dimensions:
21.8 x 8.5 x 38.5 inches (555.4 x 216 x 980 mm) not counting mounting bar
Generator Weight: 152 lbs (69 kg)

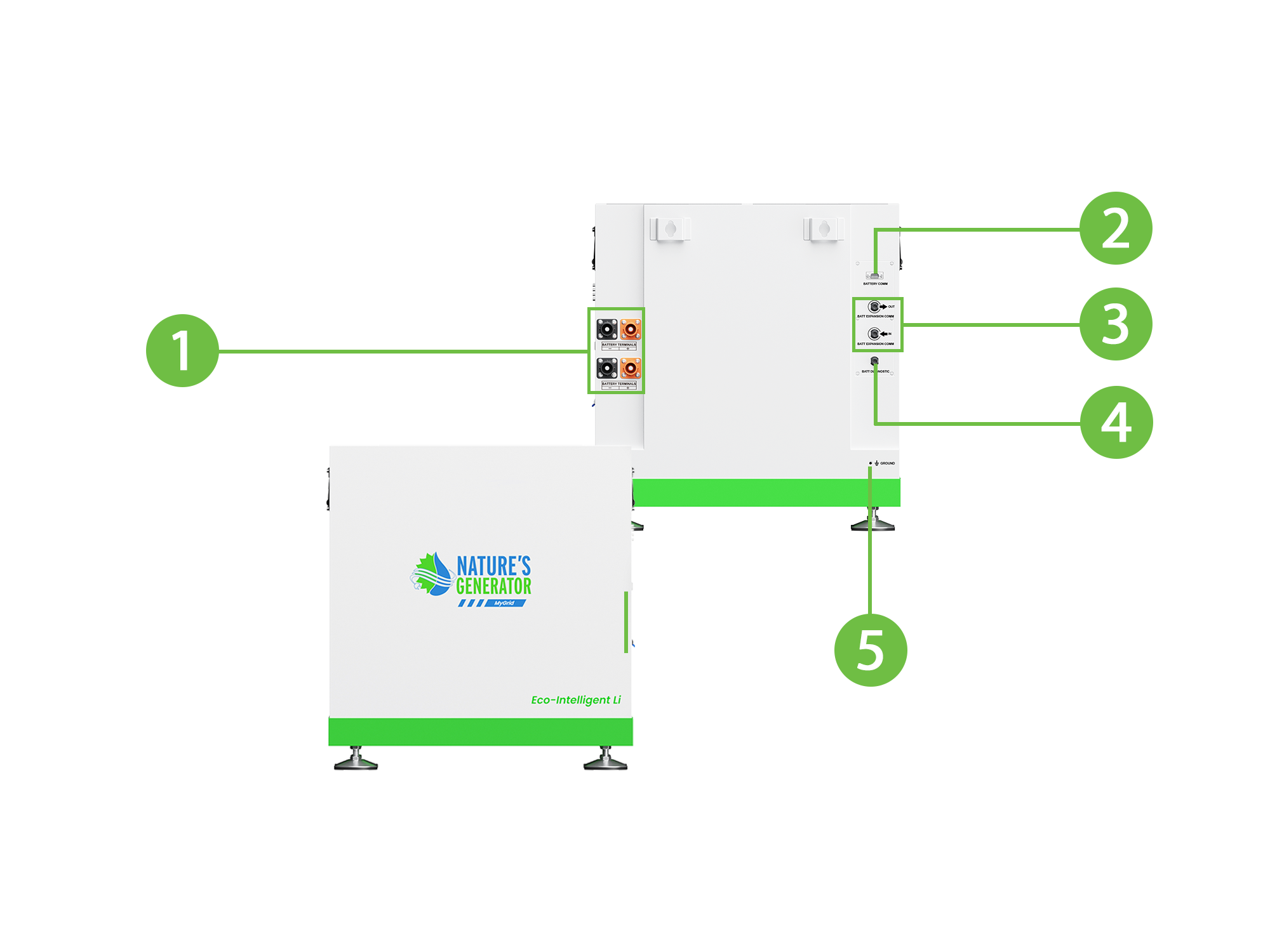

Battery
Capacity
51.2V 205Ah (10496Wh)
Cell Chemistry
Lithium Iron Phosphate (LiFePO4)
Cycle life
>6000 Cycles
Self Discharge
Recommended recharging every 6 months
General
Optimal Operating Temperature
68 – 86°F (20 – 30°C)
Storage Temperature
14 – 113°F (-10 – 45°C)
Battery Charging Temperature
32 – 113°F (0 – 45°C)
Battery Discharging Temperature
14 – 113°F (-10 – 45°C)
Warranty
3+2 Years
Certification:
Dimension and Weight

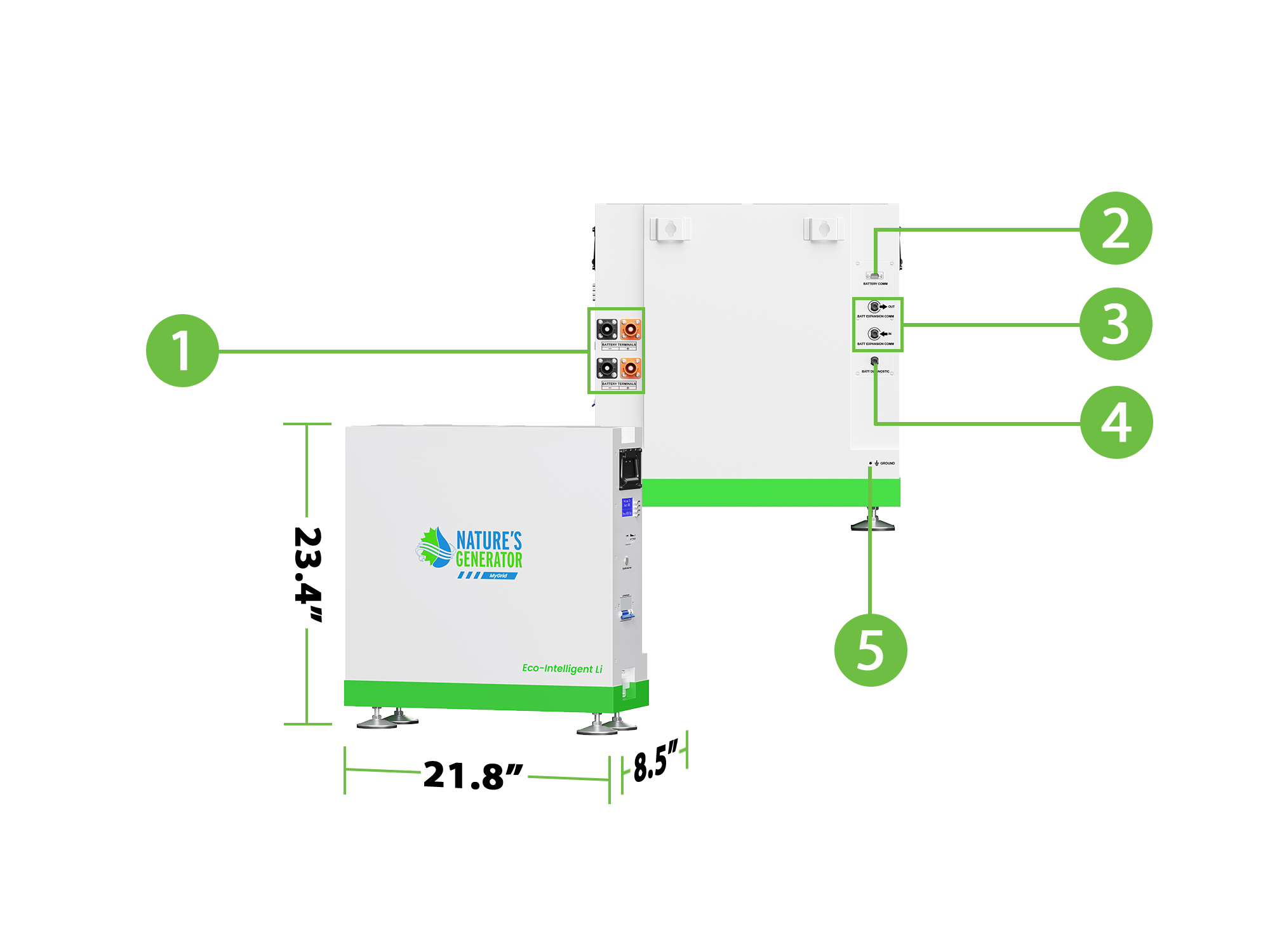

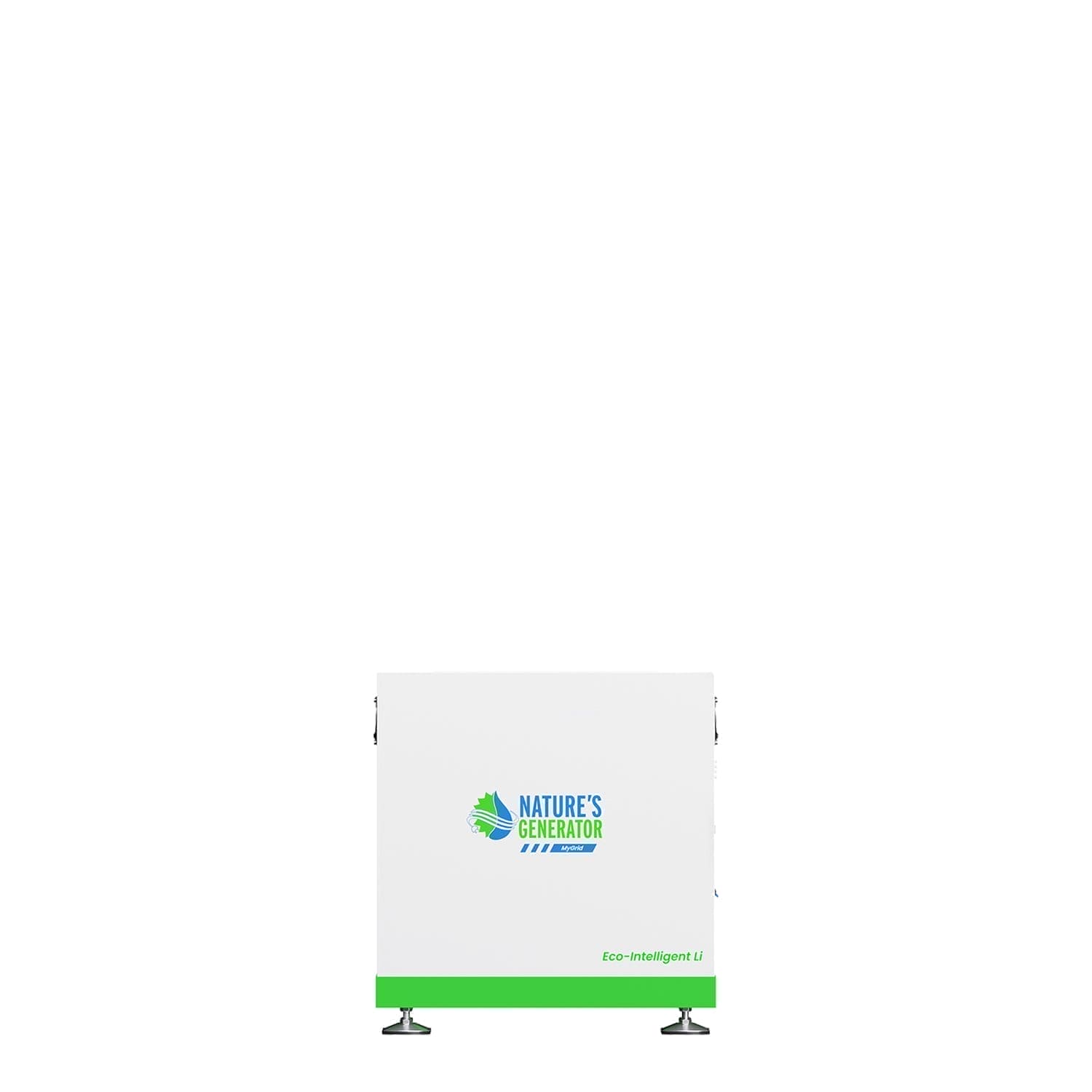

Battery Dimensions:
21.8 x 8.5 x 23.4 inches (555.4 x 216 x 596 mm) not counting mounting bar
Battery Weight: 213 lbs (96.6 kg)

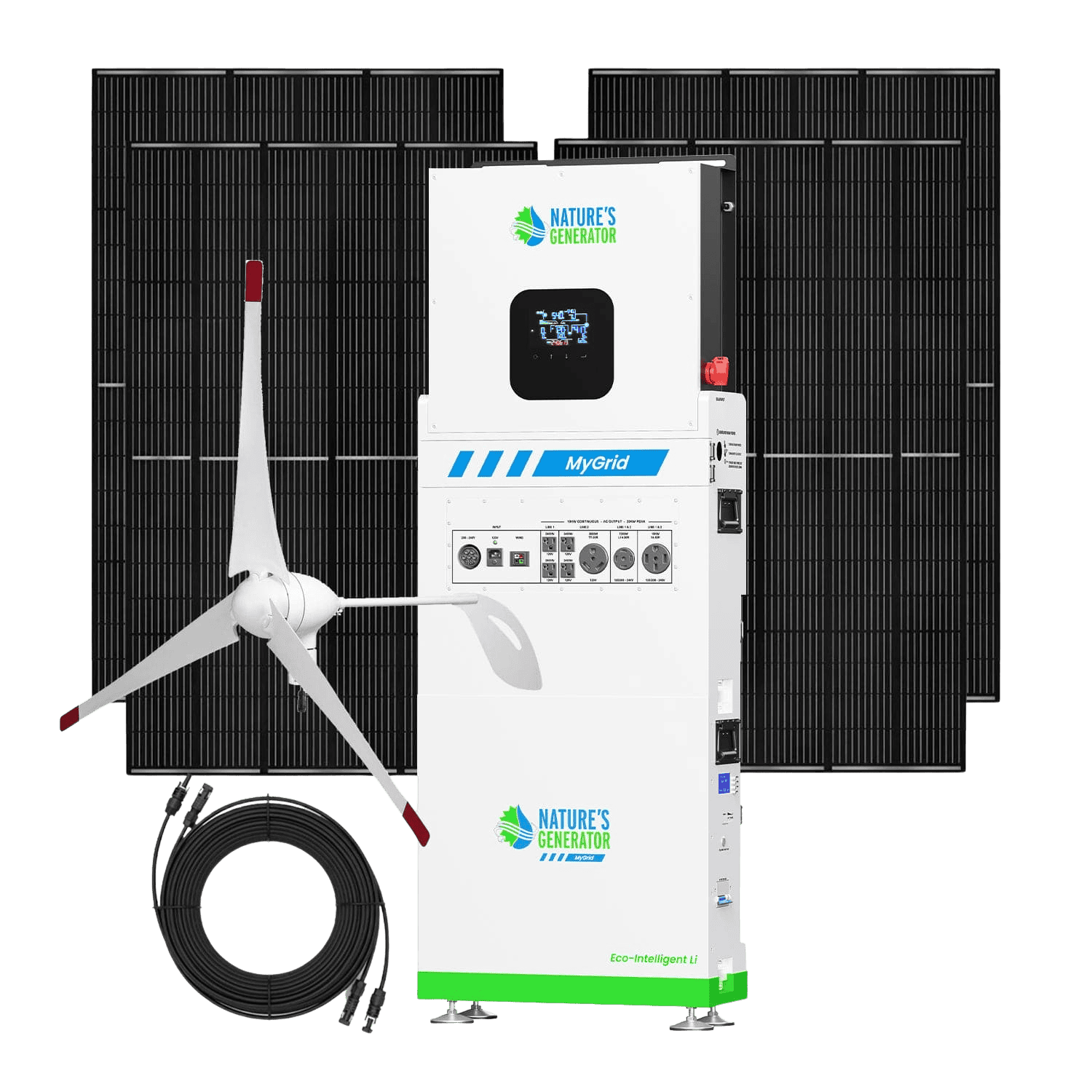

What's In The Box?
MyGrid 10K
MyGrid 10K +Solar Battery + 4* 410W Rigid Panel
1* Nature's Generator MyGrid 10K Generator
1* Nature's Generator MyGrid 10K Battery

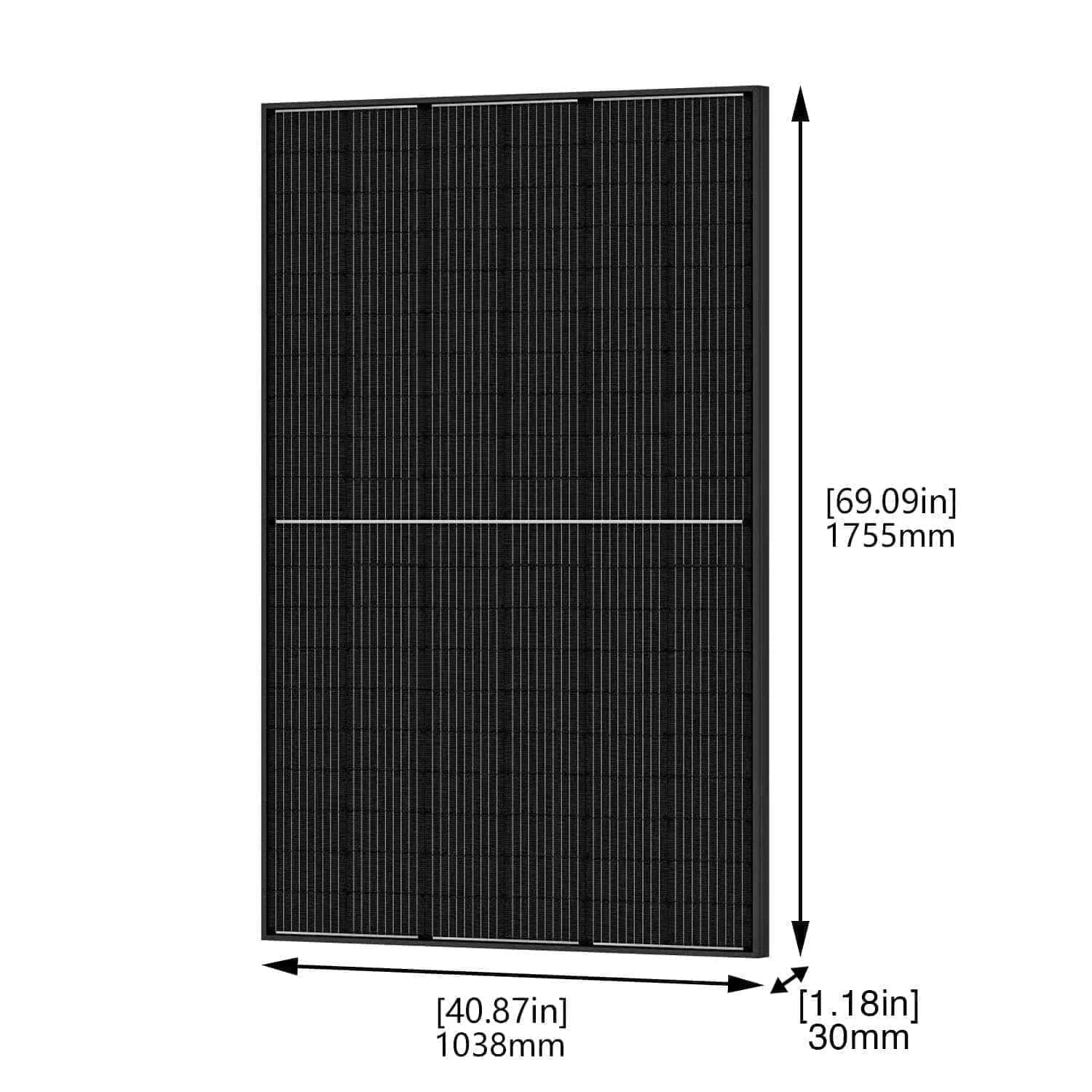

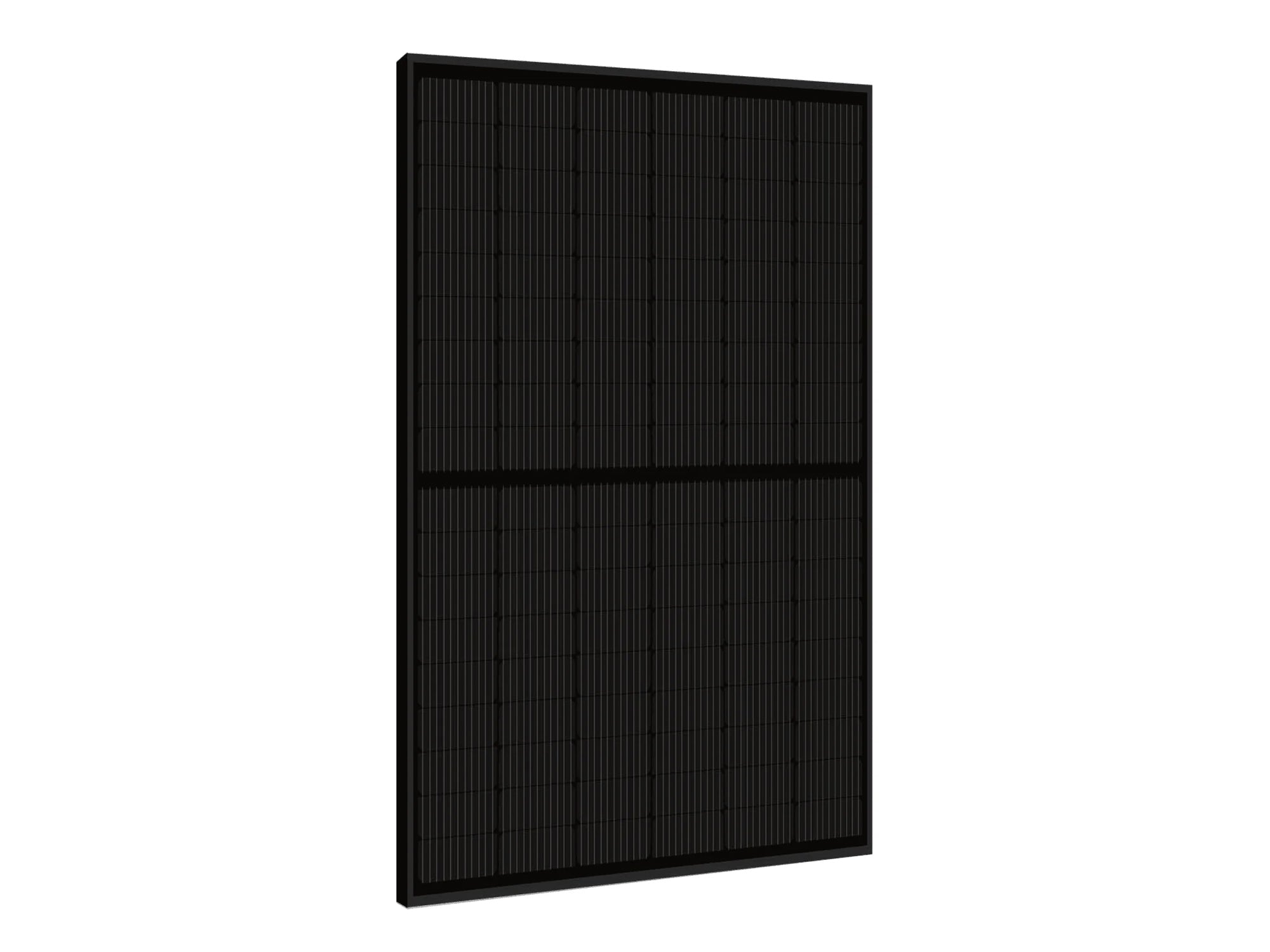

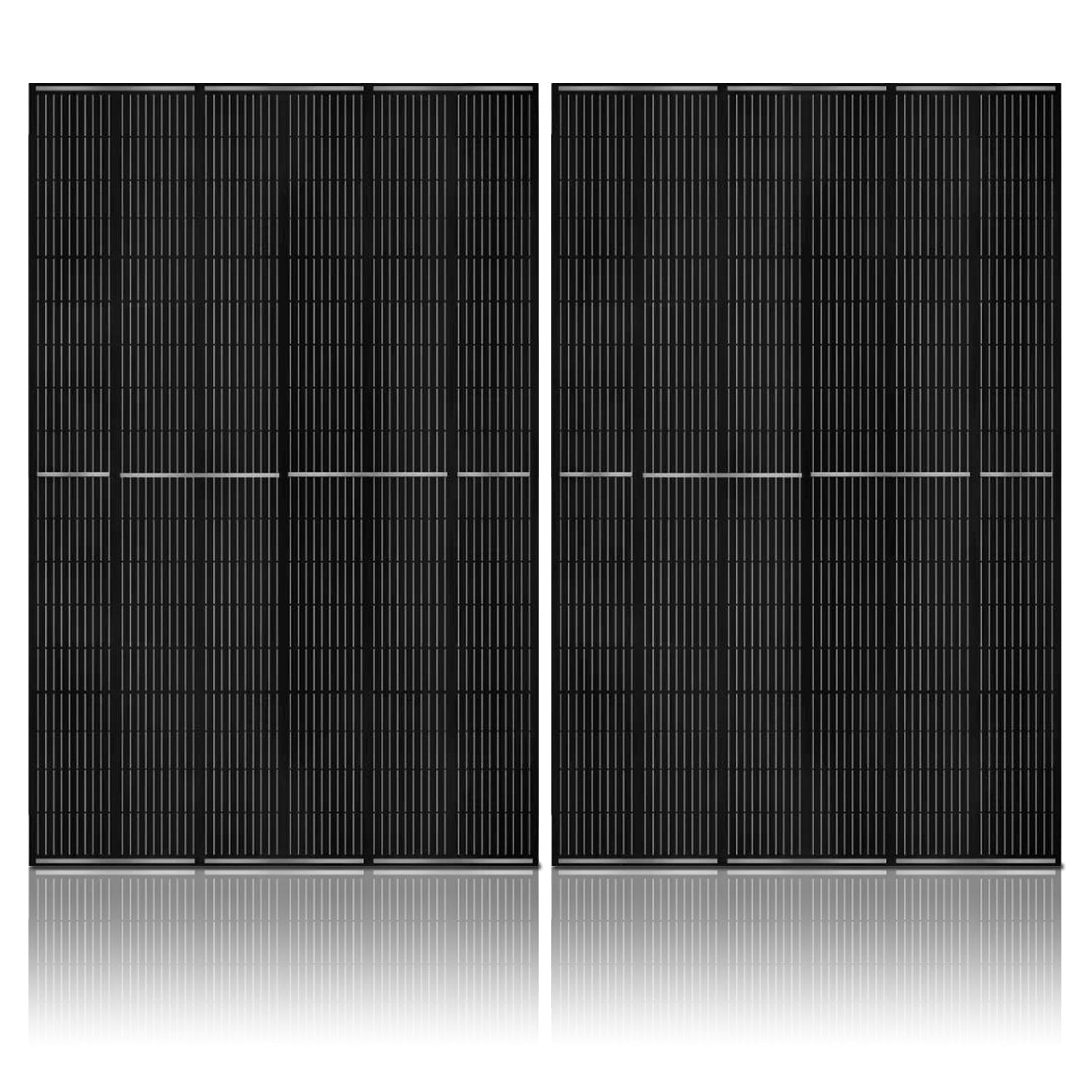

4* 410W Rigid Panel
1* Set of 50 Foot Quick Release MC4 Extension Cable
1* AC Power cord

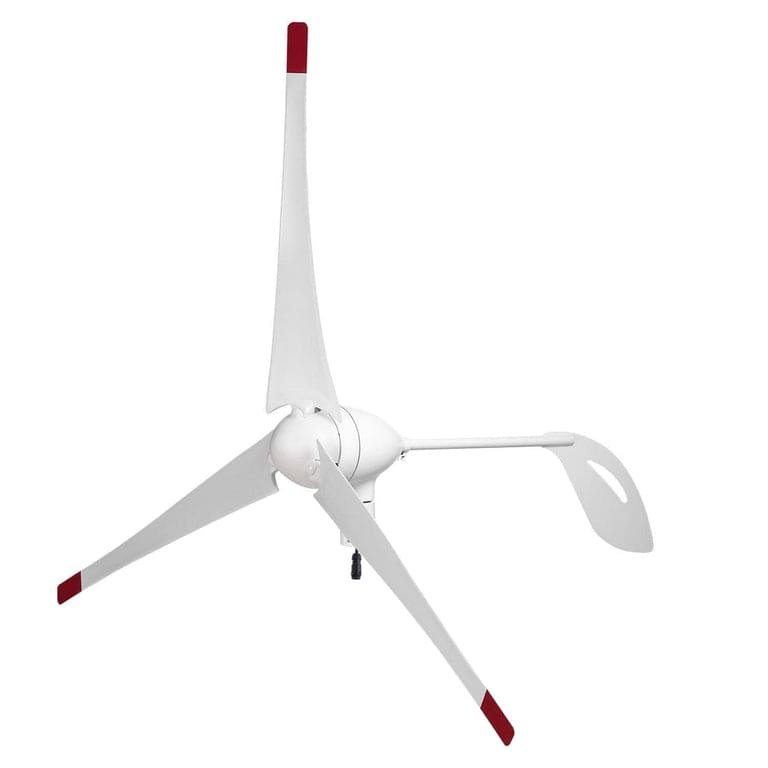

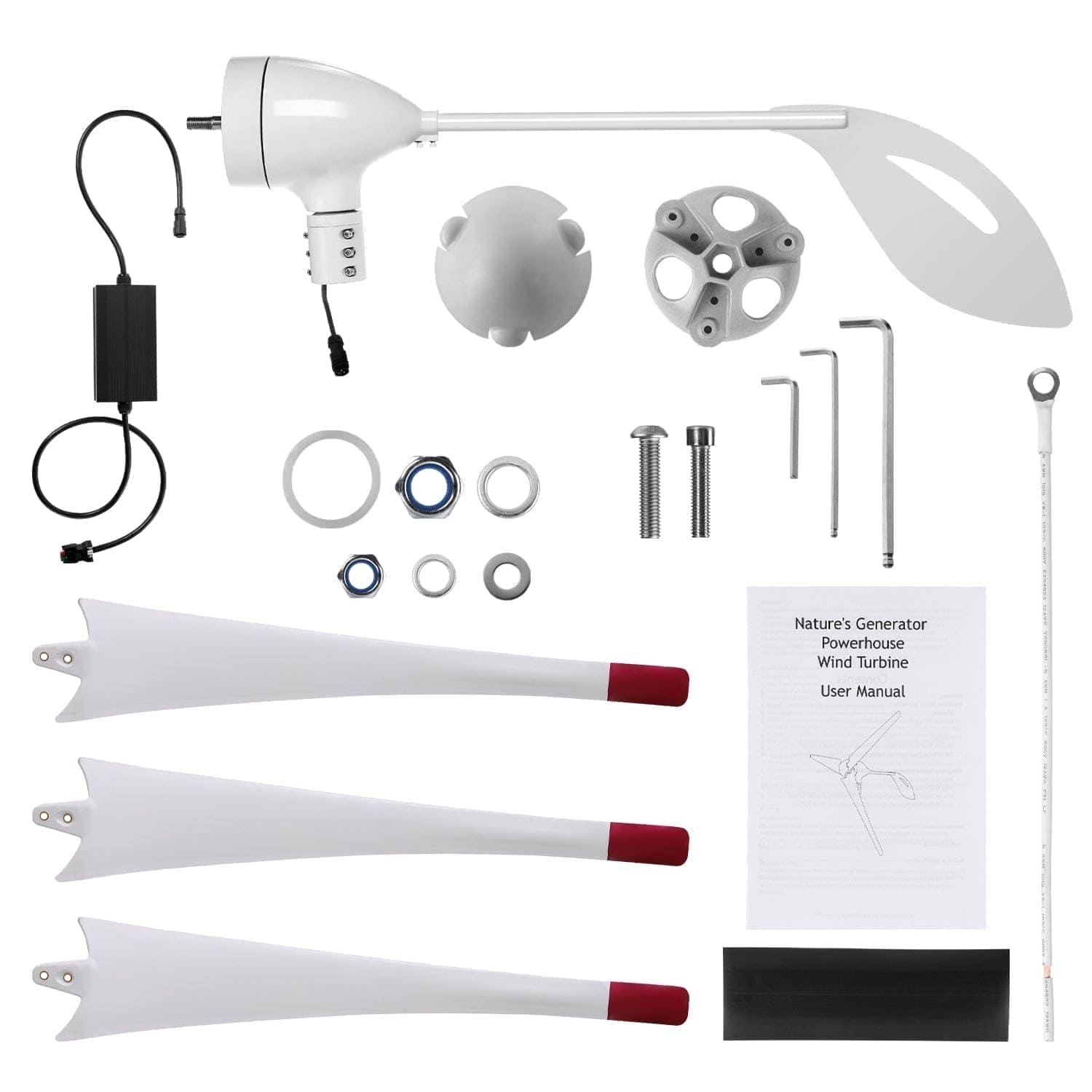

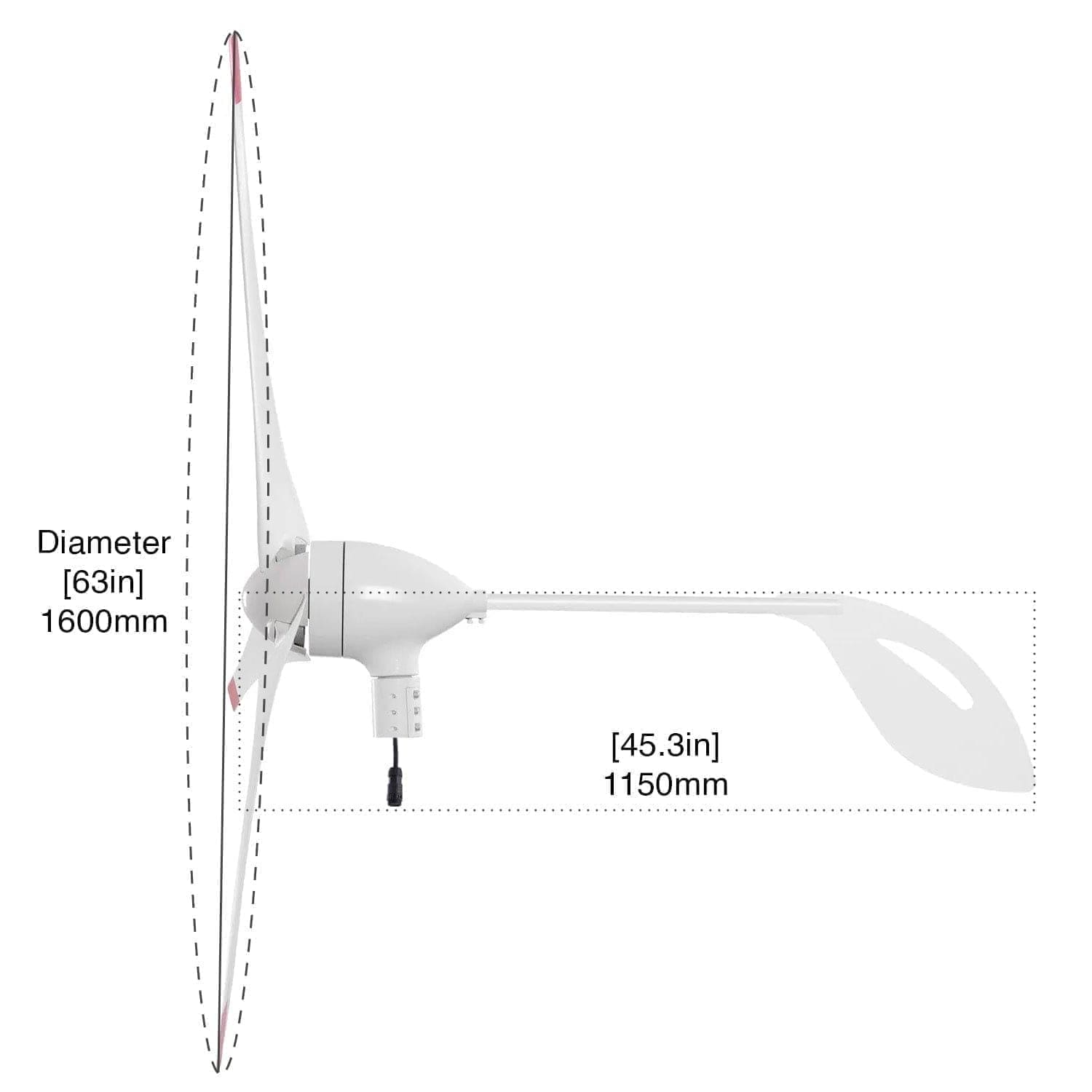

1* 350W Wind Turbine
1* Set Battery Cables
1* Set Generator Battery Communication Cable
1* Set Generator Mounting Bar with Bolts and Nuts
1* Set Side Security Brackets and Screws
1* Set Anchor Chains
1* User Guide

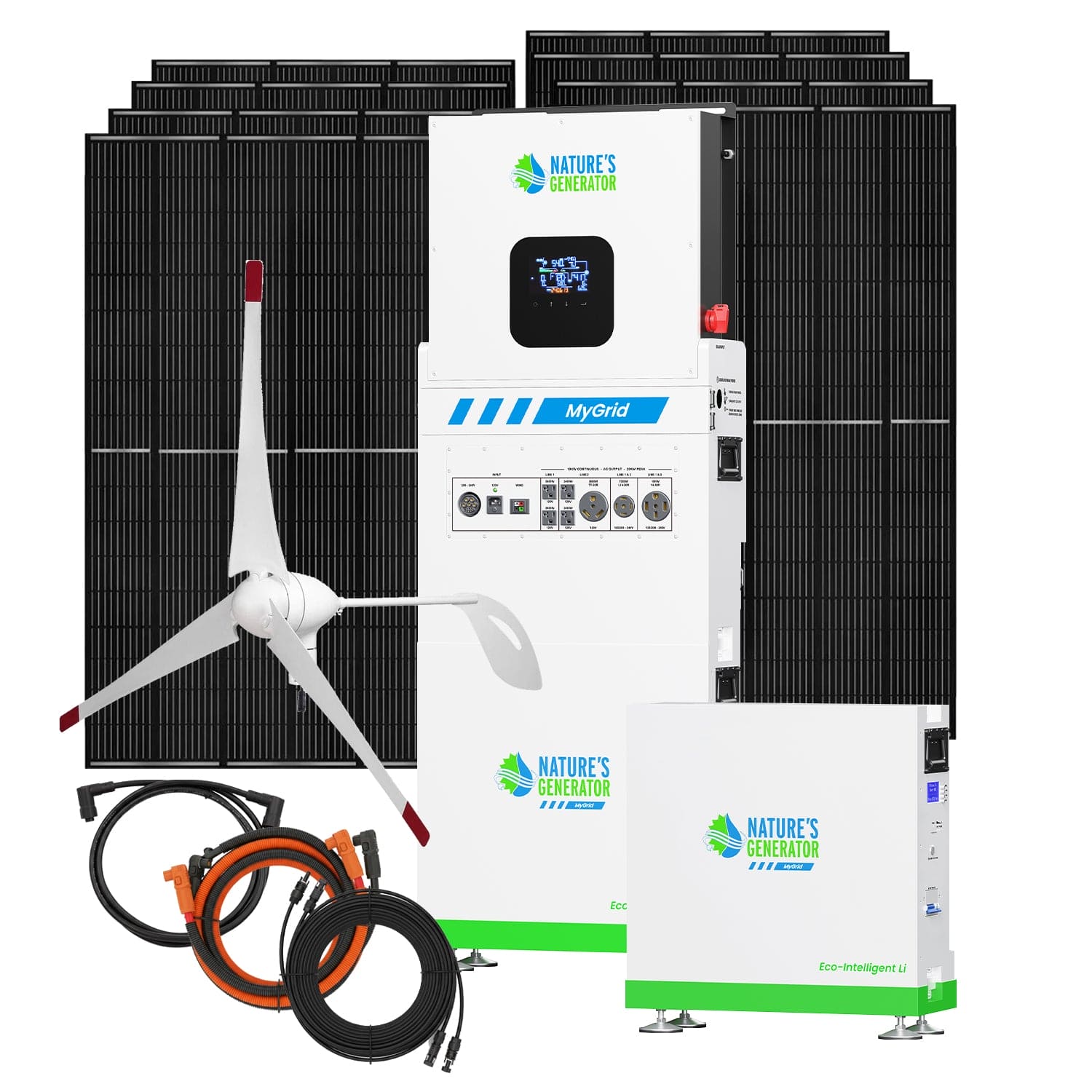

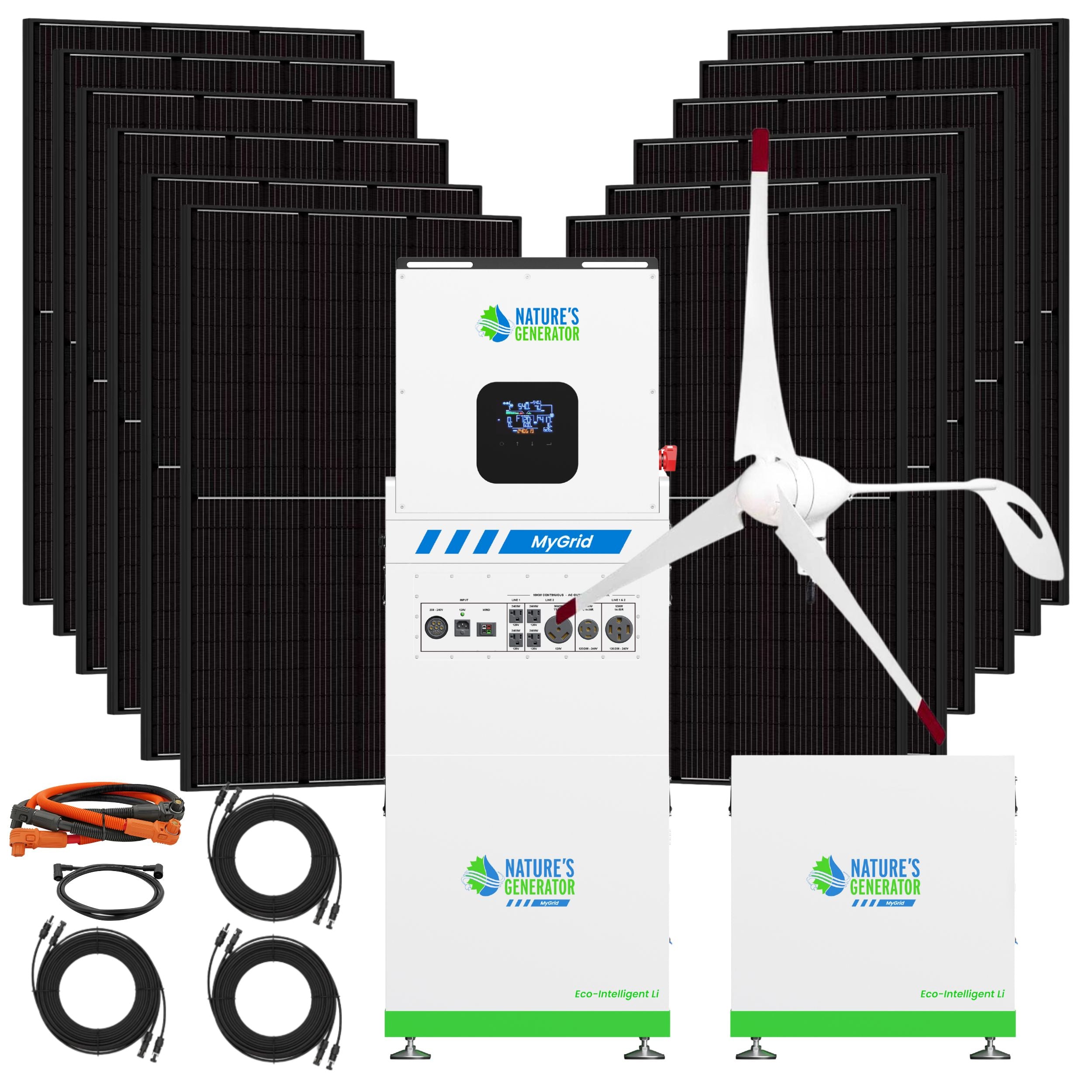

MyGrid 10K + Solar Battery + 8* 410W Rigid Panel
1* Nature's Generator MyGrid 10K Generator
2* Nature's Generator MyGrid 10K Battery
8* 410W Rigid Panel
1* Set of 50 Foot Quick Release MC4 Extension Cable
1* AC Power cord
1* 350W Wind Turbine
1* Set Battery Cables
1* Set Generator Battery Communication Cable
1* Set Generator Mounting Bar with Bolts and Nuts
1* Set Side Security Brackets and Screws
1* Set Anchor Chains
1* User Guide
