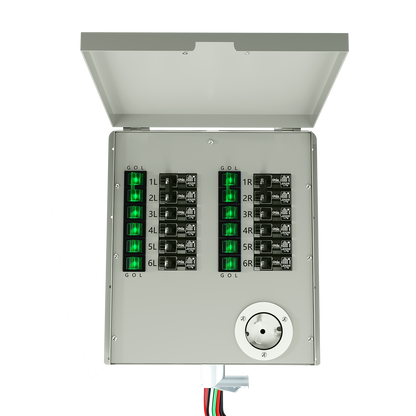

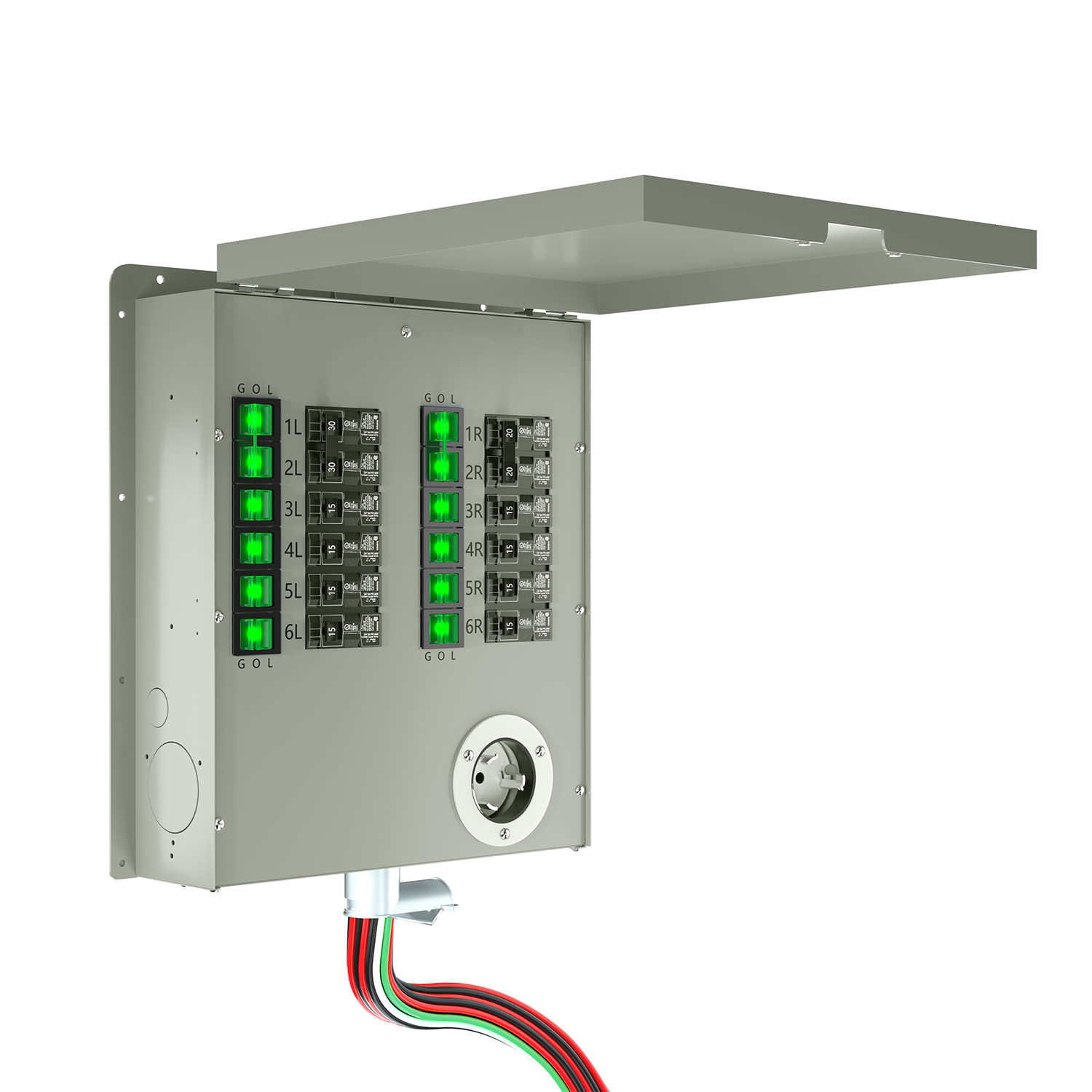

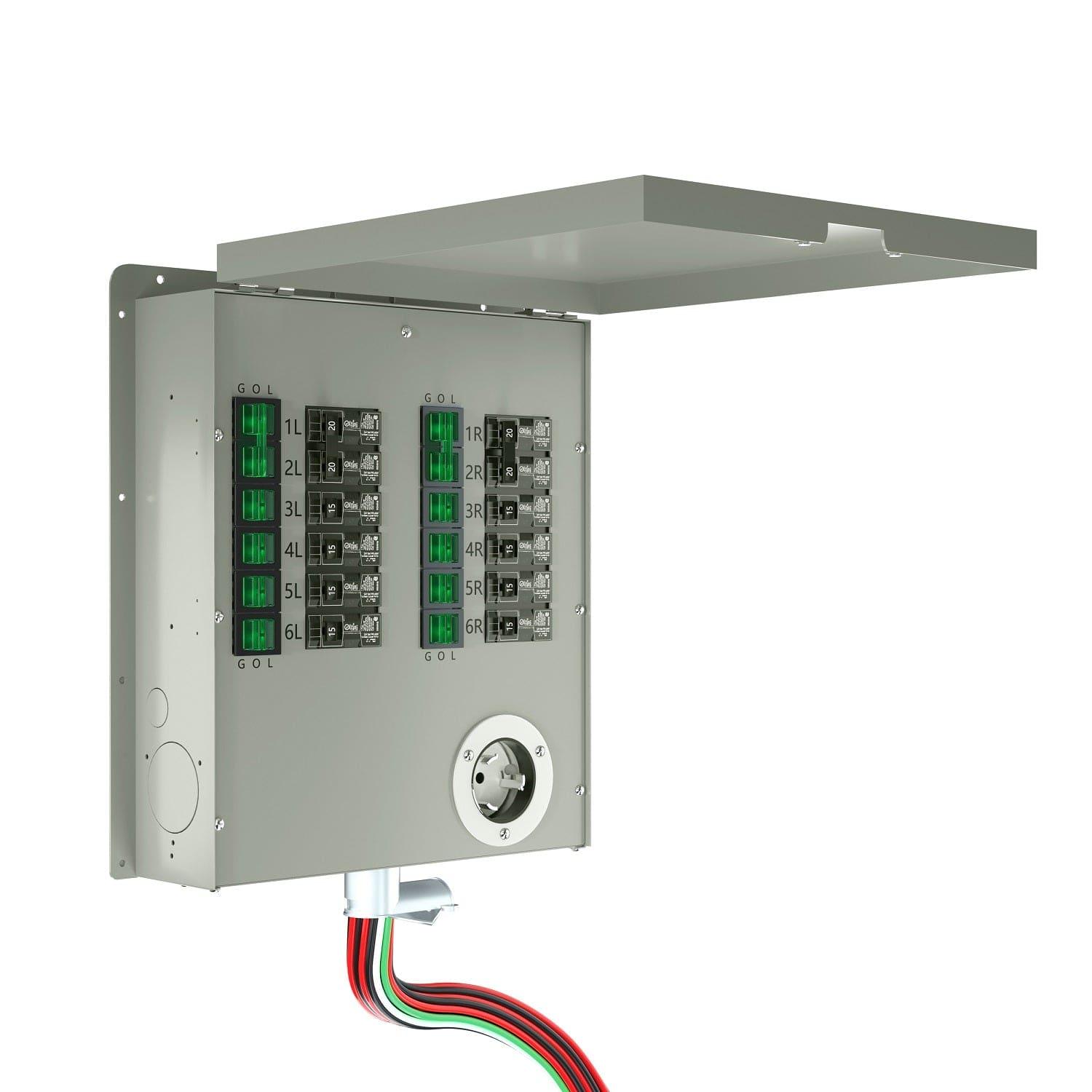

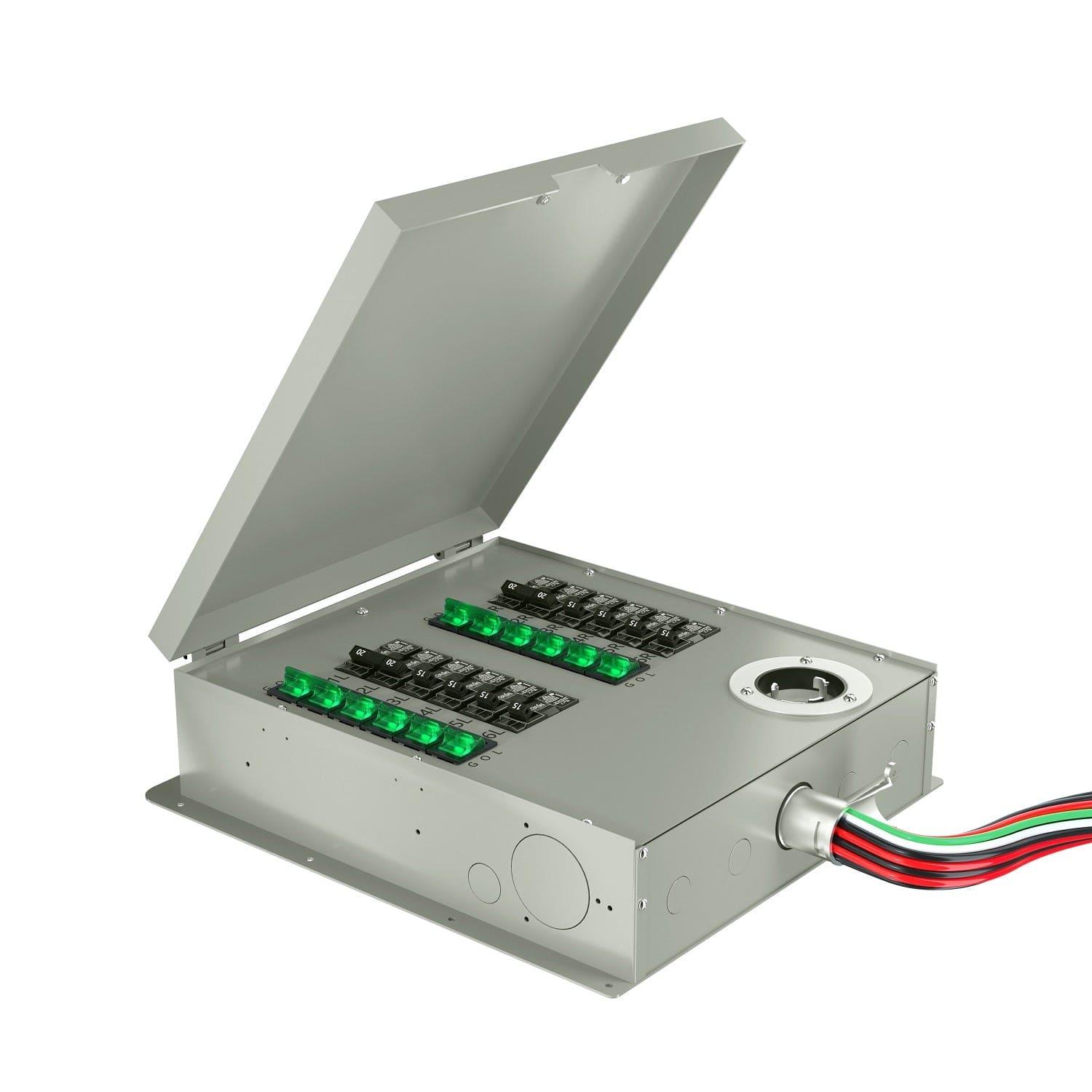

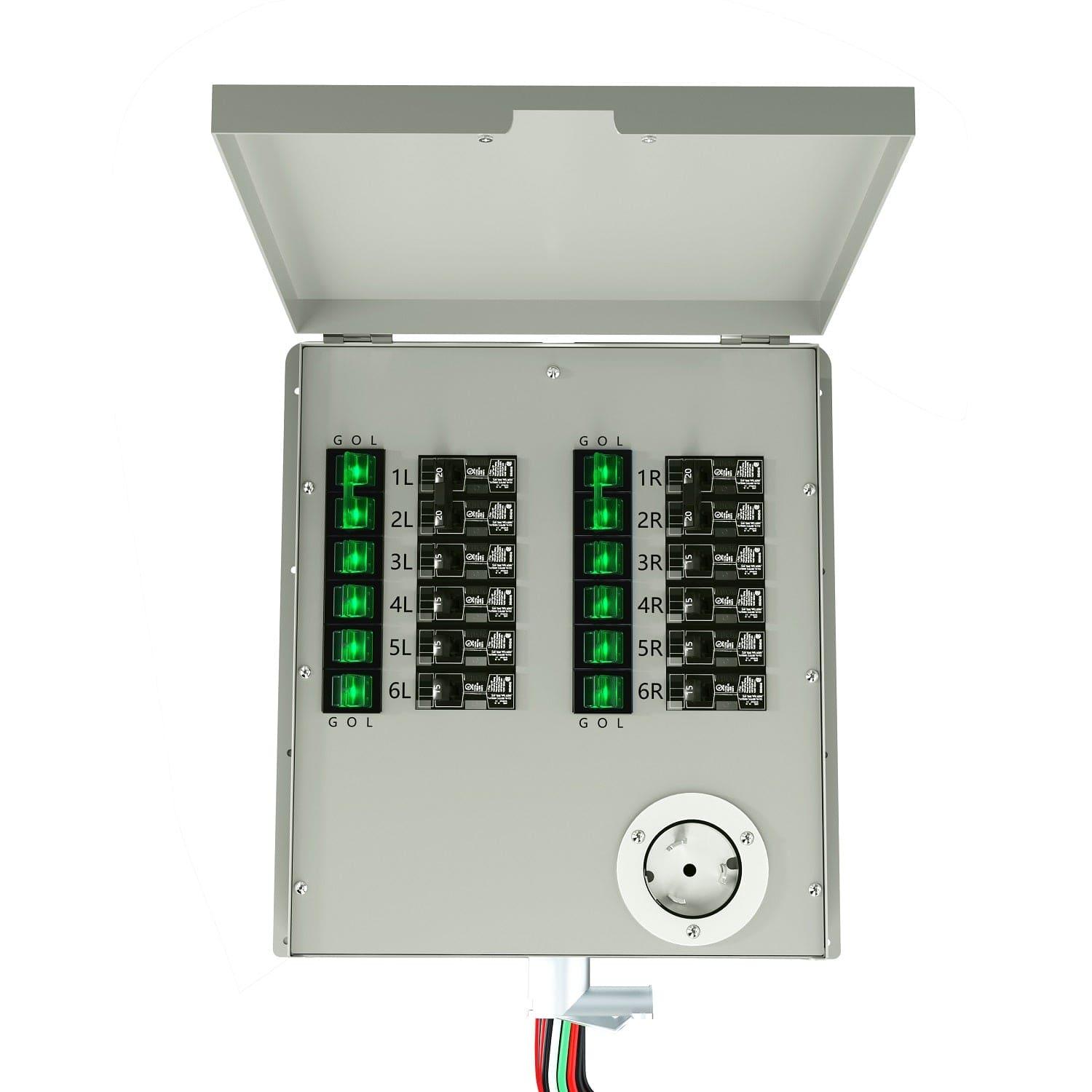

Nature's Generator 12-Circuit 120/240V 50A Non-Automatic Power Transfer Switch
Nature's Generator 12-Circuit 120/240V 50A Non-Automatic Power Transfer Switch
SKU:NGPHPTK3
You Save Extra 5% when you apply the coupon above.

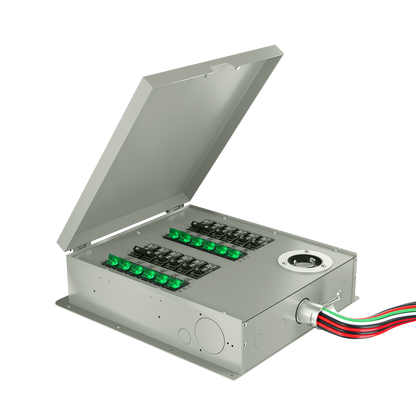

Makes powering your home much safer and easier with Nature's Generator 12-Circuit 120V/240V 50 Amp Non-Automatic Transfer Switch. Constructed with robust steel material and can handle up to 12,000 Watts of power for 12 circuits.
Specification:

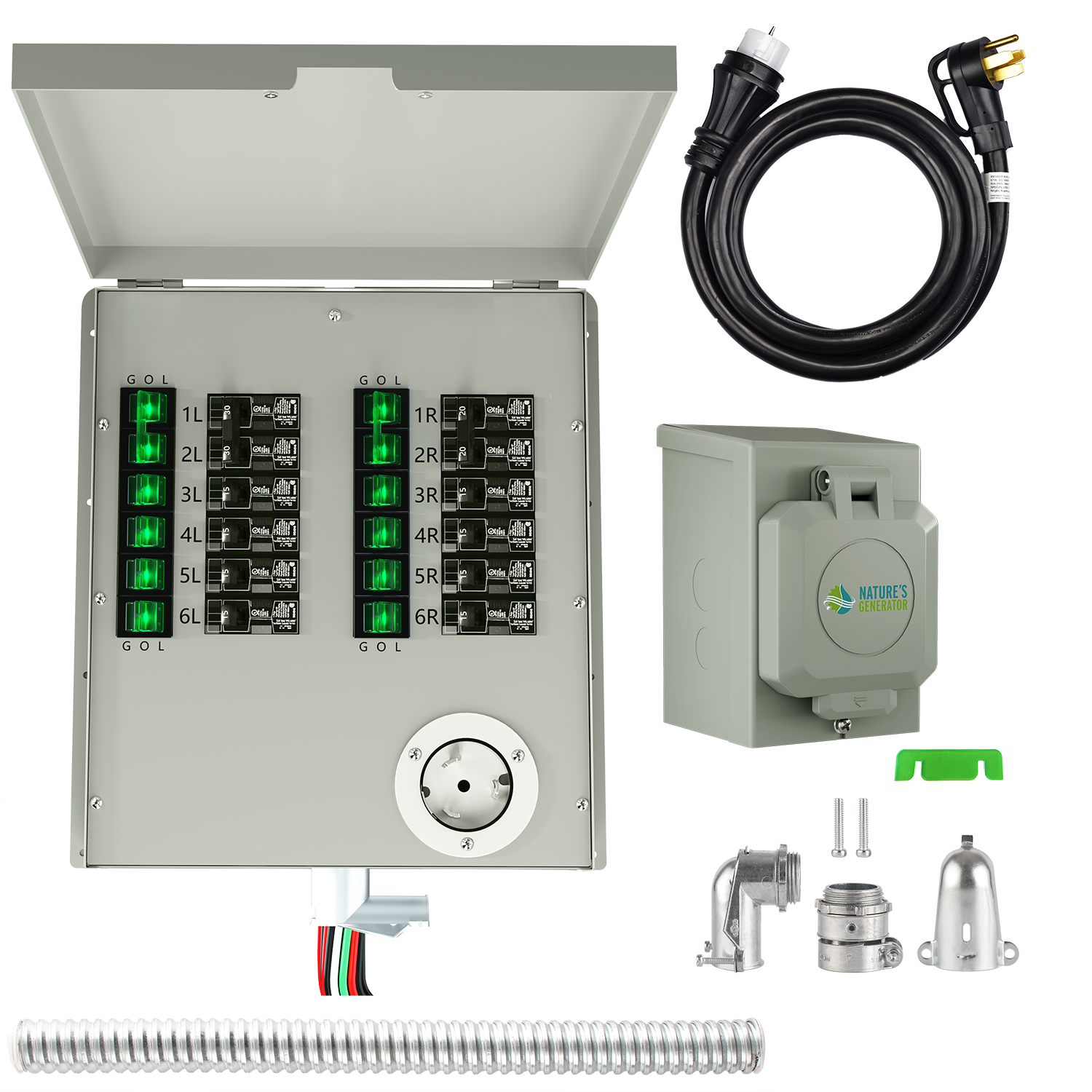

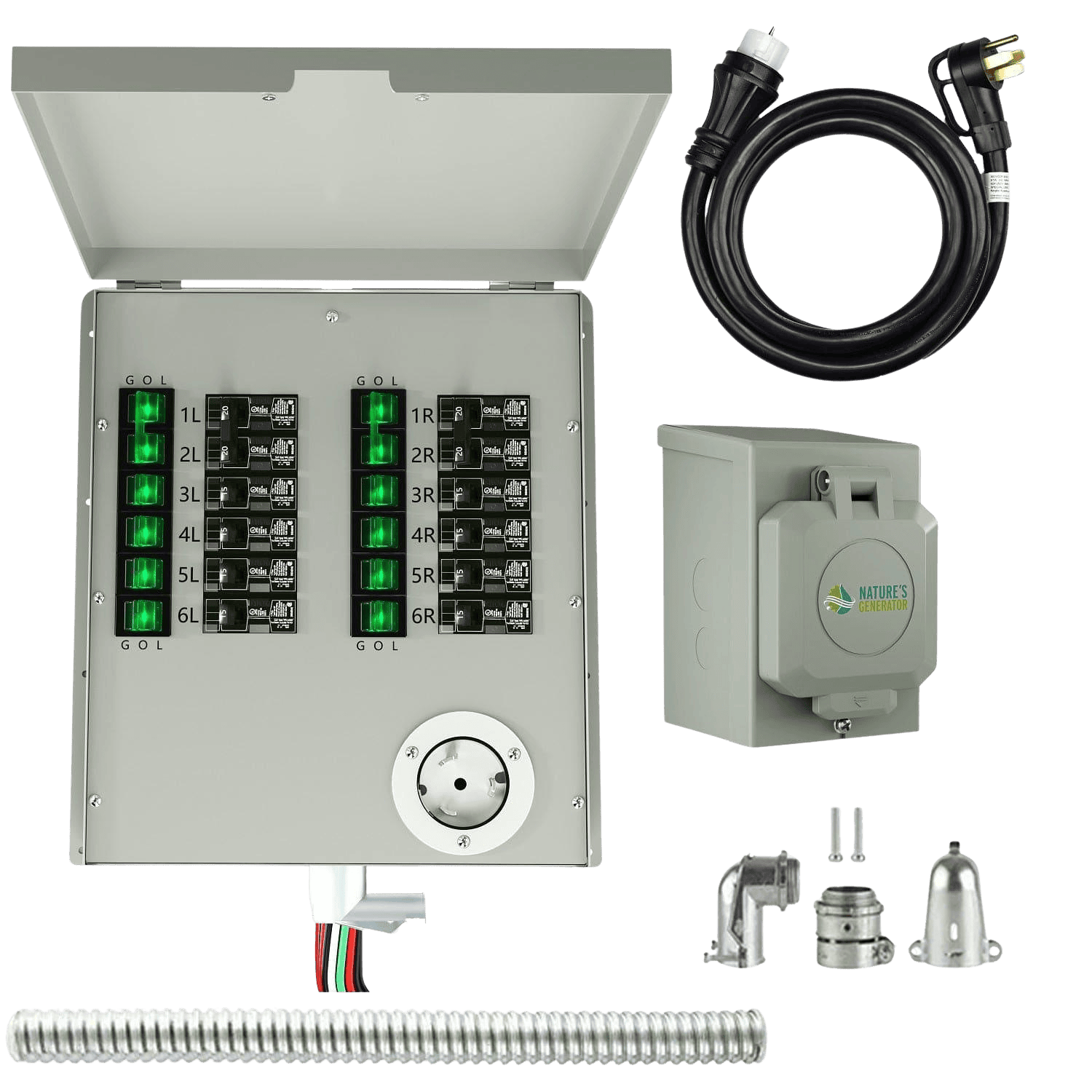

- Complete Transfer Switch Kit
- 12 Circuit (6 of 240V circuits or 12 of 120V circuits)
- 120Vac or 240Vac
- Illuminated Rocker Switch when in G position
- CS6375 Inlet (50A)
- Multiple Inlet Position
- Included power inlet box for other type of generators
Couldn't load pickup availability
You may also like
Innovative renewable solutions for a sustainable tomorrow.
Join us in building a greener world.
Features
Innovative renewable solutions for a sustainable tomorrow.
Join us in building a greener world.
Setup in minutes
Get instant home backup power with a fast, hassle-free installation.
Renter Friendly
Enjoy whole-home power without permanent wiring or modifications.
EV to Home Compatible
Seamlessly use your EV as an additional backup power source.
Powerful 10KW 10,496Wh
Delivers robust, long-lasting energy to support essential circuits and heavy loads.
Keep Everything Running, No Limits
Enjoy uninterrupted power for up to several days, anytime you need it.
Whole Home
Business
Off-Grid
Fully Charged in Less Than a Movie
2400W Solar Input, Multiple Ways to Charge, Never Run Out of Power
120V AC charging(Fast Charging Mode): 1800W, 2.5 hours
240V AC Charging(Super Charging Cable): 3600W, approx. 1 hour
Solar charging (1200W x 2): 2400W, Approx. 1.5 hours
120V AC charging(Fast Charging Mode): 1800W, 2.5 hours
240V AC Charging(Super Charging Cable): 3600W, approx. 1 hour
Solar charging (1200W x 2): 2400W, Approx. 1.5 hours
Control Panel Overview
Easily access all power options through the intuitive control panel featuring clearly labeled ports, outlets, and buttons for seamless operation.
Tech Specs
Find all the essential technical details of the Lithium 6000, including power output, capacity, and system specifications.
Inverter
Output Continuous Power
6000W
Output Peak Power
12000W
Output Voltage
120V/240V
Output Frequency
60Hz
Output Power Form
Pure Sine Wave
Output Outlets
6 totally
Battery
Capacity
51.2V 75Ah (3840Wh)
Cell Chemistry
Lithium Iron Phosphate (LiFePO4)
Cycle life
4000 cycles to 70%+ capacity
Charges
Solar Charger
12 - 60Vdc 25A 1200W x2
Wind Charger
12Vdc 150W (shared port)
AC Charger
120Vac 800W/6.7A, 120Vac 1800W/15A, 240Vac 3600W/15A
Charge Mode
MPPT
Ports
- 2x USB-A Port: 5V 2.4A 12W
- 2x USB-A Fast Charge Port: 5V 3A, 9V 3A, 12V 3A, 15V 3A, 20V 3A, 60W
- 2x USB-C Ports: 5V 3A, 9V 3A, 12V 3A, 15V 3A, 20V 5A 100W
- 12V DC Socket: 12V 10A 120W
- 12V DC Barrel: 12V 10A 120W
- Expansion Port: Built-in
General
Weight
112.4 lbs (51 kg)
Dimensions
18.5 x 14.0 x 17.6 inches (469*356*446mm)
Charge Temperature
32 – 104°F (0 – 40°C)
Discharge Temperature
-4 – 122°F (-20 – 50°C)
Warranty
3+2 Years
Battery
Capacity
51.2V 75Ah (3840Wh)
Cell Chemistry
Lithium Iron Phosphate (LiFePO4)
Cycle life
4000 cycles to 70%+ capacity
Charges
Solar Charger
12 - 60Vdc 25A 1200W x2
Wind Charger
12Vdc 150W (shared port)
Charge Mode
MPPT
General
Weight
99.2 lbs (45 kg)
Dimensions
18.5 x 14.0 x 17.6 inches (469*356*446mm)
Charge Temperature
32 – 104°F (0 – 40°C)
Discharge Temperature
-4 – 122°F (-20 – 50°C)
Warranty
3+2 Years
What's In The Box?
Lithium 6000 Power Station
1* or 2* Lithium 6000 Powerstation (Depends on the selected variant)
1* Lithium 6000 Power Pod (for Lithium 6000+Powerpod Variant)
1* Combiner Cable(for 2* Lithium 6000 Variant)
1* AC Power Cord
1* User Guide
1* or 2* Lithium 6000 Powerstation (Depends on the selected variant)
1* Lithium 6000 Power Pod (for Lithium 6000+Powerpod Variant)
1* Combiner Cable(for 2* Lithium 6000 Variant)
1* AC Power Cord
1* User Guide
Lithium 6000 Power station User Manual
Tech Specs
Innovative renewable solutions for a sustainable tomorrow.
Join us in building a greener world.

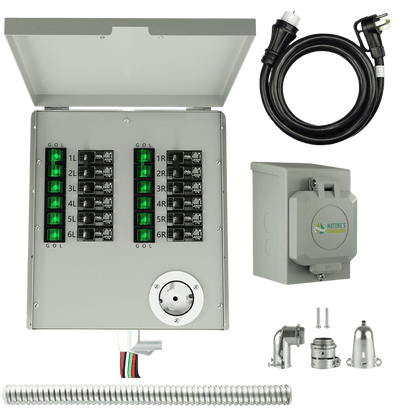

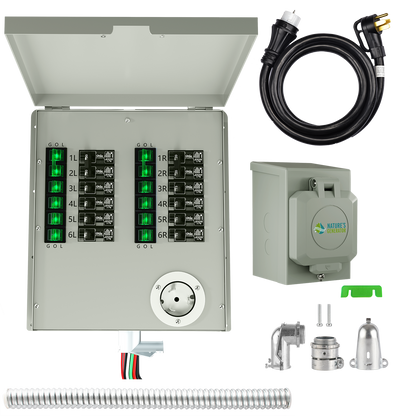

This 12-Circuit Transfer Switch Kit has everything you need to easily power your home or office during power outages. It is completely pre-wired and enables the electrical system of the building to accept the power of a portable generator to run up to twelve single-pole circuits.
What's even better is that this 12-circuit transfer switch kit is completely customizable! You can choose from three different inlet position. The illuminating Rocker Switch can be bridge to pair 2 circuit and be used as a double-pole circuit for 240Vac.
By incorporating ththis 12-circuit transfer switch kit in your home or office, you can continually power your most needed devices and go off-grid.
The included inlet box allows you to work all different types of generators, either indoor or outdoor.
Common circuits to keep backed up:
- Electrical vehicle charger
- Dryer
- Air Conditioner
- Lights
- Garage Doors
- Refrigerators/Freezers
- Common areas
IMPORTANT: Installation of the 12-Circuit Transfer Switch Kit must be performed by a qualified electrician in compliance with all applicable electrical codes. Do not charge Nature's Generator by wall through AC input port when using Power Transfer Kit.
12- Circuit Customizable Transfer Switch
Power your essential appliances whether it's a 12-circuit 120VAC or 6-circuit 240VAC or the mix of both! Customize your transfer switch depending on WHAT YOU NEED!

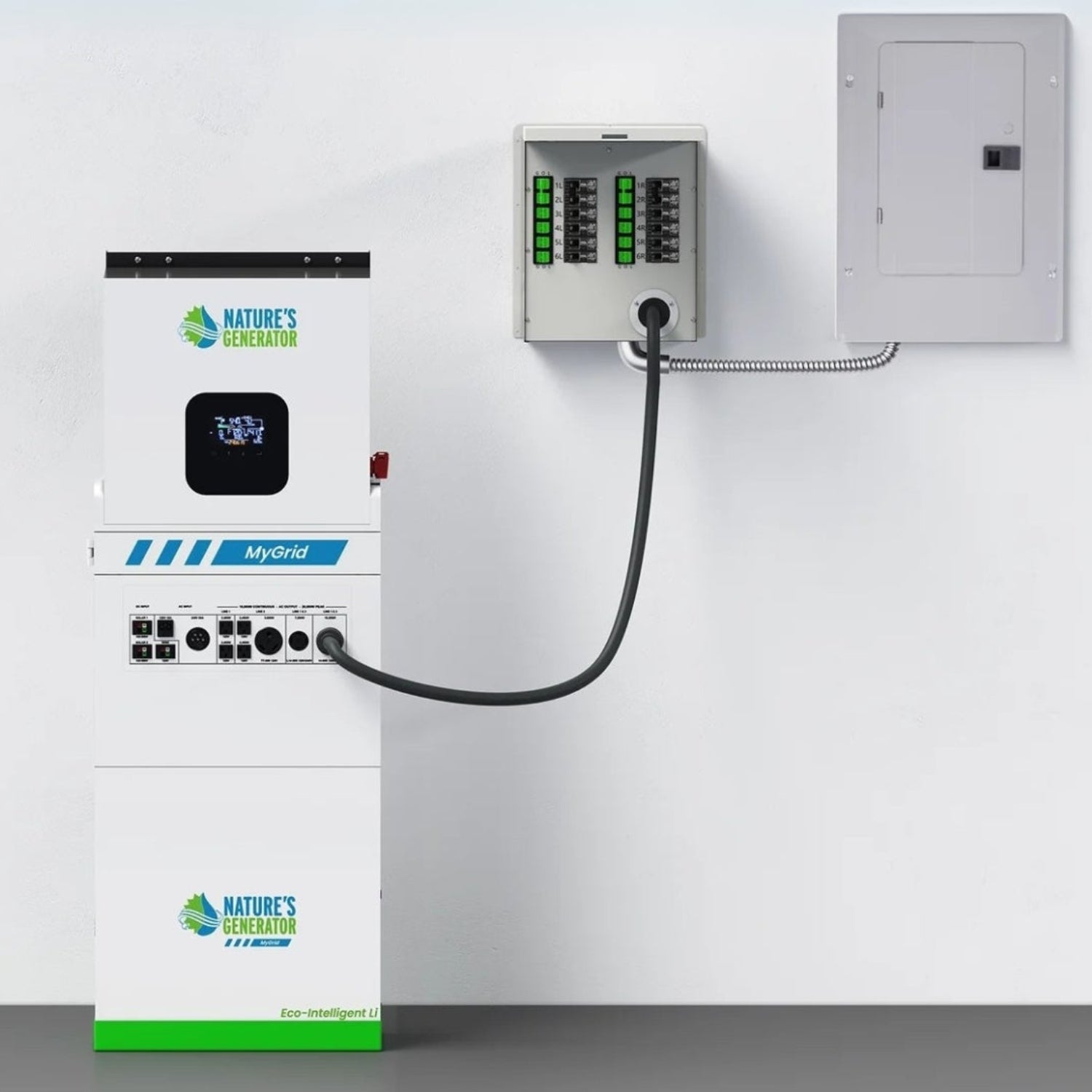

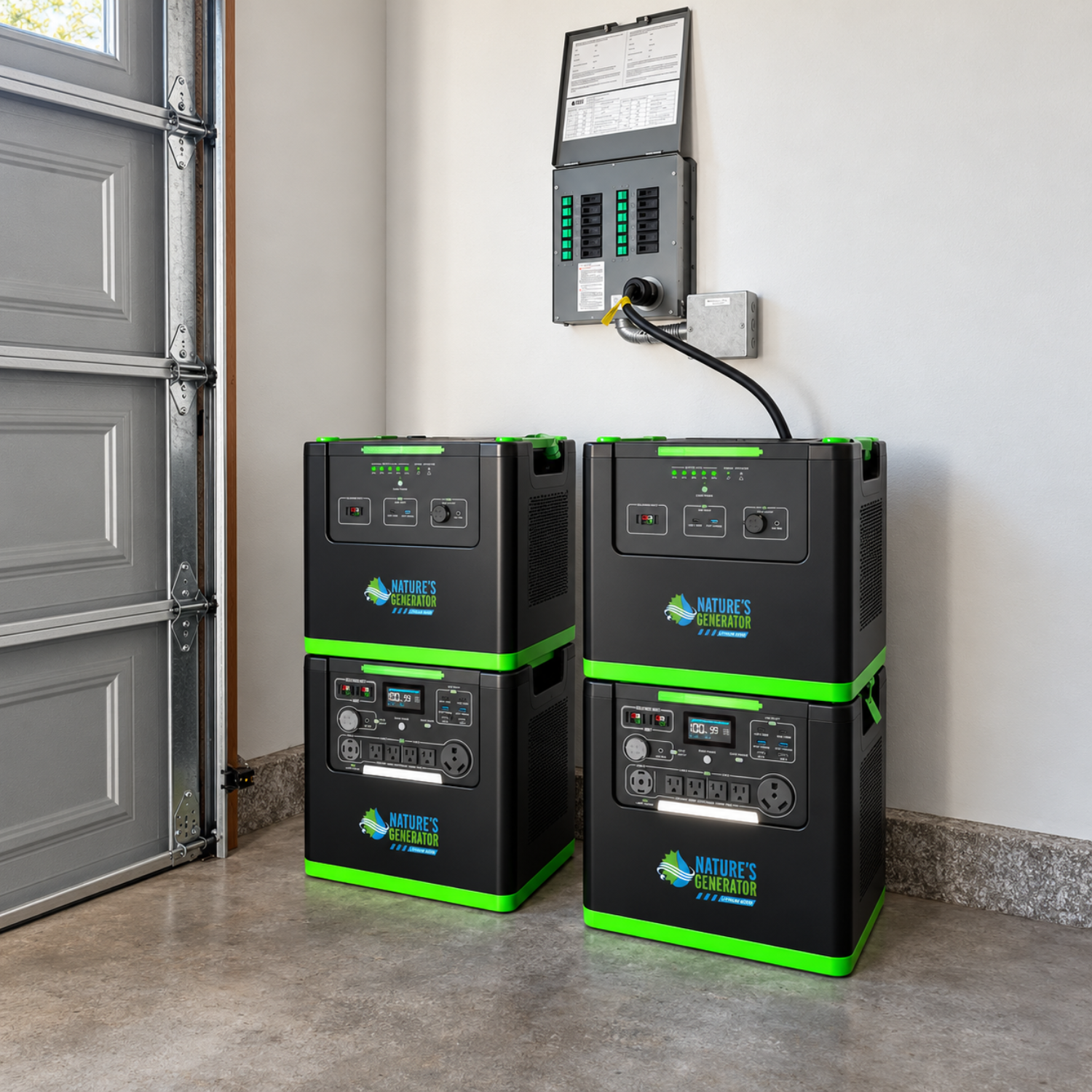

Home Integration
Nature's Generator
12- Circuit Powerhouse
Transfer Switch

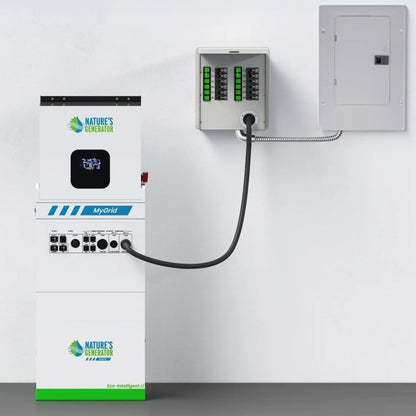

As the Power Transfer Kit links Nature's Generator Powerhouse to your homes critical loads, you can continue powering hardwired items like your water pump, air conditioner, lights or bulky item like your refrigerator without moving them around or item in the tight corner that are difficult to be unplugged.

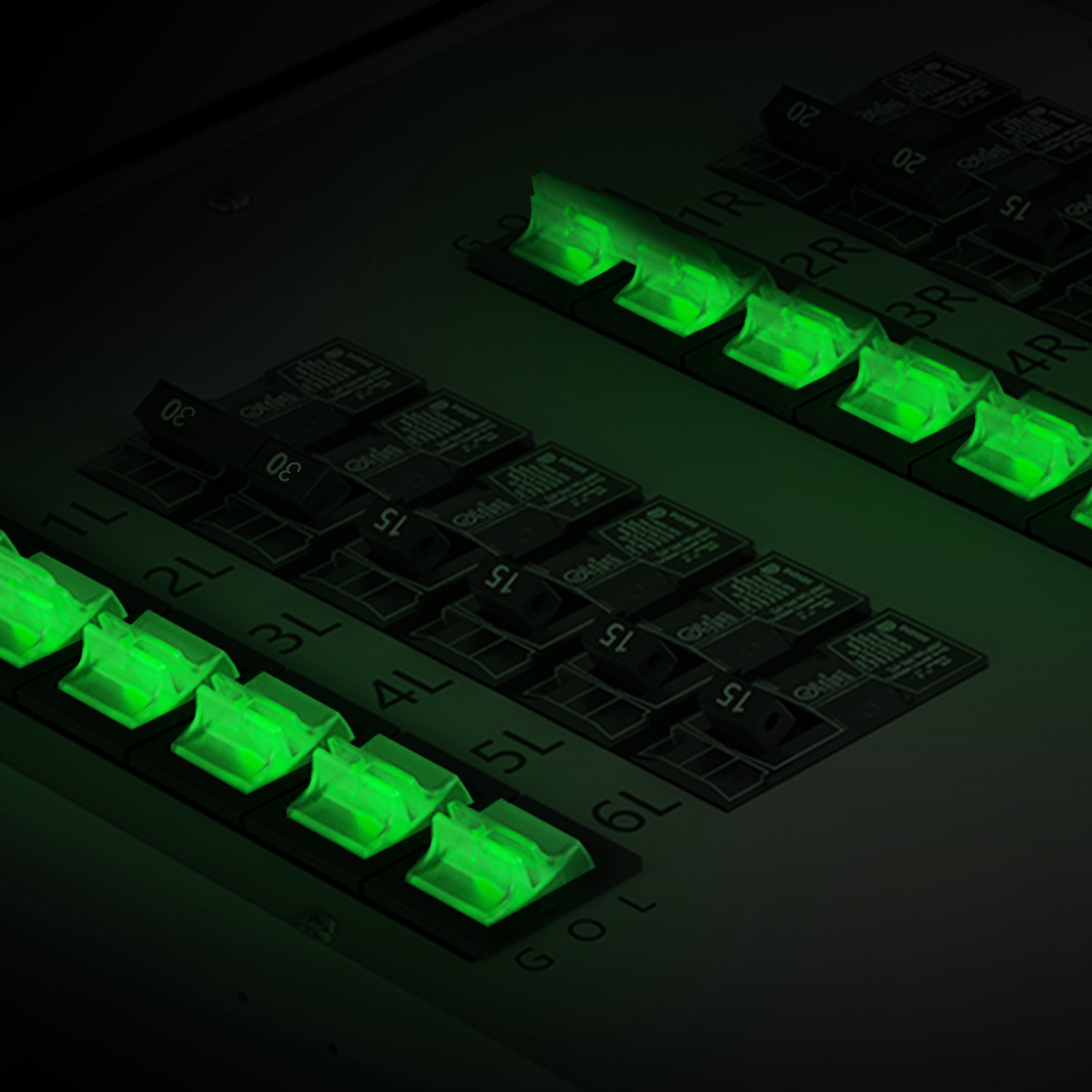

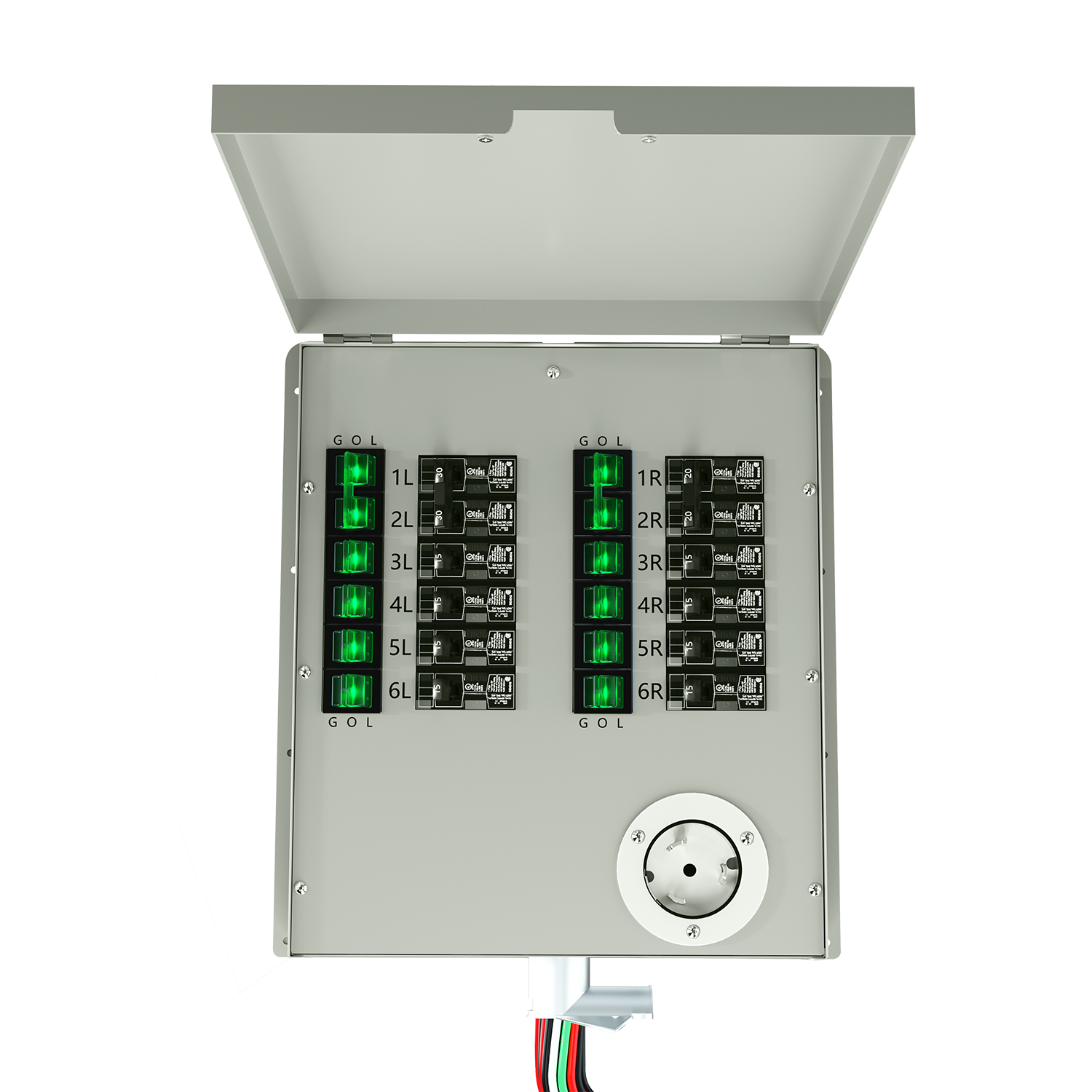

Green Means Go
The rocker switch of the Nature's Generator Transfer Kit illuminates when switched to the G position. This helps you identify which power source you are using. This kit also have its own circuit breaker for additional protection for your home circuit line and your generator.

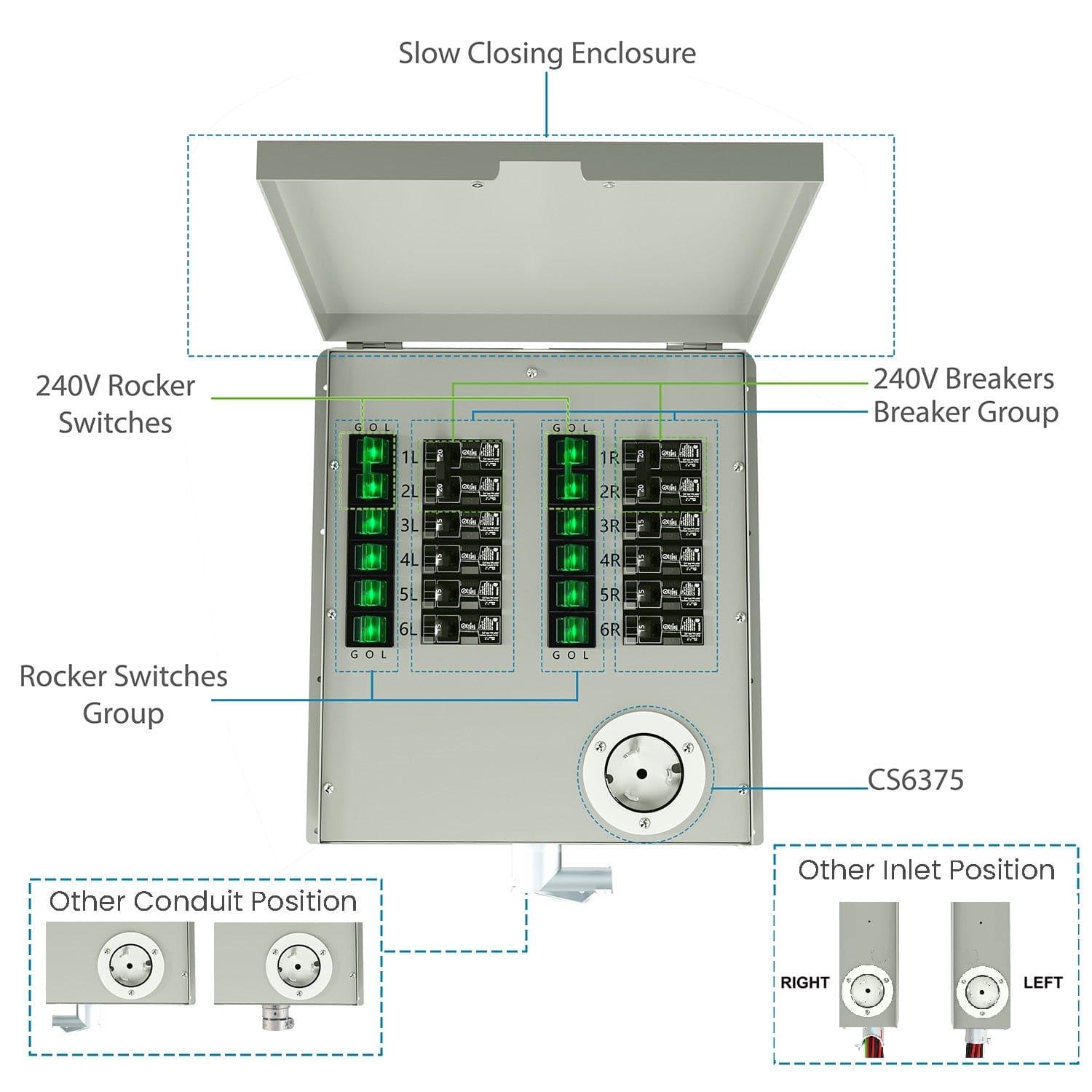

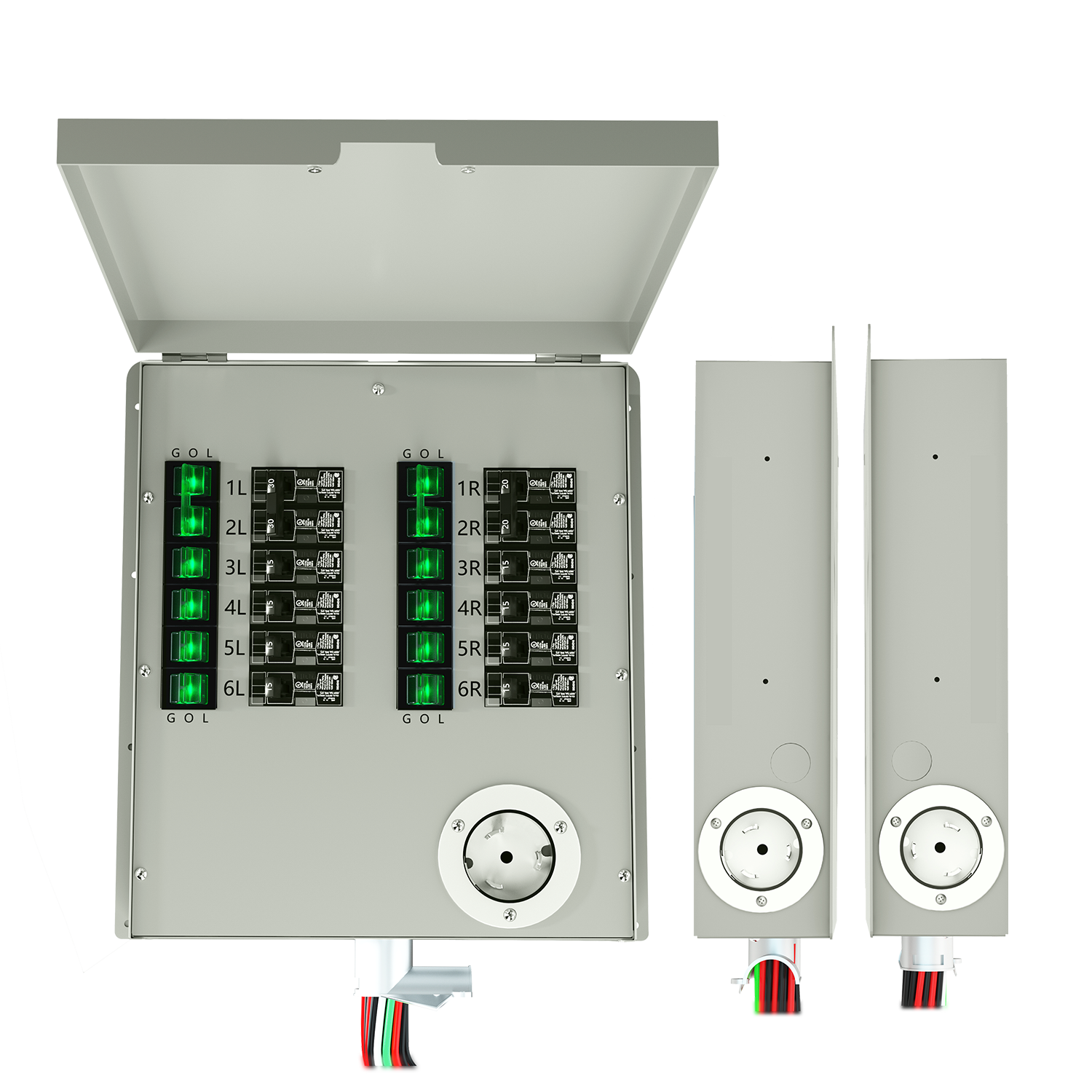

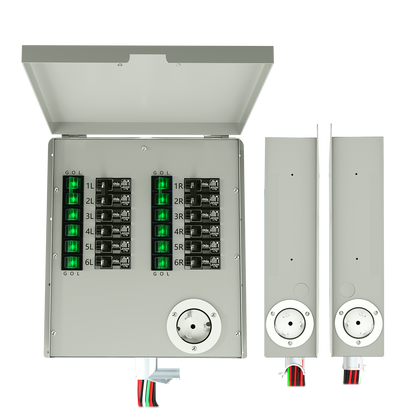

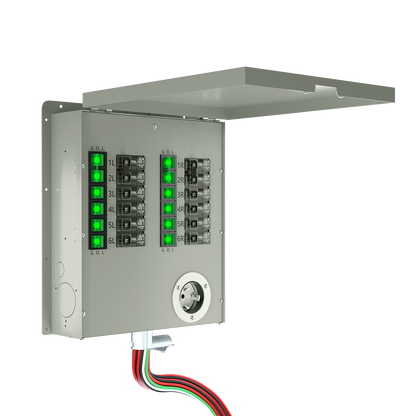

Multiple Power Inlet Position

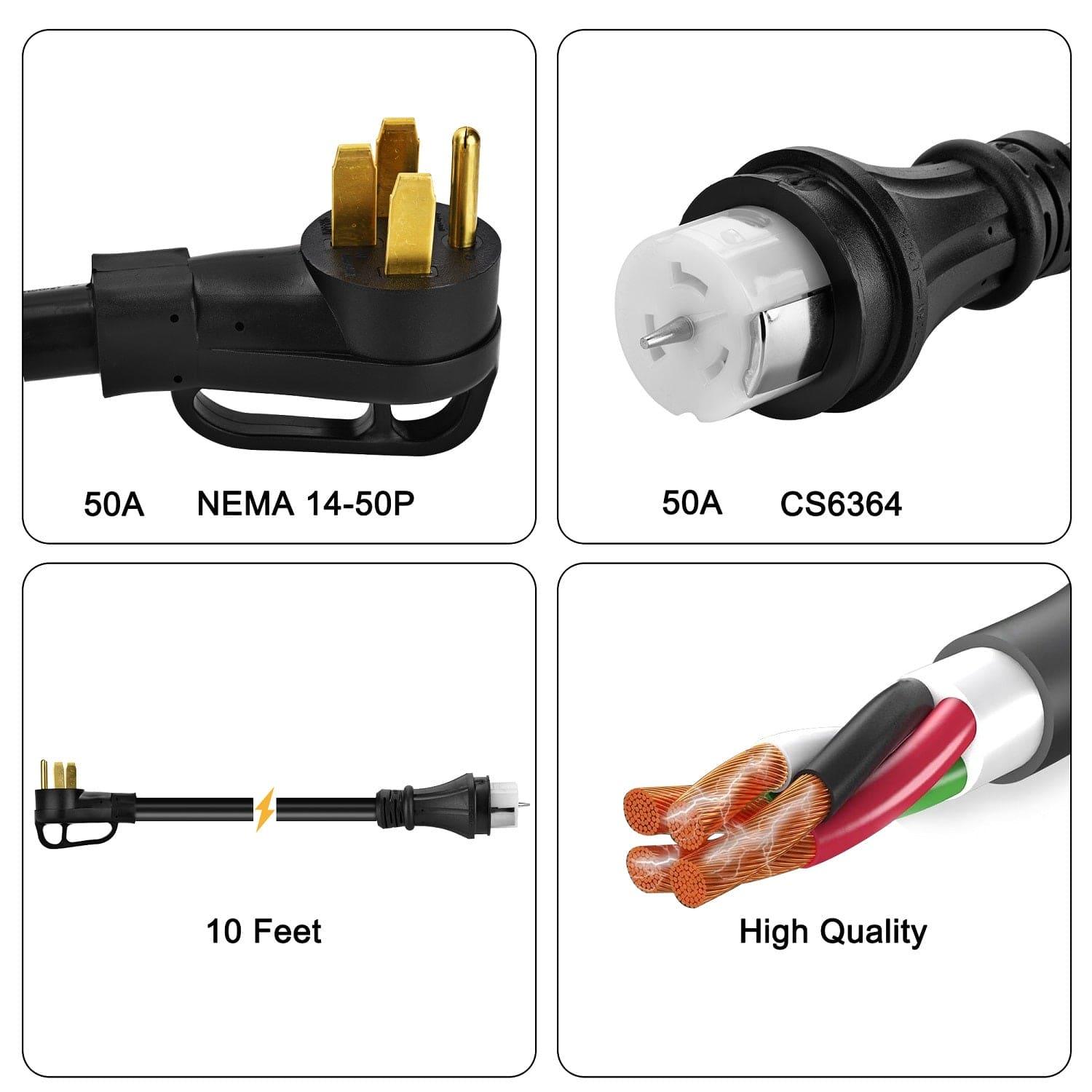

The Nature's Generator Power Transfer Kit came with complete set along with a 10 Foot 12AWG Power cord. This transfer switch can work with 240V AC and you can place the power inlet its either on the front, left or right.

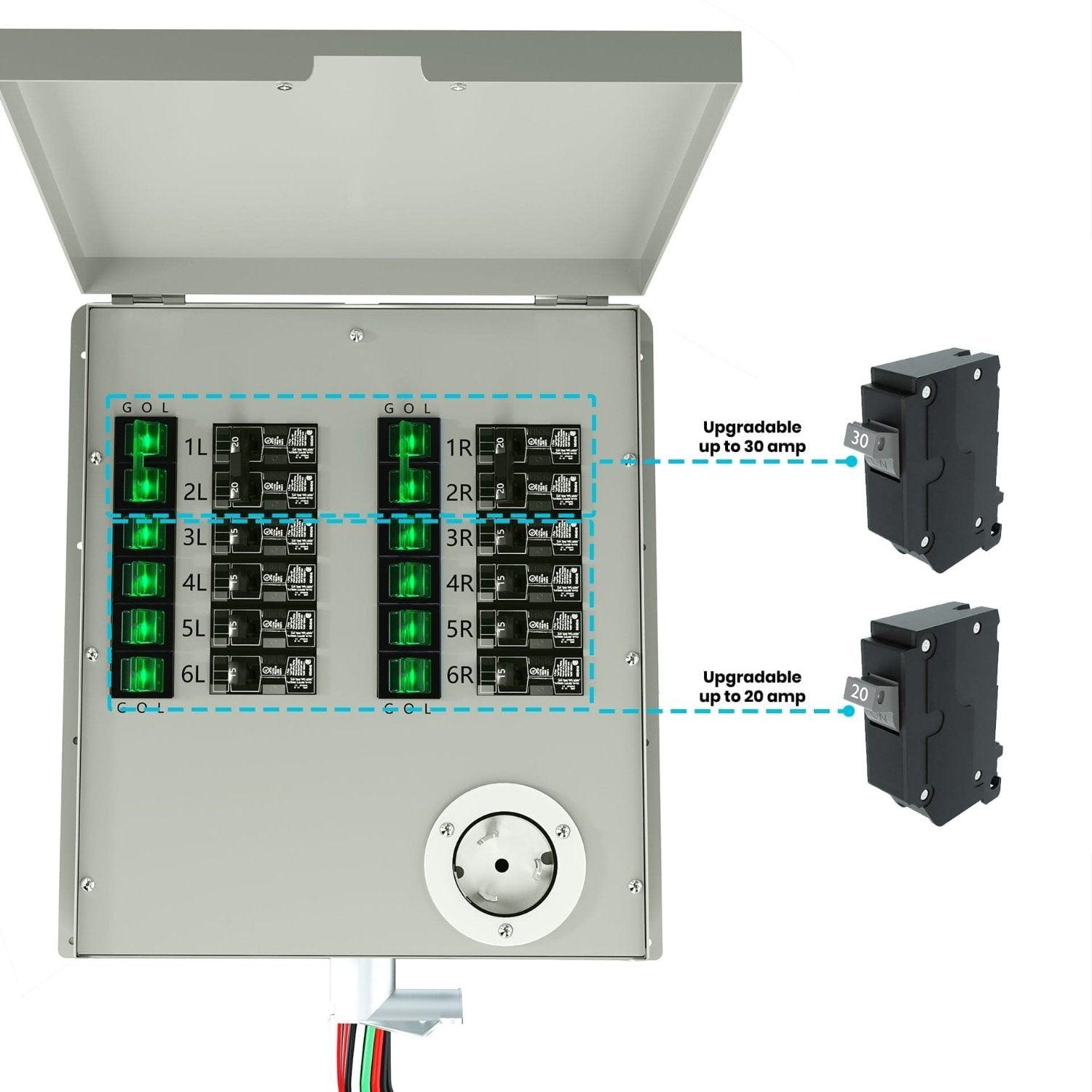

Upgradable Circuit Breakers
Nature's Generator 50A Transfer Kit is supplied with 120V/15-amp and 240V/20-amp circuit breakers as default. You can upgrade to 30-amp circuit breakers in positions 1L, 2L, 1R and 2R and upgrade to 20-amp circuit breakers in all other positions.
Green Means Go
The rocker switch of the Nature's Generator Transfer Kit illuminates when switched to the G position. This helps you identify which power source you are using. This kit also has its own circuit breaker for added protection for your home’s circuit line and your generator.

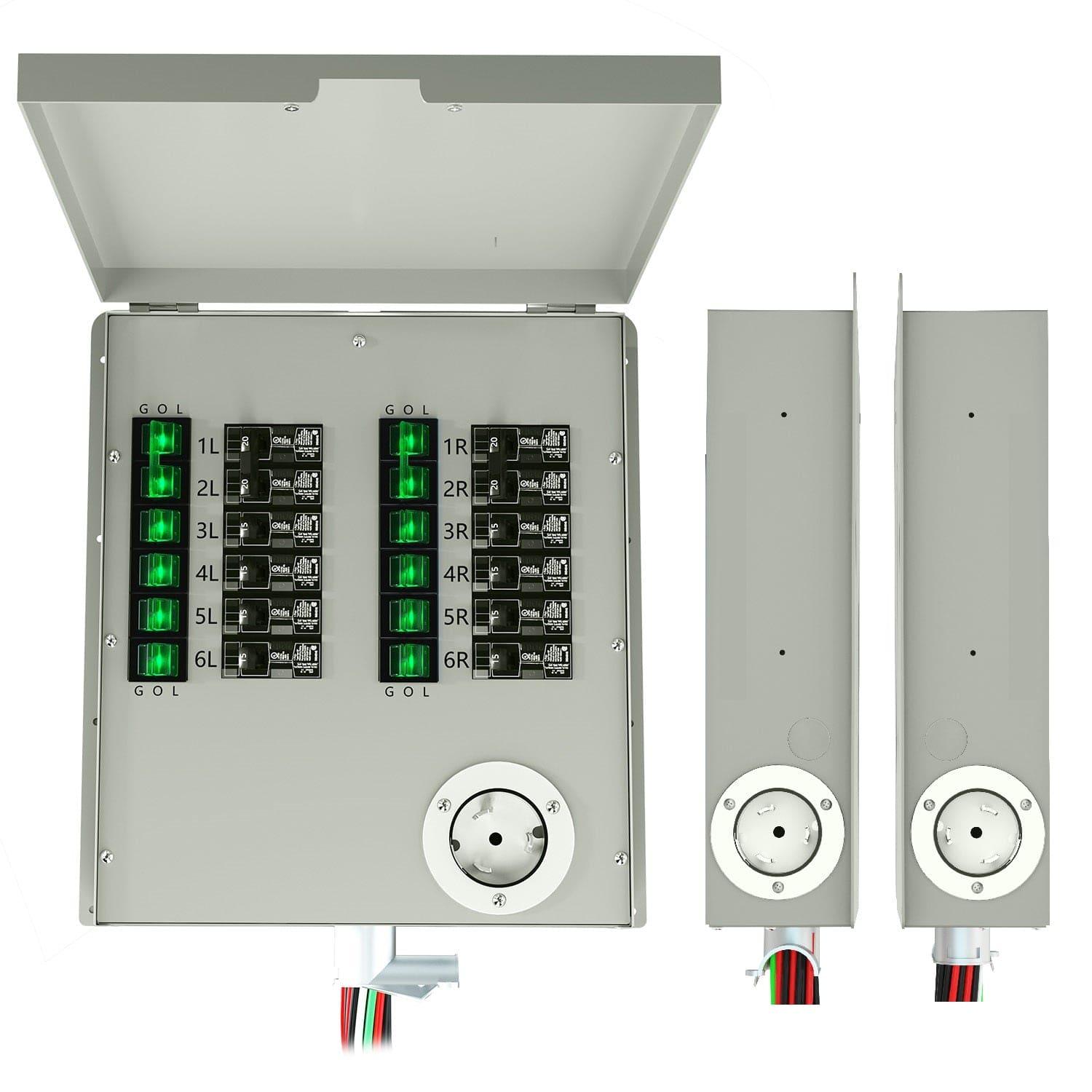

Multiple Power Inlet Position
The Nature's Generator Power Transfer Kit includes multiple inlet position options along with a 10 Foot 6AWG Power cord. This transfer switch can work with 240VAC and you can select to use the power inlet either on its front, left, or right side.
Product Comparison
| 12 Circuit 120V/240V 50A Transfer Switch | 12 Circuit 120V/240V 30A Transfer Switch | 6 Circuit 120V/240V
30A Transfer Switch | 6 Circuit 120V 30A Transfer Switch | 4 Circuit 120V 15A Transfer Switch |
|---|---|---|---|---|
| 12,000W Rating | 7,500W rating | 7,500W rating | 3,750W Rating | 1,875W rating |
| 12 Circuit | 12 Circuit | 6 Circuit | 6 Circuit | 4 Circuit |
| CS 6375 Inlet | NEMA L14-30P Inlet | NEMA L14-30P Inlet | NEMA L5-30P Inlet | NEMA 5-15P Inlet |
| 120V/240V | 120V/240V | 120V/240V | 120V Only | 120V Only |
| 50A | 30A | 30A | 30A | 15A |
| Upgradeable Breakers | Upgradeable Breakers | Upgradeable Breakers | Upgradeable Breakers | ------ |
| 1-1/4 inch fittings | 1-1/4 inch fittings | 1 inch fittings | 1 inch fittings | 1 inch fittings |
| UL 1008 Standard | UL 1008 Standard | UL 1008 Standard | UL 1008 Standard | UL 1008 Standard |
12 Circuit 120V/240V 50A Transfer Switch |
12 Circuit 120V/240V 30A Transfer Switch |
6 Circuit 120V/240V 30A Transfer Switch |
6 Circuit 120V 30A Transfer Switch |
4 Circuit 120V 15A Transfer Switch |
|---|---|---|---|---|
| 12,000W Rating | 7,500W rating | 7,500W rating | 3,750W Rating | 1,875W rating |
| 12 Circuit | 12 Circuit | 6 Circuit | 6 Circuit | 4 Circuit |
| CS 6375 Inlet | NEMA L14-30P Inlet | NEMA L14-30P Inlet | NEMA L5-30P Inlet | NEMA 5-15P Inlet |
| 120V/240V | 120V/240V | 120V/240V | 120V Only | 120V Only |
| 50A | 30A | 30A | 30A | 15A |
| Upgradeable Breakers | Upgradeable Breakers | Upgradeable Breakers | Upgradeable Breakers | ------ |
| 1-1/4 inch fittings | 1-1/4 inch fittings | 1 inch fittings | 1 inch fittings | 1 inch fittings |
| UL 1008 Standard | UL 1008 Standard | UL 1008 Standard | UL 1008 Standard | UL 1008 Standard |
| 12 Circuits 120V/240V 50A Transfer Switch | 30A Transfer Switch | 6 Circuits 120V/240V
30A Transfer Switch | 6 Circuit 120V 30A Transfer Switch | 4 Circuit 120V 15A Transfer Switch |
|---|---|---|---|---|
| 12,000W Rating | 7,500W rating | 7,500W rating | 3,750W Rating | 1,875W rating |
| 12 Circuits | 12 Circuits | 6 Circuits | 6 Circuits | 4 Circuits |
| CS 6375 Inlet | NEMA L14-30P Inlet | NEMA L14-30P Inlet | NEMA L5-30P Inlet | NEMA 5-15P Inlet |
| 120V/240V | 120V/240V | 120V/240V | 120V Only | 120V Only |
| 50A | 30A | 30A | 30A | 15A |
| Upgradeable Breakers | Upgradeable Breakers | Upgradeable Breakers | Upgradeable Breakers | ------ |
| 1-1/4 inch fittings | 1-1/4 inch fittings | 1 inch fittings | 1 inch fittings | 1 inch fittings |
| UL 1008 Standard | UL 1008 Standard | UL 1008 Standard | UL 1008 Standard | UL 1008 Standard |
