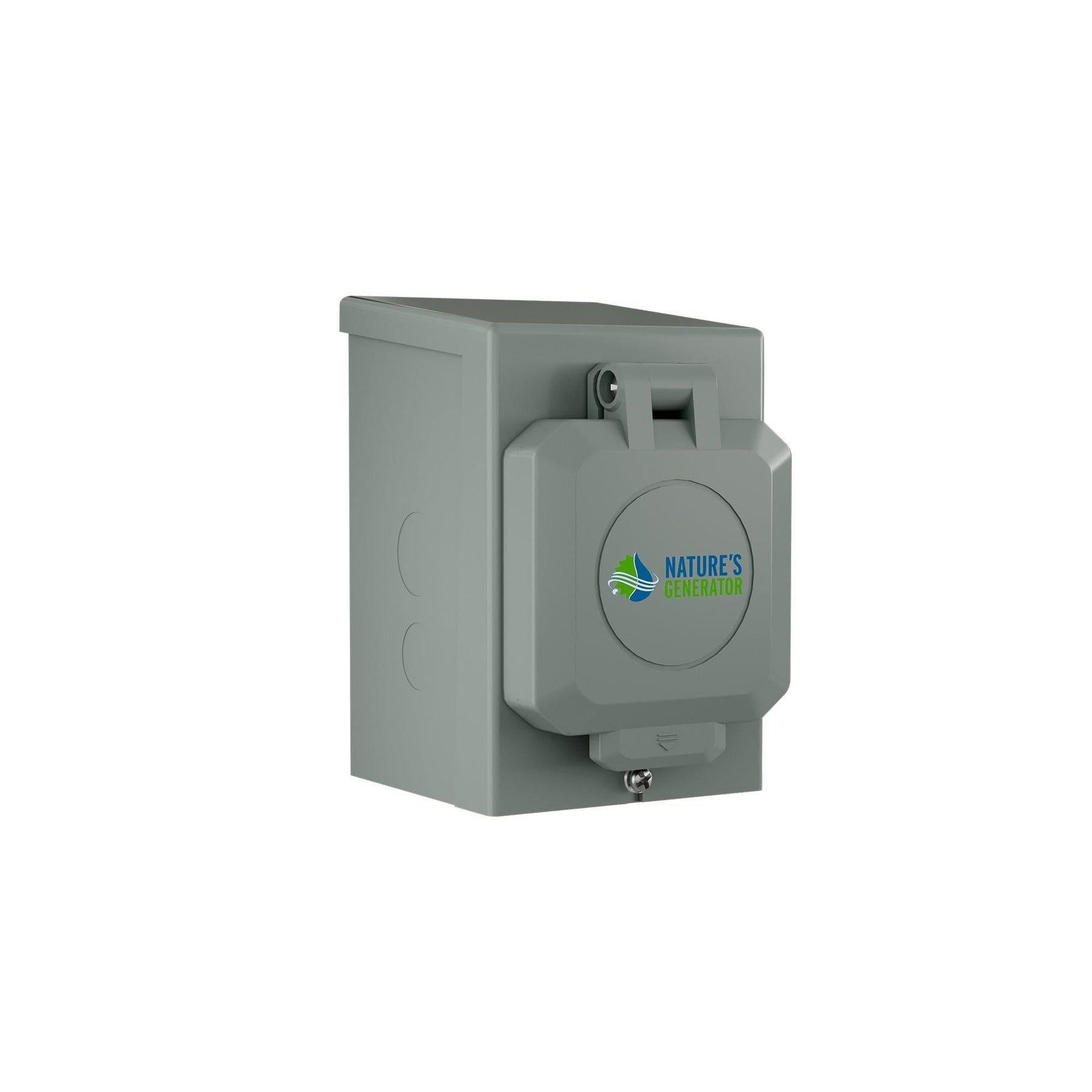

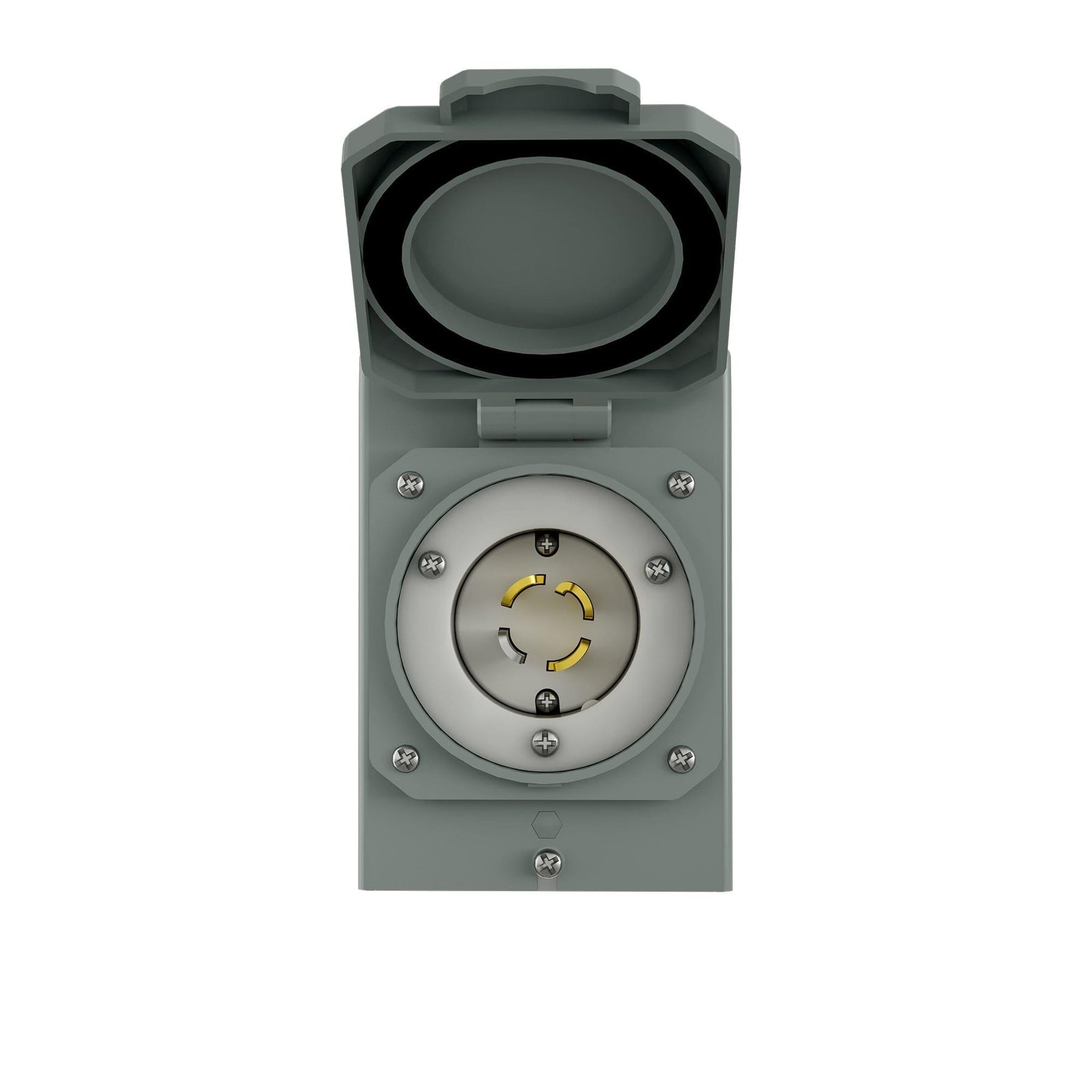

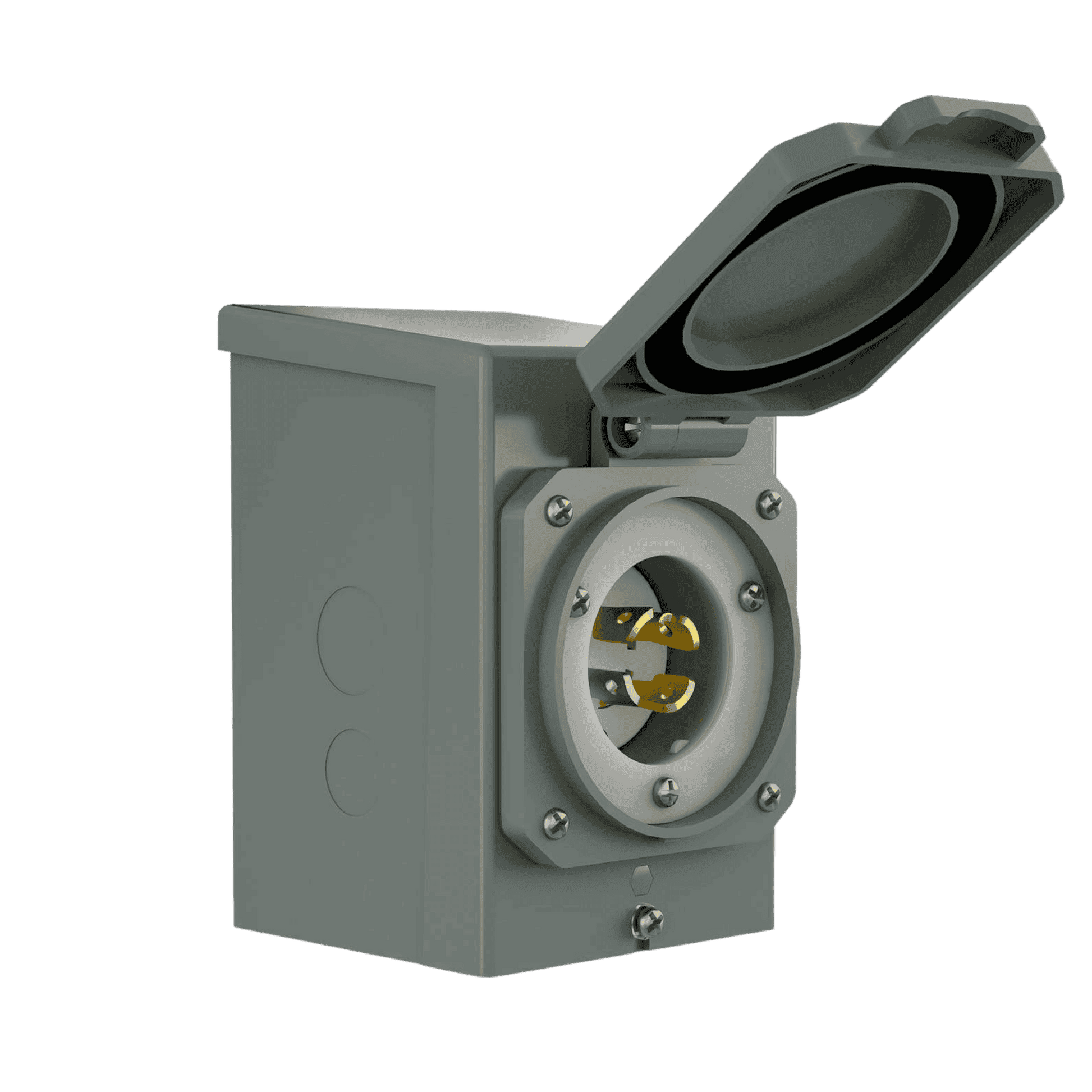

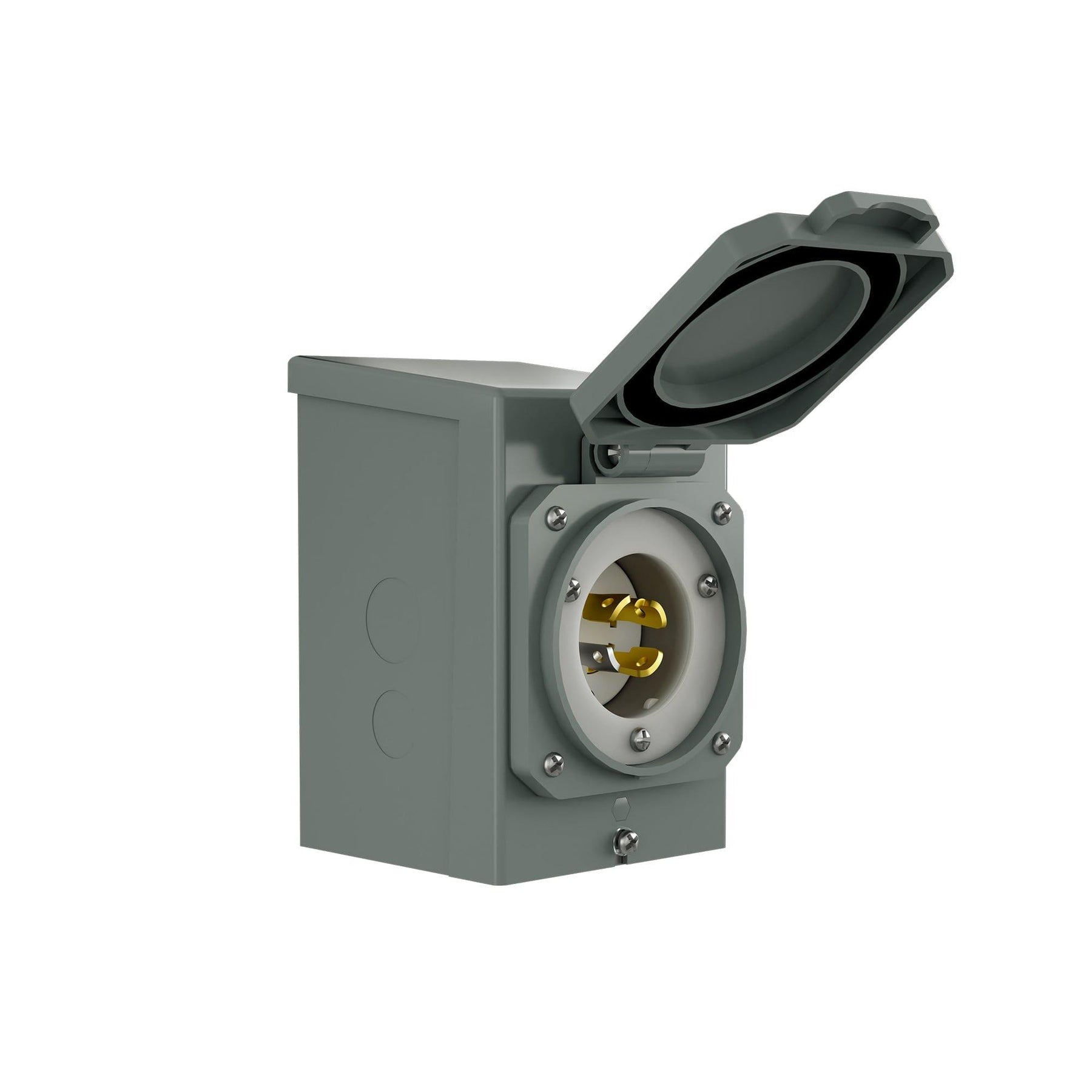

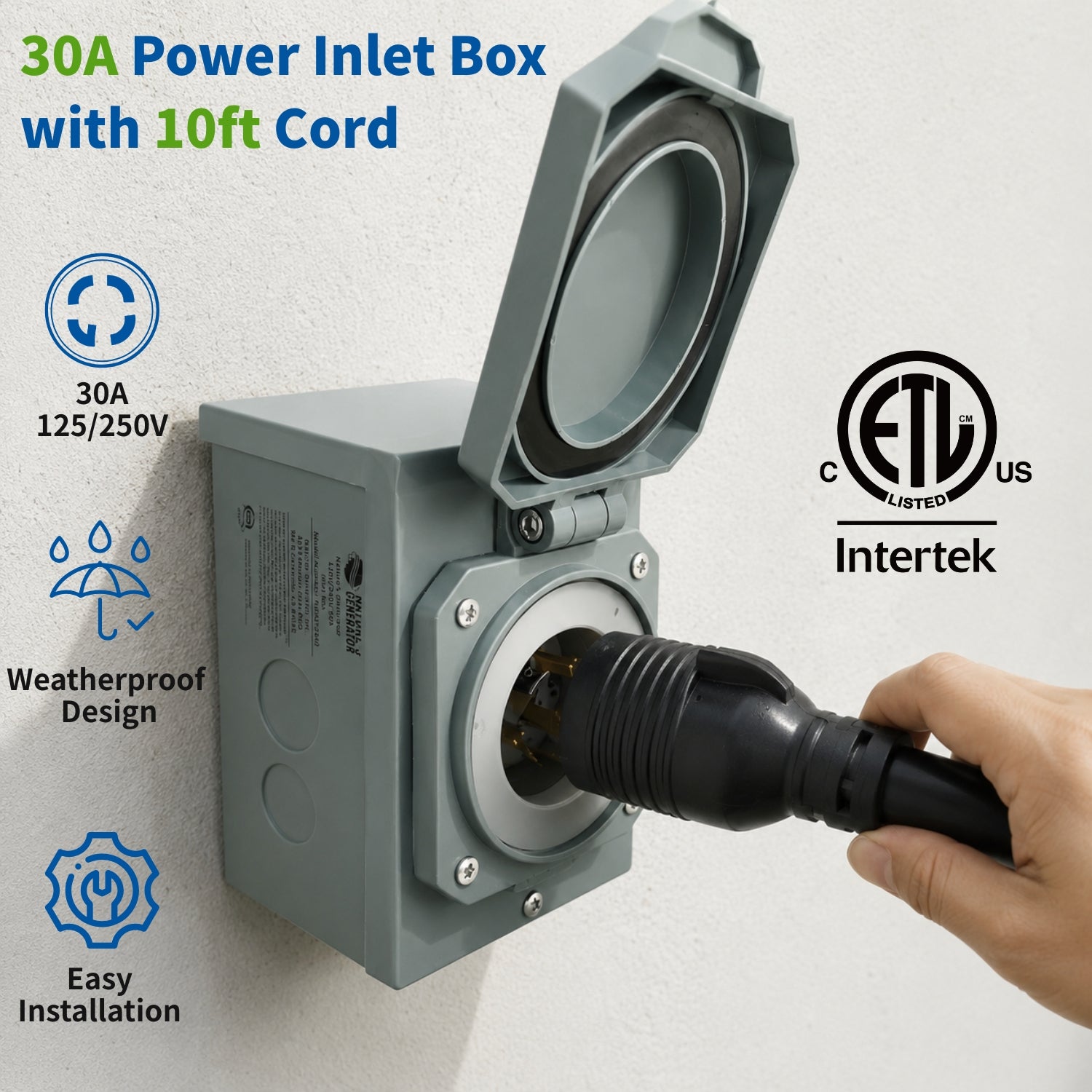

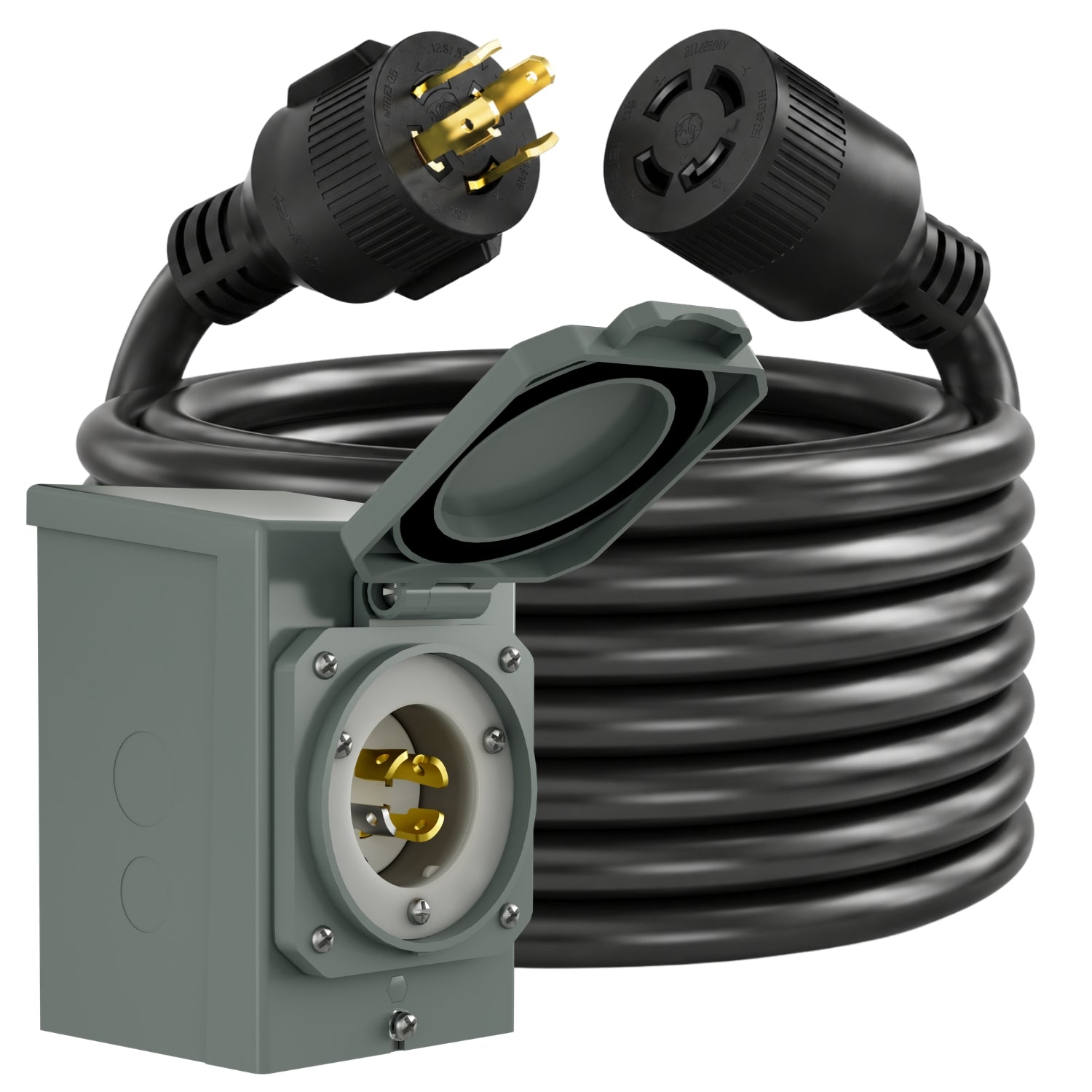

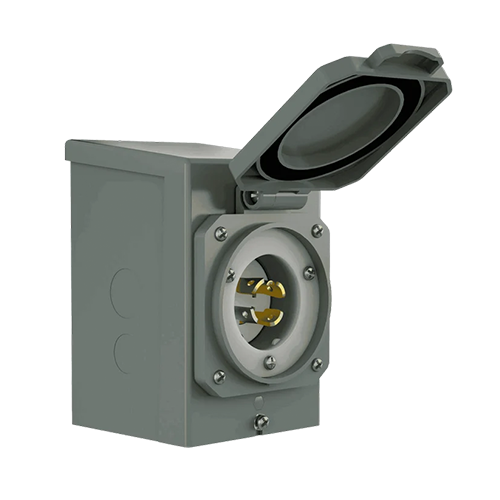

Nature's Generator 30A Power Inlet Box
Nature's Generator 30A Power Inlet Box
SKU:NGNLT2430

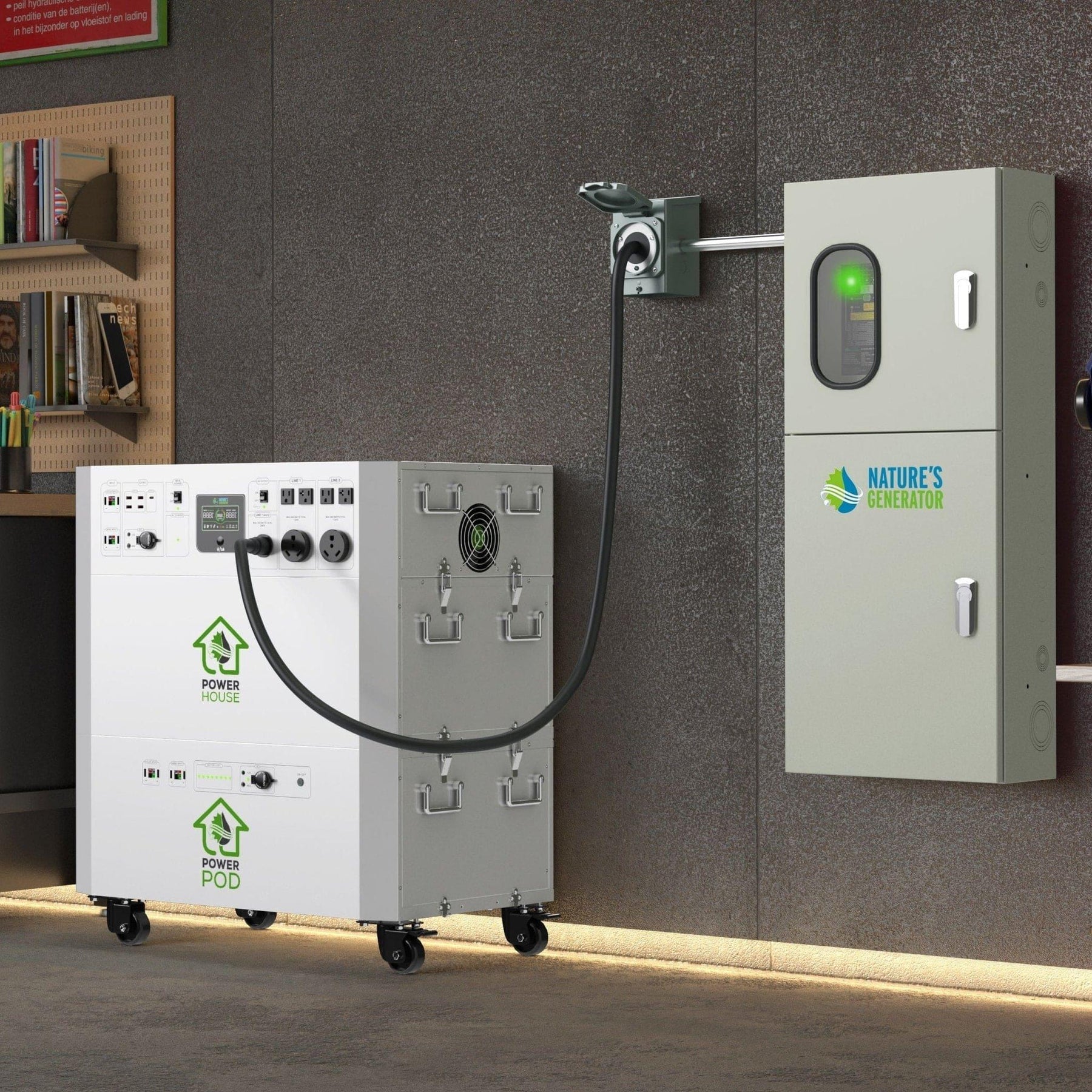

• 30 Amp Power Inlet: Provides a secure connection between your generator cord and a manual or automatic transfer switch or electrical panel for reliable backup power.

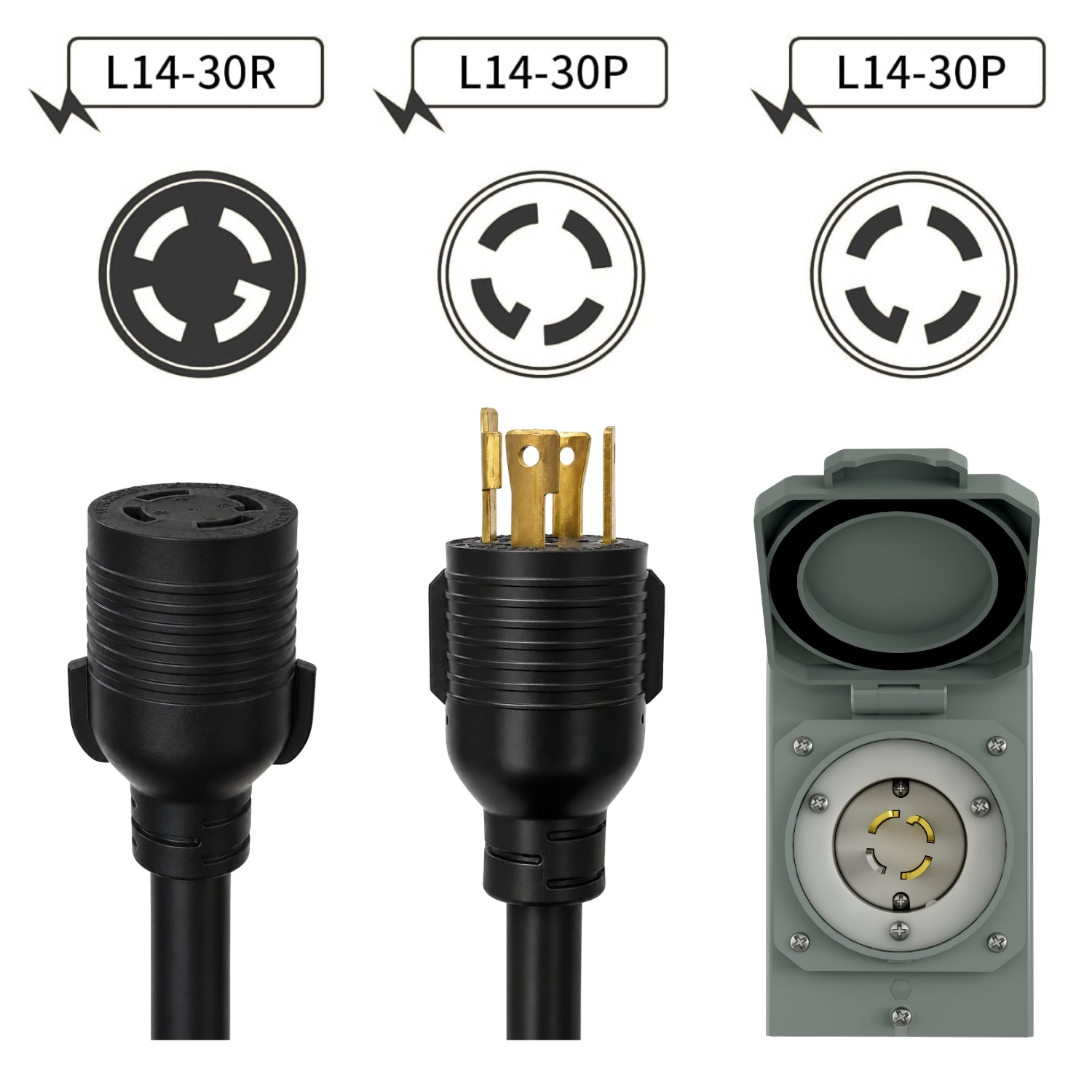

• NEMA L14-30P Inlet: Compatible with standard 30 A, 125/250 V AC generator plugs for broad usability with common generator setups.
• 7,500 W Maximum Load: Rated to handle up to 7,500 W of generator output for powering key circuits and appliances during outages.
• Durable Construction: Heavy-duty housing built for dependable long-term outdoor performance.
• Weatherproof Design: Weather-resistant enclosure helps protect internal components and connections from the elements.
• Outdoor-Ready: Built to withstand outdoor conditions, ensuring durability where you need it most.

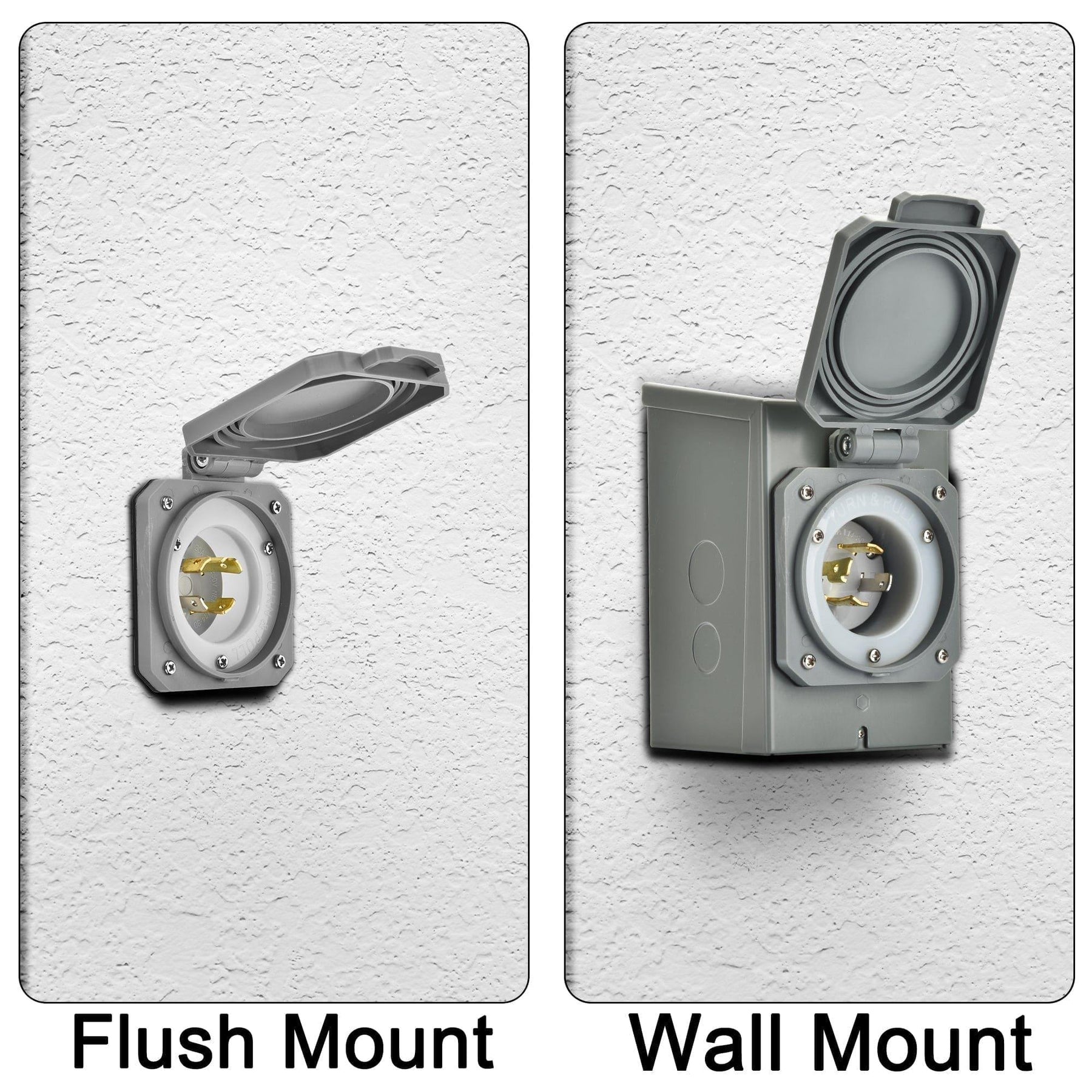

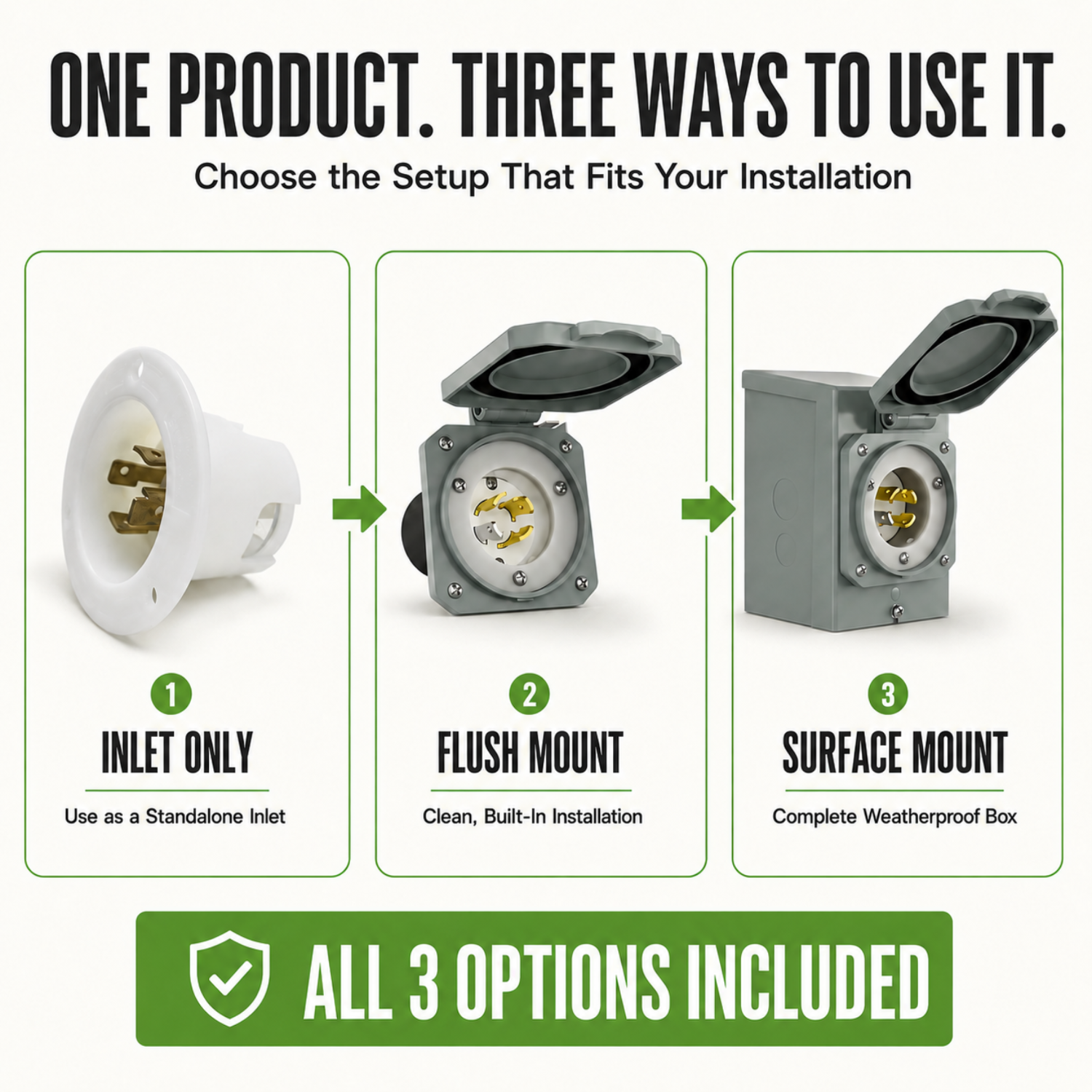

• Easy Installation: Designed for straightforward surface mounting and standard electrical wiring practices, making setup fast and hassle-free.
• Meets UL Standard: Certified to UL 498 and CSA C22.2 No. 42-10 safety standards. Here is certificate
• Installation Made Easy: Learn how to install with our step-by-step video guide or user guide.
Compatibility Chart
| Model | Compatible | Notes |
|---|---|---|
| Mygrid 10,000W | ✔ | Full support |
| Powerhouse 7200W | ✔ | Full support |
| Lithium 6000W | ✔ | Full support |
| Lithium 3600W | ✔ | Need combiner |
Couldn't load pickup availability
You may also like
Innovative renewable solutions for a sustainable tomorrow.
Join us in building a greener world.
Weather-Resistant Durability
Designed with water-resistant and dust-resistant protection to help safeguard the power inlet box from harsh outdoor conditions and everyday exposure.
Waterproof
Built with a weather-resistant enclosure that helps protect the power inlet from rain, moisture, and outdoor elements for dependable performance.

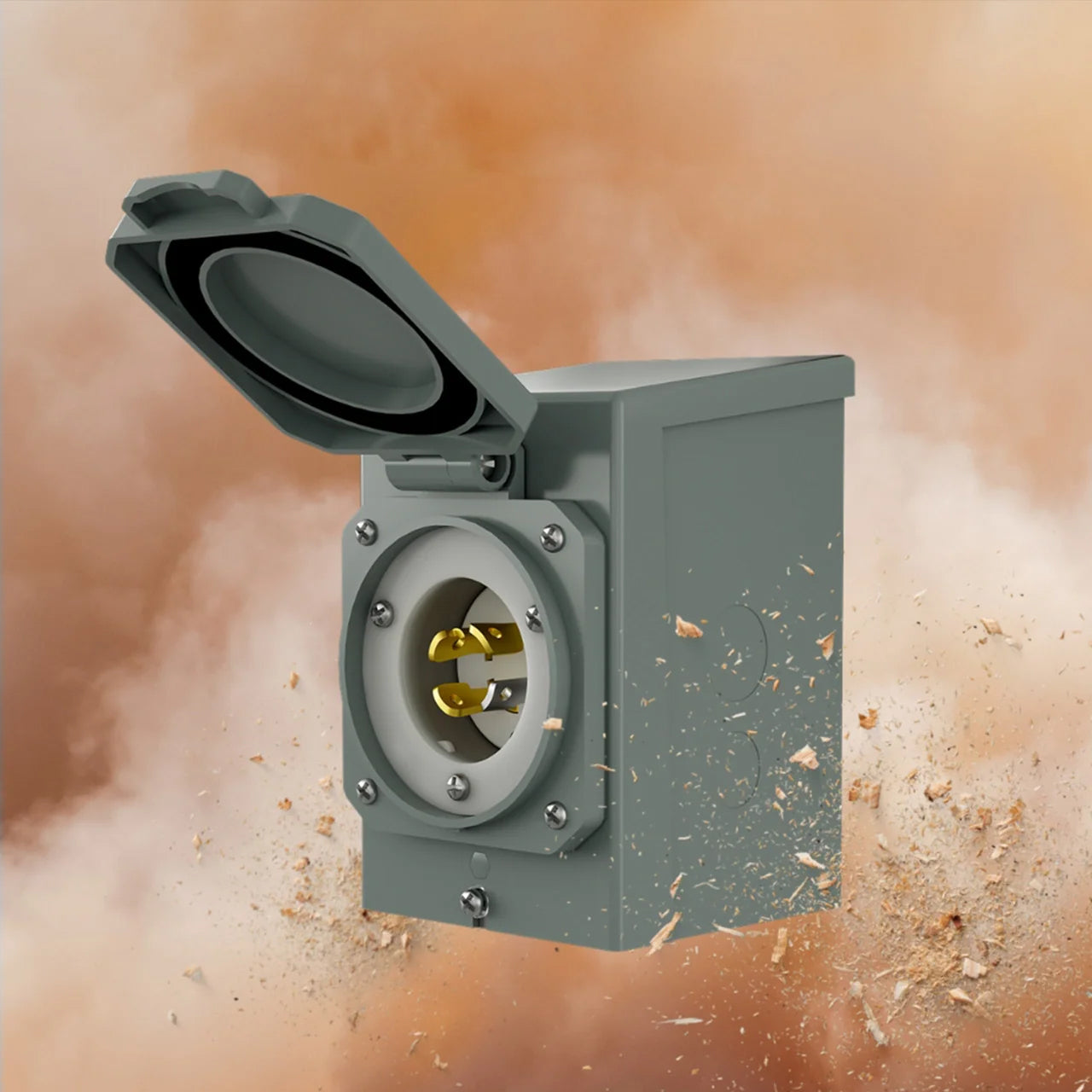

Dustproof
Designed to keep dust, dirt, and debris out of the enclosure, helping maintain reliable electrical connections and extending product durability.
Designed for Safe, Simple & Reliable Performance
Explore the essential specifications, user-friendly installation, and built-in safety features designed to deliver dependable performance and peace of mind.

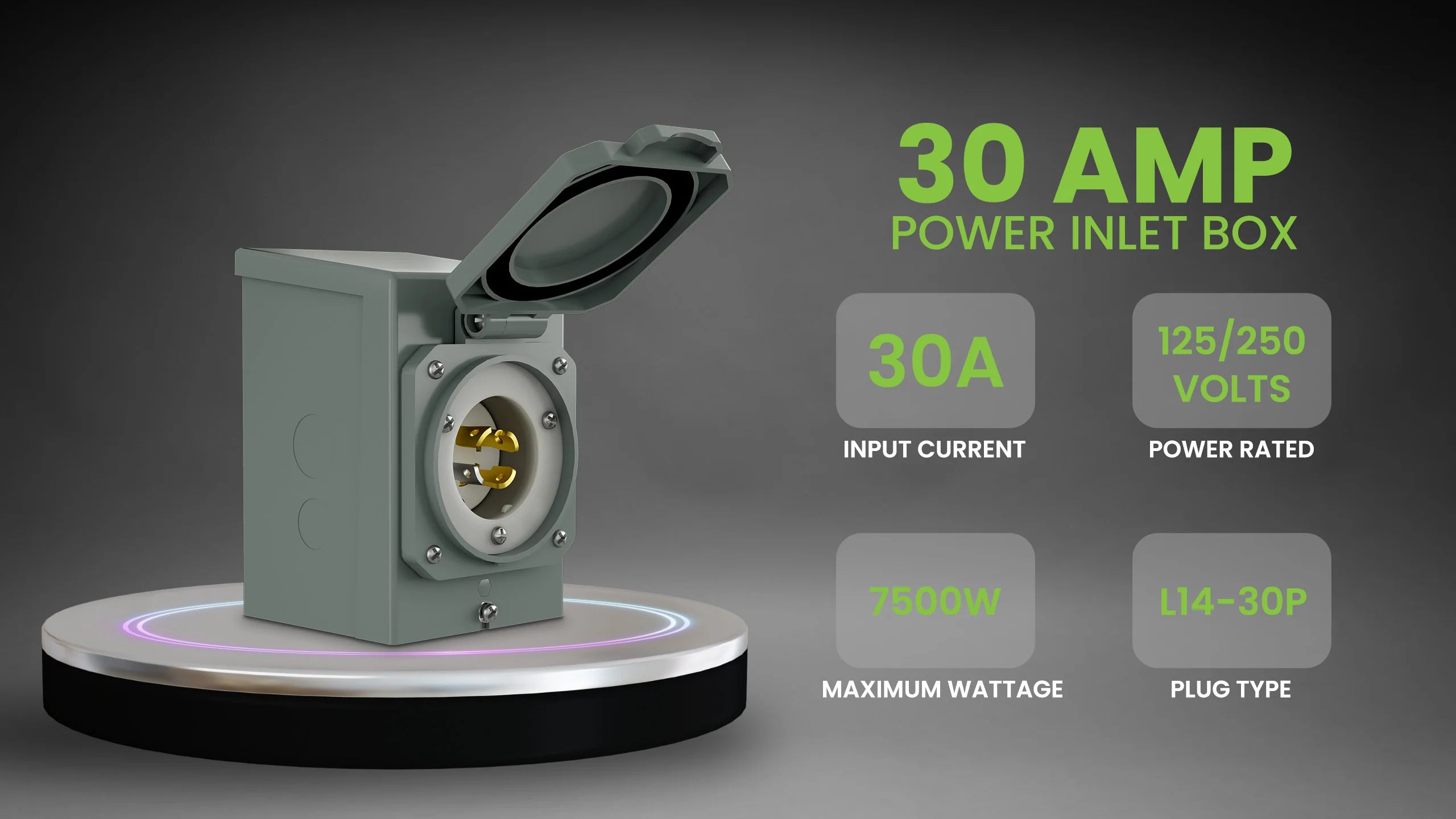

30A Inlet Box Quick Spec

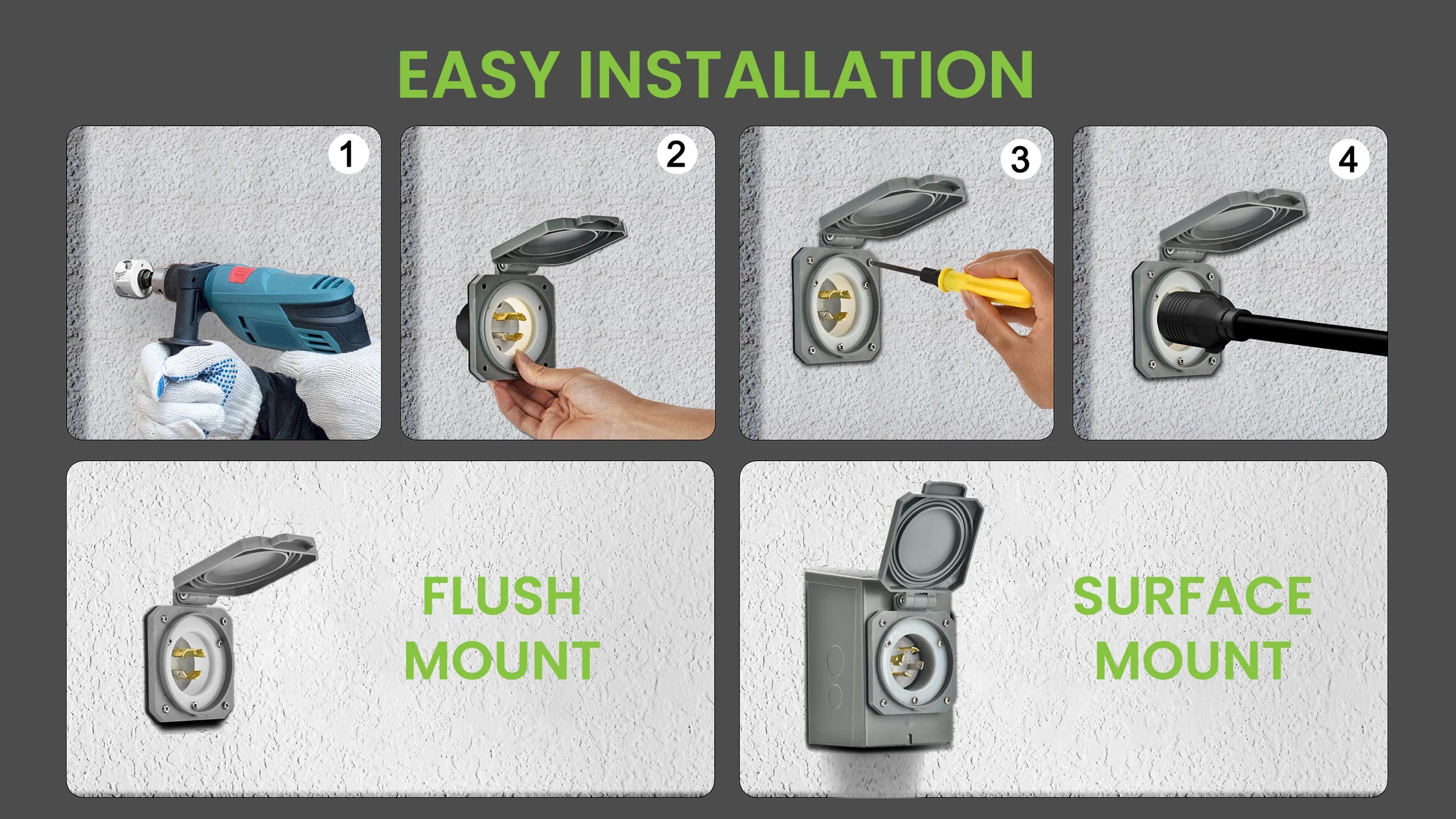

Easy Installation
Safety Features

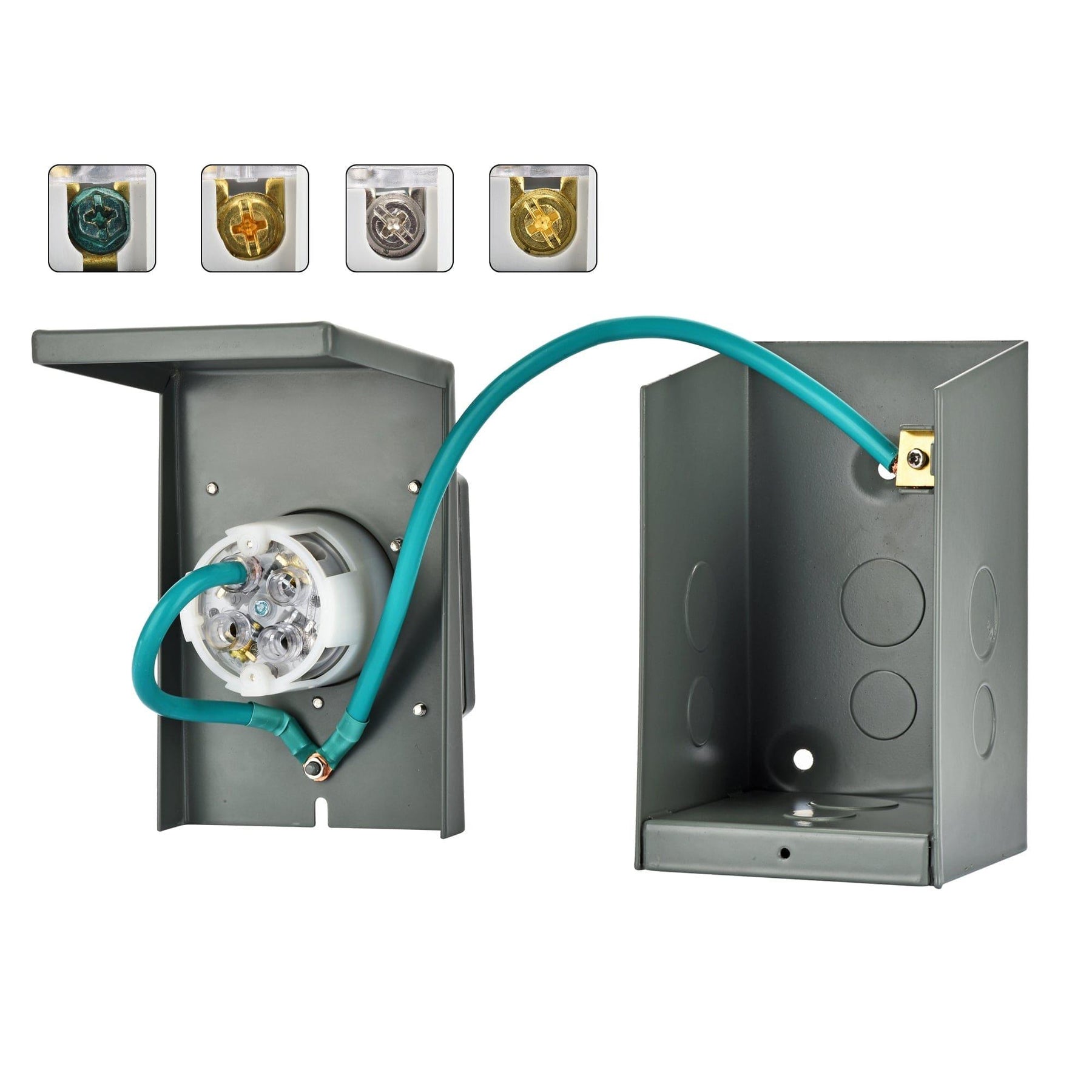

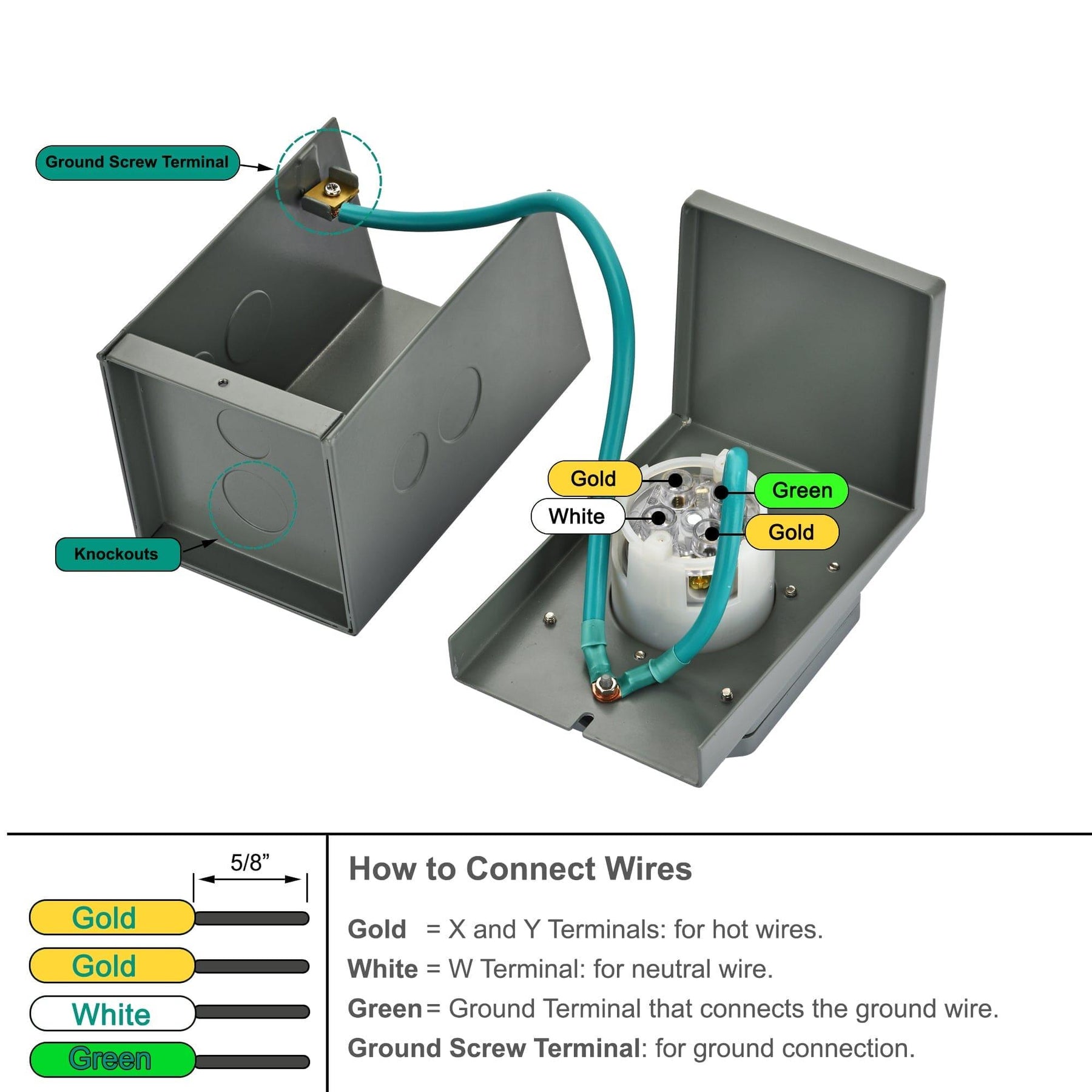

Wiring Instructions
A clear overview of the wire connections to help ensure a safe, accurate, and hassle-free installation.
Tech Specs
Everything you need to know about 30A inlet box technical specifications, performance, and ratings.
Specification
Input Current
30A
Rated Power
125V/250V
Plug Type
L14-30P
Maximum Wattage
7500W

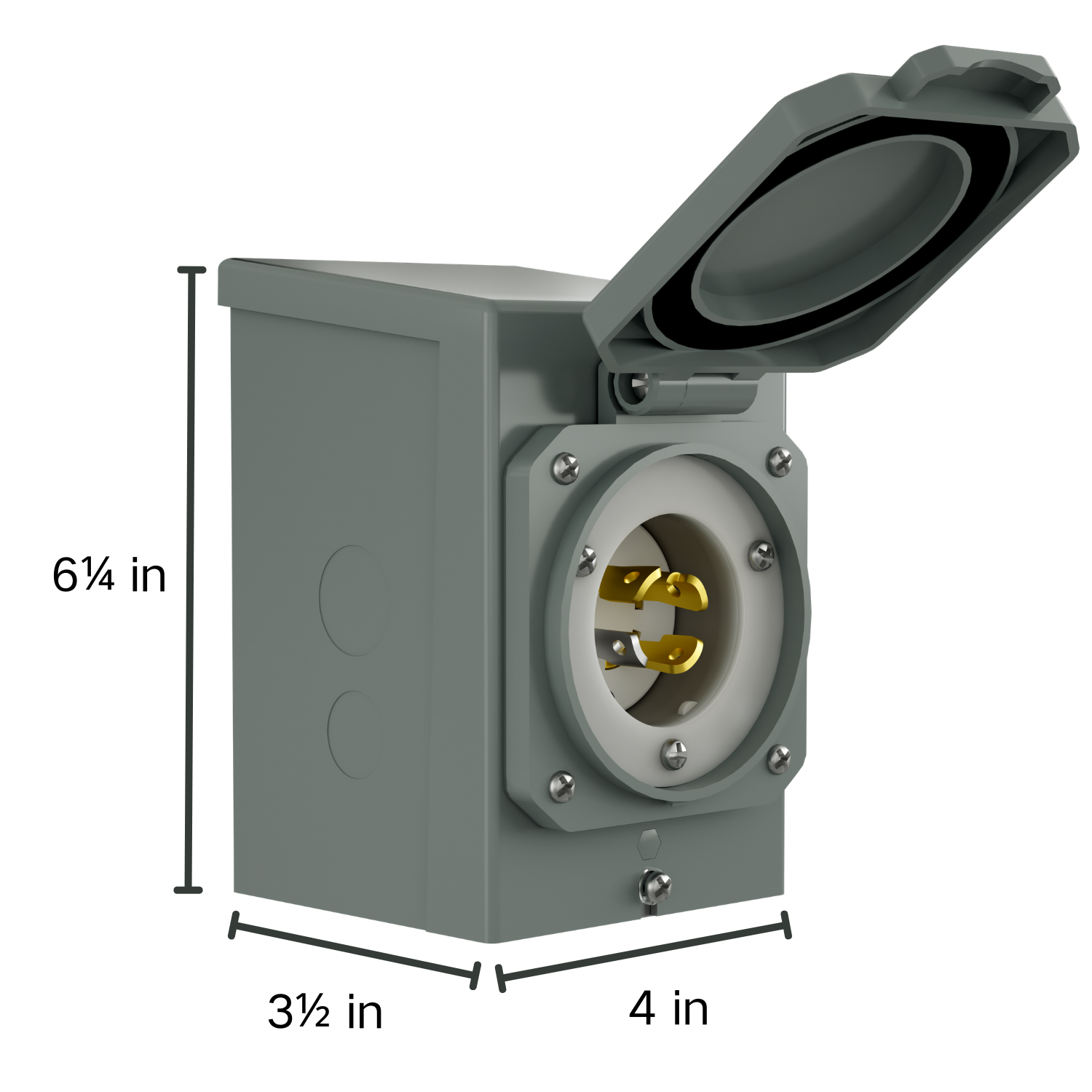

Dimension and Weight
Dim in inches
6.5" x 3.8" x 4.9"
Dim in mm
165 x 97 x124
Weight
2.9lbs (1.32kg)
User Guide
Questions & Answers
Have a Question?
-

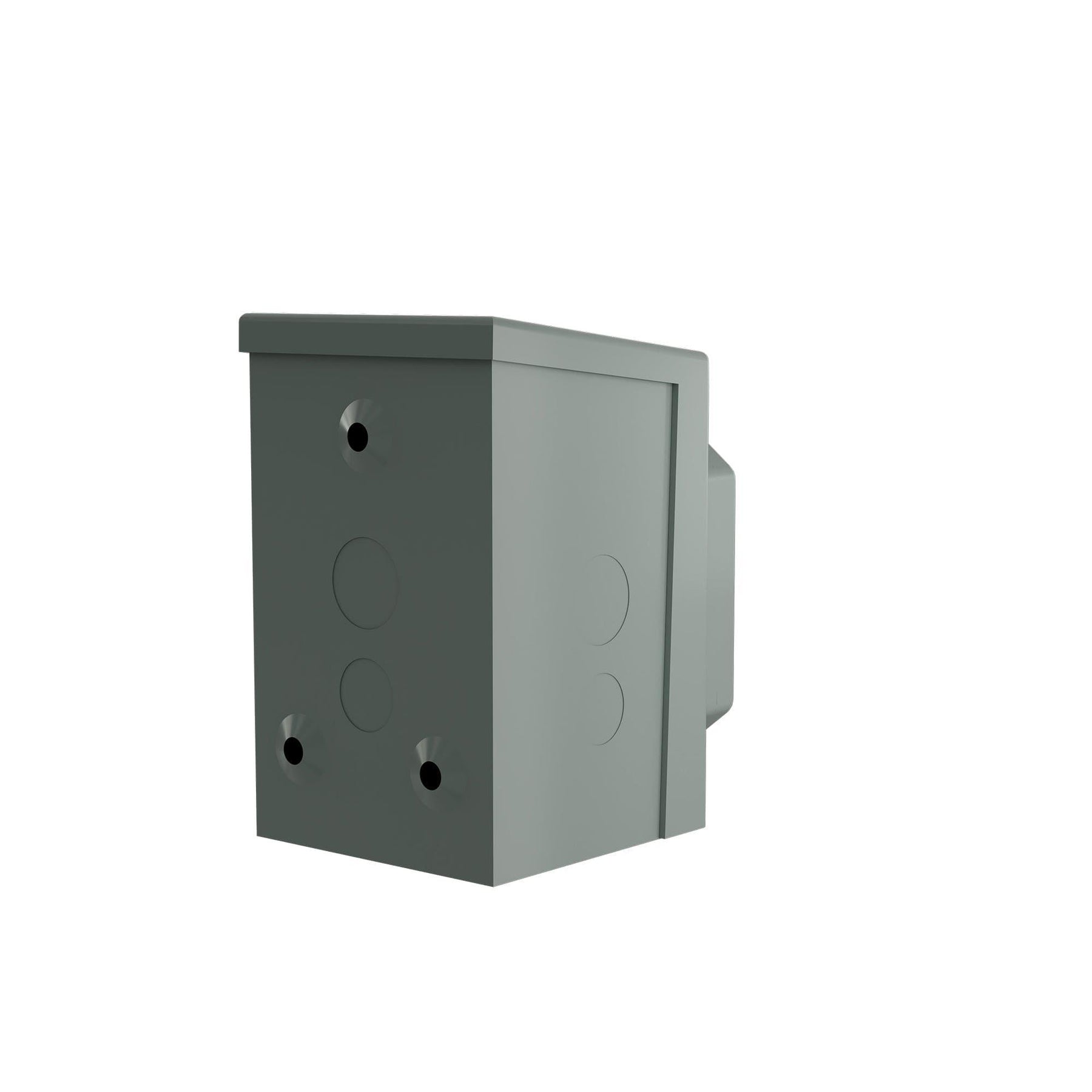

Is there a knock out in the rear of the box? Also what is the largest wire to fit? will a #8 wire work?
Hi Dave,
Thank you for reaching out. Yes, there is a knockout in the rear of the box. The hole diameter is approximately 5mm, it should fit 8 AWG. However, 30 amp usually requires 10AWG only. We hope this answers your questions. If you have any follow-up questions, you may reach our support directly via (800) 975-7909, or email us at support@naturesgenerator.com. We'll be more than happy to assist you!
-
Could I plug my 30 amp RV power cord into the 3600 w Natures Generator?
Hi Noelle,
Thank you for reaching out. Yes, you can plug in your 30amp RV power cord to the Nature's Generator Elite. If you have any follow-up questions, you may reach our support directly via (800) 975-7909, or email us at support@naturesgenerator.com. We'll be more than happy to assist you!
