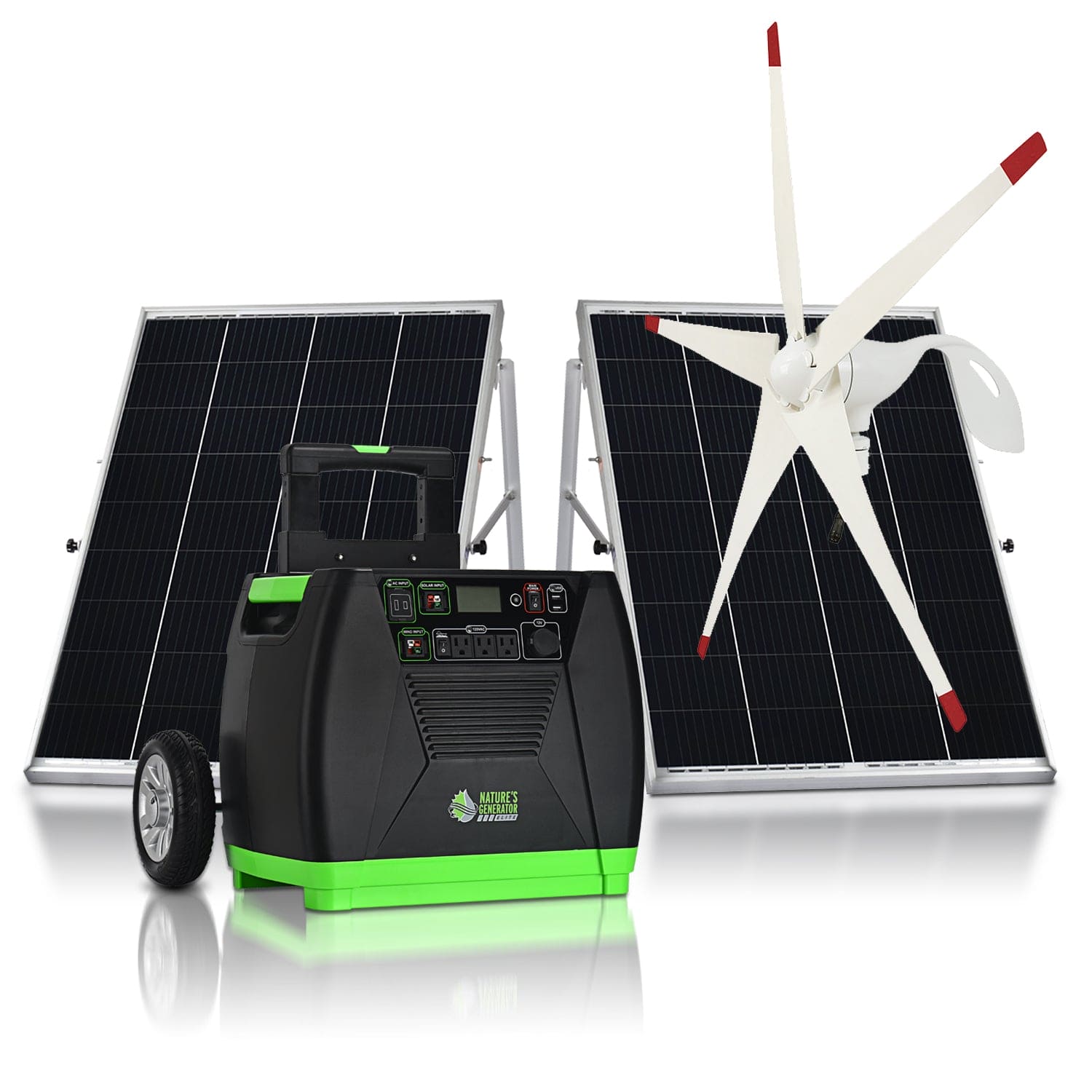

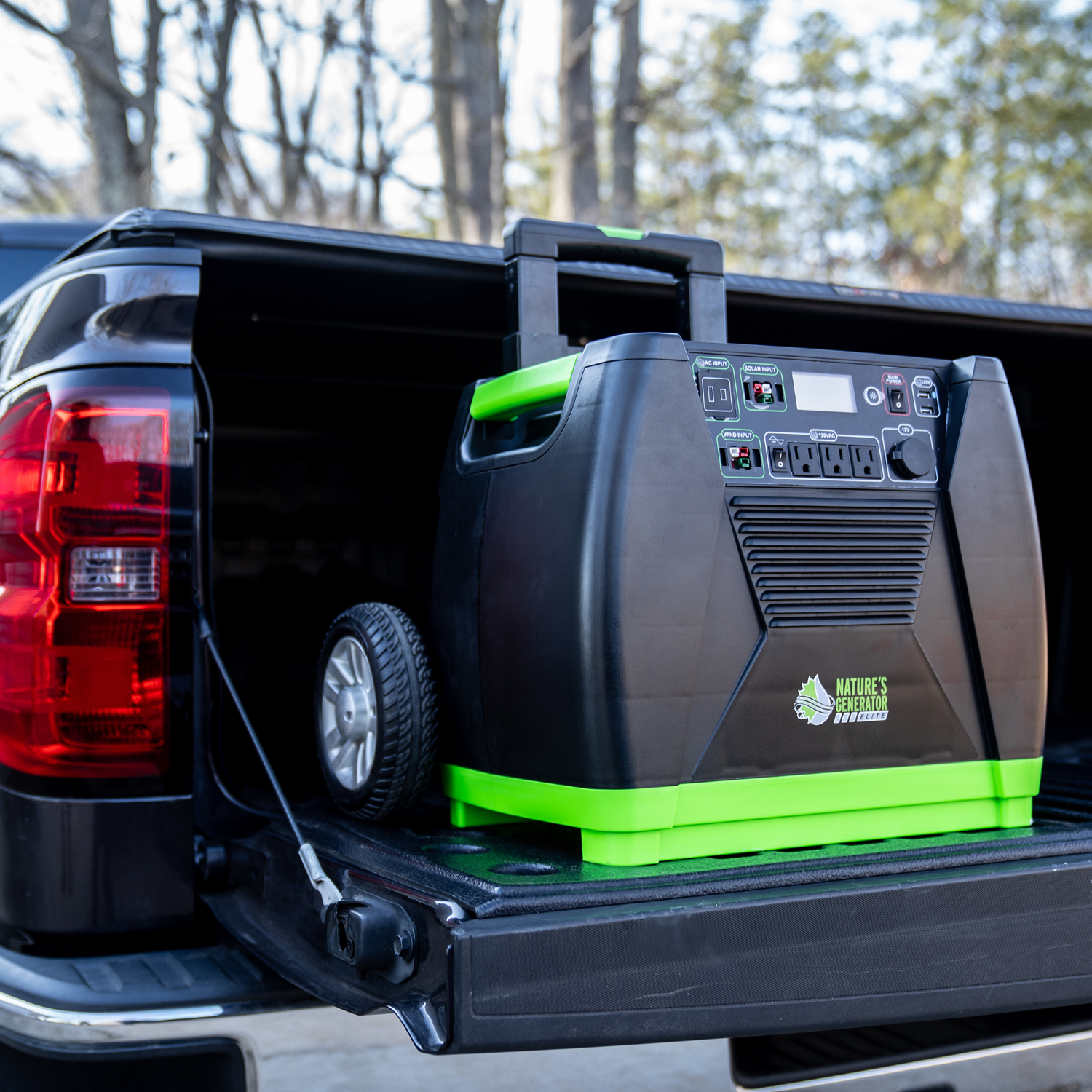

Nature's Generator Gold WE System Highlights

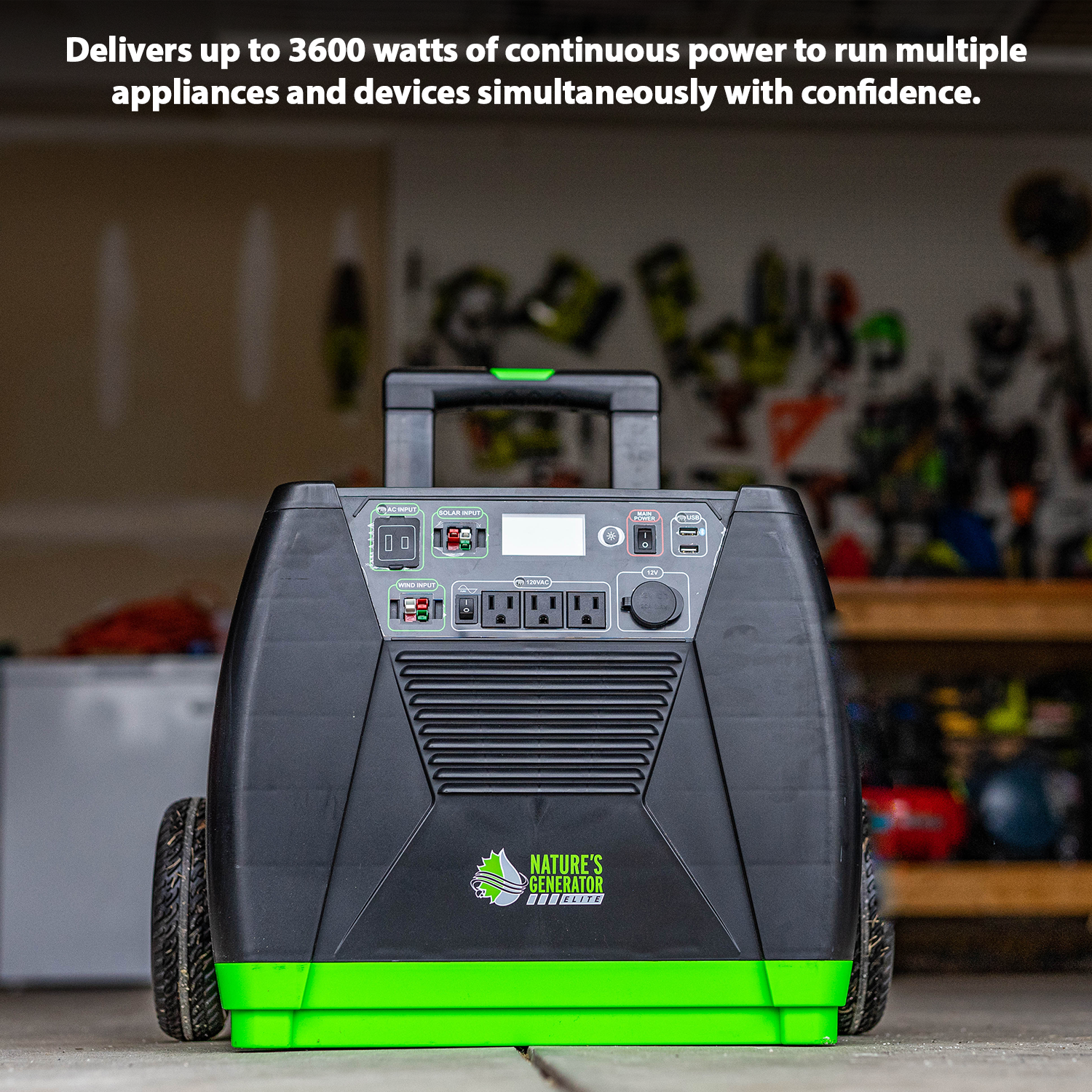

- Nature's Generator Elite is made with a built-in 3600-watt pure sine wave inverter and a 100-Ah sealed lead-acid battery that is maintenance free
- Easy to read LCD display will show you system performance

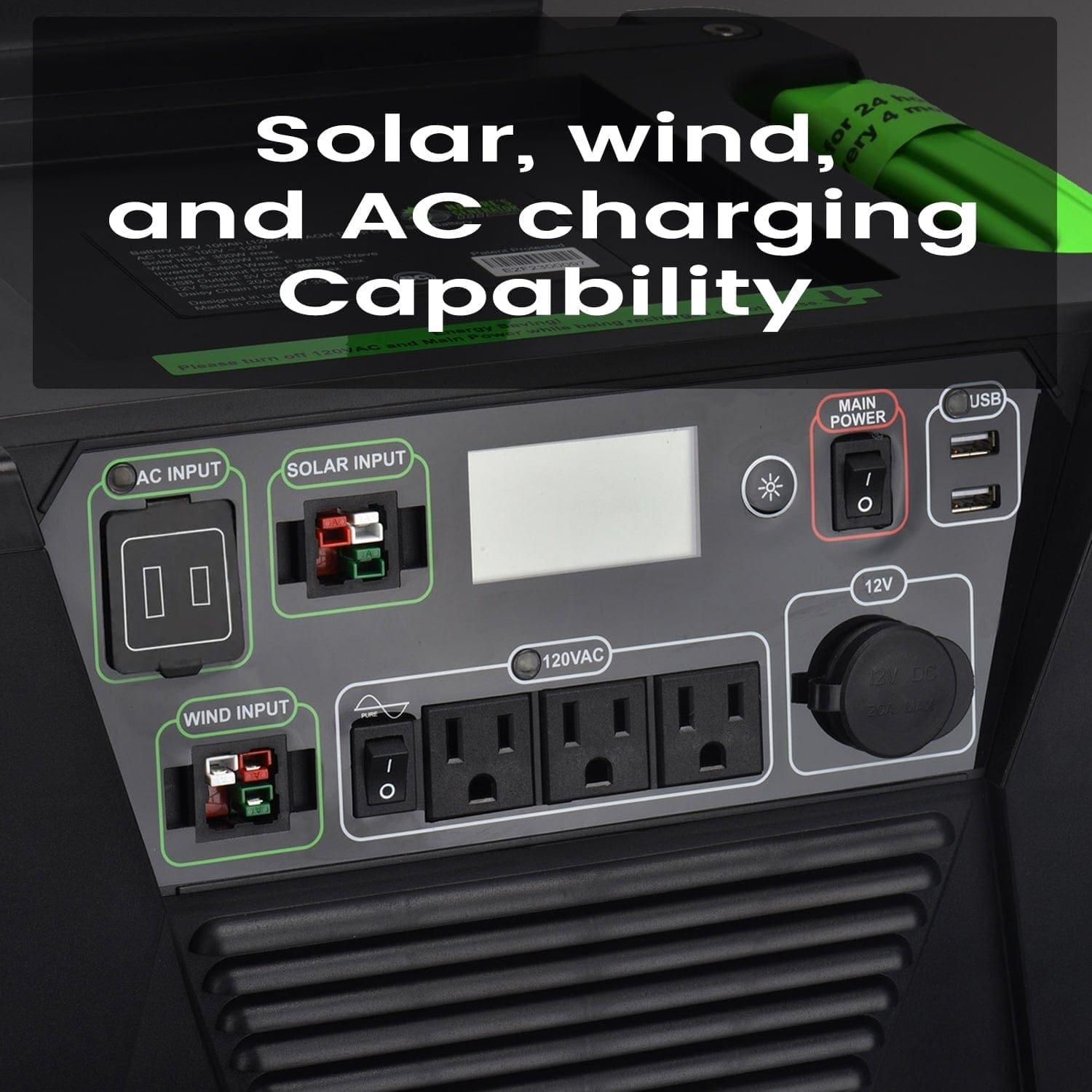

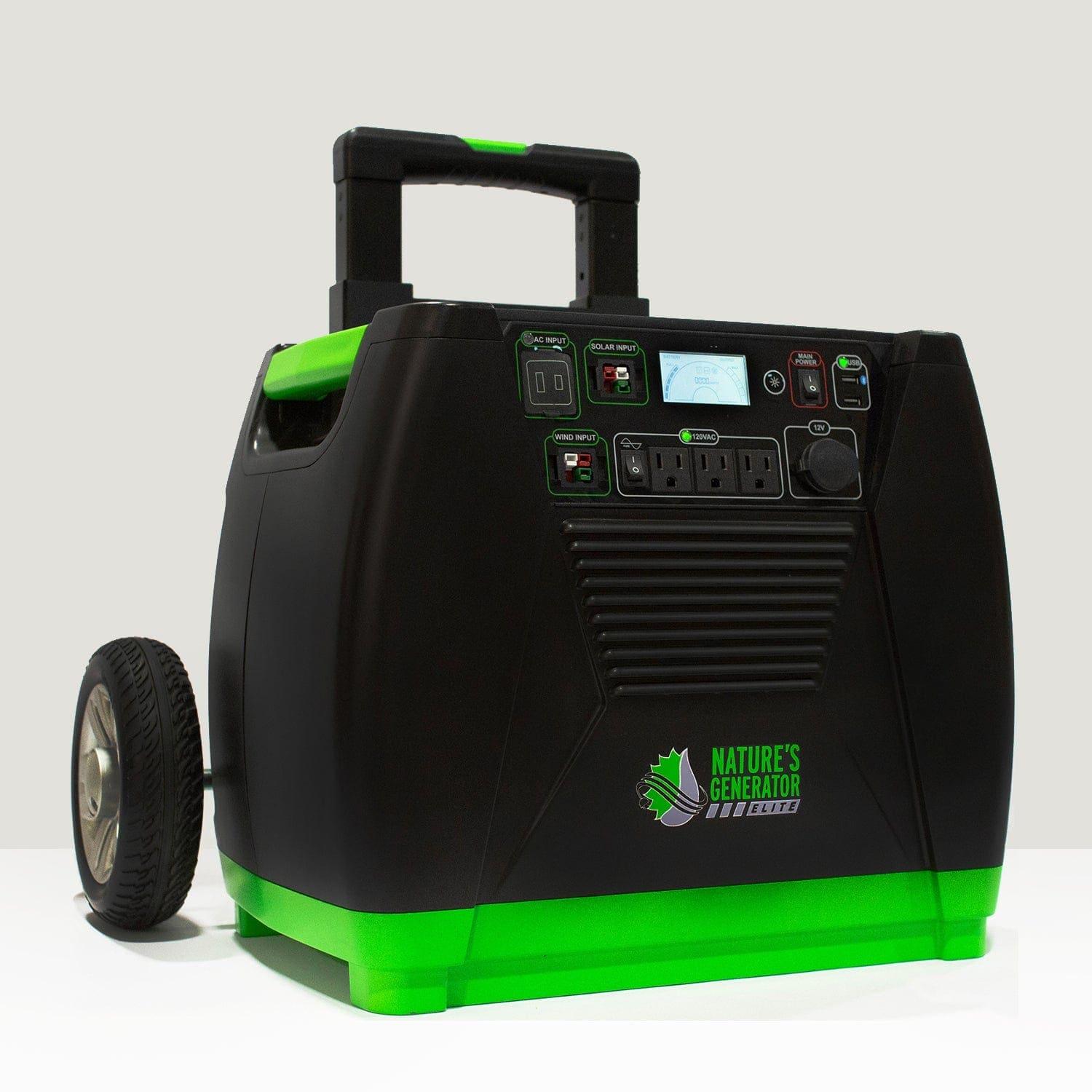

- Included ports/outlets on front panel:
- Three 120-Volt AC outlets
- Two USB ports provide up to 3A of combined power
- One 12-Volt DC outlet
- One 300-watt solar input
- One 300-watt wind input

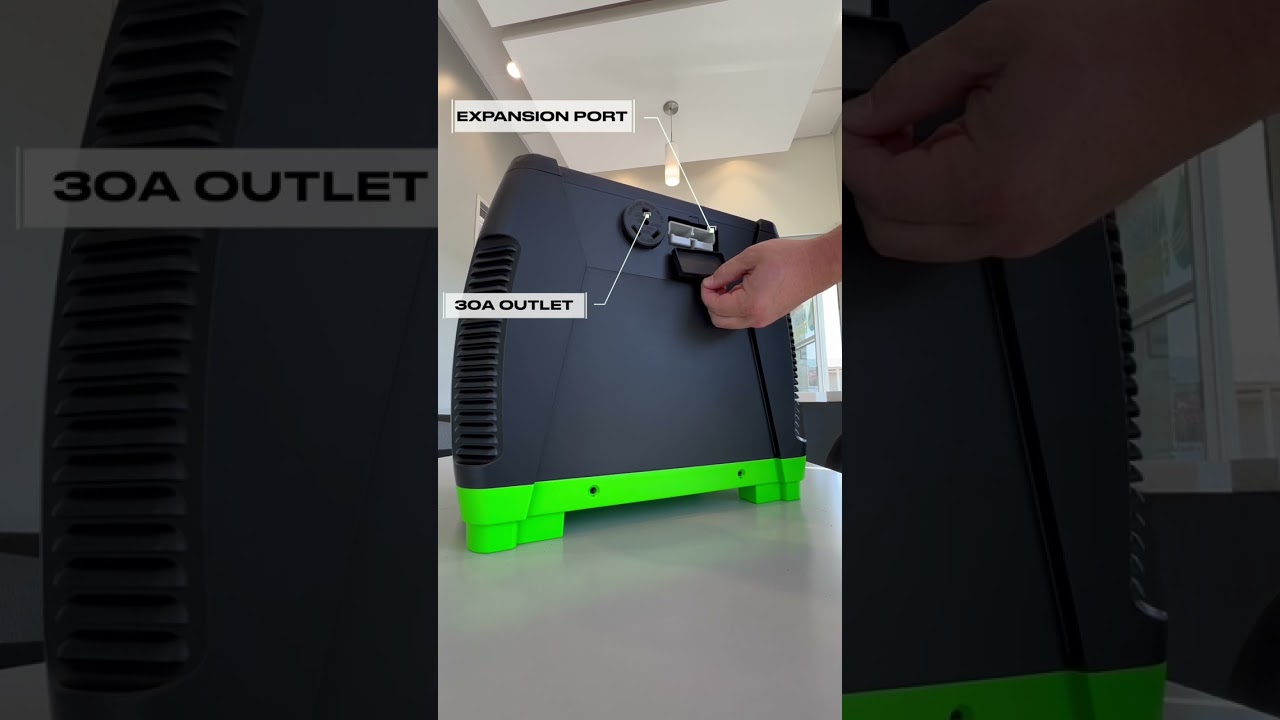

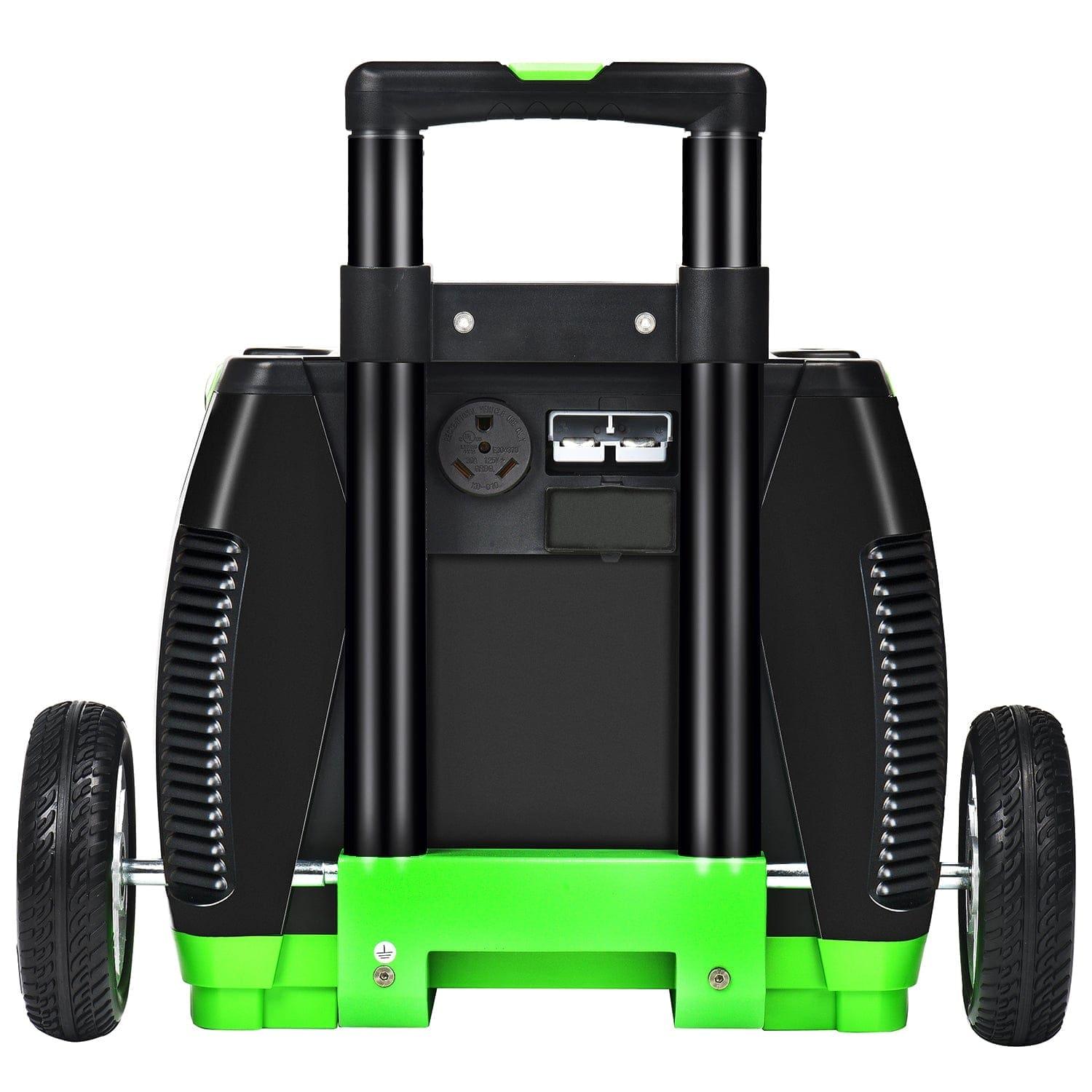

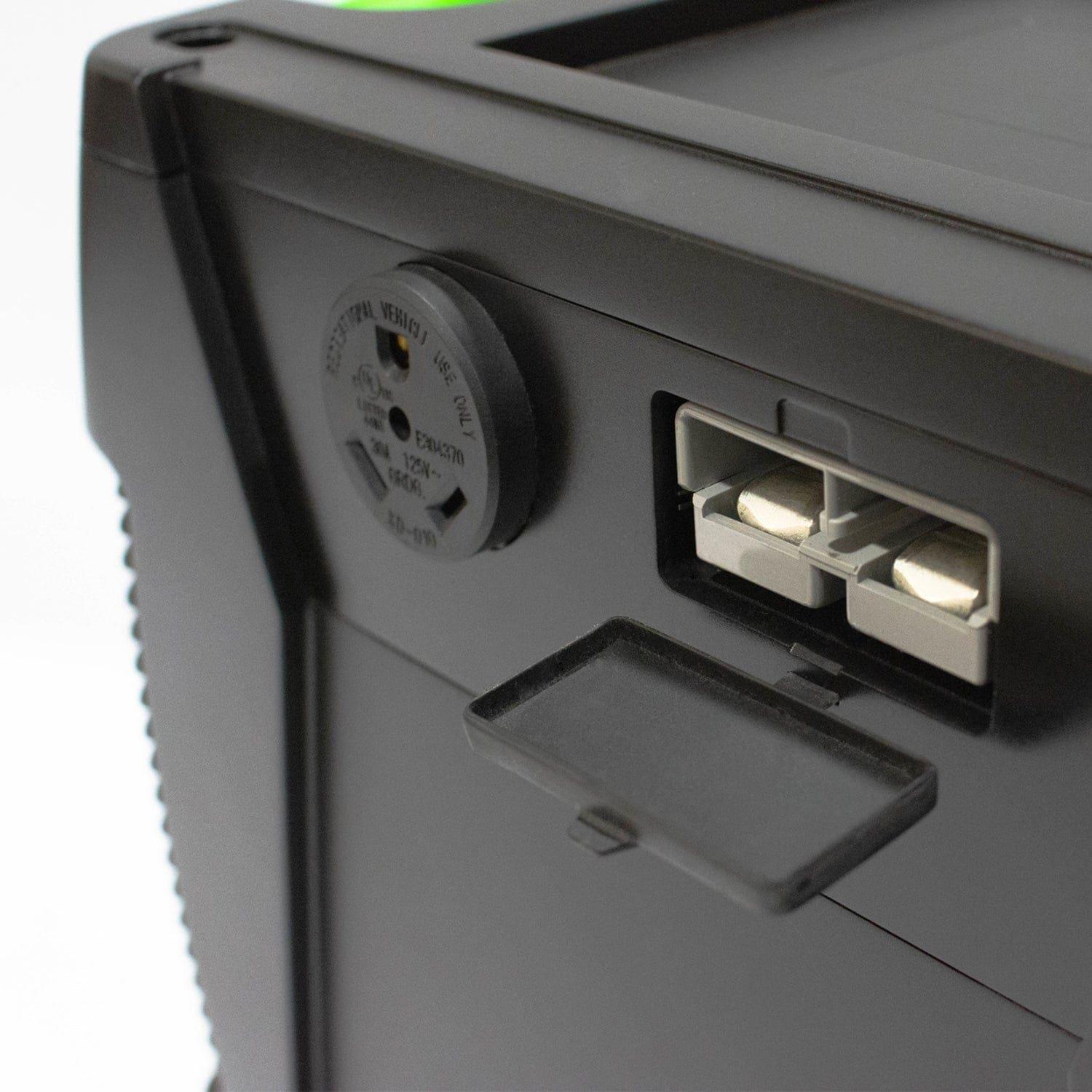

- The back panel includes:

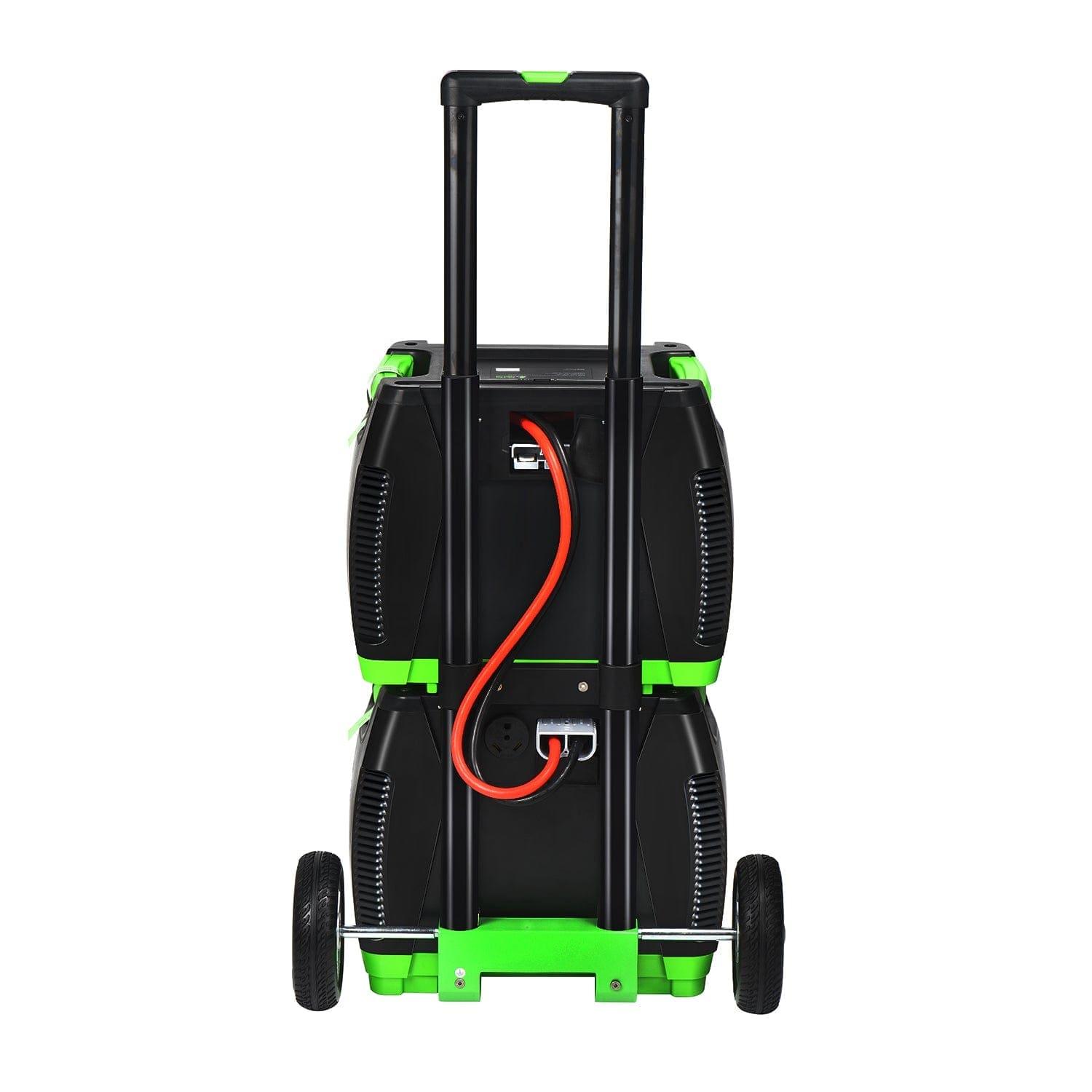

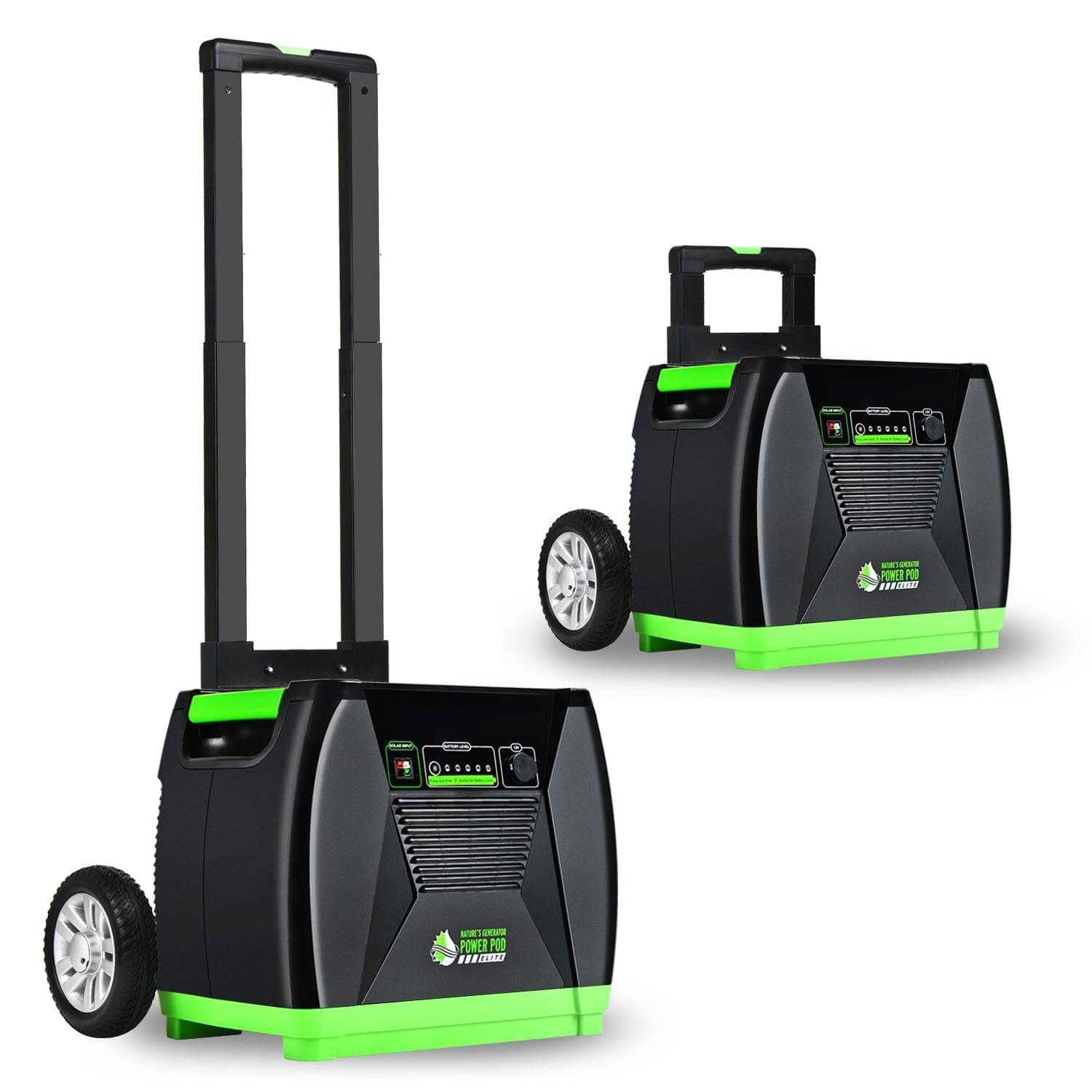

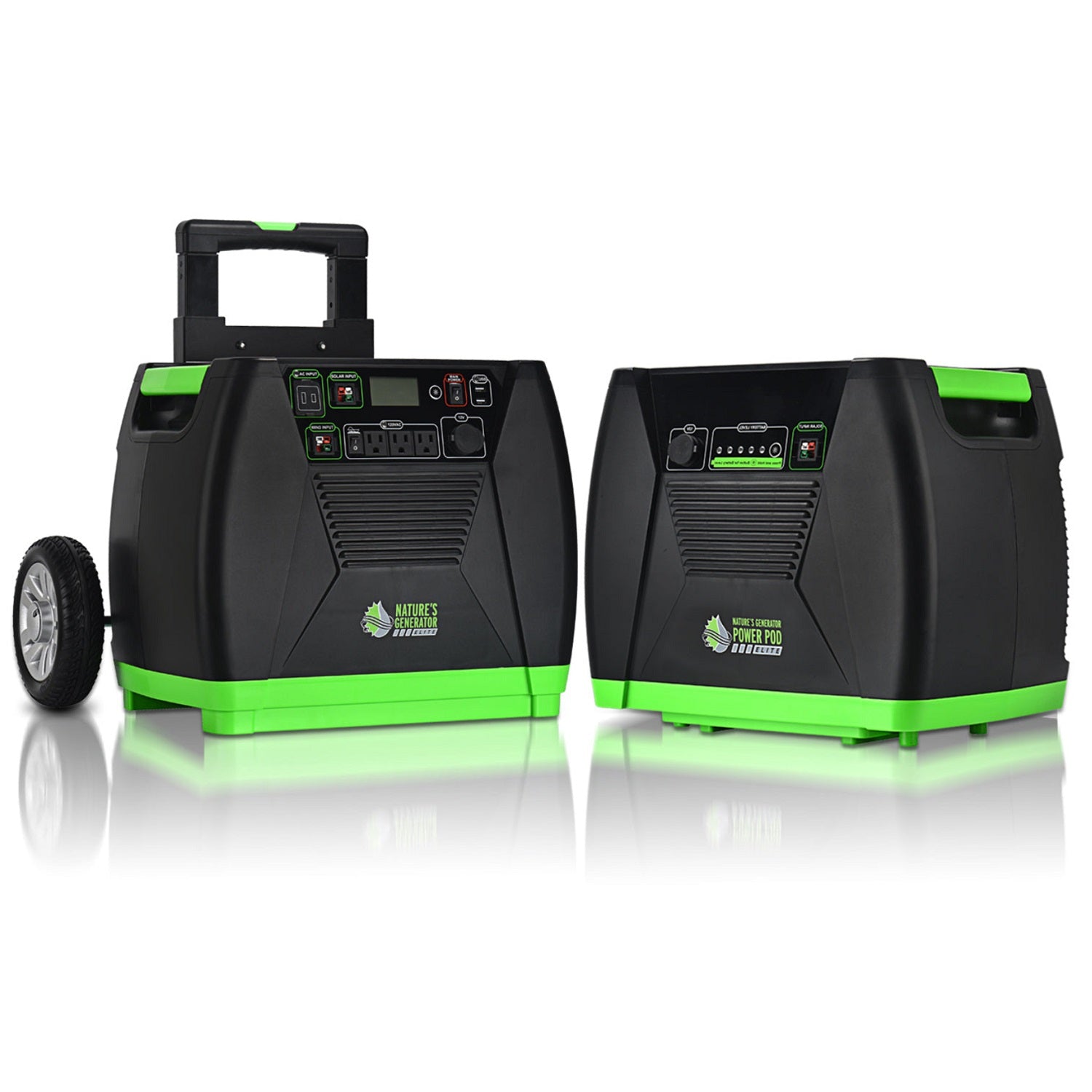

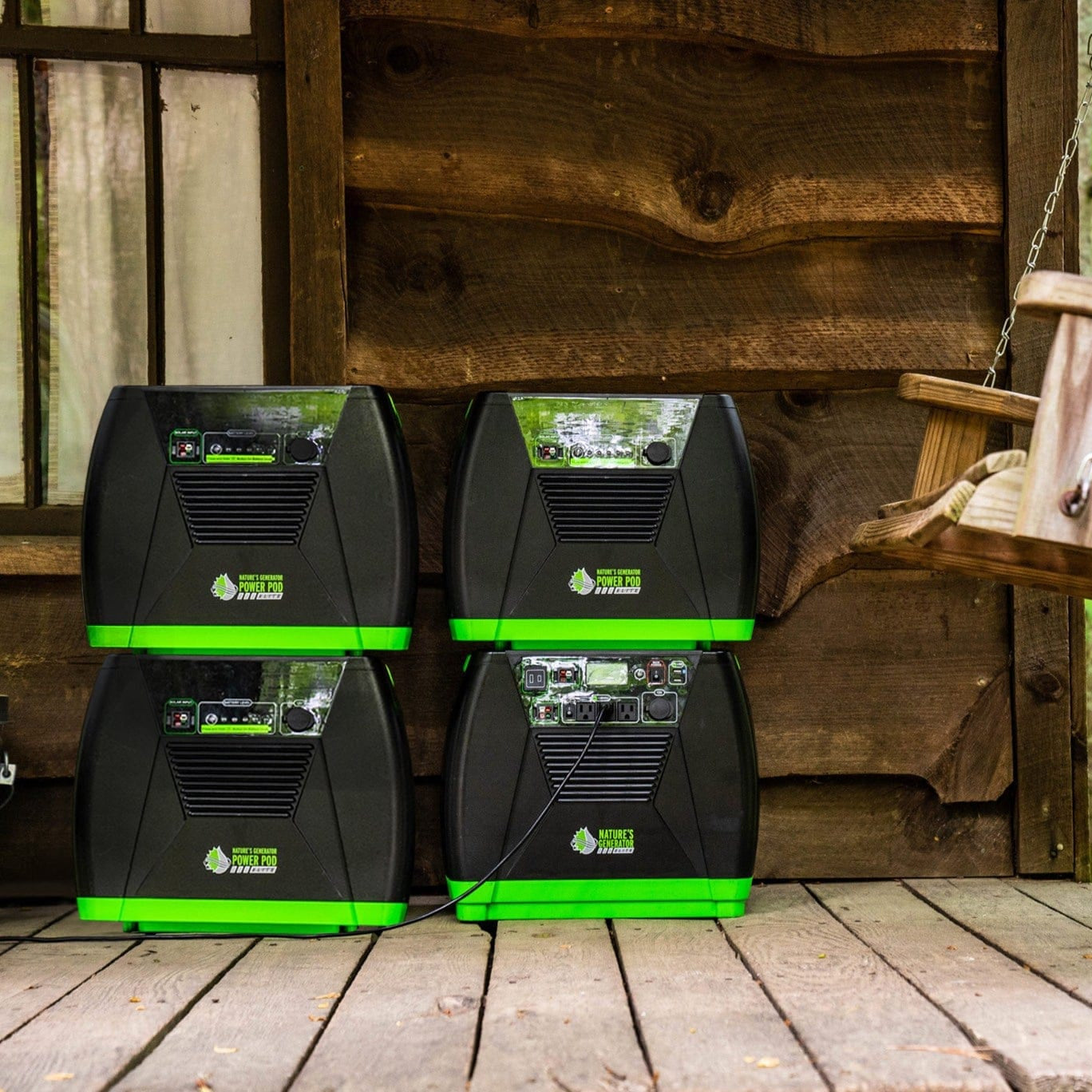

- A built-in 600-Volt / 350-Amp expansion port that allows connection of the Nature's Generator Power Pod Elite for extended battery storage and run time

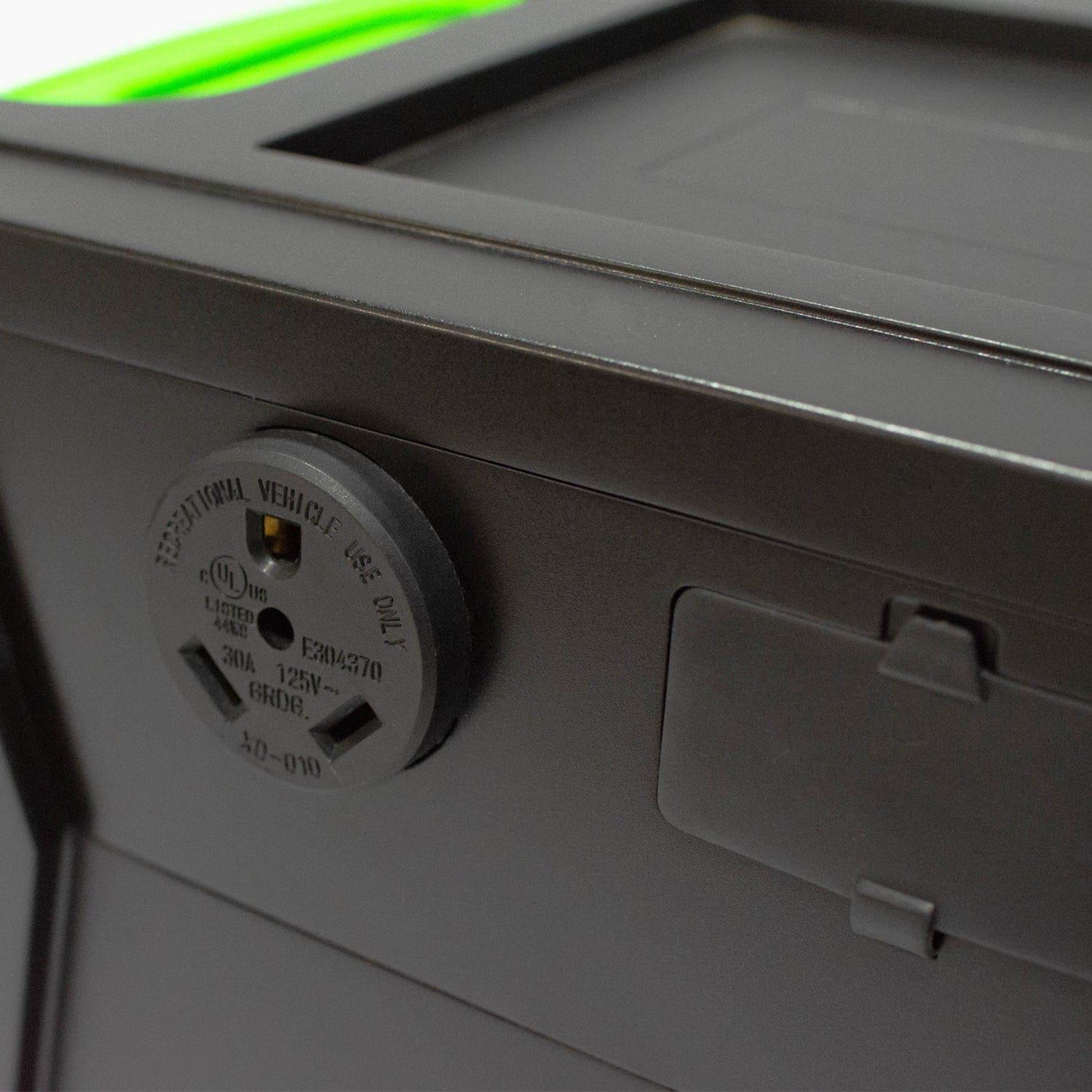

- A 30-amp receptacle for direct connection
- Universal heavy duty cart included and designed to work with: Nature's Generator, Nature's Generator Power Pod, Nature's Generator Elite, Nature's Generator Power Pod Elite
- Assembly required

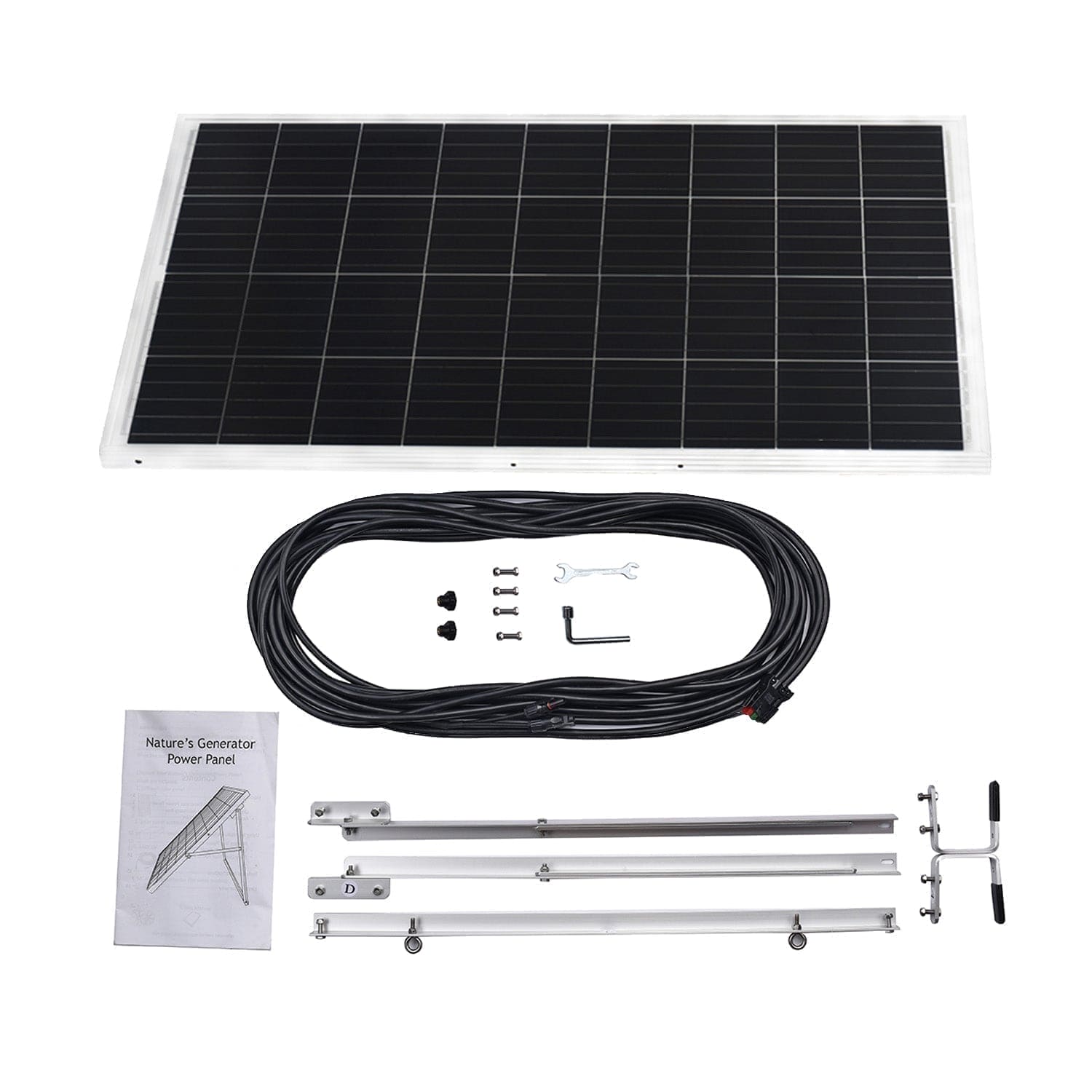

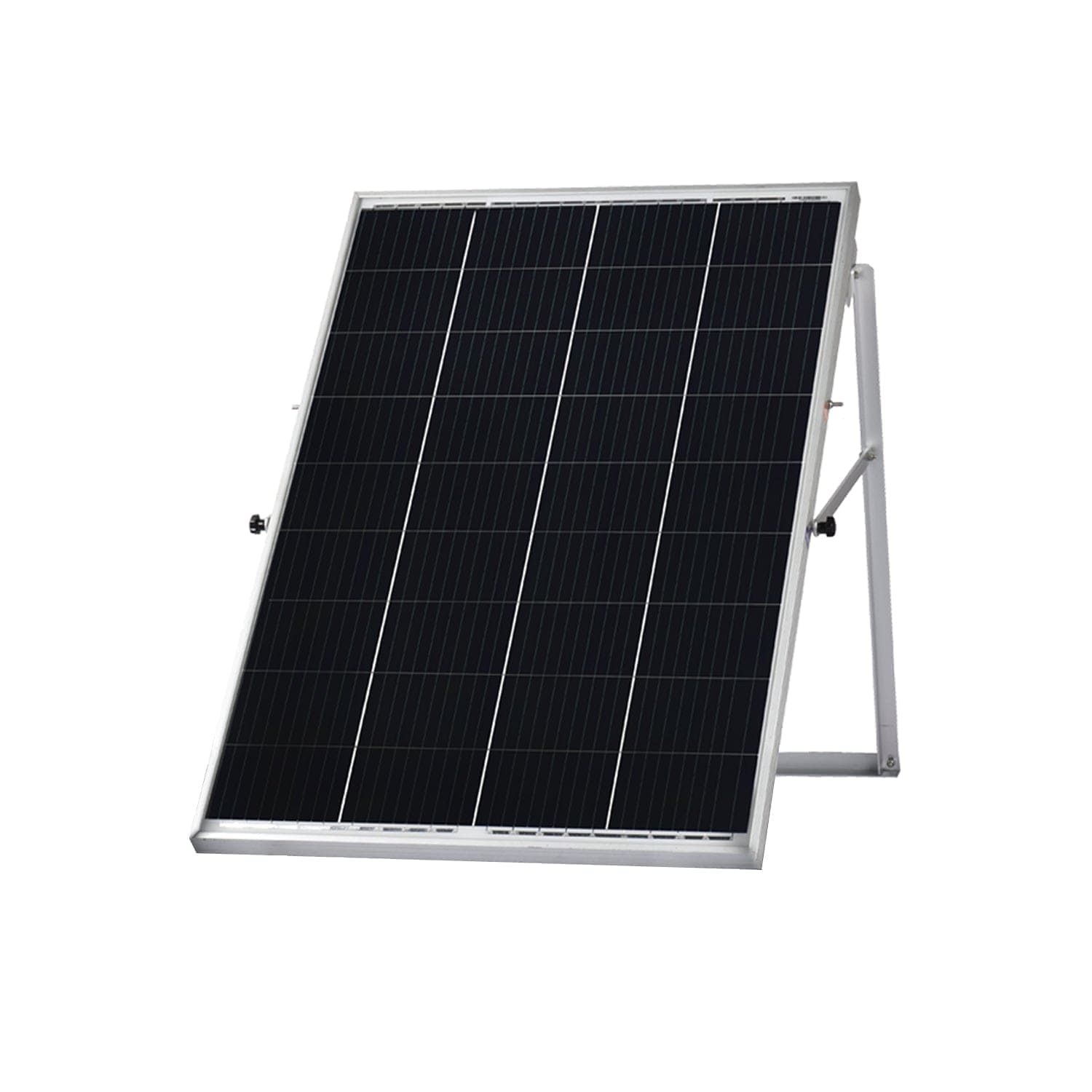

This system includes two polycrystalline Nature's Generator Power Panels including:
- Rated power: up to 100-watts per panel
- 50-foot UL approved, 8-gauge power panel cable for easy connection
- The power panel includes wheels for easy transport
- 3.2mm safety and anti-reflective glass
- Includes multiple positions (summer/winter) for optimum sun exposure for different seasons of the year
- Includes eye bolts for securing the power panel to different surfaces
- Assembly required

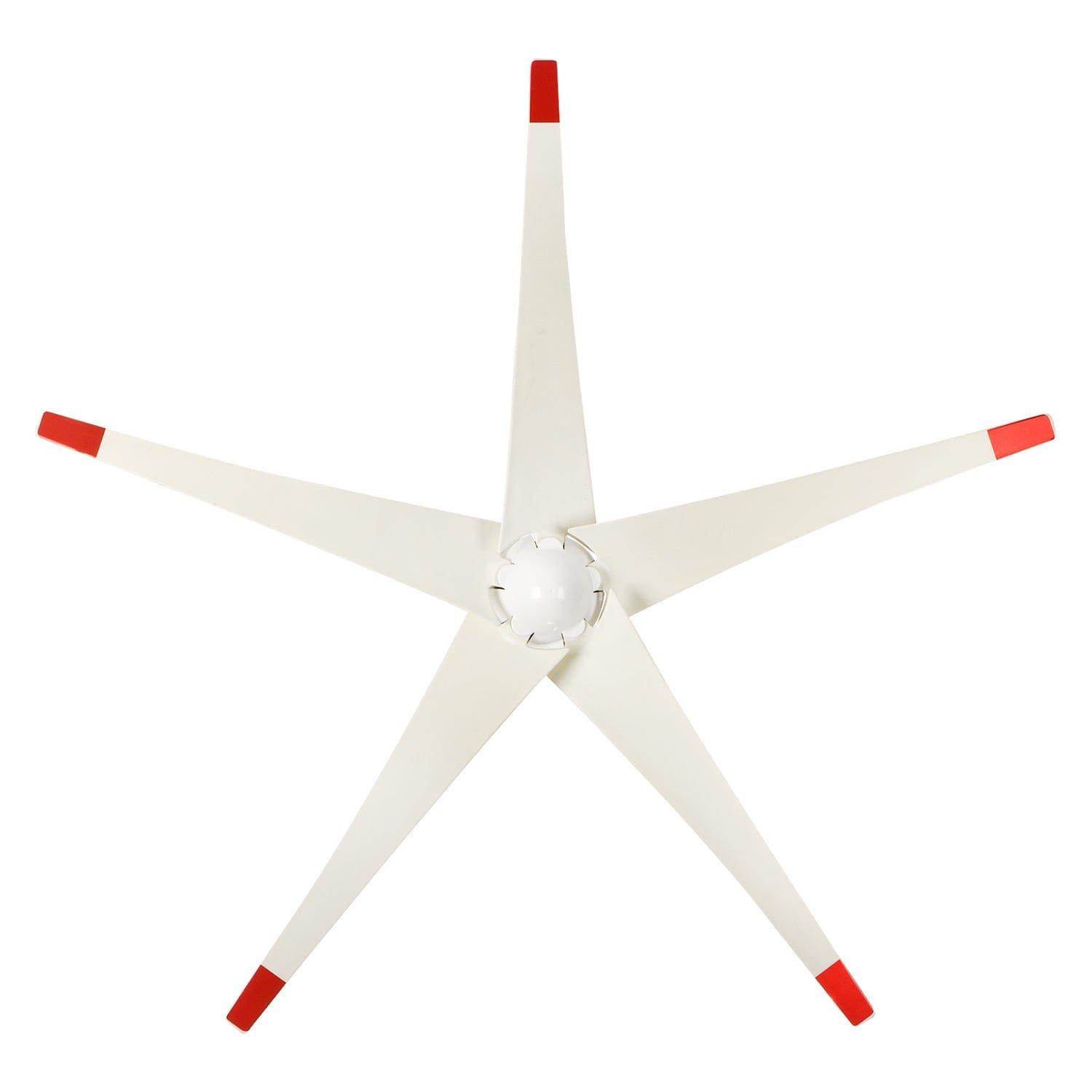

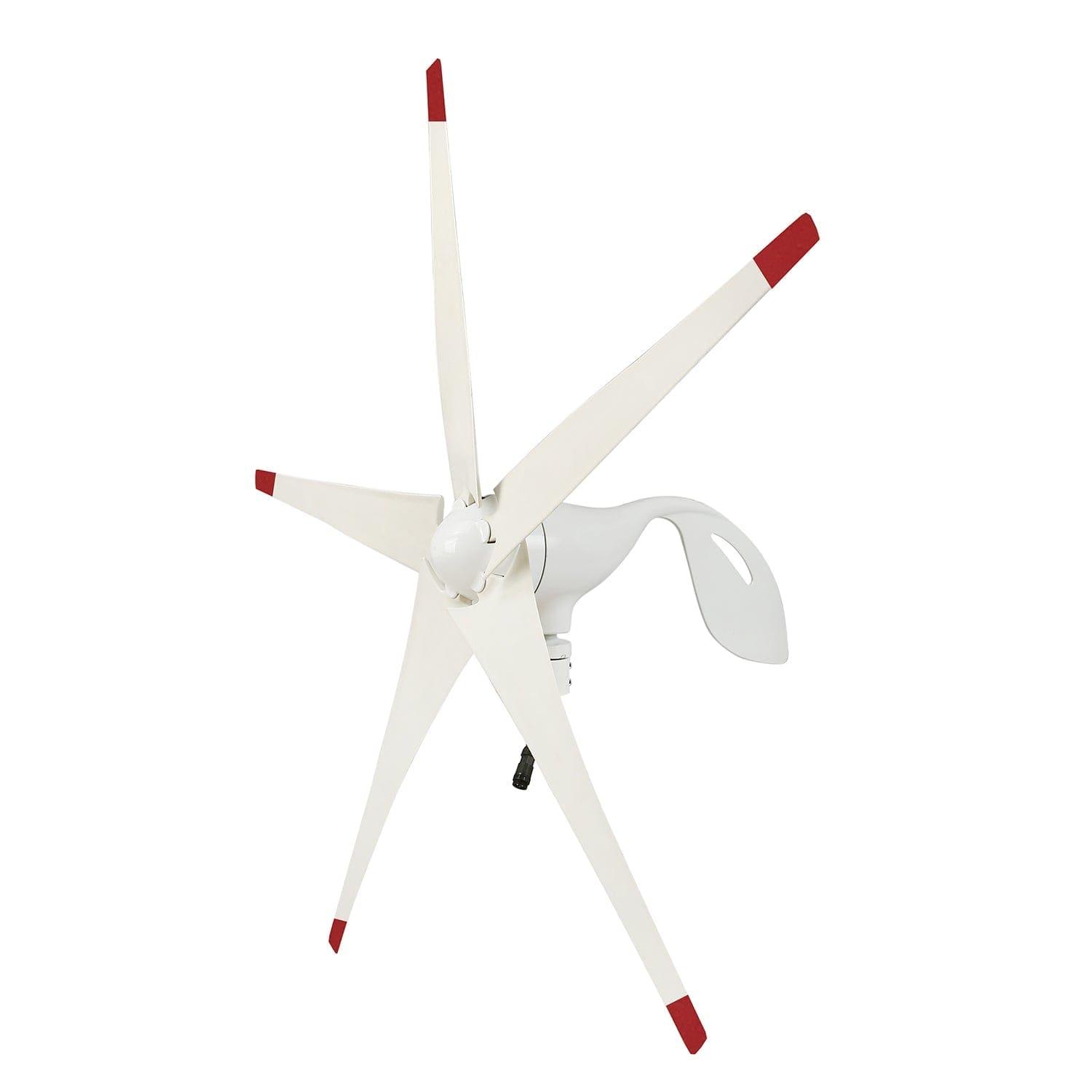

This system includes Nature's Generator Wind Turbine:
- Nature's Generator Wind Turbine provides an additional method of recharging the Nature's Generator Elite and will help harness the power of wind
- Nature's Generator Wind Turbine comes included with a 100 ft. 12 AWG UL approved wind turbine cable for connection to the Nature's Generator's Wind Turbine
- Rotary diameter: 51 in.
- Blade material: fiberglass nylon composite
- Turbine body: cast aluminum alloy with powder coating
- Yaw: fits 1.5 in. schedule 40 pipes or towers (pipe/tower not included)
- Rated power: up to 150 watts at 27 MPH
- 100 ft. 12 AWG UL wind turbine cable with weatherproof connectors
- Controller box
- CE ROHS certified
- Assembly required
How to recharge your Nature's Generator Elite Gold WE System
- Using included AC Cord - Estimated recharge time: 8 - 10 hrs
- Using the Nature's Generator Power Panel - Estimated recharge time: 10 - 12 hrs
- Using the Nature's Generator Wind Turbine: 150 watts at a constant wind speed of 27mph, it can take up to 6 - 8 hours (Charge times can vary)
What can the Nature's Generator Elite Gold System power?
Run Times with Nature's Generator Elite
- Smartphones - 100+ Recharges
- Tablets - 50+ Recharges

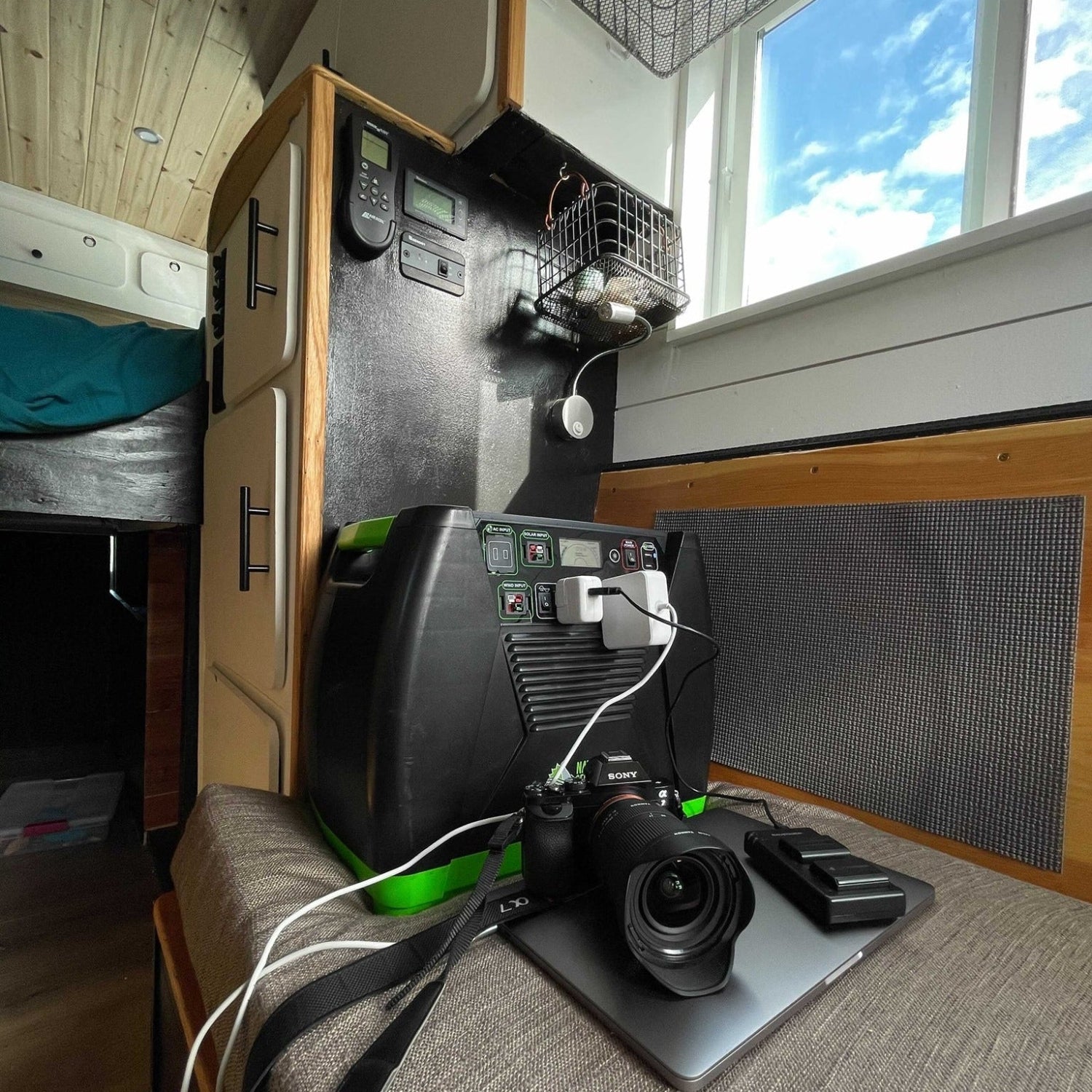

- Laptops - 20+ Recharges
- LED Light Bulbs - 80+ Recharges
- Point of View Camera - 160+ Recharges
- Mini Fridge - 20-30 Hours
- Refrigerator - 13-20 Hours
- 32" LED TV - 20+ Hours
- Oscillating Fan - 20+ Hours
- CPAP Machine - 13+ Hours
- Circular Saw - 6+ Hours
- Corded Drill - 13+ Hours
- Modems - 150+ Hours
- Routers - 150+ Hours * All run times are estimates based on a fully charged generator. By using the included Nature's Generator Power Panel, run times can be extended. ** Run times are also dependent on the specific models of each item being used.
Nature's Generator Elite Gold WE System
Ports
- Three 120V household AC outlets
- Two USB ports with 3A of combined power
- One 12V DC port (240W max)
- Expansion port: 350A Fuse
- Internal AC charger (190W)
- Solar input (300W Max)
- Wind input (300W Max)
Battery Details
- Type: AGM Sealed Lead Acid
- Capacity: 100Ah (1200Wh)
- Keep plugged in or recharge every four months of non-use
- Built-in charge controller
- Built-in low battery protection
General
- Product dimensions with cart: 23 × 17 × 22 in.
- Product dimensions without cart: 18 x 12 x 15 in.
- Product dimensions - Power Panel: 40 x 2 x 27 in.
- Weight out of box: Generator - 120 lbs
- Weight out of box: Power Panel - 31 lbs. per panel
- Operating temperature: 32-104 °F (0-40 °C)
- Storage temperature: 23–111 °F (-5–45 °C)
- Output Power: 3600W max
- Output wave form: Pure sine wave
- Output voltage: 120V
- Output frequency: 60Hz

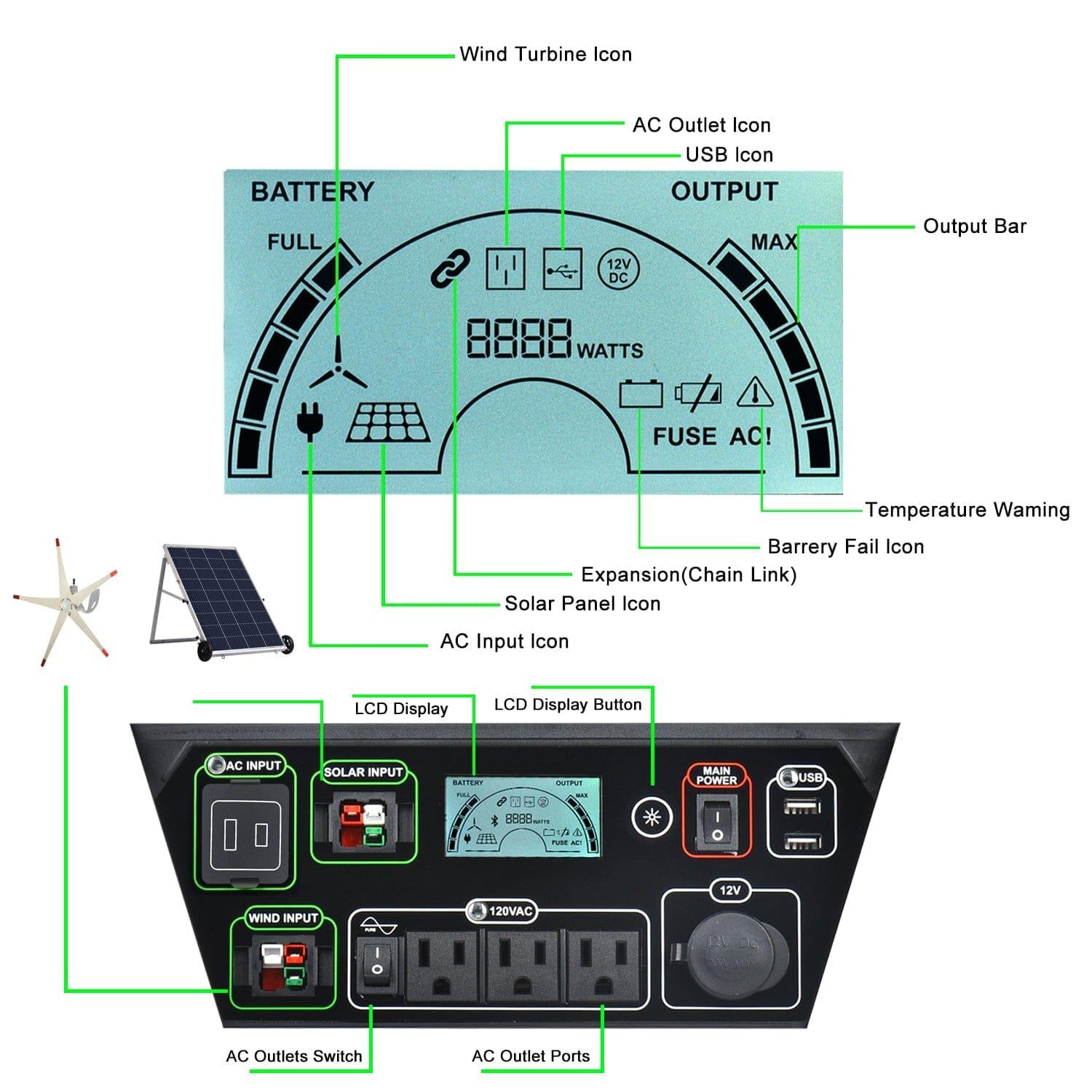

- Front LCD panel
- LCD button turns on the LCD display

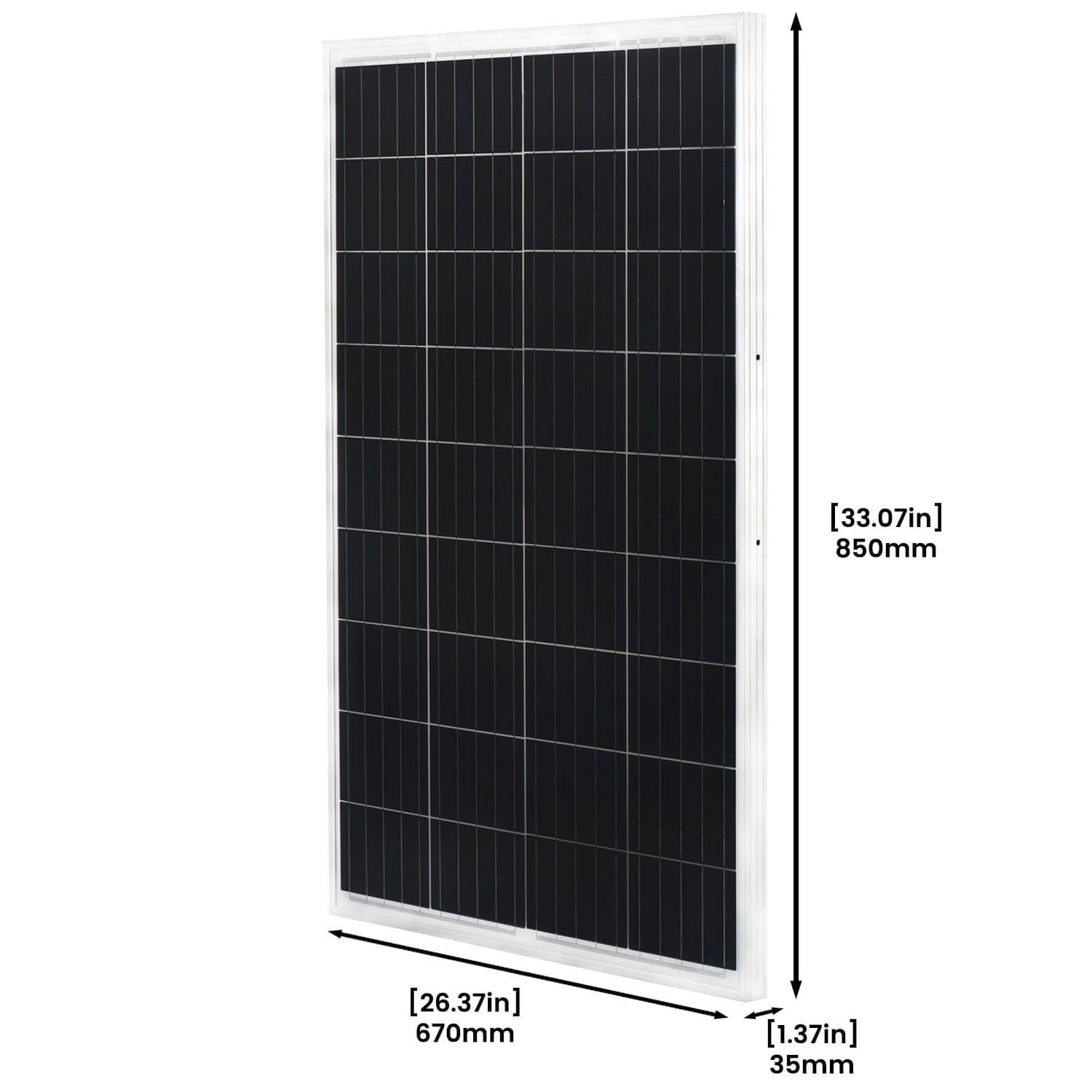

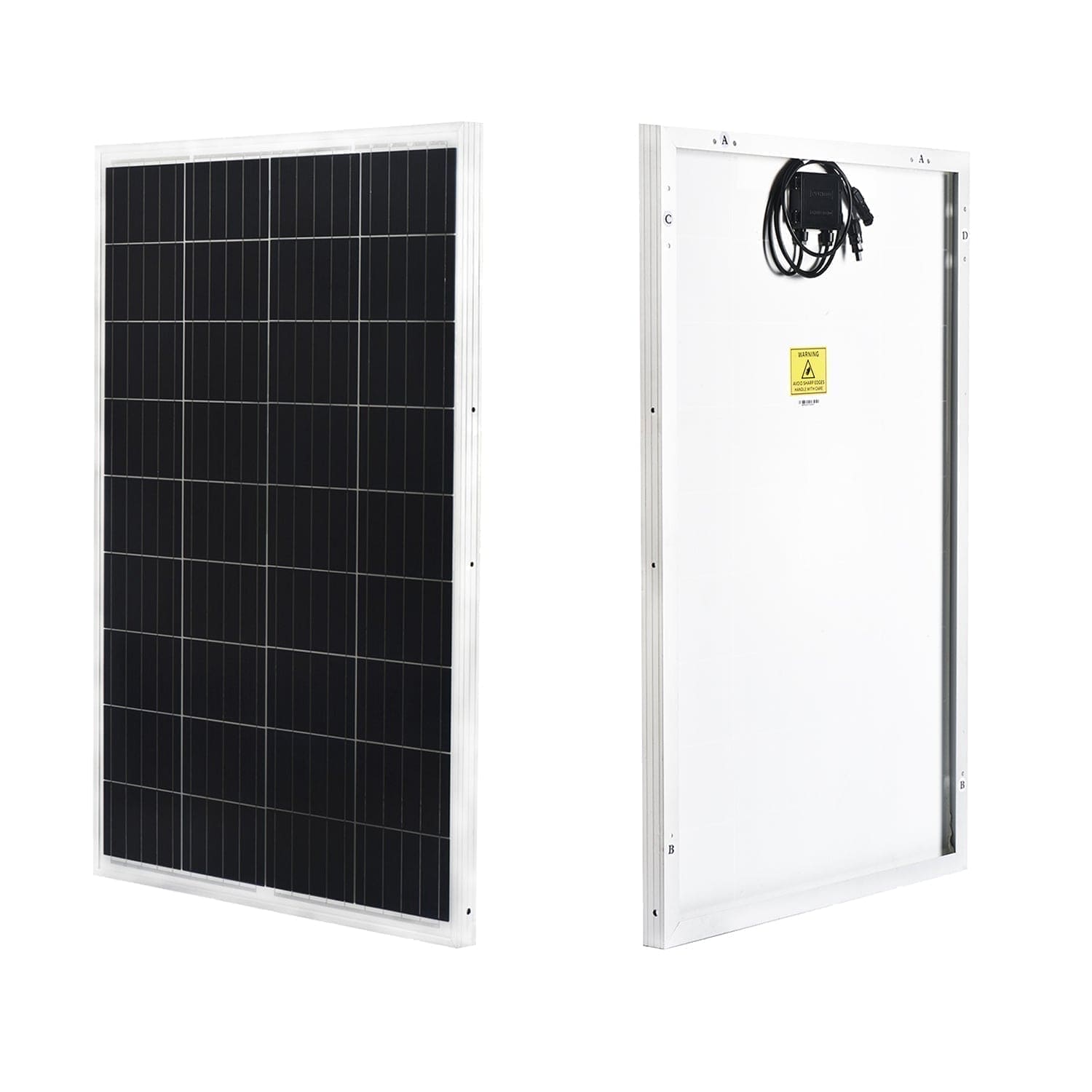

Nature's Generator Power Panel
Nature's Generator Wind Turbine
Features & Data

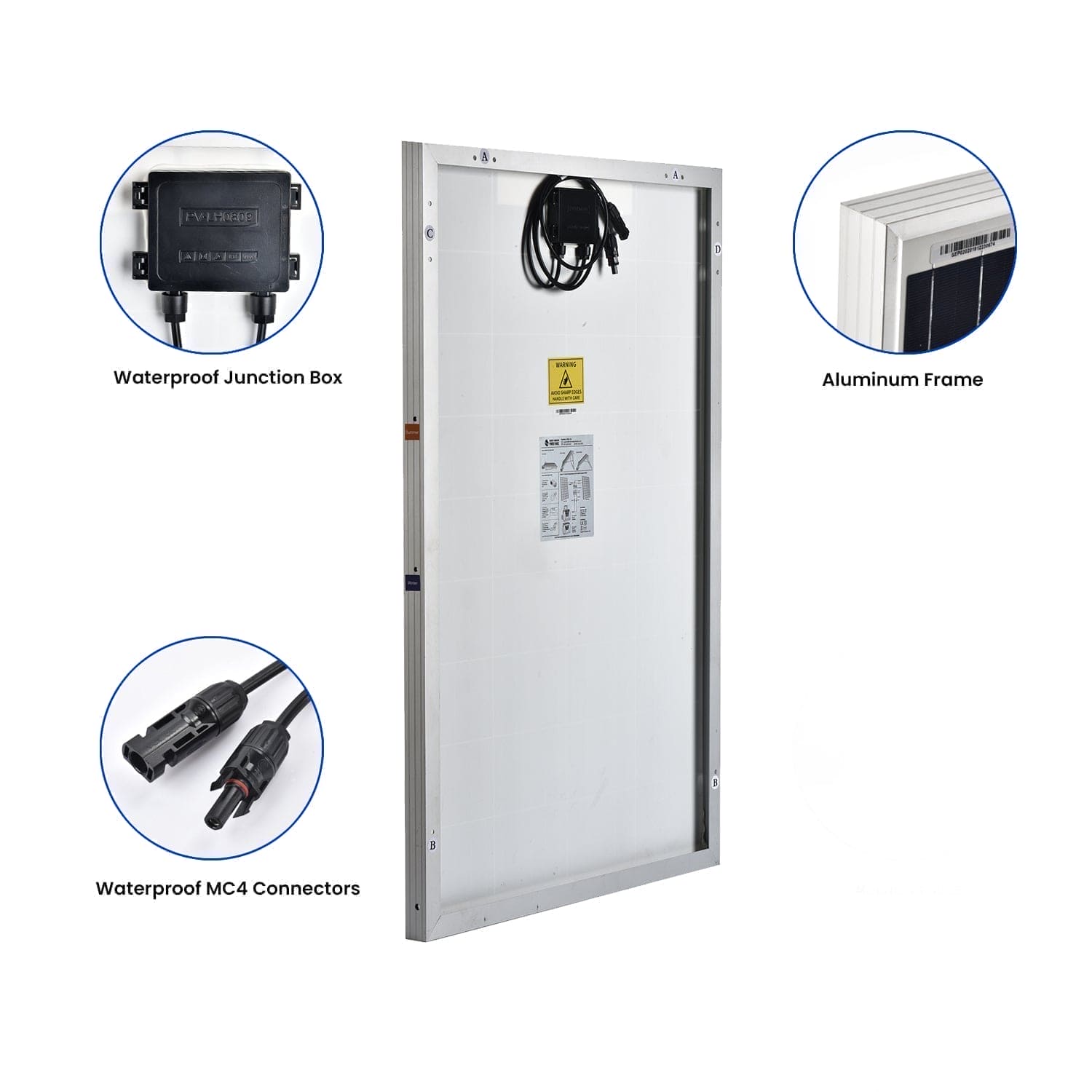

- 100 Watt panel
- Cell Type: Polycrystalline
- Junction Box with Mc4 Connector cable
- Daisy-Chain to another solar panel using MC4 branch connector
- Frame cart with wheels
- Summer and winter and tilt lowercase
- Reinforced with 3.2mm safety, anti-reflective glass

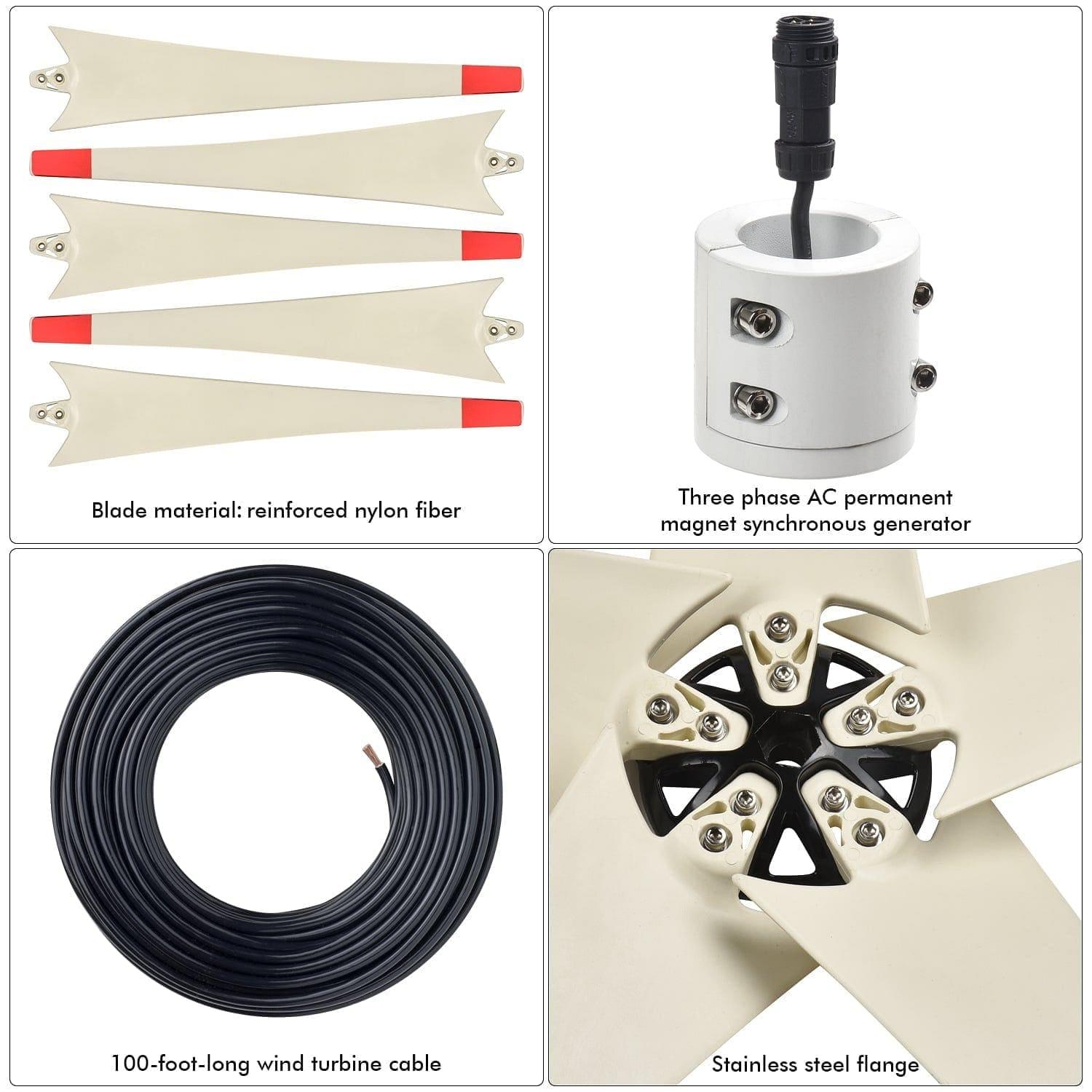

Features & Data
- Weatherproof M19 3P connectors
- 100ft, 12AWG UL approved wind turbine cable
- Wind Input: Anderson connectors
- Rated mechanical power: 150 watts @ 27 MPH
- Maximum wind speed 110 mph
What's Inside
- Nature's Generator Elite with
- Heavy Duty Cart (assembly required)
- Nature's Pulse Smart Key
- 4 foot power cord
- Two 100-Watt Nature's Generator Power Panels
- One 50 foot power panel cable
- One MC4 branch connector

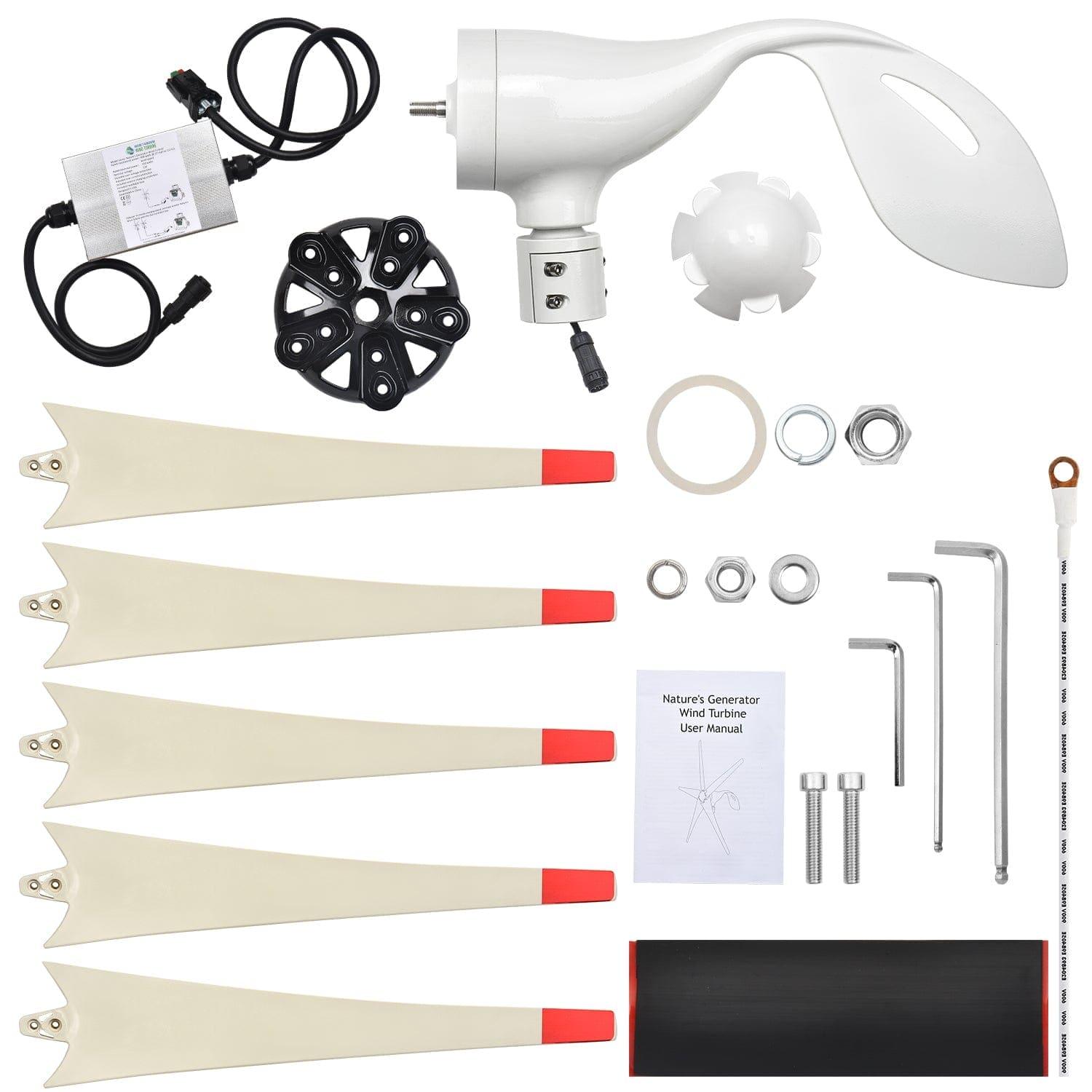

- Nature's Generator Wind Turbine
- Nature's Generator Wind Turbine
- Hub
- Nose cone
- 5 blades
- 100 foot cable
- Controller box
- Hardware and tool bag
- Owner's manuals
