Ever been there? You check your battery monitor and see a healthy lead acid battery full charge voltage of 12.7V. You feel confident in your power supply. Then, you plug in a portable fridge or a power tool, and the numbers start plummeting. Suddenly, you’re looking at 11.8V and wondering if your system is about to fail.

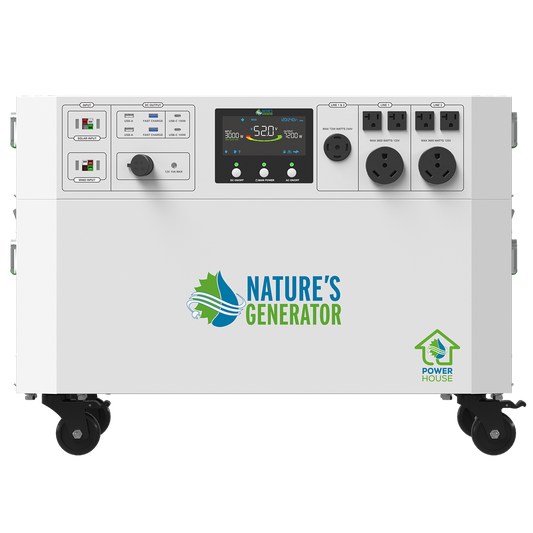

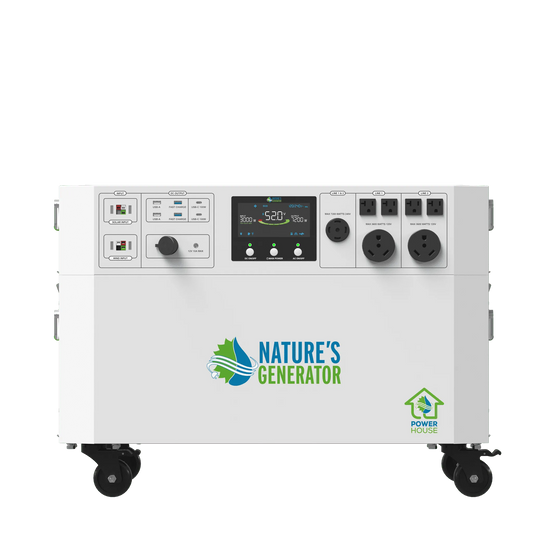

If you are using a DIY backup or a high-capacity system like a Nature's Generator unit, seeing these shifts can be startling. However, it doesn’t always mean your battery is trashed. Most of the time, it’s just physics and chemistry having a loud argument.
Here is exactly why your lead acid battery voltage drops the moment you plug something in—and how to tell if it’s a real problem or just "voltage sag."
1. The Concept of Internal Resistance
Think of your battery like a water tank with a small pipe at the bottom. Even if the tank is full, the water can only come out so fast because the pipe creates friction.

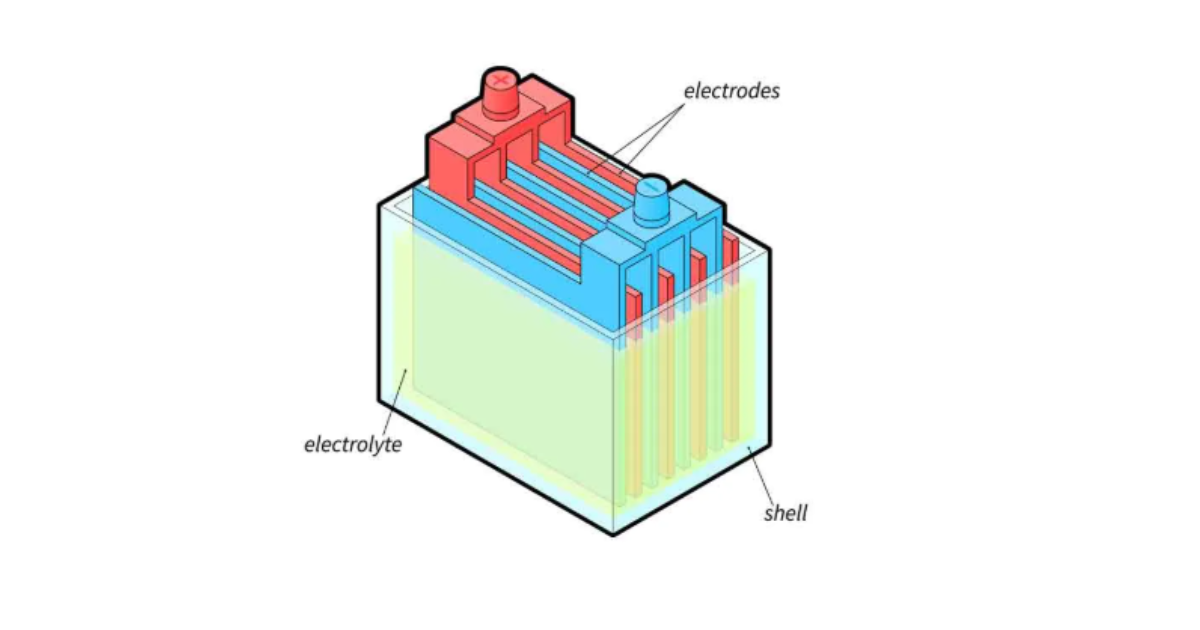

In a battery, that "friction" is called Internal Resistance. No battery is a perfect conductor. Inside that plastic case, ions must physically move through a liquid electrolyte to reach the lead plates. That movement isn't instant.
The harder you pull (the more Amps you demand), the more resistance the battery puts up. This causes a temporary dip in the measurable voltage at the terminals.
2. Voltage Sag vs. Capacity
A lot of people confuse "voltage" with "capacity." Voltage is like the pressure in a tire; capacity is how much air is actually inside.
When you apply a load, the "pressure" drops because you’ve opened the valve. This is Voltage Sag. If you turn the device off and the voltage bounces back up to where it started, your battery is likely healthy. If the voltage stays low or continues to sink rapidly, that’s a sign that the battery’s actual capacity is degraded.
The Conversion Factor
To put this into perspective, consider the power draw. If you are converting 1 ampere to watts in a 12V system, you are pulling 12 Watts.
Formula: Watts = Volts × Amps
A small 12-watt load won't move the needle much. But if you're running a 1,200-watt microwave, you're pulling 100 Amps. That massive flow of electrons creates a "bottleneck" inside the battery, leading to a significant voltage drop. Systems like those from Nature's Generator are designed to handle these surges, but the physics of the lead-acid pods inside will still show this temporary sag.
3. Surface Charge: The "Fake" Full Reading
If you just took your battery off a charger, you might see a lead acid battery full charge voltage as high as 13.2V or 13.5V. This is called a "surface charge." It’s a layer of high-voltage energy sitting on the surface of the plates that hasn't settled into the chemistry yet.
As soon as you plug anything in—even a tiny LED—that surface charge disappears. The voltage will quickly "drop" to its true resting state (usually around 12.6V to 12.8V). Don't panic; the battery isn't dying; it’s just getting real.
4. Why Temperature Matters
Lead-acid batteries are basically big chemistry sets. When it’s cold, chemical reactions slow down.
In freezing weather, the internal resistance of the battery spikes. This is why a car or a Nature's Generator unit kept in a cold garage might struggle more. You apply a load, the ions move like molasses, and the lead acid battery voltage sags much lower than it would on a warm summer day.
5. Is Your Wiring the Secret Culprit?
Sometimes the battery is innocent. If your wires are too thin or your connections are loose, the voltage "leaks" out as heat before it ever reaches your device.
If you measure 12.4V at the battery terminals but your device says 11.5V, you have a Voltage Drop issue in your cables.
-
Corroded Terminals: Crusty buildup adds massive resistance.
-
Thin Wire: Using a thin extension cord for a high-draw appliance is a recipe for a massive voltage dip.
6. How to Diagnose a Bad Battery
How do you know if the drop is "normal sag" or a "dead battery"?
-
Check the "Bounce Back": Turn the load off. If the voltage recovers to its original state within a few minutes, the battery is likely fine.
-
The 10.5V Rule: If your battery drops below 10.5V under a moderate load, you likely have a "dead cell." This is a physical failure inside the battery that cannot be fixed by charging.
-
The Resting Test: Let the battery sit for two hours with nothing plugged in. If it’s below 12.4V, it isn't fully charged.
Seeing your lead acid battery voltage wiggle when you flip a switch is perfectly normal. It's the battery's way of reacting to the "stress" of work. To keep the sag to a minimum, ensure your connections are tight and your battery stays topped up.
