50A Automatic Generator Transfer Switch
50A Automatic Generator Transfer Switch
SKU:NGA05031224N
• Reliable Automatic Power Switching: Seamlessly transfers selected circuits from utility power to backup power during an outage—no manual intervention required.
• High-Capacity & Broad Compatibility: Works with most solar generators, battery backup systems, grid-tie inverters, and gas generators. Supports up to 50 amps and works with 120V, 120/240V, and 120/208V systems. Fully compatible with AFCI and GFCI breakers.
• Extensive Circuit Coverage: Manages up to 24 circuits, allowing essential appliances and systems to stay powered during outages.
• Durable, Heavy-Duty Enclosure: Built with a rugged enclosure designed for dependable performance and long-term reliability in demanding installation environments.
• Complete Connection & Control System: Includes a 50A inlet and 50A power cord, plus a centralized control console for system monitoring, testing, and manual power source override.
• Certified for Safety & Code Compliance: Meets rigorous safety and performance standards including UL 1008 and CAN/CSA C22.2 No. 178.1, with documentation showing compliance under ISO/IEC Guide 17067.
50A Automatic Transfer Switch Flush Mount
Couldn't load pickup availability
You may also like
Innovative renewable solutions for a sustainable tomorrow.
Join us in building a greener world.

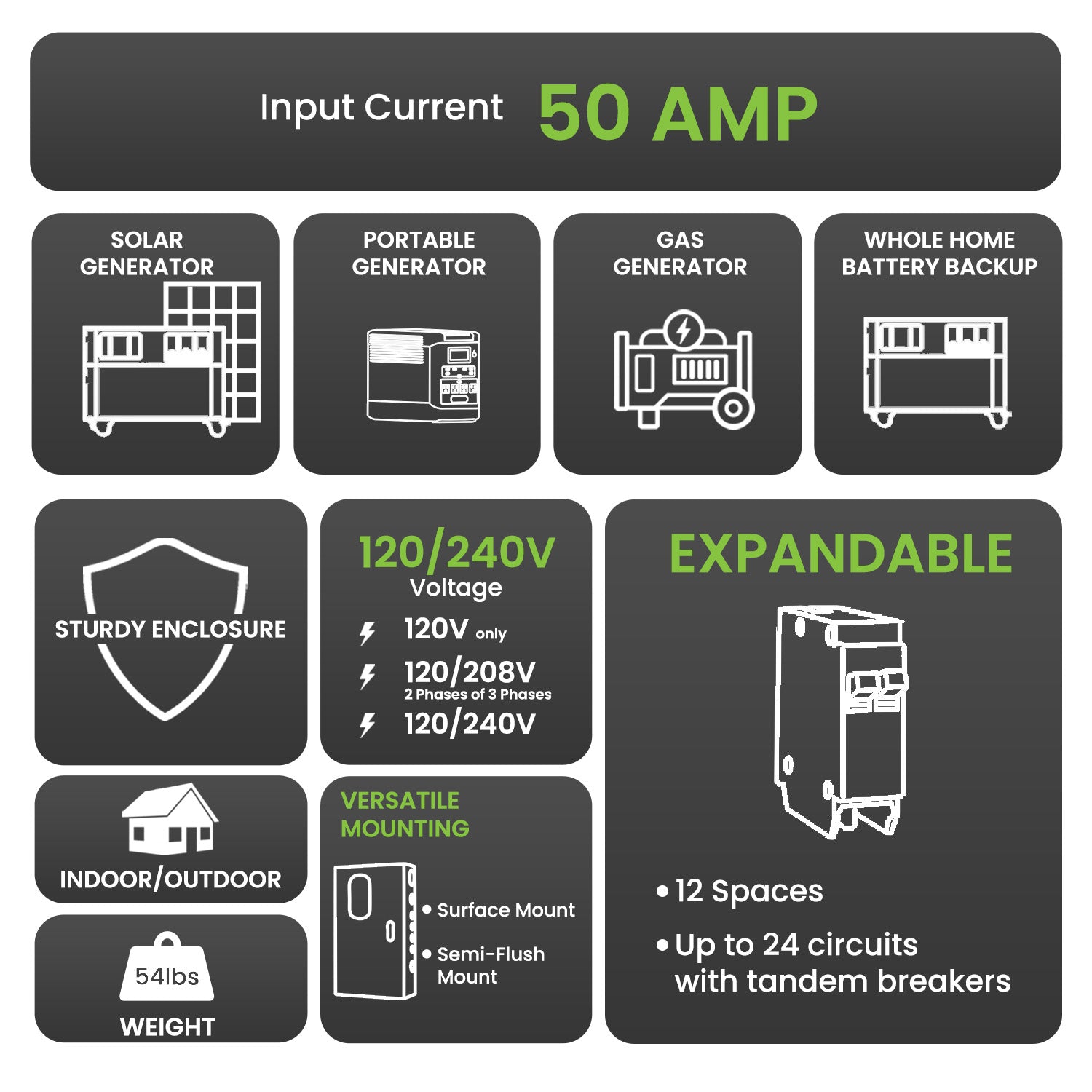

Features
Explore the built-in capabilities designed to deliver safe, reliable, and seamless power switching for home and backup systems.
Manual Override
Get instant home backup power with a fast, hassle-free installation.
Centralized Console
Provides a single, easy-to-access control point for monitoring and managing your home’s power flow.
NEMA 3R Enclosure
Built for indoor or outdoor installation, offering protection against rain, dust, and harsh weather conditions.
Supports Up to 16 Circuits with Tandem Breakers
Designed to manage a large number of household circuits, giving you flexible and organized power distribution.

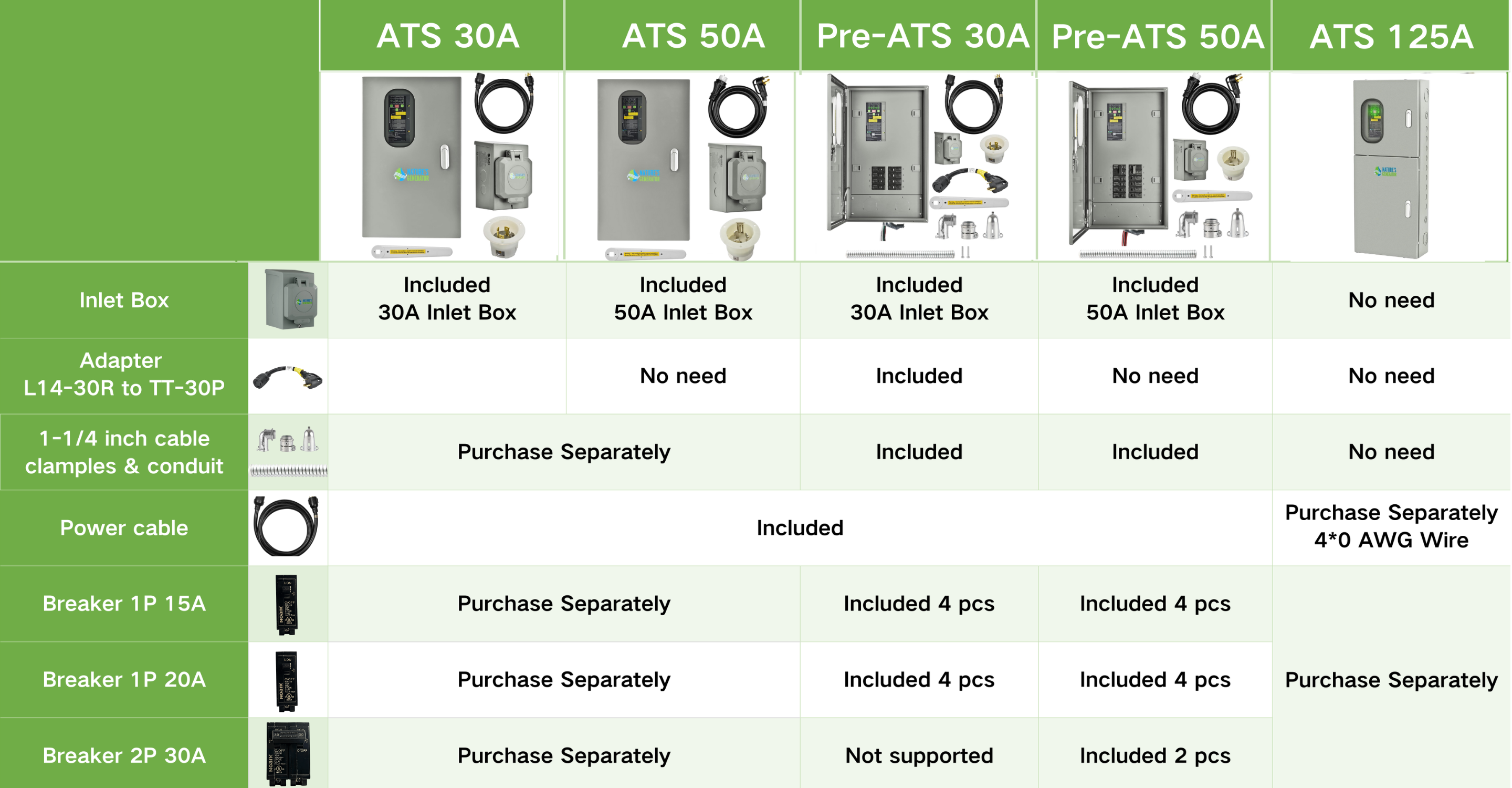

ATS Model Comparison: Find Your Perfect Match
Find the perfect ATS solution for your needs. Compare features and specifications to make a confident, informed decision.

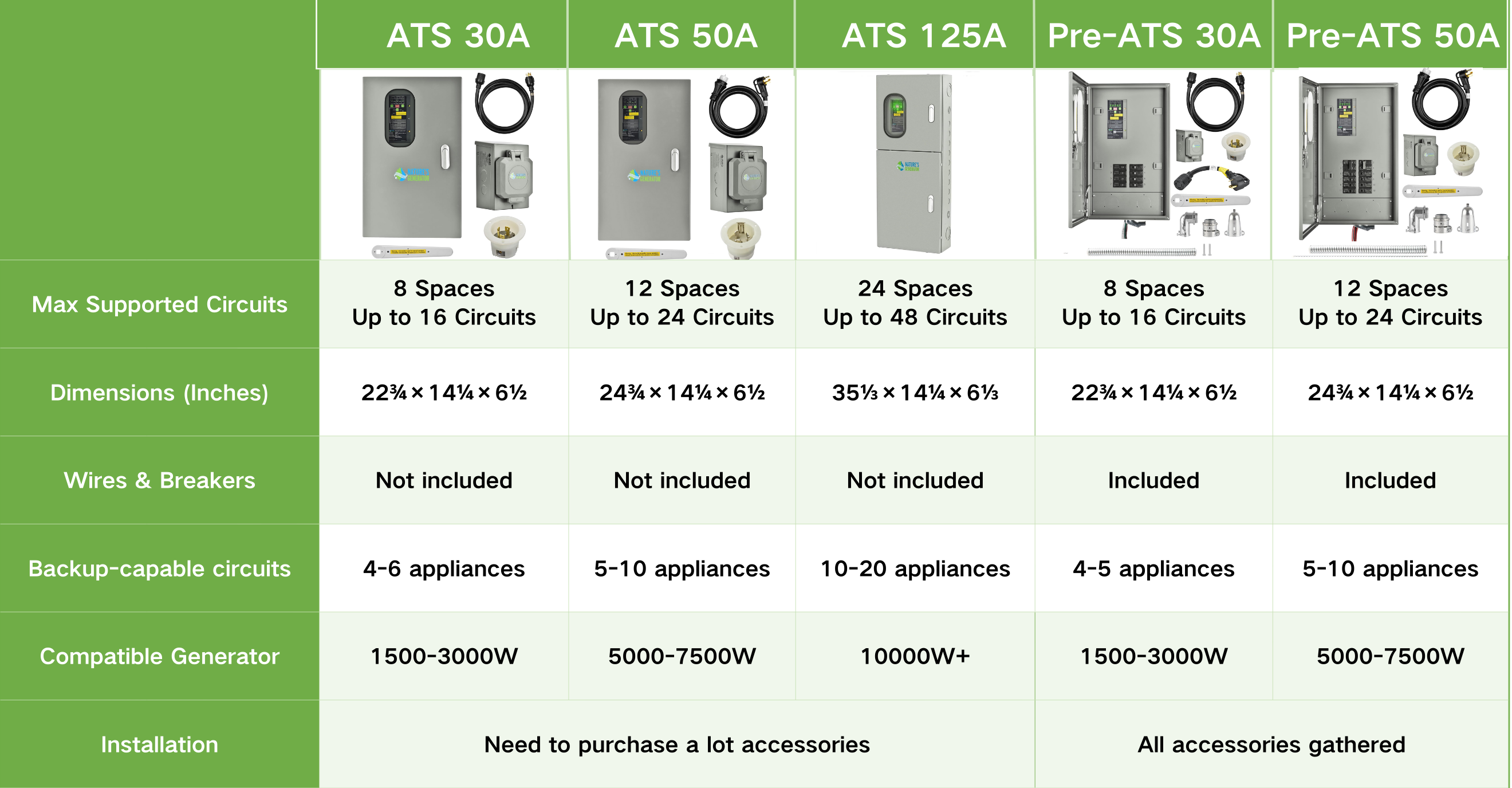

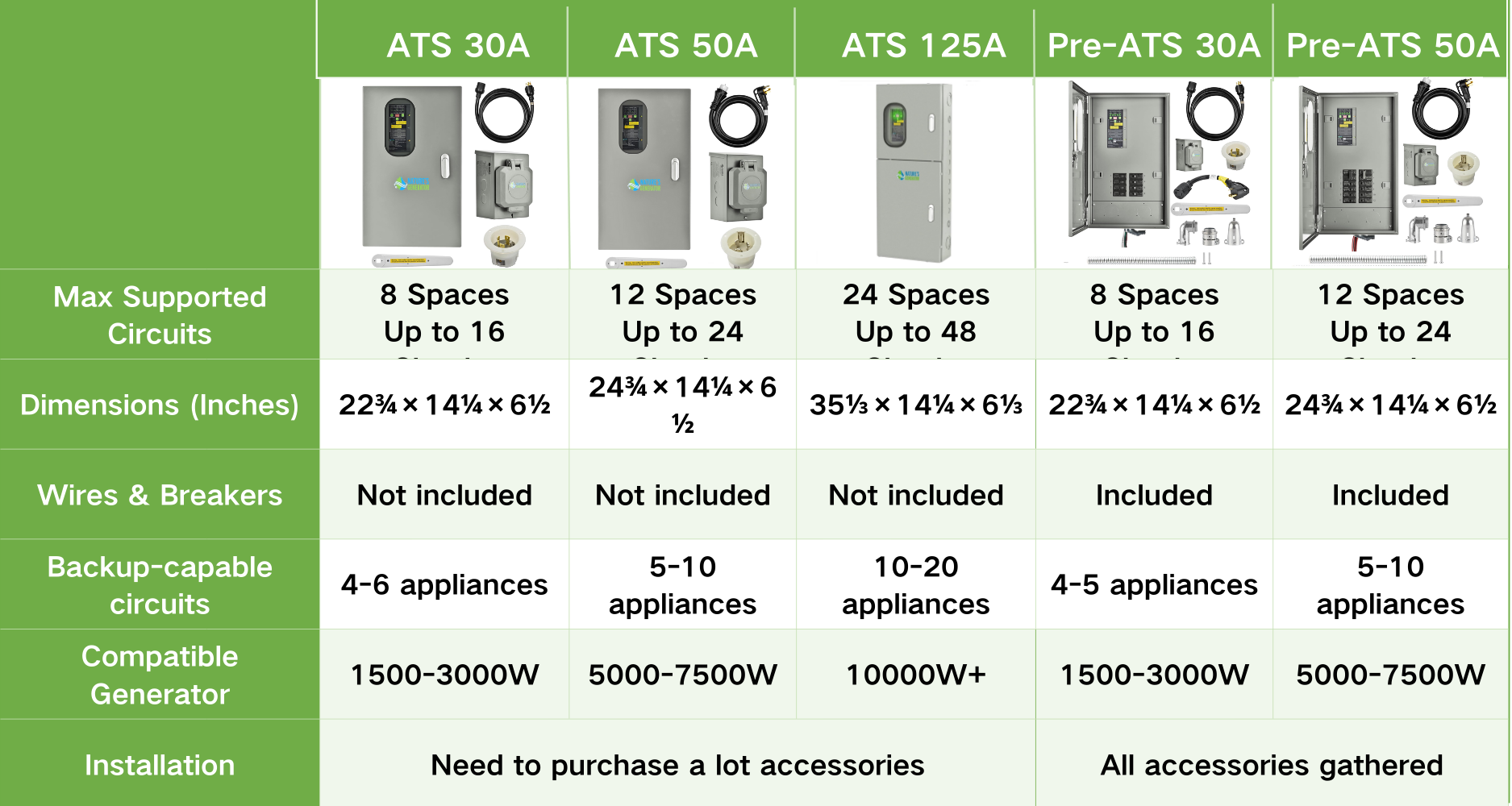

ATS Specifications

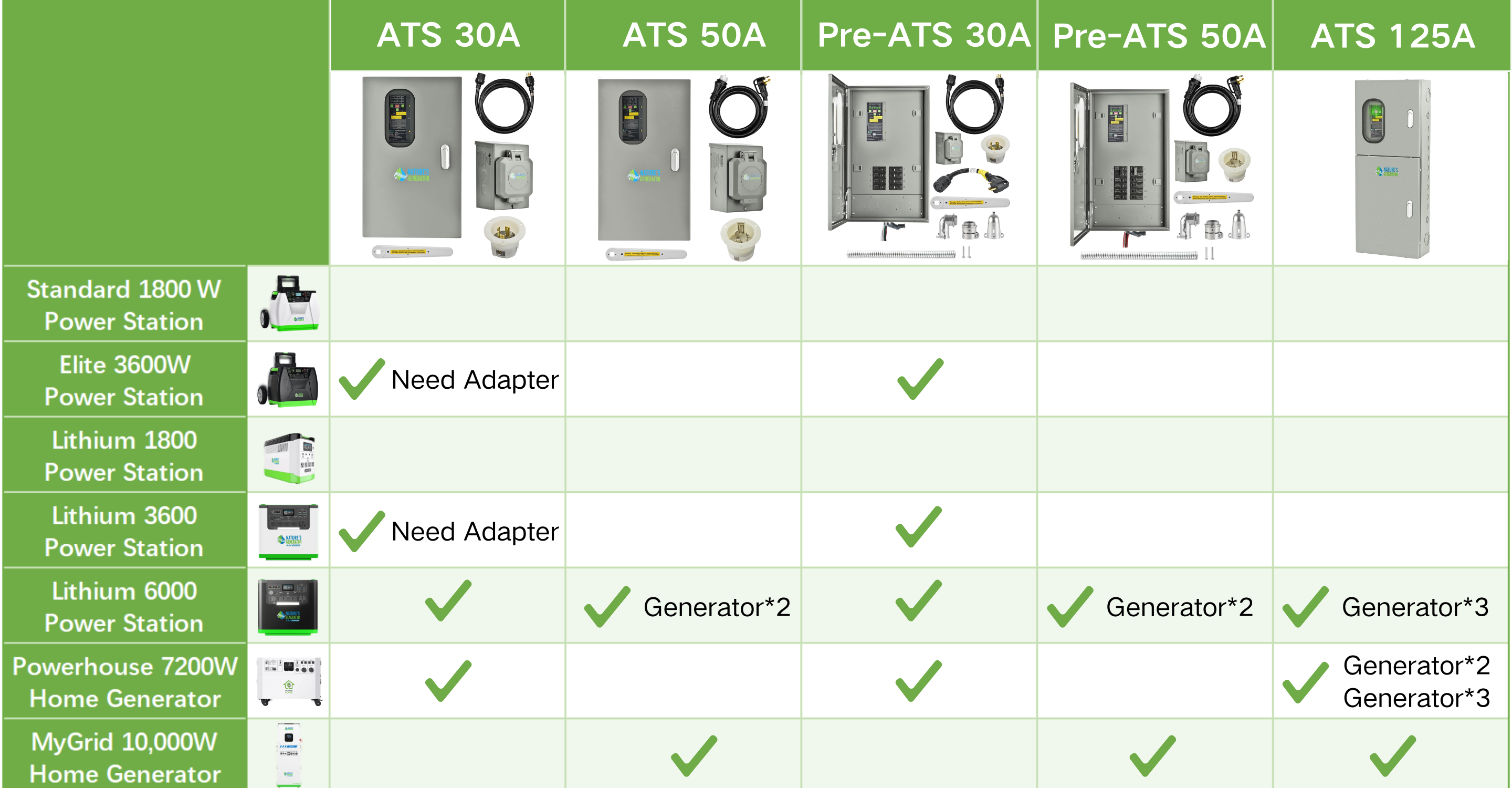

Generator Matching

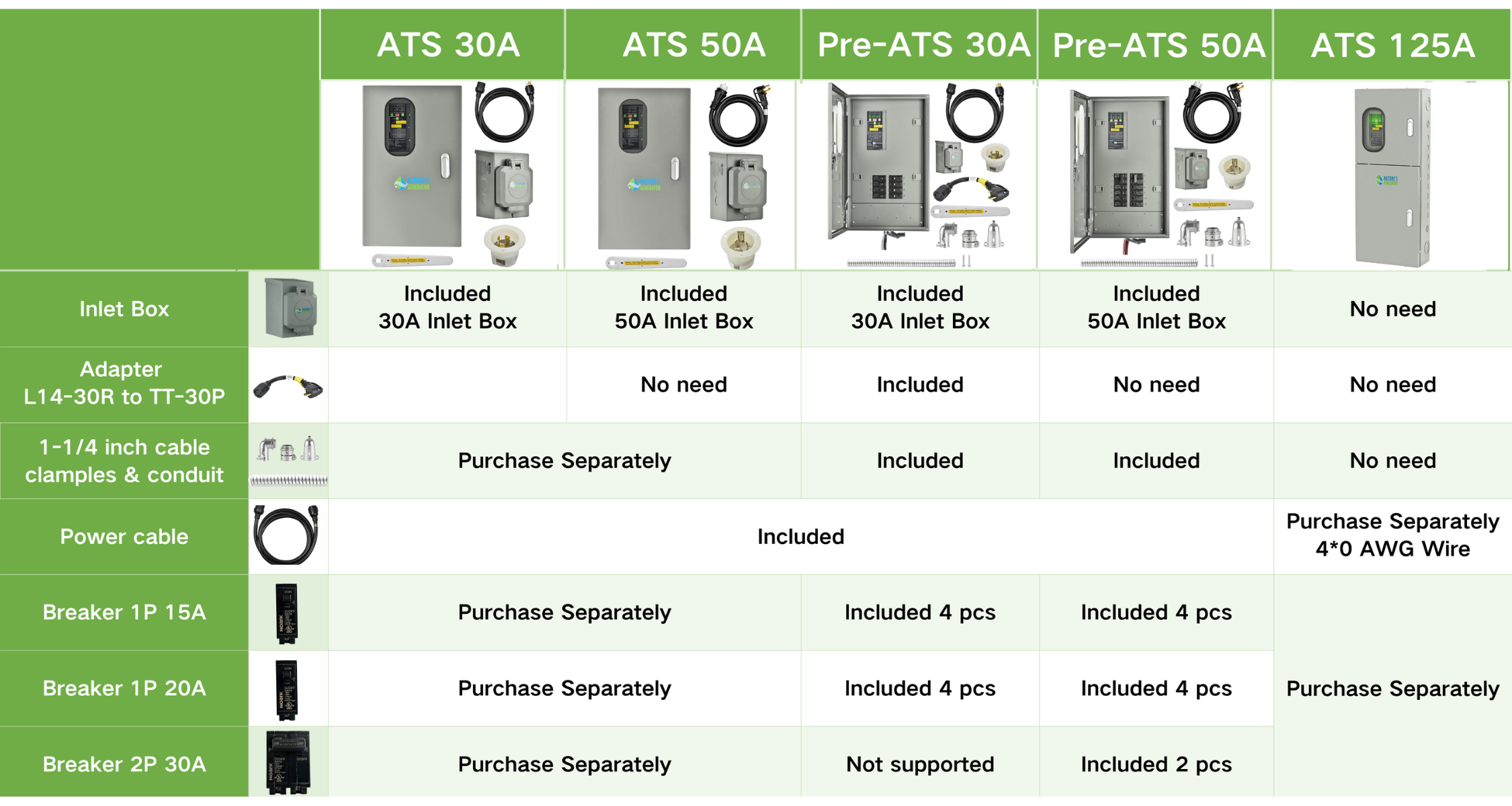

Compatible Accessories
Easy to Install. Flexible to Use. Ready for Whole-Home Power.
Designed for quick setup, flexible system compatibility, and reliable power management to support whole-home backup needs.
Built for Whole-Home Backup
Versatile Applications
Easy Installation
Built for Whole-Home Backup
Versatile Applications
Easy Installation
50A Automatic Transfer Switch
Built for scalable home power, offering flexible circuit expansion and clean, organized control.
Tech Specs
Find all the essential technical details of your automatic transfer switch, including amperage, voltage compatibility, and installation features.
Specification
Power Rating
50A
System Voltage
120 V~ (L-N) / 208V~ (L-L) / 240V~ (L-L)
Number of Spaces
12 spaces
Number of Circuits
Expandable to 24 circuits with tandem breakers
Dimension and Weight
24¾ x 14¼ x 6½ inches
(630 x 360 x165mm)
61.5 Ib (27.9Kg)
Certification*
What's In The Box?
50A Automatic Transfer Switch
1* 50A Automatic Transfer Switch
1* Manual Override Handle
1* 50A Power Inlet Box
1* Power Cord
1* User Manual
1* Pre-wired 50A Automatic Transfer Switch
1* Manual Override Handle
1* 50A Power Inlet Box
1* Power Cord
1* User Manual
50A Automatic Transfer Switch User Manual
