Homeowners with existing rooftop solar face a common frustration: when the utility grid goes down, their grid-tied solar system shuts off automatically. To secure a reliable backup power infrastructure, many look at how a modern solar power generator can keep their houses active during prolonged grid outages. Integrating the MyGrid 10K with an existing grid-tied solar inverter array offers a comprehensive fix, enabling your current system to act as a whole home power generator while retaining full grid-tied functionality when the utility network is active. While many off-the-shelf options operate exclusively as a temporary portable backup power system, the MyGrid 10K Whole Home Generator from Nature's Generator bridges the technical gap between utility dependence and complete off-grid flexibility.
In this architectural guide, our team will answer how you can cleanly connect this high-capacity energy storage unit to your pre-existing grid-tied solar panels. We will break down the mechanics of AC coupling, review the required safety protocols, outline strict system capacity guidelines, and share practical configuration benchmarks based on real-world installation experience.
Why Does Your Grid-Tied Solar Array Shut Down During a Power Outage?
The primary question many homeowners ask when exploring battery storage options is why their expensive solar array becomes completely useless the moment a blackout hits. This structural behavior is intentional and hardwired into the system firmware.
Understanding the Anti-Islanding Safety Protocol
Grid-tied solar systems operate using string inverters or microinverters designed to synchronize their voltage and frequency output directly with the incoming utility grid line wave. Under standard regulatory safety frameworks, specifically IEEE 1547 and UL 1741, all grid-interactive inverters must incorporate an anti-islanding safety feature.
When utility power drops, the grid-tied inverter detects the loss of the baseline reference signal and halts power generation within milliseconds. This prevention mechanism ensures your solar system does not backfeed live electricity onto damaged utility lines, which would present a fatal shock hazard to utility technicians working to repair the localized electrical grid.
How the MyGrid 10K Recreates a Local Grid Link
To unlock your panels during a blackout, you must fool your existing grid-tied inverters into believing the utility infrastructure is fully functional. The MyGrid 10K solves this operational bottleneck by acting as a specialized grid-forming battery inverter.
When an outage occurs, an automatic transfer switch rapidly isolates your home panels and subpanels from the main utility lines. Once safely isolated, the internal heavy-duty inverter inside the MyGrid system generates an independent, localized 120V/240V split-phase AC voltage wave. Your existing grid-tied solar inverters read this pristine local signal, undergo their standard safety re-qualification countdown, and begin producing power again, effectively operating within a controlled local microgrid.
How Does AC Coupling Connect the MyGrid 10K to Your Current Inverters?
Retrofitting batteries into a pre-existing residential solar setup usually requires selecting one of two primary integration methods: DC or AC coupling. For an existing array, AC coupling stands out as the most streamlined path.
The Core Difference Between DC and AC Coupled Systems
In a traditional DC-coupled setup, solar panels feed raw direct current (DC) energy straight to a charge controller, which handles battery maintenance before an inverter translates that power into alternating current (AC) for home appliances. Retrofitting a DC-coupled battery to an existing system requires rewiring your solar panels, altering string voltages, and removing or replacing your current grid-tied inverter.
AC coupling takes an entirely different approach by linking both systems on the AC side of your home electrical panel. Your existing solar array keeps its original setup, sending 120V/240V AC power directly down to the electrical subpanel. The MyGrid 10K connects to that exact same AC busbar.
Step-by-Step Power Flow Path During a Blackout
To understand how these components communicate dynamically, let's look at the power transmission routing during mid-day operation when an outage hits:
-
Isolation: The automatic transfer switch opens, severing connection to the dead utility grid.
-
Microgrid Initiation: The MyGrid 10K fires up its internal inversion circuitry, energizing the isolated home backup panel with a clean 60Hz reference wave.
-
Solar Awakening: Your rooftop microinverters or string inverters sense this local wave, sync to it, and begin converting sunlight into AC power.
-
Load Prioritization: The incoming solar AC power goes directly to satisfy your active home loads first, such as refrigerators, water pumps, or medical equipment.
-
Bidirectional Charging: If your solar panels generate more power than your home appliances currently need, the excess AC electricity flows backward through the MyGrid bidirectional charger circuitry. This current is converted internally to DC to top off the massive 10,496Wh battery module.
What Technical Specifications and Capacity Requirements Must You Match?
You cannot simply plug any size solar array into a battery backup system without assessing technical matching rules. Based on our experience, failing to balance system capacities can trigger equipment faults or overload the battery inverter.
Sizing the Inverter: The 1:1 Matching Rule
The absolute gold standard rule for designing an AC-coupled system is the 1:1 ratio guide. This engineering standard states that the maximum continuous AC power output of your existing grid-tied solar array must not exceed the continuous power handling capacity of the battery-isolated inverter system.
The Nature's Generator MyGrid 10K delivers an impressive 10,000 watts of continuous, split-phase AC power. Following the 1:1 ratio standard, your pre-existing grid-tied solar inverter array can have a maximum nameplate AC output capacity of up to 10kW. If your rooftop solar system features a 7.6kW or 9.6kW string inverter, it pairs perfectly with the MyGrid core system hardware.
|
System Specification |
Value Baseline |
Application Constraint |
|
MyGrid Continuous Output |
10,000W (Split-Phase) |
Limits maximum paired solar array size |
|
Base Battery Unit Capacity |
10,496Wh (Expandable) |
Sets baseline autonomy window |
|
Overload Surge Capacity |
High Peak Output Allowances |
Manages initial motor startup spikes |
|
Frequency Shift Regulation |
60.0 Hz to 62.0 Hz Range |
Throttles excess solar generation |
Battery Capacity and Expansion Options for Extended Blackouts
A 10kW solar system running under full mid-day sun can dump massive amounts of energy down the line. If your home loads are low, the battery module must be capable of soaking up that charging current safely.
The baseline MyGrid battery module features a substantial 10,496Wh storage capacity. For homeowners running large 10kW solar arrays, our team recommends expanding this battery baseline by linking additional matching battery modules. Increasing total storage capacity provides a wider thermal and electrochemical buffer, allowing your system to capture every kilowatt-hour of free daytime solar energy to power your home through the night.
What Does the Physical Installation Process Look Like for Homeowners?
Integrating a battery system into a live household electrical service requires professional planning, careful panel coordination, and an understanding of advanced electrical pathways.
Placing the Inverter and Transfer Switch Architecture

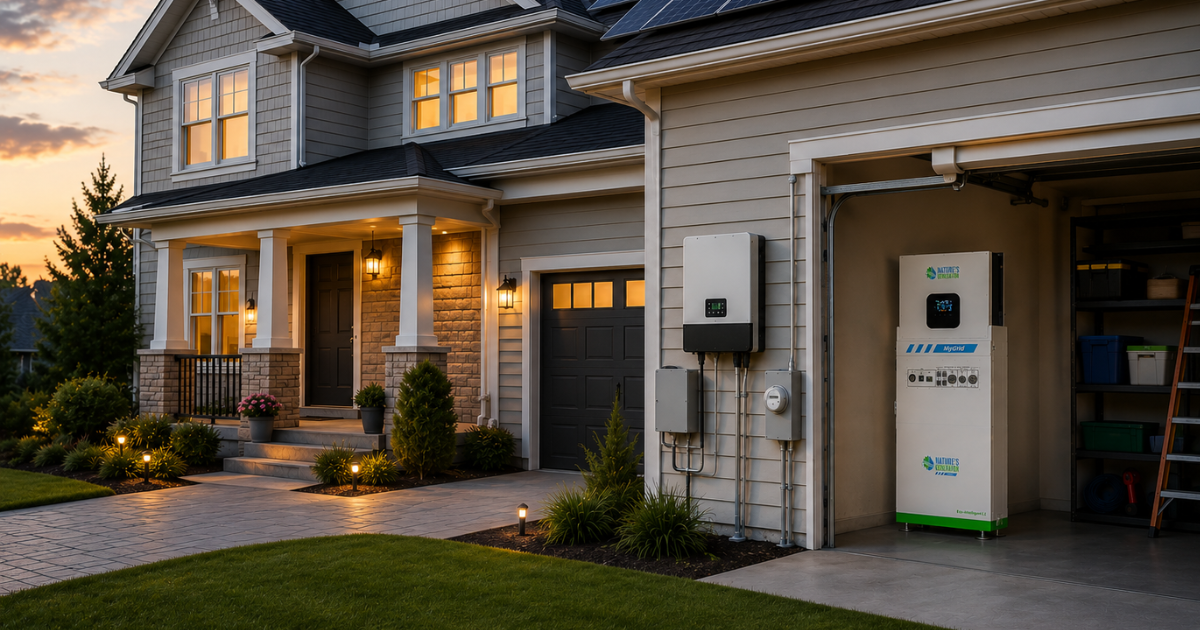

The physical installation centers around adding an automatic transfer switch or an isolated critical loads subpanel between your primary utility service entrance and your household branch circuits. Your existing grid-tied solar inverter output lines are physically relocated so they land directly inside the backed-up electrical panel managed by the MyGrid unit.
This structural rearrangement creates an optimal, controlled loop. When utility power runs smoothly, the entire system sits in pass-through mode, allowing you to feed solar power to the grid or draw extra power as needed. The moment a grid failure occurs, the automatic transfer switch switches over seamlessly, establishing an isolated microgrid zone that keeps both the solar array and the battery system connected exclusively to your home loads.
Programming Frequency Shift Controls for Battery Safety
The most critical aspect of an AC-coupled configuration is managing the system when the battery hits 100% capacity. If the battery is full and the sun is shining, where does the excess solar energy go? Without utility grid access, the system cannot push energy back down municipal power lines.
To protect the battery cells from overcharging, the MyGrid 10K utilizes frequency shift power management. When the battery reaches its upper charge threshold, the MyGrid inverter shifts its local AC output frequency slightly upward from 60.0 Hz to 61.2 Hz or 62.0 Hz.
Your existing grid-tied solar inverters continuously monitor this frequency. As they detect the rising frequency signal shifting away from standard operating bounds, they naturally throttle down their power output or disconnect from the circuit completely. As your home appliances gradually draw down the battery level, the MyGrid drops the frequency back to a baseline 60.0 Hz, signaling the grid-tied inverters to reconnect and safely ramp up solar production.
Real-World Scenarios: How Does an Integrated System Perform in Real Life?
Seeing how this high-tech system handles real emergencies makes it much easier to understand how it actually works.
Customer Feedback and Practical Operational Examples
Feedback from homeowners who have integrated high-capacity battery architectures underscores the value of maintaining solar production during extended grid disruptions. In traditional setups, a multi-day storm means total reliance on a finite fuel supply. Owners who transitioned to an AC-coupled setup report that their solar panels successfully recharged their battery systems to full capacity by noon each day, even during extended regional blackouts.
Consider a practical example during a summer storm blackout. A home is pulling a continuous 3,000-watt load to power a well pump, multiple refrigerators, cooling fans, and workspace electronics. At the same time, the overhead solar array produces 7,000 watts under partial cloud cover.
Instead of shutting off completely due to anti-islanding regulations, the solar system supplies the full 3,000 watts directly to the home appliances. The remaining 4,000 watts route down into the MyGrid charging core, replenishing the battery bank for overnight use without cycling the cells unnecessarily.
Managing High-Load Appliances and EV Bidirectional Charging
The continuous 10,000-watt capability of this platform allows homeowners to run demanding 240V appliances that smaller portable power units cannot support. Central air conditioning compressors, well pumps, and electric clothes dryers require immense starting currents.
Furthermore, the integration of bidirectional EV charging options within the broader MyGrid architecture allows you to coordinate home storage with electric vehicle battery capacities. This comprehensive integration ensures that your home remains a resilient, self-sustaining energy center during severe weather events or long-term grid instabilities.
Summary of Best Integration Practices
To ensure optimal performance and safeguard your hardware assets, adhere to the following core deployment guidelines:
-
Verify Solar Array Output: Confirm that your total existing grid-tied AC inverter nameplate capacity does not exceed the continuous 10kW threshold of the battery inverter.
-
Assess Subpanel Layouts: Group critical lifestyle loads into a dedicated backup panel to prevent heavy appliances from draining the system prematurely during an outage.
-
Maintain Environmental Regulation: Install your energy storage cabinet in a temperature-controlled garage or utility room to preserve optimal battery lifespan and performance.
-
Consult a Certified Installer: Work alongside a licensed electrician to manage structural code requirements, permit filings, and safe utility isolation protocols.
Conclusion
Integrating a robust battery system like the MyGrid 10K with your existing grid-tied solar array completely transforms your residential energy security. When a power outage hits, an AC-coupled design prevents your solar array from going offline by safely working around anti-islanding limitations. The resulting standalone microgrid keeps your home operational and your batteries energized with renewable solar power.
This dual-system synergy provides the best of both worlds: efficient net-metering utility savings during standard operations, paired with resilient off-grid autonomy during emergencies
