Nature's Generator 15A 4-circuit and 30A 6-circuit 120V Non-Automatic Power Transfer Switch

Nature's Generator 15A 4-circuit and 30A 6-circuit 120V Non-Automatic Power Transfer Switch

1. Important Safety Instructions

1.1 Safety Instructions

1.1.1 Read these instructions.

1.1.2 Keep this user manual in a safe and accessible place.

1.1.3 Take note of all warnings to avoid injury or damage.

1.1.4 Follow all instructions.

1.1.5 The safety instructions provided herein are for illustrative purposes that include but are not limited to those listed in this manual. Actual operation shall comply with all applicable safety standards.

1.1.6 Always operate or store the equipment in the conditions specified in this manual.The installation and ambient conditions must comply with the regulations in the relevant national and local standards.

1.1.7 Avoid unauthorized disassembly, equipment replacement, or modification of software codes.

1.1.8 Nature’s Generator shall not be liable for the equipment damages, personal injury, property loss or other damages resulting from the following circumstances:

• Force majeure events such as earthquakes, fires, storms, floods, or mudslides.
• Damages caused by improper handling and installation.
• Damages resulting from inadequate storage conditions as specified in the manual.
• Hardware or data damage caused by customer negligence, improper operation, or intentional actions.
• System damage caused by third parties or customers.
• Adjustments, changes, or removal of labels in violation of this manual.

1.2 General Requirements

1.2.1 Do not install, use or maintain this equipment near water.

1.2.2 Do not install, use and maintain this equipment in adverse weather conditions such as lightning, rain, storm, snow and earthquake.

1.2.3 Keep this equipment away from heat sources or high temperatures or direct sunlight.

1.2.4 Always turn off the power source before starting any electrical work.

1.2.5 Allow a minimum 18 inch clearance from all sides of the equipment for proper air ventilation to dissipate heat.

1.2.6 Do not use near flammable gases or fumes or other equipment that produce a large amount of heat.

1.2.7 Do not store this equipment with flammable or explosive materials.

1.2.8 Do not place the equipment on an unstable or inclined surface.

1.2.9 Use the equipment for its intended purpose and avoid stacking objects on top of it during storage or use.

1.2.10 Do not insert foreign objects into or block any ventilation openings.

1.2.11 Keep the system out of the reach of children and pets.

1.2.12 Only use attachments/accessories approved by the manufacturer.

1.2.13 Regularly inspect the equipment and its accessories for damage or deterioration.

1.2.14 Refer all servicing to qualified service personnel. Servicing is required when the equipment has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the equipment, the equipment has been exposed to rain or moisture, has been dropped or does not operate normally.

1.2.15 The equipment should not be exposed to dripping or splashing, and no objects filled with liquids, such as drinking glasses or vases, should be placed on the equipment.

1.2.16 The transportation, wiring, installation and maintenance shall comply with all applicable laws, regulations and standards.

1.2.17 Do not make changes or modifications to the equipment’s structure, installation sequence, etc.

1.2.18 Position the system on the flat surface and firmly secure it to a wall or other solid objects.

1.2.19 After installing the equipment, remove the idle package materials from the site such as cartons, foam, plastic, nylon ties, etc.

1.3 Warning

1.3.1 The power inlet is for inlet use only. Not for use as an outlet.

1.3.2 CONNECTIONS TO THE INLETS SHALL BE MADE BY QUALIFIED PERSONNEL ONLY.

1.3.3 FOR USE IN A WEATHER PROTECTED AREA ONLY.

1.3.4 DANGER - Risk of electric shock - Do not connect or disconnect the power inlet when energized.

1.3.5 Plug connection should be in the following order: equipment grounding conductor connectors, grounded circuit conductor connectors, and ungrounded conductor connectors. Disconnection should be in the reverse order.

1.3.6 Verify the condition of power source prior to manually transferring. Manual operation may result in out-of-phase transfer when both sources are energized.

1.3.7 THE POWER TRANSFER KIT MUST BE INSTALLED BY A QUALIFIED ELECTRICIAN IN COMPLIANCE WITH ALL APPLICABLE ELECTRICAL CODES!

1.3.8 When replacement parts are required, make sure that the service technician uses replacement parts specified by the manufacturer that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, personal injury, or other hazards.

1.3.9 To ensure safety, your home's electrical panel system must be correctly bonded and grounded.

1.3.10 If your home has shared neutral circuits (also known as multi-wire branch circuits),it's crucial to connect them to different lines (phases) in your transfer switch. Placing shared neutral circuits on the same line might lead to overloading neutral wires, which can cause overheating, damage to your electrical system, and even a fire hazard.

1.4 Caution

1.4.1 Manual Transfer Switch - This device will not automatically transfer to an alternative source.

1.4.2 Improper installation of this transfer kit may cause damage or injury by electrocution or fire. Please do not connect the appliances that exceed the capacity of this transfer kit. If the transfer switch is connected to AFCI or GFCI branch breakers, the AFCI or GFCI protection will be lost when the rocker switch in the transfer switch is in the GEN position.

1.5 Storage Instruction

1.5.1 Make sure the place where to store the system is well ventilated and spacious.

1.5.2 Do not store the system in flammable or explosive environments.

1.5.3 Keep the system out of the reach of children and pets.

1.5.4 Avoid exposing the equipment to rain, humidity or direct sunlight.

1.5.5 Store the product in the conditions described in this manual.

1.6 INSTRUCTIONS PERTAINING TO RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS

1.6.1 WARNING – When using this product, basic precautions should always be followed, including the following:

a. Read all the instructions before using the product.
b. To reduce the risk of injury, close supervision is necessary when the product is used near children.
c. Do not put fingers or hands into the product.
d. Use of an attachment not recommended or sold by manufacturer may result in a risk of fire, electric shock, or injury to persons.
e. To reduce risk of damage to the electric plug and cord, pull the plug rather than the cord when disconnecting the cable.
f. Do not operate the transfer switch with a damaged cord or plug, or a damaged output cable.
g. Do not disassemble the transfer switch, take it to a qualified service person when service or repair is required. Incorrect reassembly may result in a risk of fire or electric shock.
h. Have servicing performed by a qualified repair person using only identical replacement parts. This will ensure that the safety of the product is maintained.
i. The power transfer switch must be installed by a qualified electrician in compliance with all applicable electrical codes!
j. Do not charge the Nature's Generator by wall through AC input port when using the power transfer switch. It might trigger protection.

1.7 WARNING: GROUNDING INSTRUCTIONS

1.7.1 When the local codes require, this product must be grounded. If it should malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock.

1.7.2 WARNING – Improper connection of the equipment grounding conductor is able to result in a risk of electric shock. Check with a qualified electrician if you are in doubt as to whether the product is properly grounded.

1.8 Upgrade Circuit Breakers (for 6 Circuits 30A model only)

-This product is supplied with 15-amp circuit breakers as default. All circuit breaker positions can accommodate 15- or 20-amp circuit breakers. The positions 1 and 2 (only these positions) can accommodate 30-amp circuit breakers. To remove a circuit breaker, remove the compartment cover, unscrew the terminal screw in the breaker to be removed, removed the wire, tilt the top of the circuit breaker towards right and lift up and out. Reverse the procedure to install another breaker.

-Use 30-amp circuit breakers in positions 1 and 2 and use 20-amp circuit breakers in all other positions. Rating of a transfer switch circuit breaker should not exceed the rating of the corresponding branch circuit breaker in the load center.

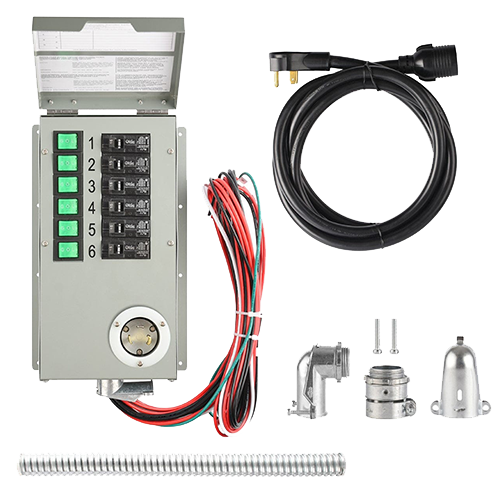

2. Unpack your Power Transfer Switch

2.1 Power Transfer Switch

2.2 Inlet

2.2.1 For 6 Circuits 30A Model

2.2.2 For 4 Circuits 15A Model

2.3 Flexible Conduit

2.4 Cable Clamps

2.5 Power Cord: For 4 Circuits 15A Model For 6 Circuits 30A Model

2.6 This User Manual

2.7 Mounting Template

3. Install Your Power Transfer Switch

3.1 Key Components of the Transfer Switch

Rocker Switches: These switches allow you to select either G (generator) or L (utility) as the power source for the branch circuits that have been wired through the transfer switch. The O (off) position removes branch circuit from both utility and generator power.

Breakers: Each transfer switch circuit has a 1-in interchangeable circuit breaker that protects the branch circuit when the rocker switch is in the G position. In the L position, each branch circuit is protected by the breaker in the load center.

Power Inlet Knockouts: The locations to install the power inlet. Once the power inlet is installed, the power cord is plugged into the inlet.

Compartment Cover: Remove to install power inlet.

Flanges: Mount the power transfer switch on the wall.

Enclosure: Powder coated steel.

Flush Mounting Holes: Work with flush mounting kit (sold separately) to install the power transfer switch into the wall.1/2 Inch Knockouts: For hardwire installation.

3.2 Installation Instructions

Get the tools ready.
The following items (not included) will be needed for installation:
Power drill
Screwdriver
Wire cutters/Stripper
Anchors and screws
Wire connectors

3.3 Install the power inlet.

3.3.1 Please follow these steps.

a. There are three power inlet knockouts on the power transfer switch. Decide which knockout you are going to use to install the power inlet based on the locations of your load center and your power transfer switch and your preference for which direction you want your power cord to connect to. Remove that knockout.
b. Remove the six screws on the compartment cover and put the screws aside.
c. Lift the compartment cover.
d. Insert the power inlet through the power inlet knockout.
e. Connect black wire (hot) in the power transfer switch to the copper connector of the power inlet, connect the white wire (neutral) in the power transfer switch to the silver connector of the power inlet and connect the green (ground) wire in the power transfer switch to the green connector of the power inlet.
f. Secure the power inlet to power transfer switch with the included screws.
g. Put back the compartment cover with the screws that were removed in step b.

3.4 Mount the power transfer switch.

3.4.1 Please follow these steps.

a. Locate your load center.
b. Decide the appropriate location to install the power transfer switch. Make sure it is within 18-inch range from your load center as figure 1 shows.
c. If you prefer to flush mount the power transfer switch, purchase the flush mount kit through www. naturesgenerator.com or 800-975-7909 before the installation.
d. Mount the power transfer switch by securing the screws to the wall through the holes on the flanges.
e. You may also use the included mounting template to cut a piece of plywood as the supporting board in between the power transfer switch and the wall for additional support.

3.5 Prepare the load center.

3.5.1 Please follow these steps.

a. Turn off the main circuit breaker in the load center to ensure your safety.
b. Remove the cover of the load center.
c. Remove an 1 inch knockout on the near side of the load center towards the power transfer switch.
d. Cut the flexible conduit to the length you desire. Insert the wires from the power transfer switch though the flexible conduit and connect the other end of the flexible conduit to the knockout. Secure the flexible conduit with the cable clamps provided.
e. Do not attempt to bend the flexible conduit beyond its structural capabilities.


Warning: Verify the condition of power source prior to manually transferring. Manual
operation may result in out-of-phase transfer when both sources are energized.

Warning: Do not start the generator until all connectors are connected or made to be
inaccessible. Any terminal may be energized when any cable is connected. De-energize cables at the generator prior to connecting or removing any connectors.

Caution: This switch will not transfer if overcurrent device opens due to fault.

Caution: Manual Transfer Switch – This device will not automatically transfer to an
alternative source.

Danger: Risk of electric shock.

Danger: Any Terminal may be energized when any cable is connected. De-energize cables atthe generator prior to opening the cover.

Danger: Risk of electric shock. For use only for connection of a portable generator to thesource terminals of a transfer switch, such that the inlets are only energized from the generator.

3.6 Installing Circuits

Establish which lines will be the most critical to you in the time of a power outage. Let's assume that switch 3 will be designated to supply power to the kitchen lights.

3.6.1 Please follow these steps.

a. Turn off the corresponding kitchen light circuit breaker. Undo the screw that secures the wire to the circuit breaker, then disconnect the wire from the circuit breaker.
b. On the transfer switch, find the wires marked with the number 3, there should be one black and one red.
c. As figure 2 shows, feed the red 3 wire into the kitchen light breaker. Strip approximately 5/8" off from the end of the wire, connect the stripped red wire to the kitchen light circuit breaker and tighten the screw.
d. Cut the black 3 wire to a similar length for aligning with the wire removed from the kitchen light circuit breaker in step a. Strip approximately 5/8" from the end of the black wire. Connect black 3 wire and the
wire that was removed from the circuit breaker in step a by twisting a wire nut.
e. This completes the installation of the transfer switch for backup on your kitchen light. Repeat steps a-e for each of the remaining circuits.

3.7 Completing the Installation

When you have wired all the load circuits in the transfer switch, only the white neutral wire and the green ground wire remain.

3.7.1 Please follow these steps.

a. Insert the white neutral wire into an unused opening in the neutral bar in the load center and tighten the screw (Figure 2).
b. Insert the green ground wire into an unused opening in the ground bar, and tighten the screw.
c. Replace the cover to the load center.
d. Fill in the chart on the transfer switch to identify your emergency circuits and corresponding circuit numbers in the load center.
e. Return the branch circuits and main breaker in the load center to the "ON" position.
f. Move all rocker switches on the transfer switch to the "L" position. Installation is now complete.

4. Connect Your Power Transfer Switch to Generator

Once the Power Transfer Switch has been successfully installed, you can now connect your Power Transfer Switch to your Generator by using the included power cord. The steps below are using Nature’s Generator Elite as an example.
a. Fit the female connector of the included power cord into the power inlet of your Power Transfer Switch.
Turn the connector clockwise to secure the connection for 6 Circuits 30A model.
b. Insert the male connector of the included power cord into the AC outlet on the generator.

5. Use the Power Transfer Switch

Once you've connected the Power Transfer Switch to the Nature's Generator, now when there is no utility power, you are still able to power your most electrical items.

5.1 When you experience power loss simply follow these steps to continue powering your items:

5.1.1 Please follow these steps.

a. Turn the Nature’s Generator Main Power Switch to ON (The LCD screen will turn on).
b. Turn the Nature’s Generator AC Switch to ON (The light above the AC outlets will turn green).
c. Select the rocker switches of the circuits that you want your Nature’s Generator to power and move their positions from L to G. Rocker switches will light up and are ready to use.
d. Make sure the breakers in Power Transfer Switch are in ON position. You are now ready to go!

5.2 When your power is restored:

5.2.1 Please follow these steps.

a. Move the position of the rocker switches from G to L.
b. Turn the Nature’s Generator AC Switch to OFF (The AC output light will turn off).
c. Turn the Nature’s Generator Main Power Switch to OFF (The LCD screen will turn off).

6. FAQ

Where shall I install the Power Transfer Switch?
The conduit is approximately 18 inch long with the clamps. It is recommended to install it in a close area to your load center.

Can I use Power Transfer Switch and Nature’s Generator to back up 240V?
Unfortunately, it only works on 120V. It is not compatible with 240V. You can purchase 240V Nature's Generator Power Transfer Switch on www.naturesgenerator.com.

What happens when the utility power is restored?
When your utility power is restored, other lights and appliances on the circuits that are not connected to Power Transfer Switch will turn on. To transfer the circuits on the generator to utility power, flip the rocker switches back to the L position and shut down your generator.

Will the surge damage my Nature’s Generator when the unity power is restored?
No. The circuits that are connected to Power Transfer Switch are isolated from the utility power. There is no danger of back feeding the utility power.

What will I be able to power?
Power load and run time depend on the generator that connects the power transfer switch. Please refer to your generator's manual to understand the output wattage and capacity.

Can I use it off the grid like in cabin or RV?
Yes. If it is always powered by your generator, keep the rocker switches on your Power Transfer Switch in G position.

Can the Power Transfer Switch recharge my Nature’s Generator?
No. The Power Transfer Switch cannot recharge your Nature’s Generator. Your Nature’s Generator must be recharged through standard AC outlet, Nature’s Generator Solar Panel or Nature’s Generator Wind Turbine.

Can the Power Transfer Switch work with other Generators?
Yes. It works with other battery powered generators. It can work with fuel powered generator, but it will require an outdoor inlet to work with this power transfer Switch.

Why is my load center triggered to shutdown when I charge my Nature’s Generator?
It is possibly because you are charging your Nature’s Generator while using the power transfer switch. Do not charge Nature’s Generator from the load center that the power transfer switch backs up.

7. Specifications

Power Capacity:
4 Circuits 15A Model: 1800 watts
6 Circuits 30A Model: 3600 watts

Number of Circuits:
4 Circuits 15A Model: 4 circuits
6 Circuits 30A Model: 6 circuits

Voltage:
4 Circuits 15A Model: 120 volts
6 Circuits 30A Model: 120 volts

Conduit Length:
4 Circuits 15A Model: 18 inches
6 Circuits 30A Model: 18 inches

Conduit Diameter:
4 Circuits 15A Model: 1 inch
6 Circuits 30A Model: 1 inch

Dimensions:
4 Circuits 15A Model: 91/4 inch x 133/8 inch x 41/8 inch (235 mm x 340 mm x 103 mm) W x D x H
6 Circuits 30A Model: 91/4 inch x 133/8 inch x 41/8 inch (235 mm x 340 mm x 103 mm) W x D x H

Weight:
4 Circuits 15A Model: 10.1 lbs (4.58 Kg)
6 Circuits 30A Model: 11.8 lbs (5.38 Kg)

8. Notice

Nature's Generator products, services, and features are sublect to the agreed-upon terms and conditions during purchase. Please note that some products, services, or features described in this manual may not be available under your purchase contract. Unless otherwise specified in the contract, Nature's Generator makes no representations or warranties of any kind, express or implied, with respect to the contents of this manual.

The contents of this manual are subject to change without notice. Please get the latest version from: https://naturesgenerator.com/pages/help-center lf you have any questions or concerns about this manual, please contact Nature's Generator support for further assistance.

9. WARRANTY & RETURNS

9.1 Limited Warranty

Natures Generator Inc. warrants to you, the original purchaser/owner of the product purchased and used in the United States, that all products shall be free of defects in the original manufacture of the materials or workmanship from the original date of delivery through the specific “Warranty Period” -- with each product’s warranty period specifics set forth herein.

Nature’s Generator warrants the product(s) purchased directly online from Nature’s Generator or from a Nature’s Generator authorized dealer/reseller (in its original packaging and with its warranty statement inside) against defects in materials and workmanship when used in accordance with the product’s Nature’s Generator User Manual, technical specifications, and other Product published guidelines during the specific product’s Warranty Period stated below starting from the date of delivery to the original purchaser/owner.

The exclusive remedies available under this Limited Warranty are product repair or replacement which can only be performed by Nature’s Generator or an approved dealer. To receive warranty service, the purchaser/owner must contact Nature’s Generator customer service for issue-determining troubleshooting and to ensure
the owner understands all of the service procedure steps.

9.2 Limited Warranty Coverage for Specified Products:

9.2.1 For Nature’s Generator Transfer Switches: Warranty Coverage for sixty (60) Months with:

Months 1-12: Shipping, Parts and Labor
Months 13–24: Parts & Labor
Months 25-36: Parts Only
Months 37-60: Major Parts Component*
(*i.e. Contactors, Controlling Modules.)

9.3 Warranty Guidelines:

9.3.1 Warranty begins upon delivery of the product to the purchaser/owner.

9.3.2 Unit must be registered and have proof of purchase available.

9.3.3 Any and all applicable warranty repairs and/or concerns must be performed and/or addressed by Nature’s Generator.

9.3.4 Nature’s Generator will, at its sole discretion, repair or replace any part(s) which, upon evaluation, inspection, and testing by Nature’s Generator is found to be defective.

9.3.5 Any equipment the purchaser/owner claims to be defective must be evaluated by Nature’s Generator.

9.3.6 Damage to any covered components caused by use of an after-manufacture incompatible part or parts will not be covered by this warranty.

9.3.7 Any damage caused by the owner after receipt of the product is the responsibility of the owner and is not covered by this warranty.

9.3.8 Proof of performance of all required maintenance must be available.

9.3.9 Shipping to and from Nature’s Generator for service will only be covered for 12 months and for a product with a manufacturer’s defect requiring repair or replacement.

If, upon inspection, it is found there is not a manufacturer’s defect -- but instead an issue was caused by owner error or maintenance negligence or misuse -- the shipping, parts, and repair labor will be paid by the owner.

9.4 What does this Warranty Cover?

This Limited Warranty is conditioned on proper use of the product.
During the Warranty Period, if the original manufacture of the materials or workmanship of the product is determined to be defective by an authorized dealer or Natures Generator, then Natures Generator will at its sole discretion: (1) repair the product with new or rebuilt parts; or (2) replace the product at no charge with new or rebuilt comparable products or parts. Products and parts replaced under this warranty become the property of Natures Generator Inc. and are not returned. If service of products or parts are required after the Warranty Period expires, the product owner must pay all shipping, parts and labor charges. This warranty lasts as long as the original purchaser owns the product during the Warranty Period. Warranty coverage terminates if the original owner sells or otherwise transfers the product. As far as applicable law allows, the Warranty Period will not be extended or renewed or otherwise affected due to subsequent exchange, repair, or replacement of the Product. Product or part(s) repaired or replaced during the Warranty Period will be warranted for the remainder of the original Warranty Period from the date of repair or replacement.

9.5 The following will NOT be covered by this warranty:

9.5.1 Costs of normal maintenance.

9.5.2 Normal wear and tear including, without limitations, wear and tear of batteries which are consumables.

9.5.3 Damage to product caused by accidents, handling, or incorrect storage.

9.5.4 Damage/failures caused by operation with loads or installations other than what is recommended or specified by Nature’s Generator.

9.5.5 Unauthorized modification/misapplication will not be warranted unless authorized by Nature’s Generator in writing.

9.5.6 Damage to any covered components or consequential damages caused by the use of a non-compatible part(s) or noncompliance with Product instructions.

9.5.7 Failures due to normal wear and tear, rough handling, accident, misuse, abuse, negligence, improper installation, incorrect sizing, as well as fire, water, lightning or other acts of nature.

9.5.8 Damage related to rodent, reptile, and/or insect infestation.

9.5.9 Diagnostics or repairs performed by individuals other than Nature’s Generator or not authorized in writing by Nature’s Generator.

9.5.10 Damage that occurs because the product was not properly installed and/or was installed in a location that is not protected from weather if the product’s user manual so directs.

9.5.11 Failures caused by any force majeure (act of God) or external cause including, and without limitation, fire, theft, freezing, war, lightning, earthquake, windstorm, hail, water, tornado, hurricane, or any other matters which are reasonably beyond the manufacturer’s control.

9.5.12 Shipping costs associated with expedited shipping.

9.5.13 Any incidental, consequential, or indirect damages caused by defects in materials or workmanship, or any delay in repair or replacement of the defective part(s).

9.5.14 Failure to adequately package the product for transportation.

9.5.15 Extreme or external causes beyond the manufacturer’s reasonable control including but not limited to failures or surge fluctuations in electrical power or failures to wireless networks or environmental electromagnetic interference or damaging solar flares.

9.5.16 Connection to improper power supply or faulty home wiring.

9.5.17 Any product with a warranty period that has expired.

9.6 Please note that the Limited Warranty does not cover the following:

• Cosmetic damage
• Damage due to force majeure, such as lightning strikes, fire, flood, etc..
• Accident
• Misuse
• Abuse
• Negligence
• Modification of any part of the product
• Damage due to incorrect operation or maintenance
• Connection to an incorrect voltage supply or faulty house wiring
• Refurbished products
• Consumables, such as batteries
• Products where the factory applied serial number has been altered or removed.
For these cases, repair labor fee, plus the cost of the part(s) to be replaced, and shipping will be charged to the
customer.

REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE PURCHASER/OWNER’S EXCLUSIVE REMEDY. NATURES GENERATOR INC SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR THE BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT, INCLUDING, BUT NOT LIMITED TO: LOSS OR CORRUPTION OF DATA, LOSS OF USE OF PRODUCTS OR FUNCTIONALITY, LOSS OF BUSINESS, LOSS OF CONTRACTS, LOSS OF PROFITS, LOSS OF REVENUES, LOSS OF ANTICIPATED SAVINGS, INCREASED COSTS OR EXPENSES FOR ANY INDIRECT LOSS OR DAMAGE OR ANY CONSEQUENTIAL LOSS OR DAMAGE OR ANY SPECIAL LOSS OR DAMAGE WITH RESPECT TO THE PRODUCT.  ALL EXPRESS AND IMPLIED WARRANTIES FOR THE PRODUCT INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTIES ARE LIMITED IN DURATION TO THE SPECIFIC PRODUCT WARRANTY PERIODS AND TERMS SET FORTH HEREIN. NO WARRANTIES, WHETHER EXPRESS OR IMPLIED, WILL APPLY AFTER THE WARRANTY PERIOD ENDS. THIS WARRANTY SUPERSEDES ALL OTHER WARRANTIES EXPRESS OR IMPLIED. SPECIFICALLY, NATURE’S GENERATOR MAKES NO OTHER WARRANTIES AS TO THE MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. PURCHASER’S SOLE AND EXCLUSIVE REMEDY AND NATURES GENERATOR’S ONLY LIABILITY SHALL BE THE REPAIR OR REPLACEMENT OF PART(S) AS SET FORTH HEREIN. IN NO EVENT SHALL NATURE’S GENERATOR BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES, EVEN IF SUCH DAMAGES ARE A DIRECT RESULT OF NATURE’S GENERATOR NEGLIGENCE. SOME JURISDICTIONS DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU ALSO MAY HAVE OTHER RIGHTS UNDER APPLICABLE LAW.
EXCEPT AS PROVIDED IN THIS WARRANTY, NATURE’S GENERATOR FURTHER DISCLAIMS ANY RESPONSIBILITIES FOR LOSSES, EXPENSES, INCONVENIENCES, OR SPECIAL, INDIRECT, SECONDARY, OR CONSEQUENTIAL DAMAGES ARISING FROM OWNERSHIP AND USE OF THE PRODUCTS. IF ANY WARRANTY TERM IS HELD TO BE ILLEGAL OR UNENFORCEABLE BY LAW, IT WILL BE EXCLUDED FROM THE WARRANTY WITH THE LEGALITY OF THE REMAINING TERMS NOT AFFECTED.
PLEASE NOTE: ALL CLAIMS MADE UNDER THIS LIMITED WARRANTY WILL BE GOVERNED BY THE TERMS SET FORTH IN THIS WARRANTY DOCUMENT AND THIS LIMITED WARRANTY SUPERCEDES ALL PREVIOUS NATURE’S GENERATOR WARRANTY STATEMENTS OR OTHER MARKETING MATERIALS.

9.7 How to Obtain Warranty Service?

Please call: 1-800-975-7909 Monday through Friday, 9:00AM to 5:00PM PST. You will be provided with a Return Merchandise Authorization (RMA) number and return instructions. Please include the RMA number prominently displayed on the shipping box and include your name, phone number and address with the product inside the box. Send product to:
NATURES GENERATOR INC
3233 Mission Oaks Blvd
Suite N
Camarillo, CA 93012
Contact Natures Generator Inc:
For customer service please call 1-800-975-7909
