Regular price $339.99

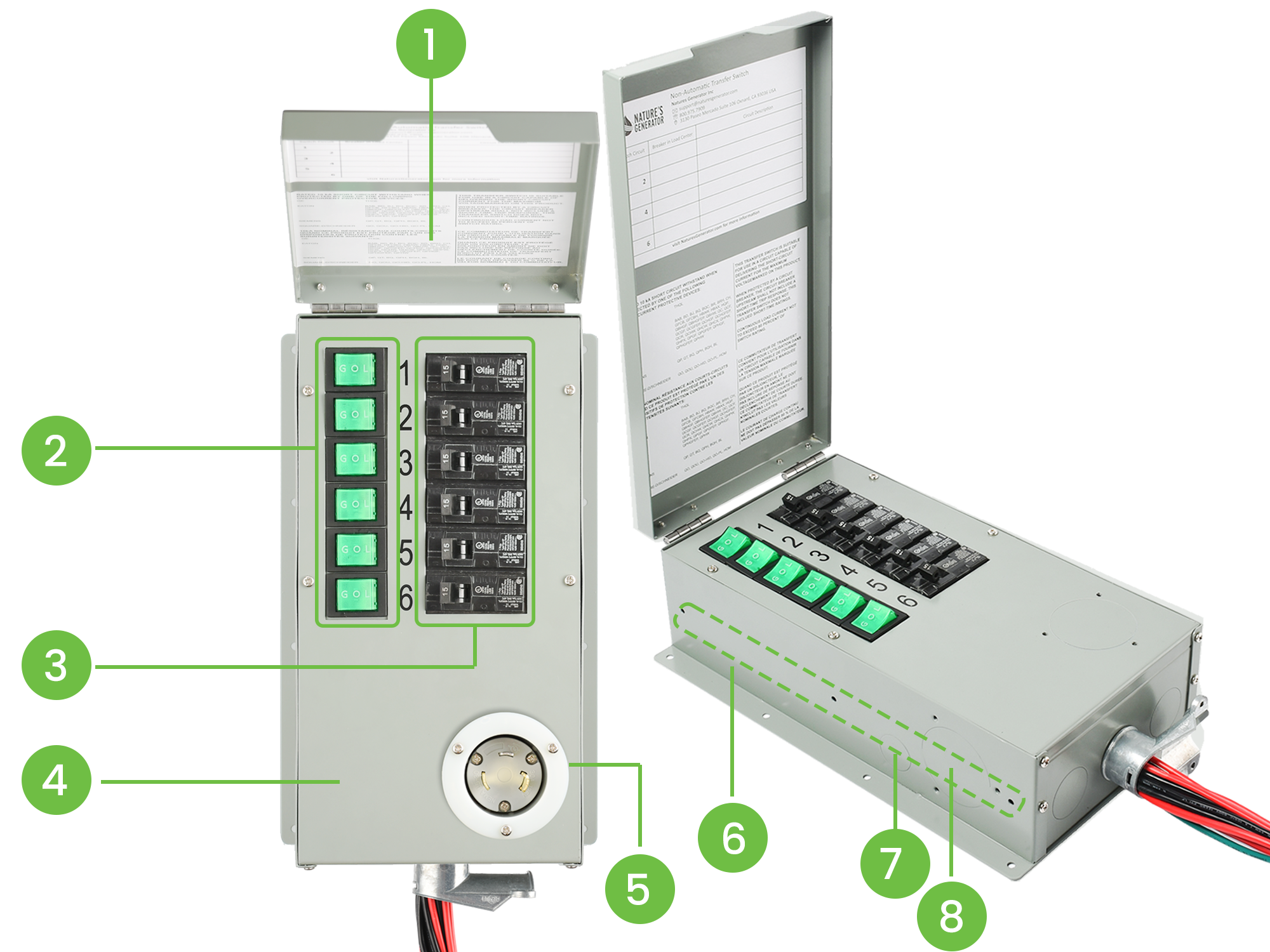

This 6-circuit, 30 Amp manual transfer switch is designed for fast installation (indoors) in a home, office or small business. It is completely pre-wired and enables the electrical system of the building to accept the power of a portable generator to run up to six single-pole circuits and any pair of single-pole circuits can be used as a double-pole circuit. It allows you to power electrical appliances, devices and lighting during a power outage. This transfer switch is completely code compliant and keeps the generator power isolated from the utility power at all times. Circuit breakers are 1 in. interchangeable and can be changed to different sizes and brands that are compatible and within the maximum circuit size ratings.

Nature's Generator Power Transfer Kit Elite Highlights


  • The Nature's Generator Power Transfer Kit Elite can be installed next to almost any indoor breaker panel. By connecting your Nature's Generator Elite to the Power Transfer Kit Elite you'll more easily be able to continue providing power to your most needed items in case of power loss.
  • Maximum circuit size: 30 Amp on positions A and B, 20 Amp on all other positions (C-F)
  • Dual color-coded wattage meters to help balance the generator load and estimate overall power usage
  • For use with portable generators or inverters with a maximum output of 30 Amp at 120 VAC
  • Removable cover with circuit label adds protection and convenience and finishes off the overall look of the transfer switch
  • Listed by Underwriters Laboratories Inc.

How to use your Nature's Generator Power Transfer Kit Elite


  • Fit the female connector of the included power cord into the power inlet of your Power Transfer Switch Elite.
  • Insert the male plug into any of the AC outlets on the Nature's Generator Elite.

Nature's Generator Power Transfer Kit Elite


Features & Battery Data
  • Connects to indoor breaker panel
  • Use during power loss or as main source of power transfer Elite
General
  • Product dimensions - Power Transfer Switch Elite: 8 x 4.75 x 13.25 in.
  • Weight out of box: Power Transfer Switch Elite - 14 lbs
  • Operating temperature: 32-104 °F (0-40 °C)
  • Storage temperature: 23–111 °F (-5–45 °C)
  • Warranty: 12 Months



What's Inside

  • Power Transfer Kit Elite
  • Conduit for Power Trasnfer Kit Elite
  • Cable Clamps for Power Transfer Kit Elite
  • 10 Foot 10AWG Power cord for Power Transfer Kit Elite
  • Owner's Manuals

Manual & Quick Start Guide

  • Power Transfer Kit Elite Installation Manual     → View
  • Power Transfer Kit Elite Supplemental Manual → View

QUESTIONS & ANSWERS

Ask a Question
  • Does this transfer kit come with a power cord? And if so what length? Thank you.

    Hello-

    Thanks for reaching out to us!

    Yes, the Transfer Kit does come with the power cord and the lenght is 10ft.


    Thanks,
    Nature's Generator Support Team

  • What brand are the breakers compatible with, square D maybe?

    Hello-

    We think it would work with the Swuare D, but to get a positive answer, we would recommend reaching out to Reliance Controls.  They are the manufacturer of the transfer kit that we resell on our webiste and would be able to answer your question in regards to the transfer kit better.

    http://www.reliancecontrols.com/


    Thanks,
    Nature's Generator Support Team

  • I have a Tektrum generator and solar panel 1500/300 watts.Can I buy this transfer kit and adapt it to my equipment.?? I asked the Tektrum co. and they do not manufacture transfer kit and recommended to ask this to others company.. Thanks

    Hello-

    We are not familiar with Tektrum or how their system works, but i would recommend reaching out to Reliance Controls.  They are the manufacturer of the transfer kit that we resell on our webiste and would be able to answer your question in regards to the transfer kit better.

    http://www.reliancecontrols.com/


    Thanks,
    Nature's Generator Support Team

  • Hi! I’m planning a part time off grid system for my detached garage. Will this kit include the transfer cable? If so, will it be a 4 prong 30 amp generator to transfer switch, or a three prong regular outlet plug from generator to 4 prong 30 amp plug to the transfer switch?

    Hello-

    Thank you for reaching out to us.

    The Power Transfer Kit Elite has a 3 prong 30amp connection and not a 4 prong, we need to update the image on our website.

    Please let us know if there is anything else we can assist with.


    Thank you,
    Nature's Generator Support Team

  • My house is living space at 1700 sqf. What system use matching with my house? Thanks

    Hello-

    Thanks for reaching out to us.

    To better assist you, we would need to know how much wattage you are looking to use / or your monthly average.  Please reach out to us at support@naturesgenerator.com with the information and we will be more than happy to help you out.


    Thanks,
    Nature's Generator Support Team

  • Do you have a transfer switch that will come on automatically when the power goes out, and will shut off when the power comes back on?

    Hello-

    Thanks for reaching out to us!

    Unfortunately we do not carry an automatic transfer switch, the ones we have are all manual.


    Thanks,
    Nature's Generator Support Team
