Electrical systems are essential to modern living, ensuring the safe and efficient distribution of electricity in our homes. It’s beneficial for homeowners like yourself to learn a thing or two about these systems, whether you’re planning to integrate a solar home power system for your home or are simply curious about how electrical circuits work.
In this article, we will look at a critical aspect of an electrical system, which involves the bonding neutral and ground at main panel. We will delve into the components of this process, the importance and benefits of this practice, as well as the consequences if they are not bonded. Finally, we will discuss whether all circuits should have a bonded neutral ground.
How does a home's electrical circuit work?
For individuals who are not well-versed in anything electrical, understanding how the circuit in your home works can seem complicated. However, we’re going to break it down into basic elements to make it much clearer.
For homes connected to the local grid, electricity is generated at a power plant, where the energy is sent to homes through high-voltage transmission lines. The electricity first passes through a meter outside your home, which measures how much energy you consume. It then enters your main panel, divided into multiple circuits, where each is protected by a breaker or a fuse. Electricity travels throughout the house through hot wires, which are usually color black or red, from the main panel to outlets, switches, and appliances around the home.
When you plug in a device or turn on a switch, electricity will flow through the device, powering it. The neutral wire carries the used electricity back to the main panel. Any stray electricity, also called faults, is carried safely into the ground by the ground wire. Bonding electrical systems to neutral and ground is another way to clear a fault, which we will discuss further in this article.
Main Panel, Neutral Wire, and Ground Wire
Main Panel
The main panel is the control center or heart of your home’s electrical system. This gray metal box, usually located in your garage, basement, or utility area, contains circuit breakers or fuses for older systems. Circuit breakers are switches that automatically turn off (while fuses blow) when there’s an electrical fault, such as if there is an electric surge, protecting your home from electrical faults or damage. This is also where bonding neutral and ground at the main panel takes place to ensure safety and prevent electrical hazards.
Neutral Wire
Electricity needs a complete loop or circuit to flow. As mentioned earlier, this loop starts from the power source through wires to electric devices and then returns to the power source. The neutral wire, which is often color white or gray, is the return path of the electricity completing the circuit. This wire helps balance the electrical load and ensures that the devices receive the right amount of power.
Ground Wire
The ground wire (colored green or bare copper), on the other hand, acts as a safety net that protects your household. If something goes wrong and a live wire touches a metal part, the ground wire safely directs the electricity into the earth, preventing electric shocks and reducing the risk of fire.
Understanding Bonding Neutral and Ground at Main Panel
In this article, we’re discussing bonding neutral and grounding the main panel, but it’s also good to define what bonding is and how it differs from grounding.
Grounding and bonding are safety practices in electrical systems; however, they serve different purposes. Grounding involves connecting electrical systems or equipment to the earth through a ground wire. This ensures that any stray electrical current safely flows to the ground to protect the property and those living in it from electric shocks and fires. Bonding, on the other hand, refers to the process of electrically connecting metal components of the electrical system, which includes the neutral wires, ground wire, and metal enclosures. This practice ensures that the entire electrical system is at a uniform potential, which enhances safety and stability. Bonding neutral and ground at the main panel (NEC) is a critical step in ensuring proper electrical safety and system reliability.
Related article: Difference Between Grounding and Bonding
Should neutral and ground be bonded in the main panel?
In the majority of residential electrical systems, the neutral and ground should be bonded at the main panel. In fact, this practice is mandated by the National Electrical Code (NEC) here in the United States.
Bonding the neutral and ground at the main panel creates a safe path for electrical currents, ensuring the system remains stable and secure. This connection allows fault currents to flow directly back to the source, activating protective devices like circuit breakers. By bonding neutral and ground at the main panel, you help maintain a consistent reference point for the entire electrical system, ensuring safety and minimizing the risk of electrical hazards. This practice is essential for proper functioning and is a key requirement in the National Electrical Code (NEC).
How are neutral and ground tied together at the main panel?

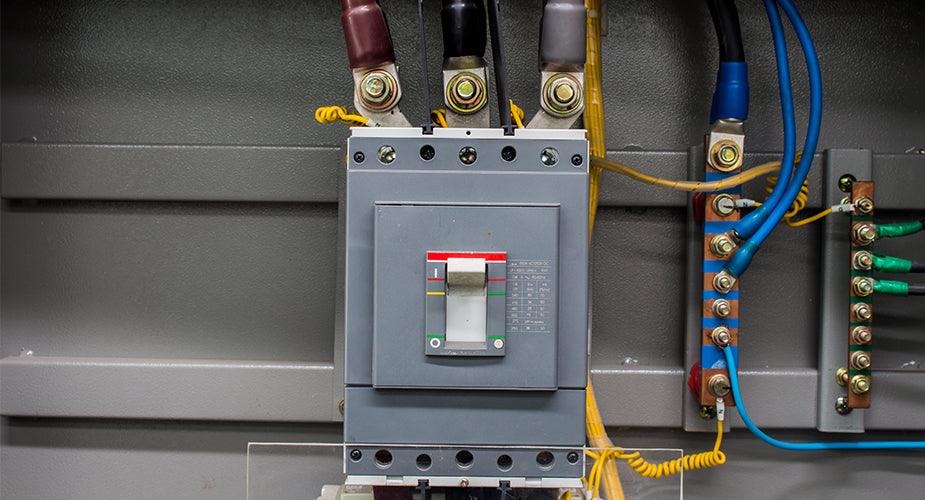

Inside the circuit box is the neutral bus bar (this is where all neutral wires are connected) that is connected to the ground bus bar (where all ground wires are connected). This connection is usually made through a bonding jumper or screw. It is important to remember that this bond must only occur at the main panel and not at other locations such as subpanels. This is because multiple bonding points can create dangerous parallel paths for the electrical current.
What happens if the neutral and ground are not bonded?
There could be several risks if the neutral and ground are not bonded at the main panel. Without a proper bond, a home’s electrical system can be compromised. Fault currents may not have a low-resistance path to the ground, which can prevent circuit breakers and other protective components from operating correctly. This could then lead to an increased risk of electric shocks and fires.
In addition, the absence of a neutral-to-ground bound can cause voltage fluctuations. These unstable electrical conditions can damage sensitive electronic equipment and appliances.
What are the benefits of bonding neutral and ground at the main panel?
There are several benefits of bonding neutral and ground at the main panel. Firstly, your home is more secure from electric shocks and fires as bonding ensures fault currents have a direct path to the ground. It also ensures that circuit breakers and other protective devices operate correctly in the event of a fault. A proper bond also maintains stable voltage levels throughout the system, reducing the risk of damaging sensitive electronics. It also helps maintain the integrity of the electrical system by providing a single point of reference for the entire system. More importantly, bonding at the main panel makes your property compliant with the NEC.
Should all circuits have bonded neutral and ground?
While bonding neutral and ground at the main panel is essential, it is not necessary for all circuits to have bonded neutral and ground. In fact, bonding neutral and ground at multiple points in the system can create dangerous parallel paths for electrical current, which can cause safety hazards. Again, it is important to remember that neutral-to-ground bonds should only occur at the main panel.
Important Reminder
Bonding neutral and ground at main panel nec is a critical task that ensures the safety and compliance of the electrical system. While it might seem like a straightforward process, it should not be performed by just anyone due to the risks involved,
Improper bonding can lead to serious hazards, including electric shocks, fires, and equipment damage. Handling electrical components requires specialized knowledge and experience to ensure safety. Additionally, electrical systems must adhere to strict regulations, such as the NEC.
Licensed electricians are familiar with these standards and can ensure that the work meets all necessary requirements. They have the training and expertise to perform the task correctly, understanding the design and function of the electrical system. Furthermore, electrical work done by an unqualified person can void insurance policies and lead to liability issues in case of accidents. Therefore, for safety and compliance and to avoid potential liability, it is essential that a licensed electrician handle bonding neutral and ground at the main panel.
We want to give credit where credit is due. Professional writer, Ishna Sablaya, contributed research and content to this blog titled: Bonding Neutral and Ground at Main Panel. Thank you, Ishna, for your contributions!
