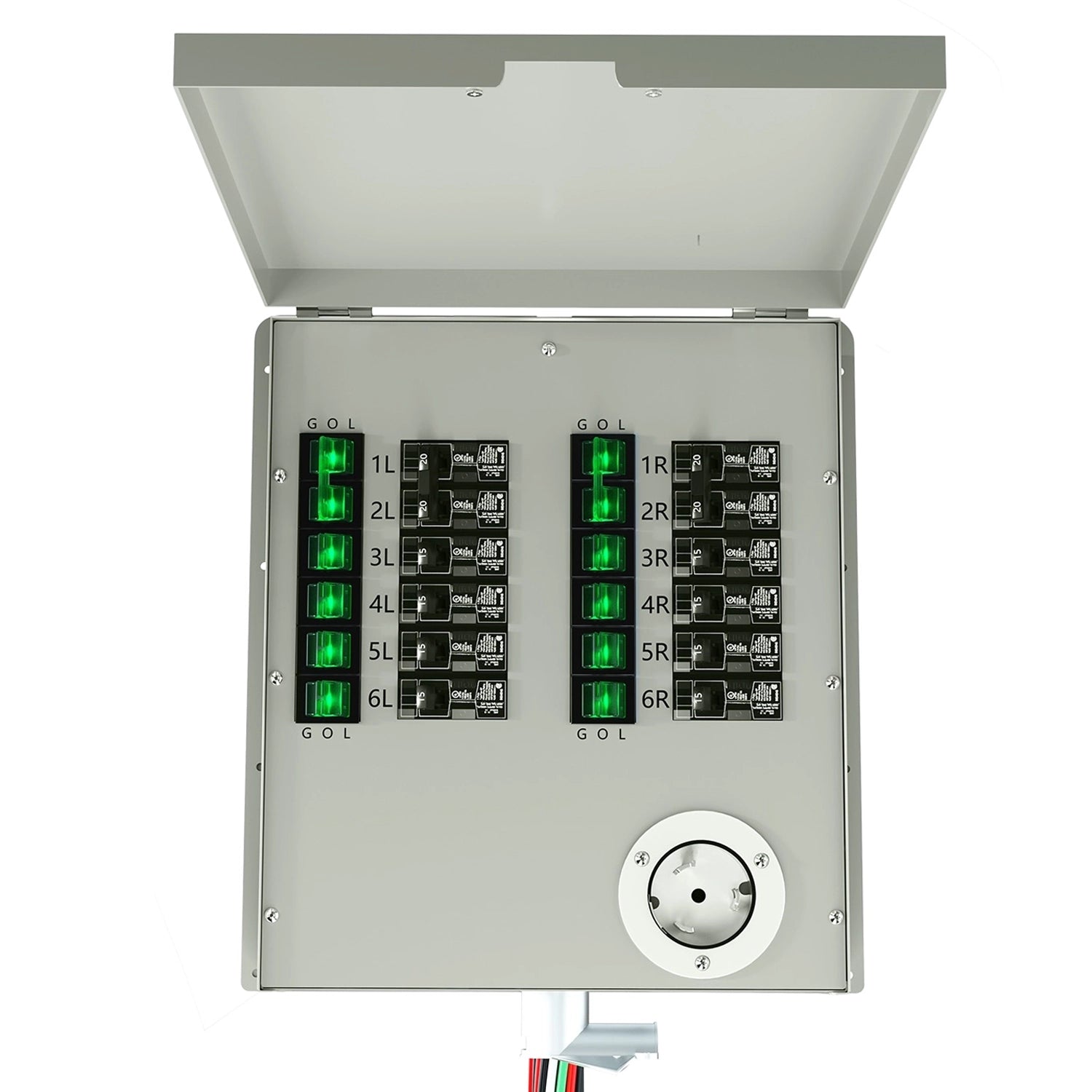

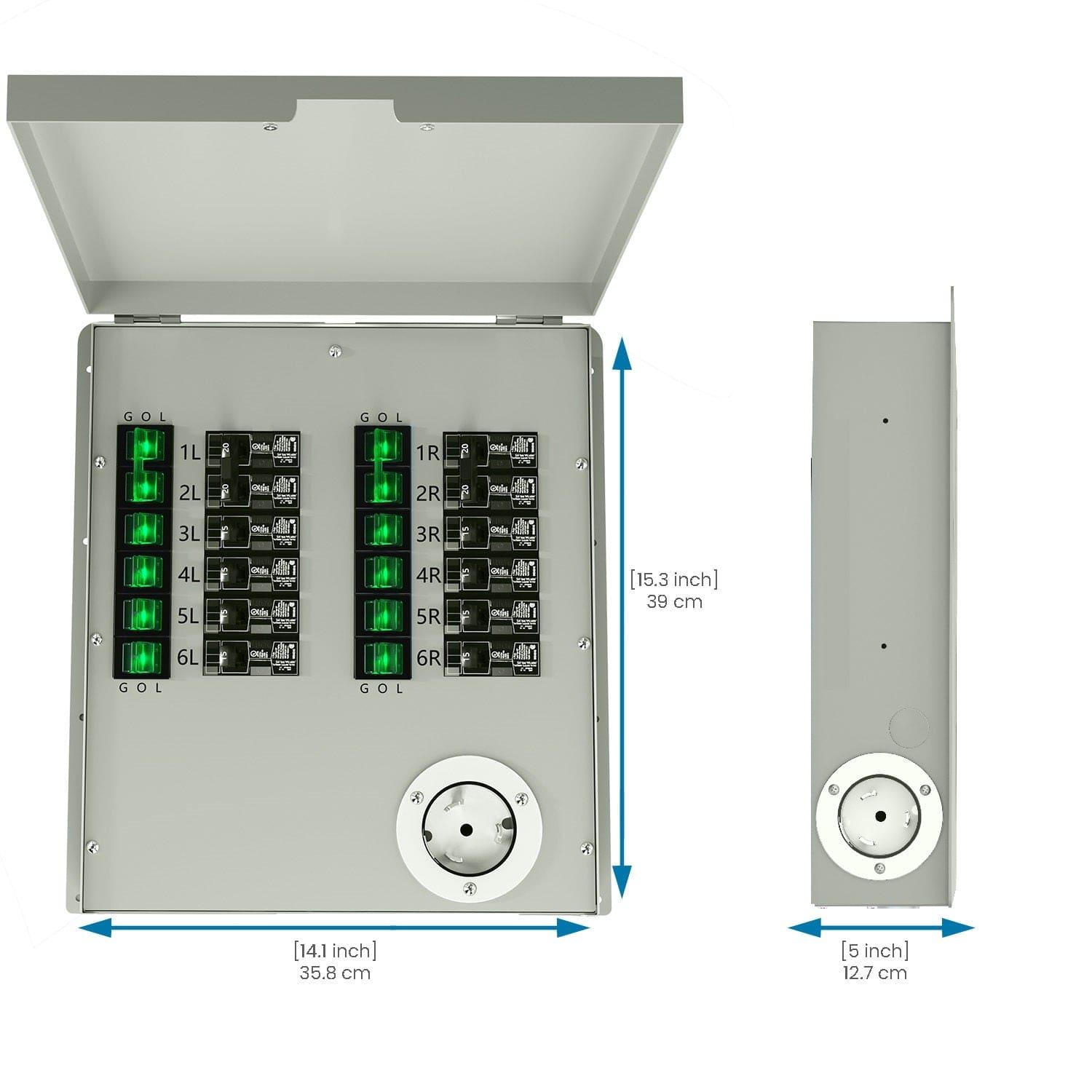

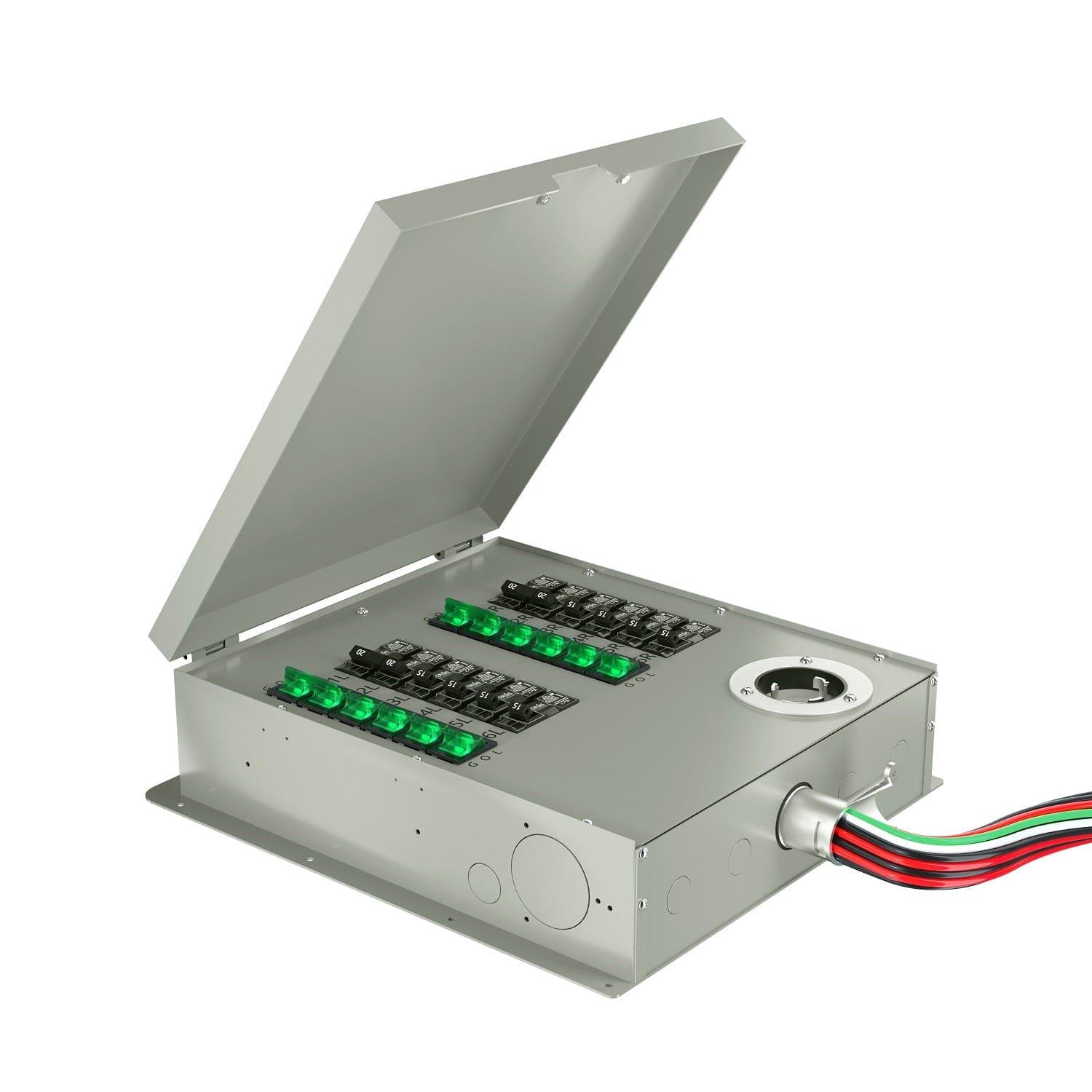

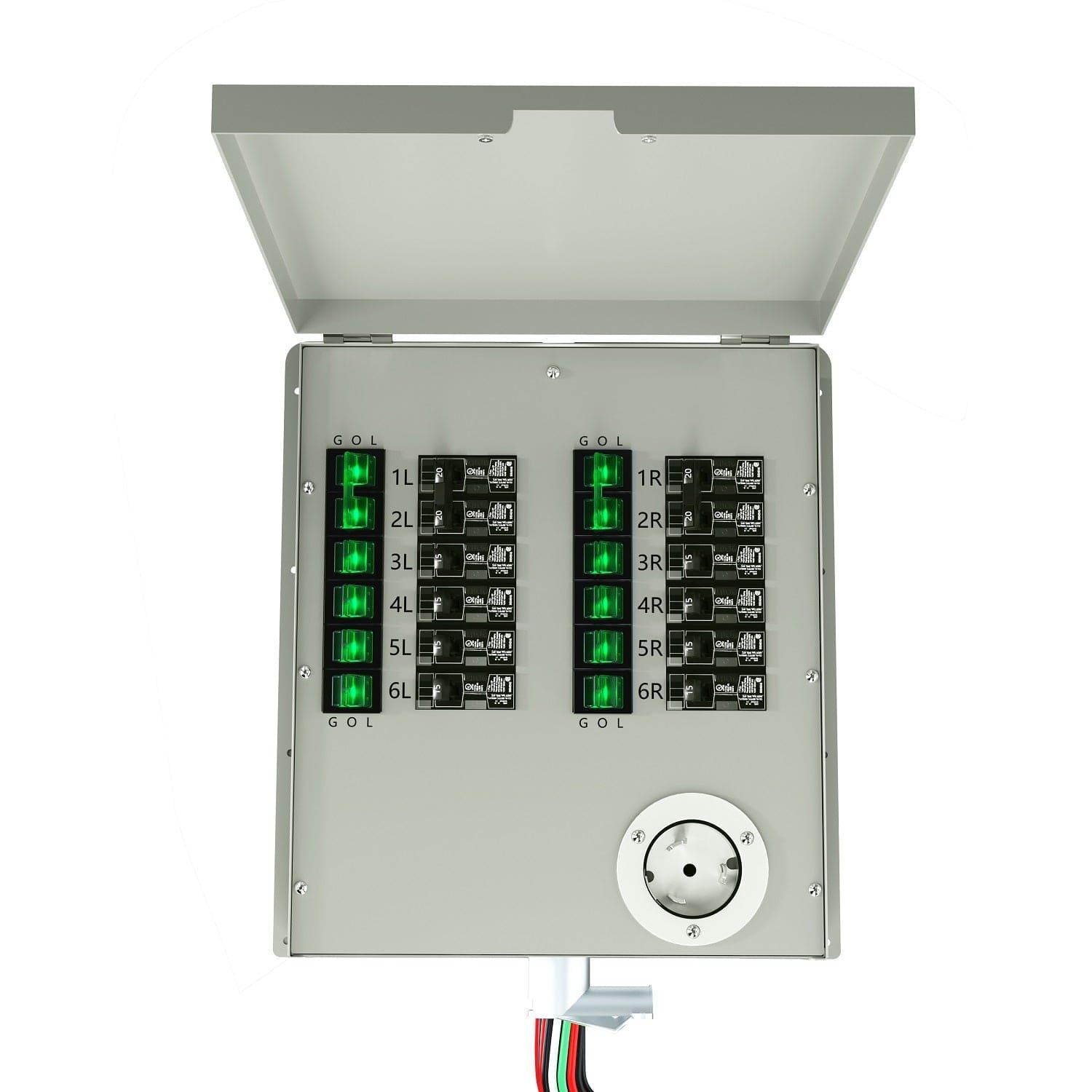

Nature's Generator 12-Circuit 120/240V 50A Non-Automatic Power Transfer Switch
Makes powering your home much safer and easier with Nature's Generator 12-Circuit 120V/240V 50 Amp Non-Automatic Transfer Switch. Constructed with robust steel material and can handle up to 12,000 Watts of power for 12 circuits.
Specification:

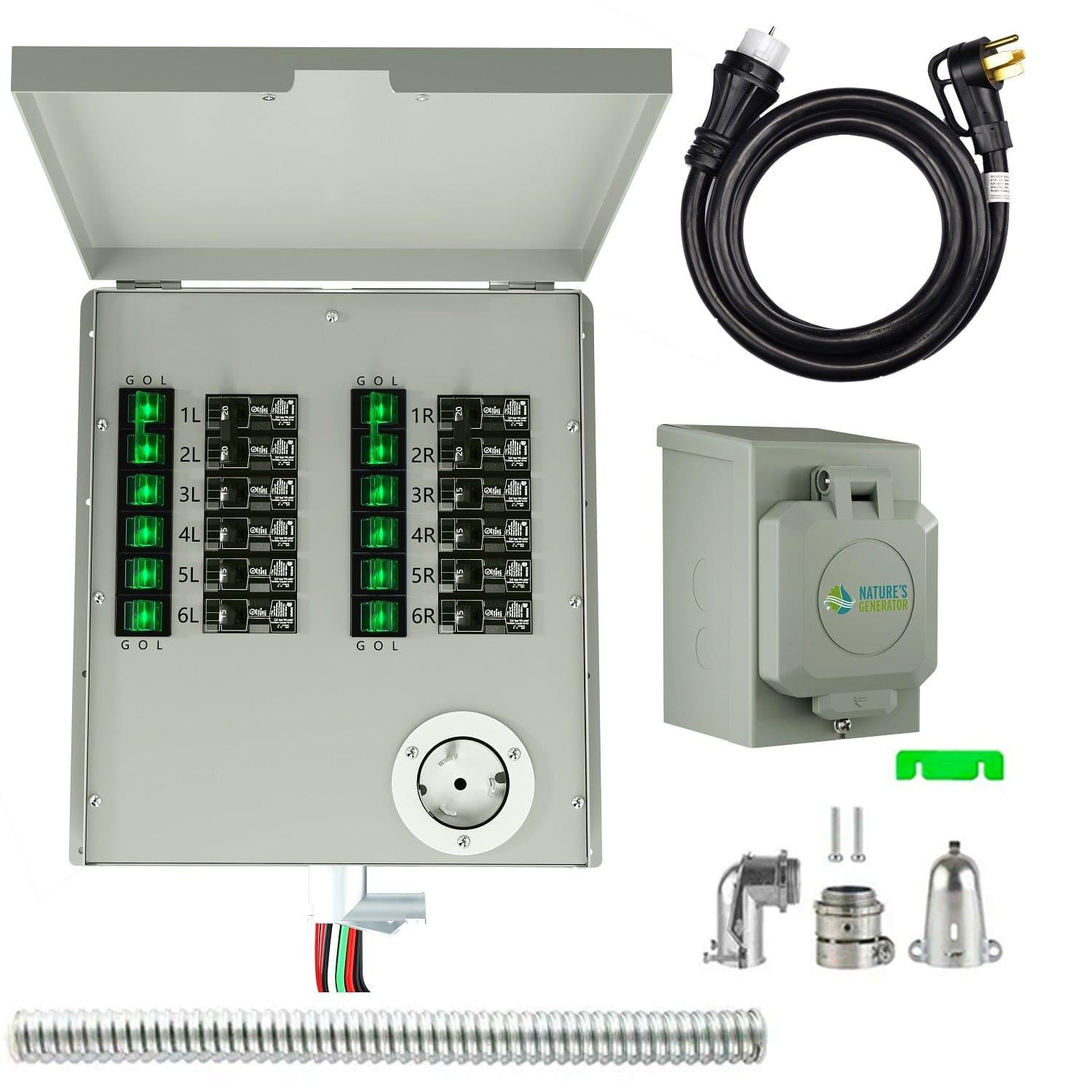

- Complete Transfer Switch Kit
- 12 Circuit (6 of 240V circuits or 12 of 120V circuits)
- 120Vac or 240Vac
- Illuminated Rocker Switch when in G position
- CS6375 Inlet (50A)
- Multiple Inlet Position
- Included power inlet box for other type of generators
This 12-Circuit Transfer Switch Kit has everything you need to easily power your home or office during power outages. It is completely pre-wired and enables the electrical system of the building to accept the power of a portable generator to run up to twelve single-pole circuits.
What's even better is that this 12-circuit transfer switch kit is completely customizable! You can choose from three different inlet position. The illuminating Rocker Switch can be bridge to pair 2 circuit and be used as a double-pole circuit for 240Vac.
By incorporating ththis 12-circuit transfer switch kit in your home or office, you can continually power your most needed devices and go off-grid.
The included inlet box allows you to work all different types of generators, either indoor or outdoor.
Common circuits to keep backed up:
- Electrical vehicle charger
- Dryer
- Air Conditioner
- Lights
- Garage Doors
- Refrigerators/Freezers
- Common areas
IMPORTANT: Installation of the 12-Circuit Transfer Switch Kit must be performed by a qualified electrician in compliance with all applicable electrical codes. Do not charge Nature's Generator by wall through AC input port when using Power Transfer Kit.
12- Circuit Customizable Transfer Switch
Power your essential appliances whether it's a 12-circuit 120VAC or 6-circuit 240VAC or the mix of both! Customize your transfer switch depending on WHAT YOU NEED!
Home Integration
Nature's Generator
12- Circuit Powerhouse
Transfer Switch
As the Power Transfer Kit links Nature's Generator Powerhouse to your homes critical loads, you can continue powering hardwired items like your water pump, air conditioner, lights or bulky item like your refrigerator without moving them around or item in the tight corner that are difficult to be unplugged.

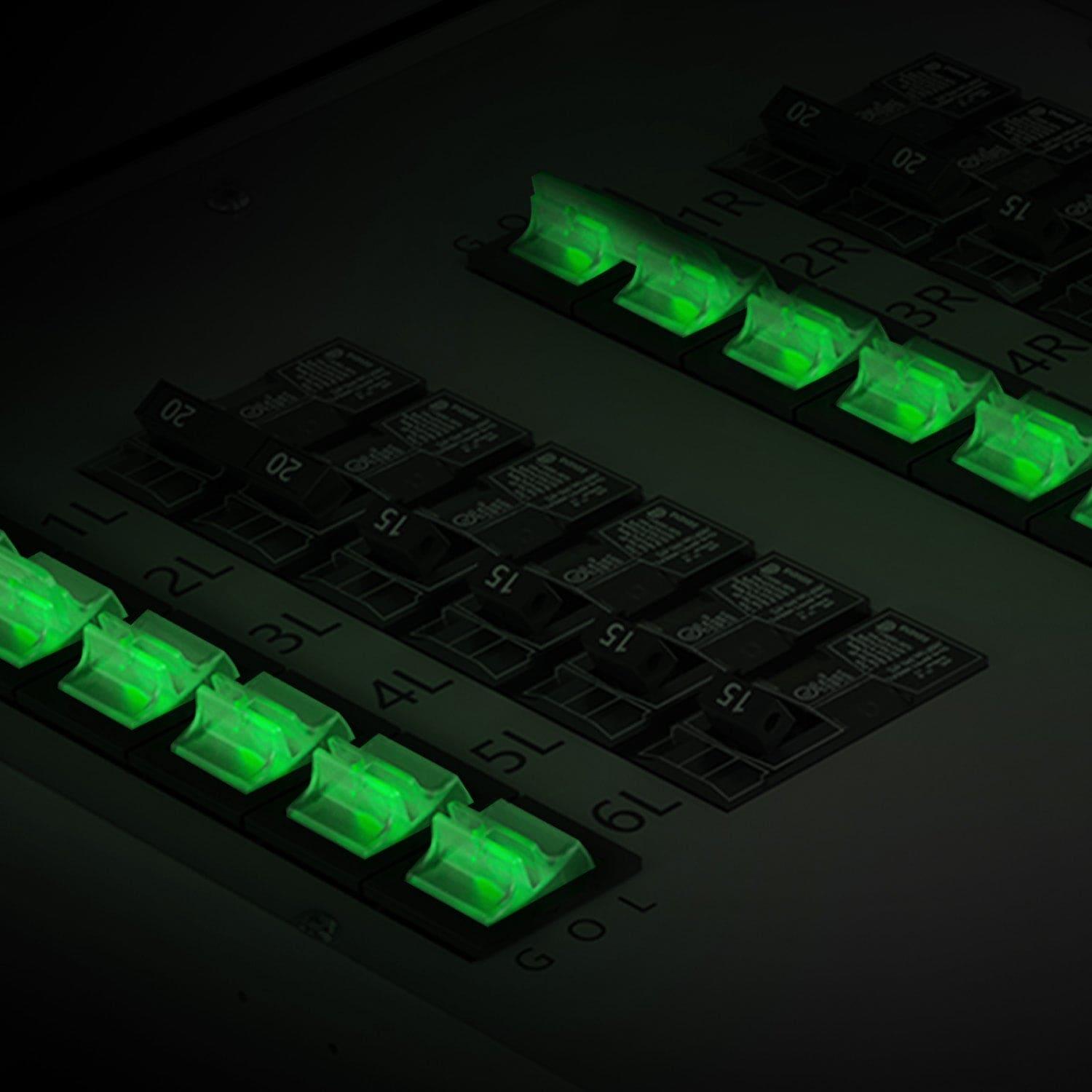

Green Means Go
The rocker switch of the Nature's Generator Transfer Kit illuminates when switched to the G position. This helps you identify which power source you are using. This kit also have its own circuit breaker for additional protection for your home circuit line and your generator.

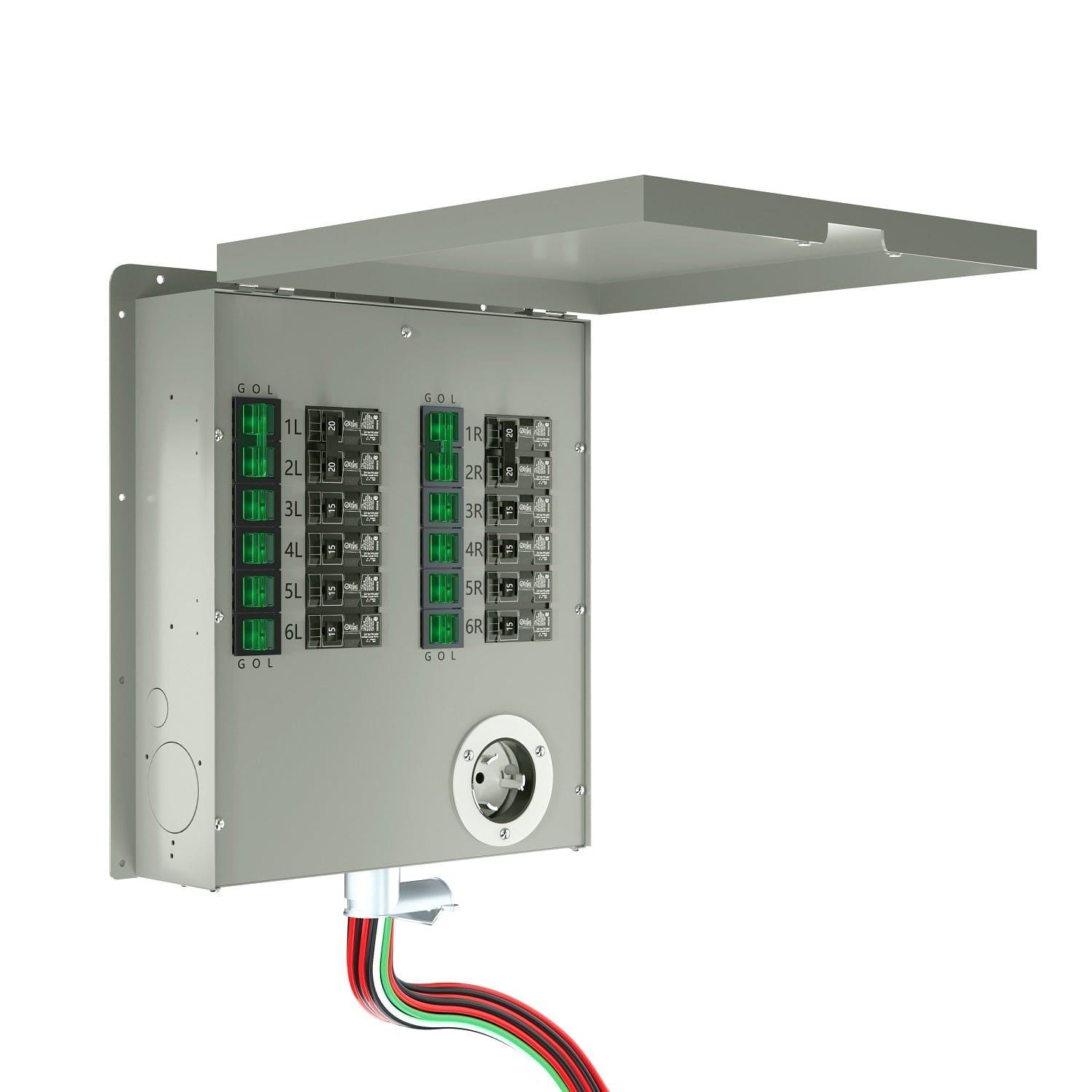

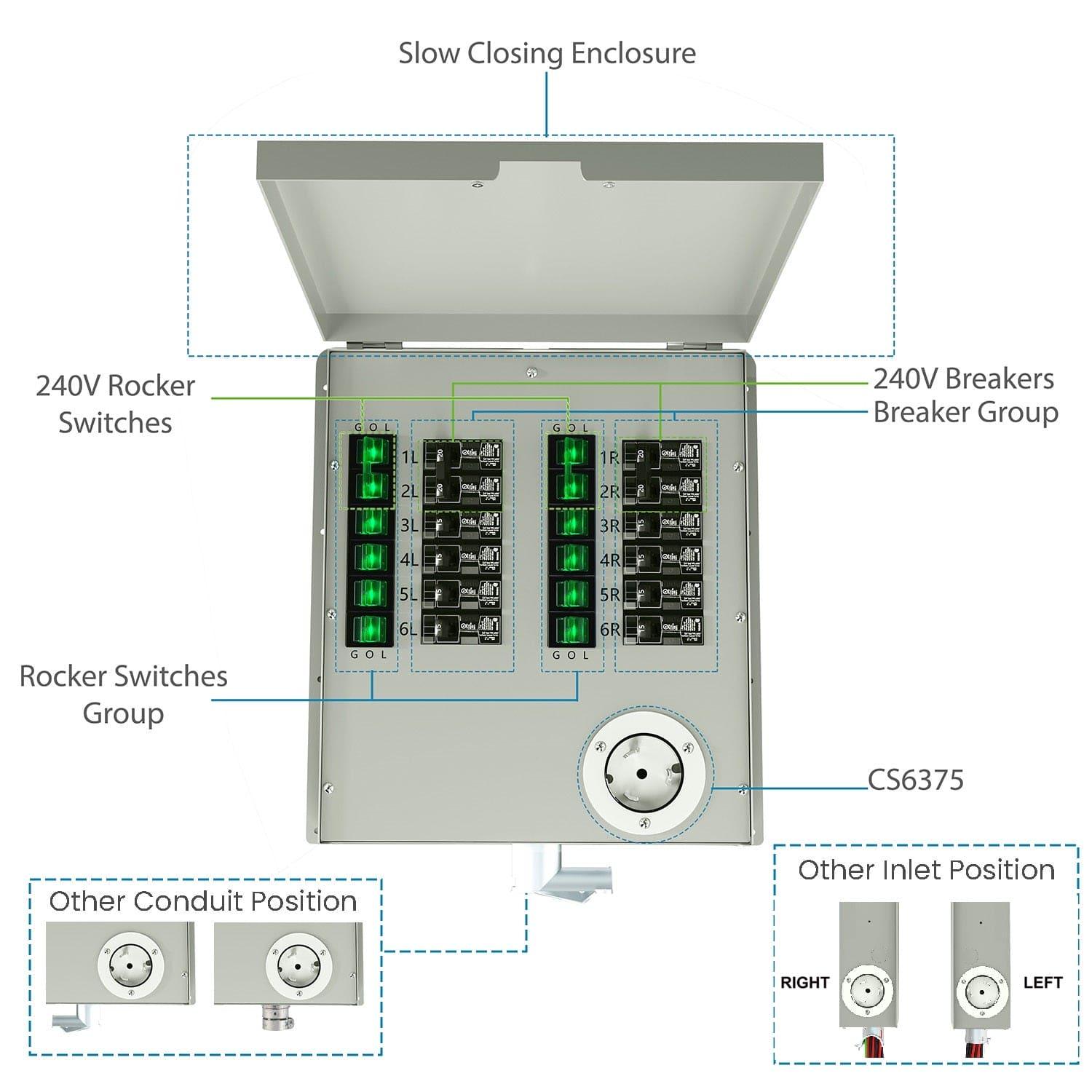

Multiple Power Inlet Position

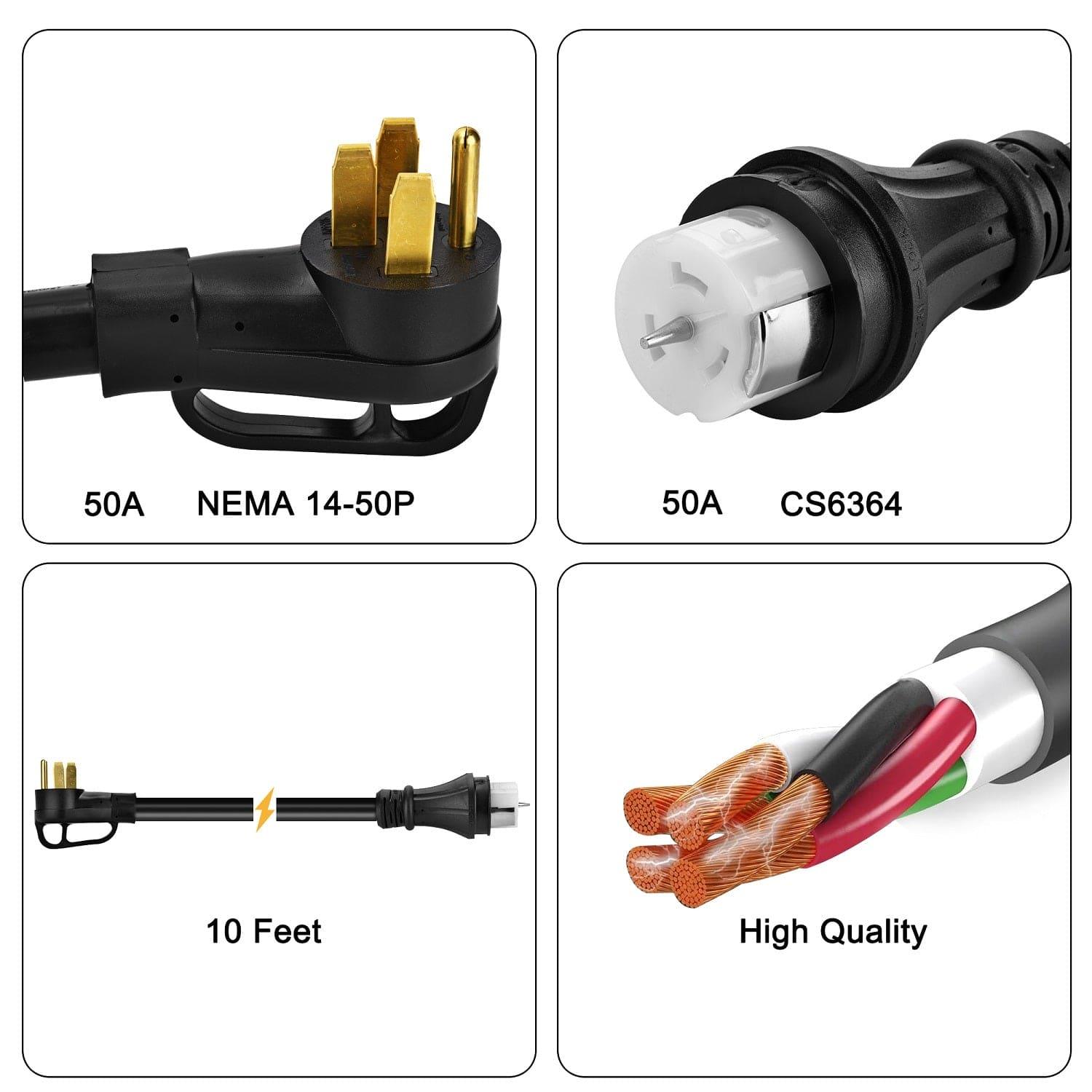

The Nature's Generator Power Transfer Kit came with complete set along with a 10 Foot 12AWG Power cord. This transfer switch can work with 240V AC and you can place the power inlet its either on the front, left or right.

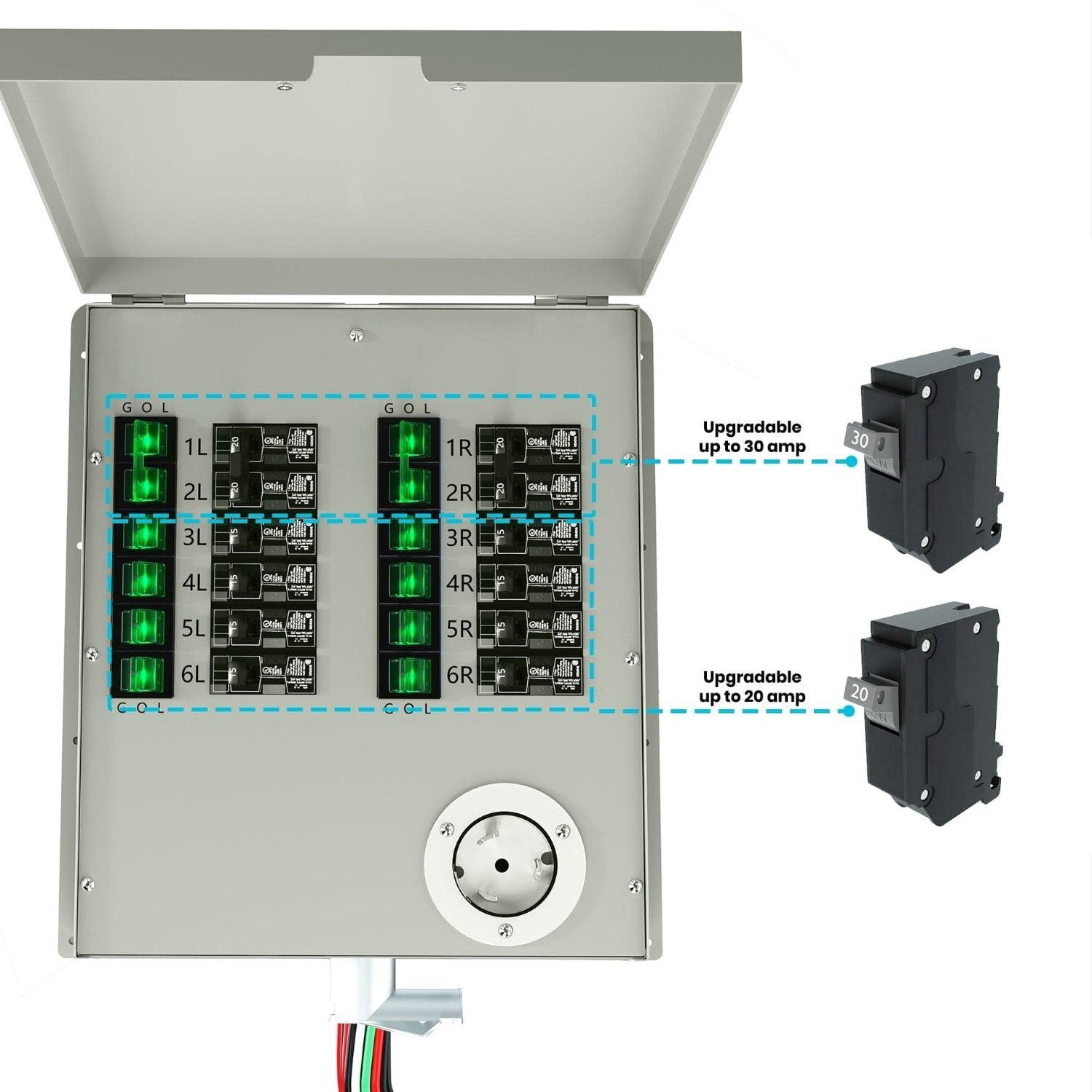

Upgradable Circuit Breakers
Nature's Generator 50A Transfer Kit is supplied with 120V/15-amp and 240V/20-amp circuit breakers as default. You can upgrade to 30-amp circuit breakers in positions 1L, 2L, 1R and 2R and upgrade to 20-amp circuit breakers in all other positions.
Green Means Go
The rocker switch of the Nature's Generator Transfer Kit illuminates when switched to the G position. This helps you identify which power source you are using. This kit also has its own circuit breaker for added protection for your home’s circuit line and your generator.

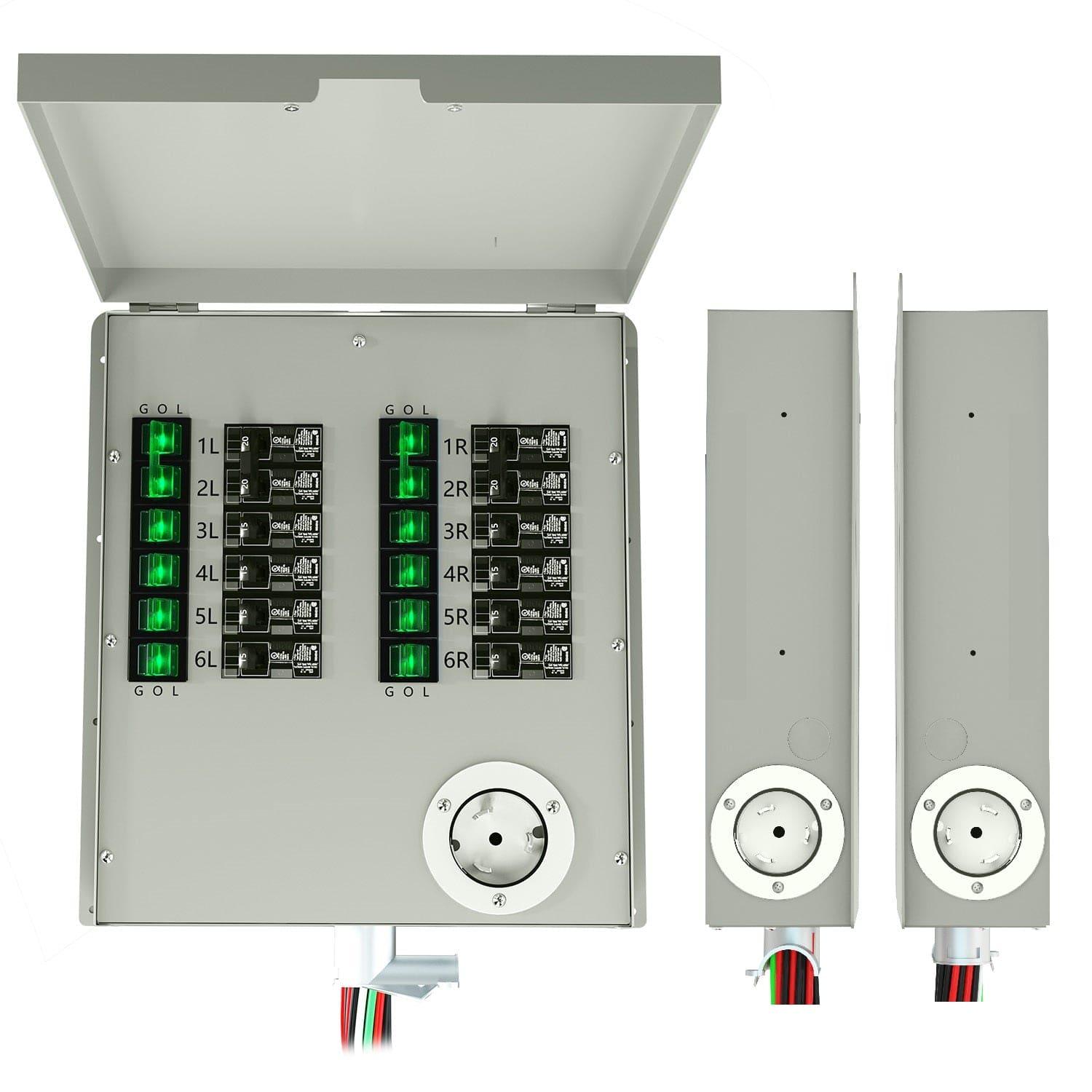

Multiple Power Inlet Position
The Nature's Generator Power Transfer Kit includes multiple inlet position options along with a 10 Foot 6AWG Power cord. This transfer switch can work with 240VAC and you can select to use the power inlet either on its front, left, or right side.
Product Comparison
| 12 Circuit 120V/240V 50A Transfer Switch | 12 Circuit 120V/240V 30A Transfer Switch | 6 Circuit 120V/240V
30A Transfer Switch | 6 Circuit 120V 30A Transfer Switch | 4 Circuit 120V 15A Transfer Switch |
|---|---|---|---|---|
| 12,000W Rating | 7,500W rating | 7,500W rating | 3,750W Rating | 1,875W rating |
| 12 Circuit | 12 Circuit | 6 Circuit | 6 Circuit | 4 Circuit |
| CS 6375 Inlet | NEMA L14-30P Inlet | NEMA L14-30P Inlet | NEMA L5-30P Inlet | NEMA 5-15P Inlet |
| 120V/240V | 120V/240V | 120V/240V | 120V Only | 120V Only |
| 50A | 30A | 30A | 30A | 15A |
| Upgradeable Breakers | Upgradeable Breakers | Upgradeable Breakers | Upgradeable Breakers | ------ |
| 1-1/4 inch fittings | 1-1/4 inch fittings | 1 inch fittings | 1 inch fittings | 1 inch fittings |
| UL 1008 Standard | UL 1008 Standard | UL 1008 Standard | UL 1008 Standard | UL 1008 Standard |
12 Circuit 120V/240V 50A Transfer Switch |
12 Circuit 120V/240V 30A Transfer Switch |

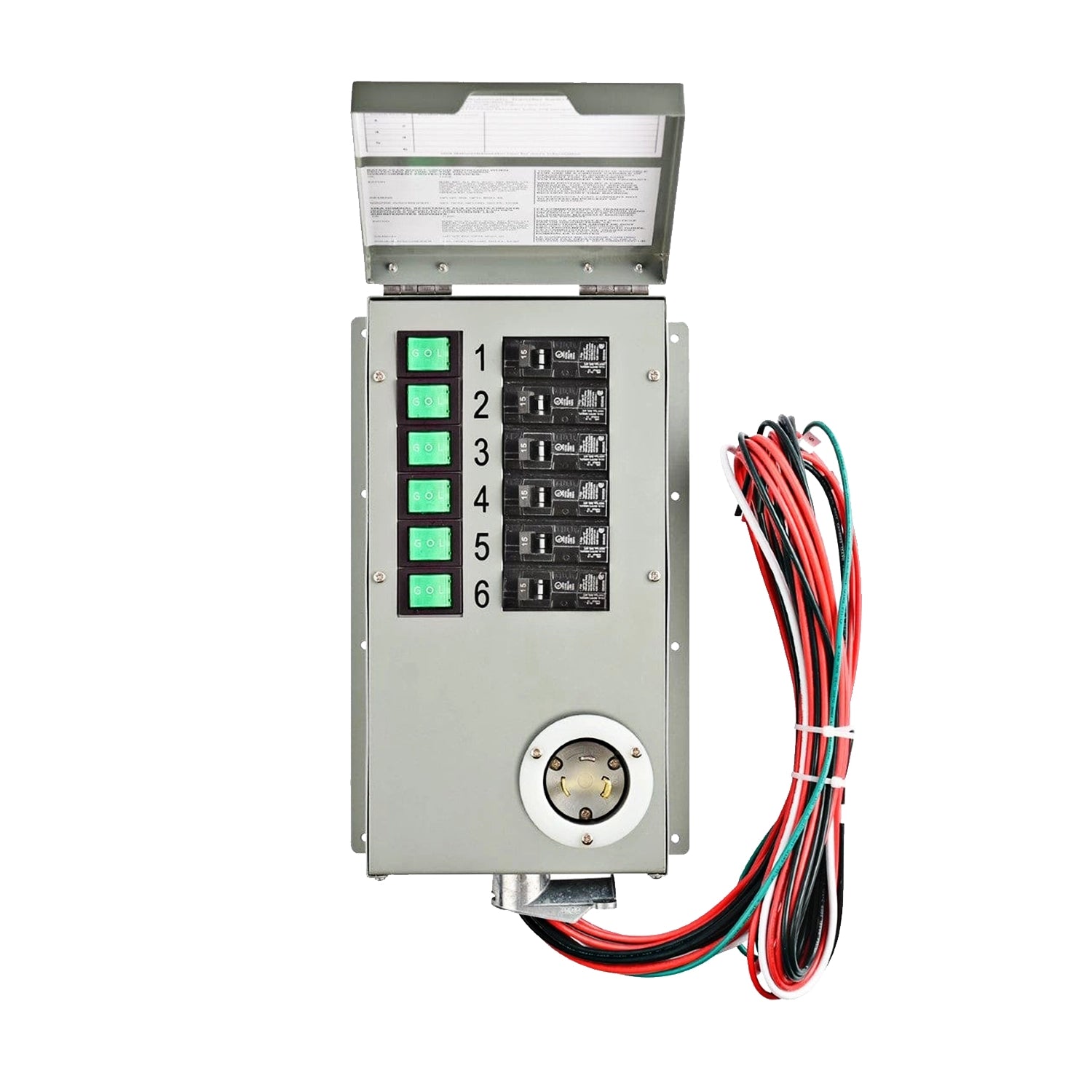

6 Circuit 120V/240V 30A Transfer Switch |
6 Circuit 120V 30A Transfer Switch |

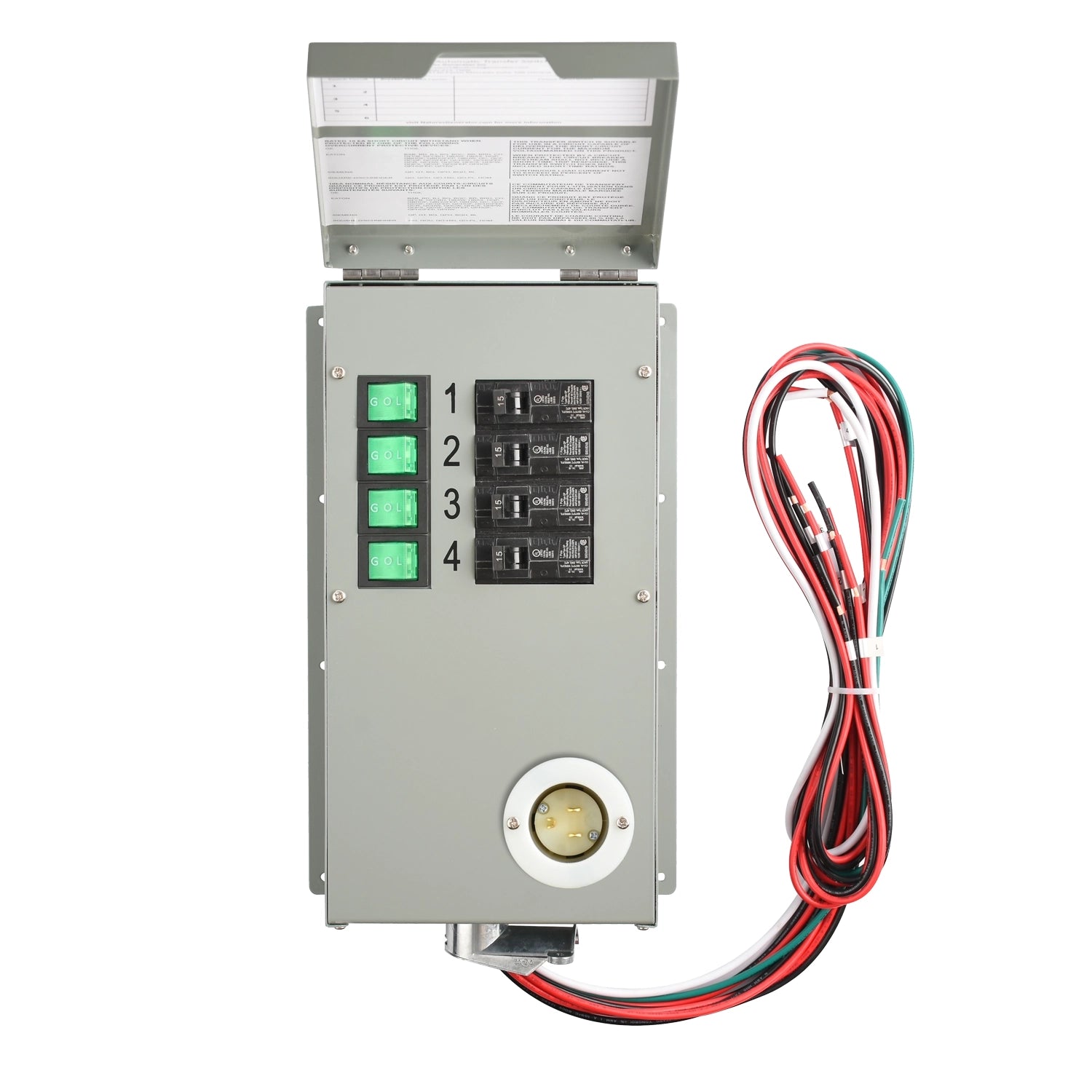

4 Circuit 120V 15A Transfer Switch |
|---|---|---|---|---|
| 12,000W Rating | 7,500W rating | 7,500W rating | 3,750W Rating | 1,875W rating |
| 12 Circuit | 12 Circuit | 6 Circuit | 6 Circuit | 4 Circuit |
| CS 6375 Inlet | NEMA L14-30P Inlet | NEMA L14-30P Inlet | NEMA L5-30P Inlet | NEMA 5-15P Inlet |
| 120V/240V | 120V/240V | 120V/240V | 120V Only | 120V Only |
| 50A | 30A | 30A | 30A | 15A |
| Upgradeable Breakers | Upgradeable Breakers | Upgradeable Breakers | Upgradeable Breakers | ------ |
| 1-1/4 inch fittings | 1-1/4 inch fittings | 1 inch fittings | 1 inch fittings | 1 inch fittings |
| UL 1008 Standard | UL 1008 Standard | UL 1008 Standard | UL 1008 Standard | UL 1008 Standard |
| 12 Circuits 120V/240V 50A Transfer Switch | 12 Circuits 120V/240V 30A Transfer Switch | 6 Circuits 120V/240V
30A Transfer Switch | 6 Circuit 120V 30A Transfer Switch | 4 Circuit 120V 15A Transfer Switch |
|---|---|---|---|---|
| 12,000W Rating | 7,500W rating | 7,500W rating | 3,750W Rating | 1,875W rating |
| 12 Circuits | 12 Circuits | 6 Circuits | 6 Circuits | 4 Circuits |
| CS 6375 Inlet | NEMA L14-30P Inlet | NEMA L14-30P Inlet | NEMA L5-30P Inlet | NEMA 5-15P Inlet |
| 120V/240V | 120V/240V | 120V/240V | 120V Only | 120V Only |
| 50A | 30A | 30A | 30A | 15A |
| Upgradeable Breakers | Upgradeable Breakers | Upgradeable Breakers | Upgradeable Breakers | ------ |
| 1-1/4 inch fittings | 1-1/4 inch fittings | 1 inch fittings | 1 inch fittings | 1 inch fittings |
| UL 1008 Standard | UL 1008 Standard | UL 1008 Standard | UL 1008 Standard | UL 1008 Standard |
