Nature's Generator 125A Automatic Transfer Switch

Name: Nature's Generator 125A Automatic Transfer Switch
Brand: Nature's Generator
SKU: NGA12532448W
Price: 599.99 USD
Availability: InStock

SKU:NGA12532448W

$599.99

Sale Sold out

Save $100 with LABORDAY100

Code: LABORDAY100

Copy code

Not sure if Nature's Generator 125A Automatic Transfer Switch is the right fit?
Get a Free Tech Review Now

• Seamless Automatic Power Transfer: Automatically detects utility outages and switches to backup power instantly—no manual action required for continuous, reliable operation.
• High-Capacity & Broad Compatibility(125A Bus Bar): Works with most solar generators, battery backup systems, grid-tie inverters, and gas generators. Supports 120V, 120/240V, and 120/208V systems and is fully compatible with AFCI and GFCI breakers.
• Grid-Tie Inverter Friendly with Parallel Power Path: Creates a parallel power path for grid-tie inverters, allowing them to continue operating during outages and safely deliver power through the ATS to an AC-coupled battery system—maximizing solar utilization even when the grid is down. Connection Instructions (Video)
• Can Remain on Backup Power even after Utility Power Is Restored: The ATS does not have to automatically switch back to normal utility power, allowing continued use of backup power when desired.
• Extensive Circuit Coverage: Rated at 125A with 24 circuit spaces, expandable up to 48 circuits using tandem breakers to accommodate expanding power needs.
• Rugged, Weather-Resistant Enclosure: Built with a NEMA 3R-rated enclosure to protect against rain, dust, and harsh weather, suitable for both indoor and outdoor installations.
• Advanced Control & Manual Override: Features a centralized control console for managing settings, testing system functionality, and manually overriding power sources for maintenance or user preference.
• Certified for Safety & Code Compliance: Meets rigorous safety and performance standards including UL 1008 and CAN/CSA C22.2 No. 178.1, with documentation showing compliance under ISO/IEC Guide 17067.

Learn More

You may also need

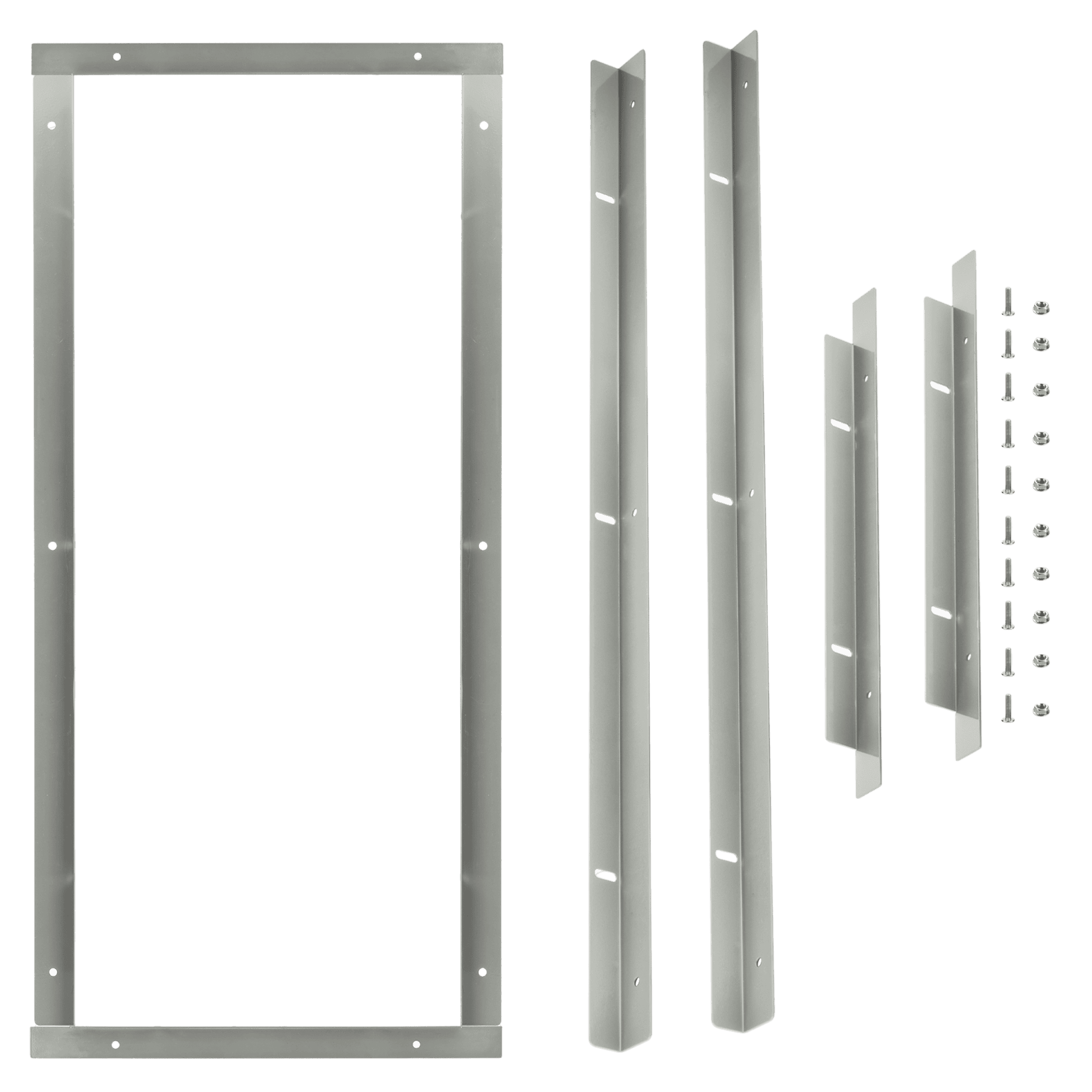

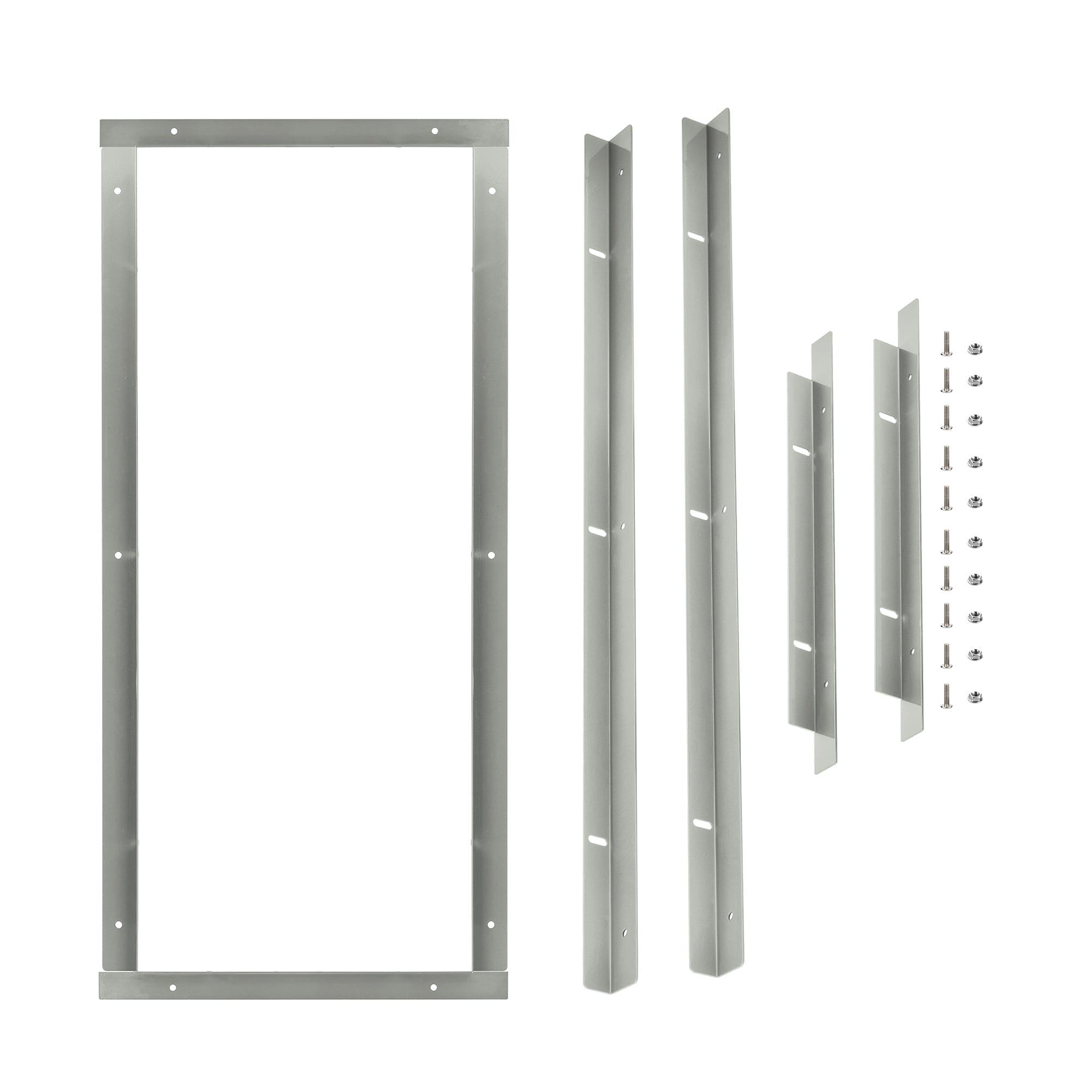

125A Automatic Transfer Switch Flush Mount

$79.99

Sale Sold out

Product - Electrical outlet with switch and label on a white background

120V 15A GFCI Outlet Box

$49.99

Sale Sold out

Talk to an Expert >

View full details

125A Automatic Transfer Switch

$599.99

Sale Sold out

You may also like

Innovative renewable solutions for a sustainable tomorrow.

Join us in building a greener world.

Nature's Generator 125A Automatic Transfer Switch

Features Tech Specs FAQS Reviews

Features

Explore the built-in capabilities designed to deliver safe, reliable, and seamless power switching for home and backup systems.

Manual Override

Allows you to safely switch power sources manually when automatic operation is not preferred or unavailable.

Centralized Console

Provides a single, easy-to-access control point for monitoring and managing your home’s power flow.

NEMA 3R Enclosure

Built for indoor or outdoor installation, offering protection against rain, dust, and harsh weather conditions.

Supports Up to 48 Circuits with Tandem Breakers

Designed to manage a large number of household circuits, giving you flexible and organized power distribution.

ATS Model Comparison: Find Your Perfect Match

Find the perfect ATS solution for your needs. Compare features and specifications to make a confident, informed decision.

ATS Specifications

Generator Matching

Compatible Accessories

Easy to Install. Flexible to Use. Ready for Whole-Home Power.

Designed for quick setup, flexible system compatibility, and reliable power management to support whole-home backup needs.

Built for Whole-Home Backup

Versatile Applications

Easy Installation

Built for Whole-Home Backup

Versatile Applications

Easy Installation

Installation Videos

How to hook up your generator to your house using Automatic Transfer Switch

How to Install the Nature’s Generator ATS – Part 1: Mounting the Unit

How to Install the Nature’s Generator ATS – Part 2: Inlet Box Setup

How to Install the Nature’s Generator ATS – Part 3: Wiring Guide

How to Install the Nature’s Generator ATS – Part 4: Final Setup & Testing

How to Install a Tandem Breaker on Automatic Transfer Switch

How to Install an AFCI/GFCI Breaker in the Natures Generator Automatic Transfer Switch

Quick ATS Guide: Test and Reset

How to Change ATS Settings on Nature’s Generator | Step-by-Step Tutorial

How to Remove & Reinstall an Automatic Transfer Switch Door | Nature’s Generator

How to Install the Flush Mounting Kit on Automatic Transfer Switch

Advanced 125A Transfer Solution

Engineered to support large electrical loads with flexible circuit expansion and organized power control.

About the Product

125A Automatic Transfer Switch

1 Viewing Window

2 Emergency Override Handle

3 Enclosure Latch

4 Dead Cover Latches

5 Automatic Transfer Switch

6 Dead Covers

7 Knockouts

8 Breaker Panel

Tech Specs

Find all the essential technical details of your automatic transfer switch, including amperage, voltage compatibility, and installation features.

Technical Overview

125A Automatic Transfer Switch

Specification

Power Rating
125A

System Voltage
120 V~ (L-N) / 208V~ (L-L) / 240V~ (L-L)

Number of Spaces
24 spaces

Number of Circuits
Expandable to 48 circuits with tandem breakers

General

Dimension
35⁷⁄₁₆*14¼*6⁵⁄₁₆ inches
(900*360*160 mm)

Weight
58 lbs(26.3 kg)

Warranty
5-Year Limited Warranty

Certification*

UL 508A

UL1008

CAN/CSA C22.2 No. 178.1

What's In The Box?

125A Automatic Transfer Switch

1* Automatic Transfer Switch
1* Manual Override Handle
4* Isolation Pads
1* User Manual

Documents

125A Automatic Transfer Switch User Manual

Download

Certification: CAN/CSA C22.2 No. 178.1

Download

125A Automatic Transfer Switch Specification Sheet

Download

FAQS

Answers to common questions about setup, usage, and power system compatibility.

How does an Automatic Transfer Switch work?

An ATS automatically detects a power outage and switches your home to backup power without manual intervention.

Which ATS is best for whole-home backup?

The 125A ATS is ideal for whole-home coverage, while 30A and 50A ATS models are suited for partial or essential-load backup.

Do ATS models support 120V and 240V systems?

Yes, compatible ATS models support both 120V and 120V/240V systems depending on configuration.

Can I still control the switch manually if needed?

Yes, select ATS models include a manual override for added flexibility and safety.

Is professional installation required for ATS units?

Yes, ATS installation must be performed by a licensed electrician to meet electrical codes and safety standards.

Customer Reviews

Will Haggerty W. H. Will H. 10-08-2026

Question asked: Are the lugs rated for both Copper (CU) and Aluminum (AL) wiring?

10-08-2026

Hi Will,Thank you for reaching out. Yes, lugs from the Nature's Generator 125A Automatic Transfer Switch are rated for both Copper and Aluminum wiring. If you have any follow-up questions, you may reach our support directly via (800) 975-7909, or email us at support@naturesgenerator.com. We'll be more than happy to assist you!

DAngelo Armbrister D. A. DAngelo A. 02-06-2026

Question asked: Is the automatic Ats service rated

02-06-2026

Hi DAngelo,Thanks for reaching out. Our 125A Automatic Transfer Switch is not service rated. If you have any follow-up questions, you may reach our support directly via (800) 975-7909, or email us at support@naturesgenerator.com. We'll be more than happy to assist you!

Dominique D. Dominique 25-04-2026

Question asked: Can a back up battery such as ecoflow delta pro ultra x system be plugged into the main panel to charge and also be plugged into the ATS at the same time?

25-04-2026

Hi Dominique,Thank you for reaching out! Based on your question, it is best to reach out to the manufacturer of the battery system to verify if that is doable with their unit. For our generators, we suggest connecting the generator through the transfer switch to power up circuit breakers and charge the unit separately using AC power coming from the grid. If you have any follow-up questions, you may reach our support directly via (800) 975-7909, or email us at support@naturesgenerator.com. We'll be more than happy to assist you!Regards,Nature's Generator Support Team

Dominick D. Dominick 01-03-2026

Question asked: Does this ATS have any Time of Use capabilities? Or if not, is it safe to manually transfer to backup power during peak hours and back again at non-peak? Would this damage the unit over time or confuse the automatic switch?

01-03-2026

Hi Dominick,Thank you for reaching out! The automatic transfer switch only automatically moves from grid to backup when the grid is down; however, using the transfer switch manually won't be a problem. Meanwhile, you can consider checking out non automatic transfer switches. If you have any follow-up questions, you may reach our support directly via (800) 975-7909, or email us at support@naturesgenerator.com. We'll be more than happy to assist you!Regards,Nature's Generator Support Team

Foley Quinn F. Q. Foley Q. 24-02-2026

Question asked: How do I get a call back? 715.416.3022

24-02-2026

Hi Foley,Thank you for reaching out! Kindly contact our team so we can assist you. You may reach our support directly via (800) 975-7909, or email us at support@naturesgenerator.com. We'll be more than happy to assist you!Regards,Nature's Generator Support Team

Andy A. Andy 15-02-2026

Question asked: Will you ever sell one of these fully wired with switches and inlet box? I would love to have this for a whole house back up. Side question you can hook up an 50 amp inlet box to this?

15-02-2026

Hi Andy,Thank you for reaching out! As of now, we do not have a bundle for a pre-wired 125A transfer switch. Meanwhile, you can connect a 50A inlet with the 125A transfer switch. If you have any follow-up questions, you may reach our support directly via (800) 975-7909, or email us at support@naturesgenerator.com. We'll be more than happy to assist you!Regards,Nature's Generator Support Team

John J. John 09-02-2026

Question asked: Can this transfer switch be used to replace the main electrical panel ?

09-02-2026

Hi John,Thank you for reaching out! That is doable, as long as you have a designated main breaker for your grid power. If you have any follow-up questions, you may reach our support directly via (800) 975-7909 or email us at support@naturesgenerator.com. We'll be more than happy to assist you!Regards,Nature's Generator Support Team

Bruce Ritter B. R. Bruce R. 31-01-2026

Question asked: You state: Grid-Tie Inverter Friendly with Parallel Power Path: Creates a parallel power path for grid-tie inverters, allowing them to continue operating during outages and safely deliver power through the ATS to an AC-coupled battery system—maximizing solar utilization even when the grid is down. How is that wired, to allow a battery powered generator to work alongside normally grid tied solar inverters to allow the solar inverters to work with grid power or backup power?

You state: Grid-Tie Inverter Friendly with Parallel Power Path: Creates a parallel power path for grid-tie inverters, allowing them to continue operating during outages and safely deliver power through the ATS to an AC-coupled battery system—maximizing solar utilization even when the grid is down. How is that wired, to allow a battery powered generator to work alongside normally grid tied solar inverters to allow the solar inverters to work with grid power or backup power?

31-01-2026

Hi Bruce,Thank you for reaching out! The way the system will work alongside a grid-tied solar inverter, you can connect the battery system as the back up and use the grid tied system as your main power so that when the grid is down or the grid tied inverters stop providing a power, the battery operated system will take over to provide power to your house. If you have any follow-up questions, you may reach our support directly via (800) 975-7909, or email us at support@naturesgenerator.com. We'll be more than happy to assist you!Regards,Nature's Generator Support Team

val klemm V. K. val k. 09-01-2026

Question asked: does the 125 A ATS have an aluminum or copper bus?

09-01-2026

Hi Val,Thank you for reaching out! We use copper bus for our transfer switches. If you have any follow-up questions, you may reach our support directly via (800) 975-7909, or email us at support@naturesgenerator.com. We'll be more than happy to assist you!Regards,Nature's Generator Sales Team

Steve S. Steve 19-12-2025

Question asked: Why is the 125 amp transfer switch panel limited to a 50 amp breaker to feed circuits downstream. I need to feed my 100 amp sub panel for my house circuits from the transfer switch.

19-12-2025

Hi Steve,Thank you for reaching out! The 125A automatic transfer switch has a limited amperage in terms of breakers. You can split the breakers into branches to provide backup to your house circuits. If you have any follow-up questions, you may reach our support directly via (800) 975-7909, or email us at support@naturesgenerator.com. We'll be more than happy to assist you!Regards,Nature's Generator Support Team

Kevin K. Kevin 30-11-2025

Question asked: Since the Neutral is switched thereby eliminating the neutral/ground bond from the main panel, do you recommend using the transfer switch with a floating or bonded neutral battery power station.

30-11-2025

Hi Kevin,Thank you for reaching out! The suggested type of generator that you can use with our transfer switches is a Floating Neutral unit. If you have any follow-up questions, you may reach our support directly via (800) 975-7909, or email us at support@naturesgenerator.com. We'll be more than happy to assist you!Regards,Nature's Generator Support Team

Roy Bunnell R. B. Roy B. 22-11-2025

Question asked: Does this automtic switch hae a timer mechanism so that is can switch automatically on a timed schedule to offset when rates are highest?

22-11-2025

Hi Roy,Thank you for reaching out! The automatic feature of the transfer switch only applies when the main power source is down; the transfer switch will automatically switch over from the main power to the backup power. If you have any follow-up questions, you may reach our support directly via (800) 975-7909, or email us at support@naturesgenerator.com. We'll be more than happy to assist you!Regards,Nature's Generator Support Team

Jeff J. Jeff 24-10-2025

Question asked: I don't see in the User Guide what wire size the L1,L2 lugs will accommodate. What is the max wire size supported?

24-10-2025

Hi Jeff,Thank you for reaching out! The 125A transfer switch L1 and L2 already have wires connected. You can click the link below to watch the video. Also, the wire gauge that you can use is 8 AWG. If you have any follow-up questions, you may reach our support directly via (800) 975-7909, or email us at support@naturesgenerator.com. We'll be more than happy to assist you!https://www.youtube.com/watch?v=egEVlSVl95k&t=3sRegards,Nature's Generator Support Team

Greg G. Greg 28-09-2025

Question asked: If there is no switchover delay won't there be an issue with unsynchronized phases?

28-09-2025

Hi Greg,Thank you for reaching out! As of now, we haven't tested it with unsynchronized phases; however, the best option will be to use the 5-second delay feature of the transfer switch. If you have any follow-up questions, you may reach our support directly via (800) 975-7909, or email us at support@naturesgenerator.com. We'll be more than happy to assist you!Regards,Nature's Generator Support Team

Robert Williams R. W. Robert W. 12-08-2025

Question asked: My main metered panel is a 100A not 125A can I suppy this with 80A 240v two pole breaker?

12-08-2025

Hi Robert,Thank you for reaching out! That would be doable as long as you don't exceed the 125A of the transfer switch. Also, the maximum amps of the breaker that you can install from the transfer switch is 50 amps. If you have any follow-up questions, you may reach our support directly via (800) 975-7909, or email us at support@naturesgenerator.com. We'll be more than happy to assist you!Regards,Nature's Generator Support Team

Victor Ding V. D. Victor D. 24-06-2025

Question asked: Is this 125 A Automatic Transfer Switch UL listed? If so, could you provide related documents?

24-06-2025

Hi Victor,Thank you for reaching out! You can click the link below to check the certifications of the 125A Automatic Transfer switch. If you have any follow-up questions, you may reach our support directly via (800) 975-7909, or email us at support@naturesgenerator.com. We'll be more than happy to assist you!https://cdn.shopify.com/s/files/1/2637/1868/files/DSS_SGSNA_25_SH_00221U.pdf?v=1749427380Regards,Nature's Generator Support Team

Victor Ding V. D. Victor D. 16-06-2025

Question asked: Does this ATS work with AFCI/GFCI breakers? Specifically â€œSquare D Homeline 20 Amp Single-Pole Dual Function (CAFCI and GFCI) Circuit Breakerâ€?

16-06-2025

Hi Victor,Thank you for reaching out! The 125A Automatic transfer switch is suitable for one inch standard, tandem, GFCI, AFCI breakers from Simens/Murray, Easton, GE, Square D/Schneider and other listed suppliers. You can check the list of compatible breakers on the back of the door of the transfer switch. If you have any follow-up questions, you may reach our support directly via (800) 975-7909, or email us at support@naturesgenerator.com. We'll be more than happy to assist you!Regards,Nature's Generator Support Team

Victor Ding V. D. Victor D. 16-06-2025

Question asked: Does this ATS work with AFCI/GFCI breakers? Specifically â€œSquare D Homeline 20 Amp Single-Pole Dual Function (CAFCI and GFCI) Circuit Breakerâ€œ?

16-06-2025

Ian Finlay I. F. Ian F. 09-06-2025

Question asked: I am wondering if the 125A ATS can be used for scheduled load shifting. I'd like to use a Battery System during \High Power\" to cover most of the backed-up load in my home. I assume the battery system would cause the scheduled switch to/from the battery system? how? Would this interfere a power failure backup? How would the ATS deal with these 2 scenarios? Thanks!"""

09-06-2025

Hi Ian,Thank you for reaching out! Unfortunately, our automatic transfer switch doesn't have the feature to switch to backup when in peak hours. The feature of the automatic transfer switch is that it automatically switches to backup when the grid is down. Also, the backup power should be on standby. What you can do is turn off the main power when in peak hours so that the transfer switch can switch to back up, and when the peak hours are done, you can turn back on the main power to switch it back. If you have any questions, please let me know.Regards,Nature's Generator Support Team
