Nature's Generator Elite Platinum - PE System
Product Features
Versatile Power Solution: The Nature's Generator Elite Platinum - PE System is a 3600 watt generator that serves as an ideal solution for home battery backup, camping, RV’s, and off-grid setup.
Expandable Design: Allows additional battery units for enhanced capacity, and solar panels for additional solar charging to meet your evolving energy needs.

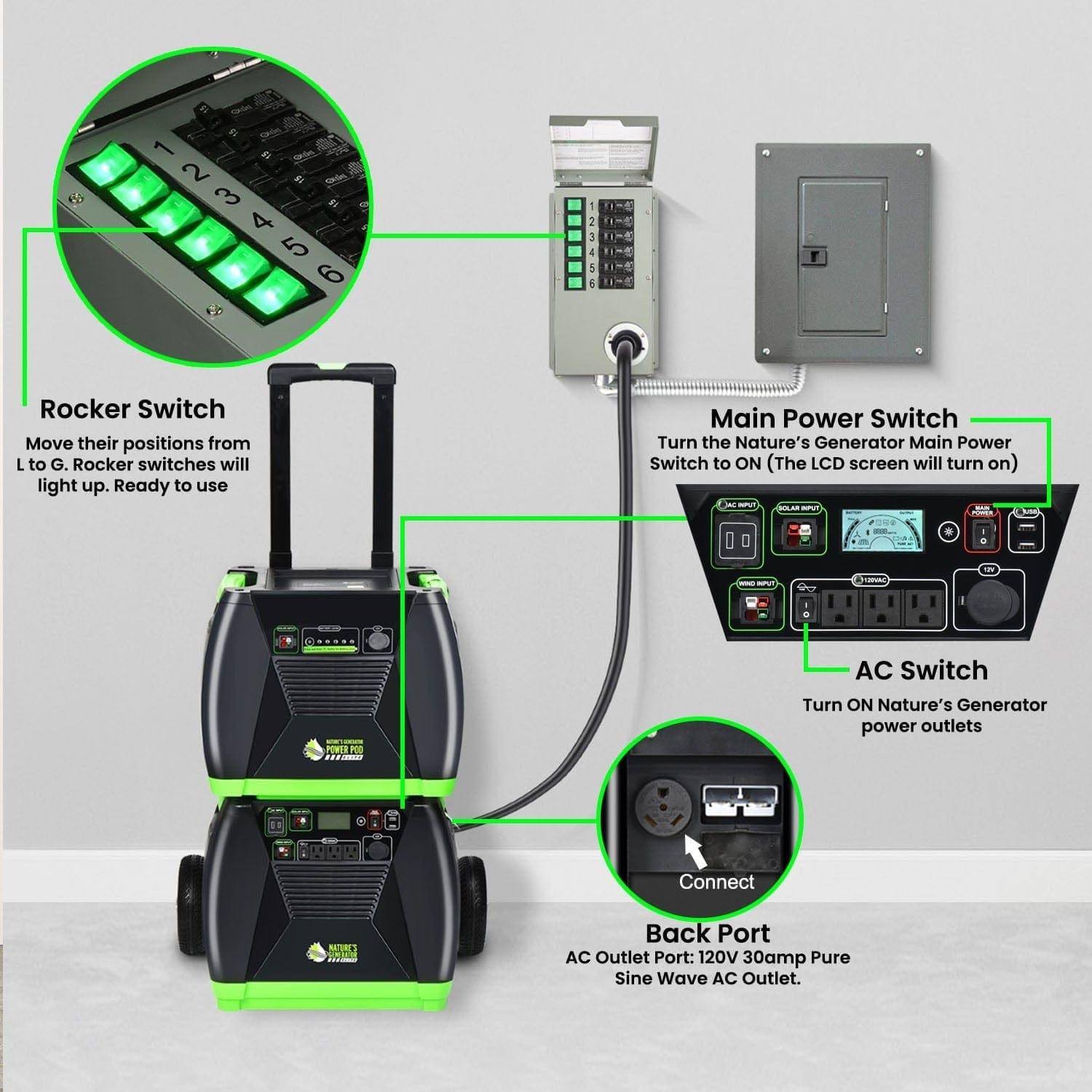

Home Integration Ready: Offers transfer switch or power inlet box options for seamless integration, providing power backup for essential home circuits during outages.
Eco-Friendly Operation: The Nature's Generator Elite Platinum - PE System harnesses solar and wind power, delivering a sustainable, eco-friendly solution with quiet and renewable energy.

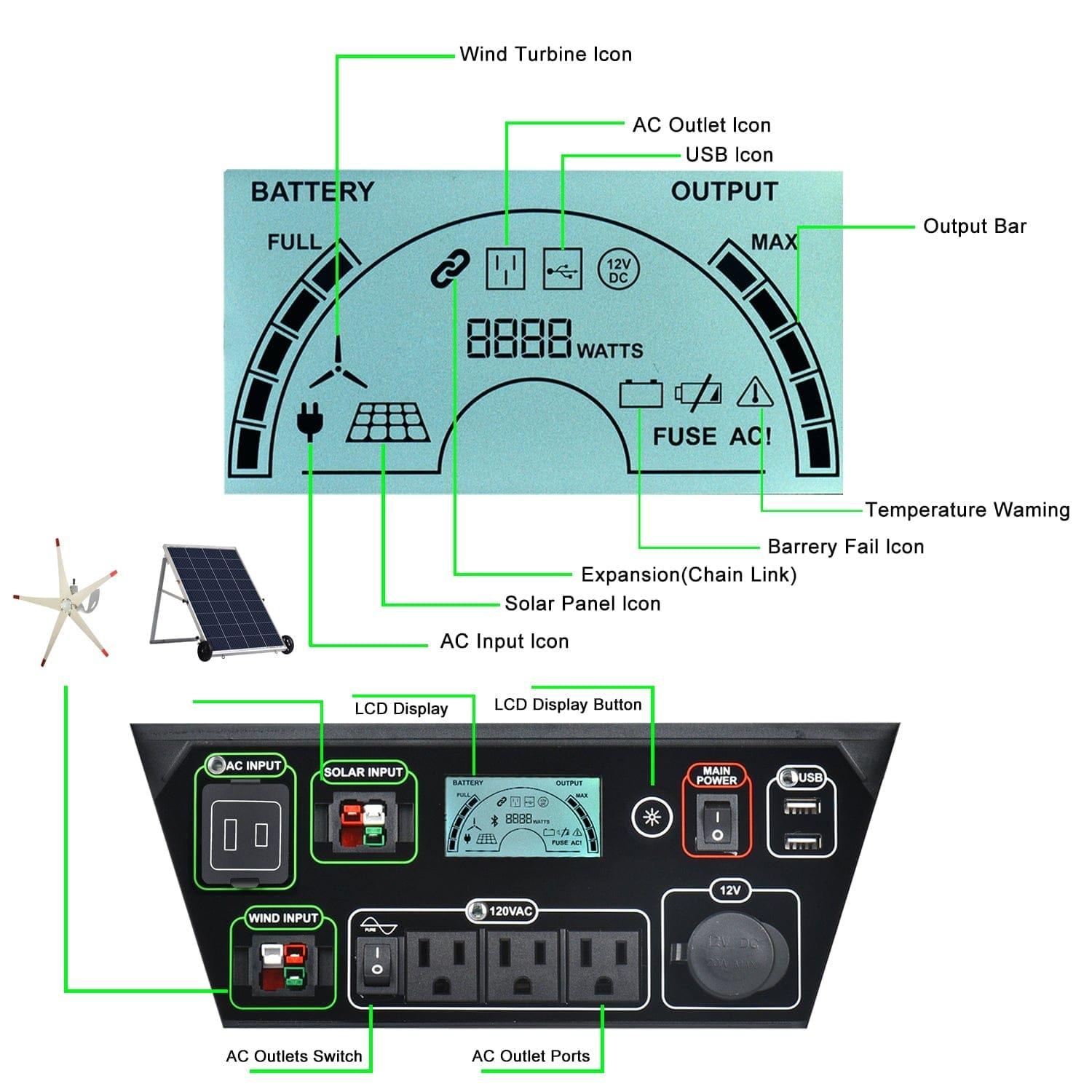

User-Friendly Display: LED screen shows battery levels, wattage usage, and remaining power time for easy, real-time monitoring.

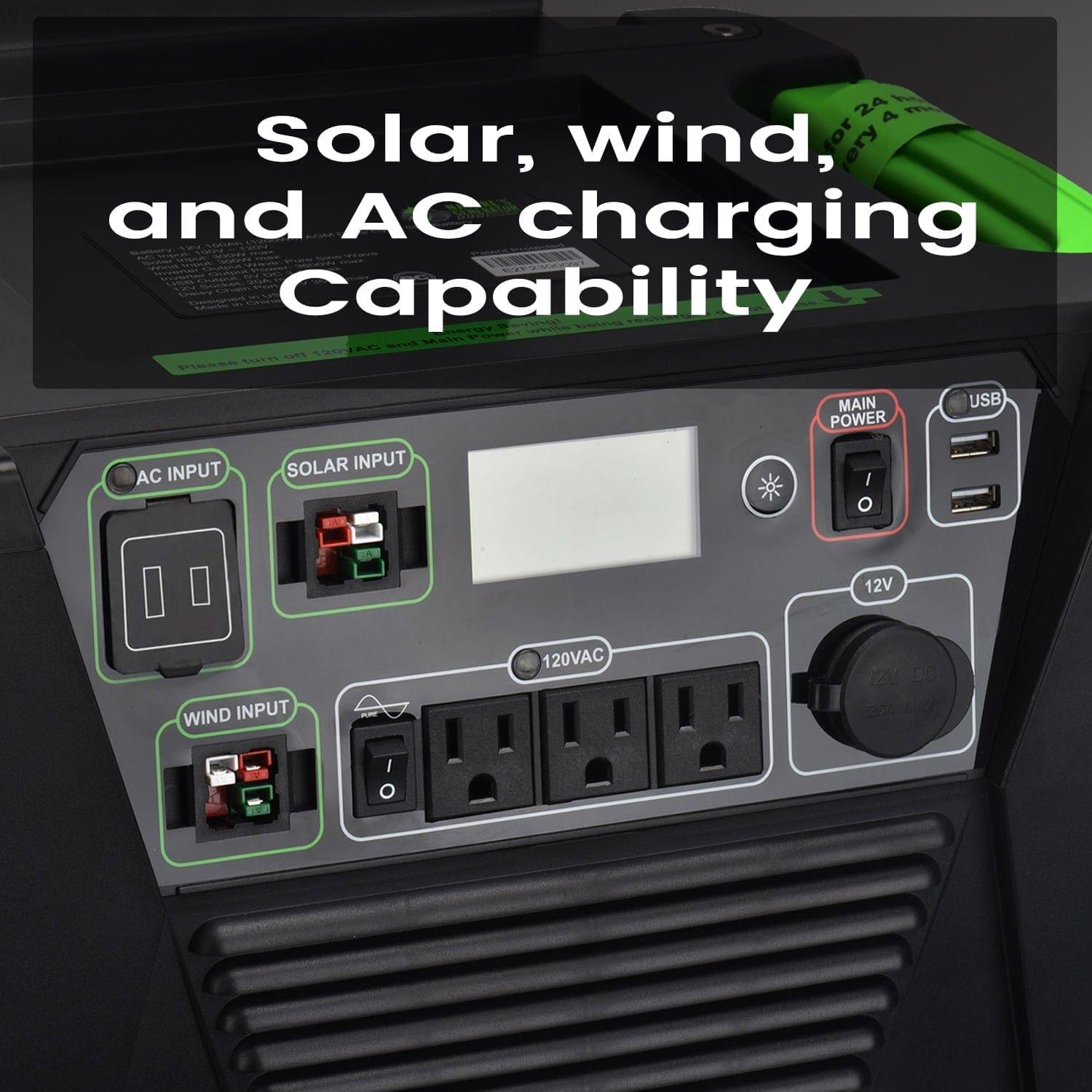

Get to know your Nature's Generator Elite Platinum System
- 3 AC outlets deliver up to 3600-Watt of peak pure sine wave AC power

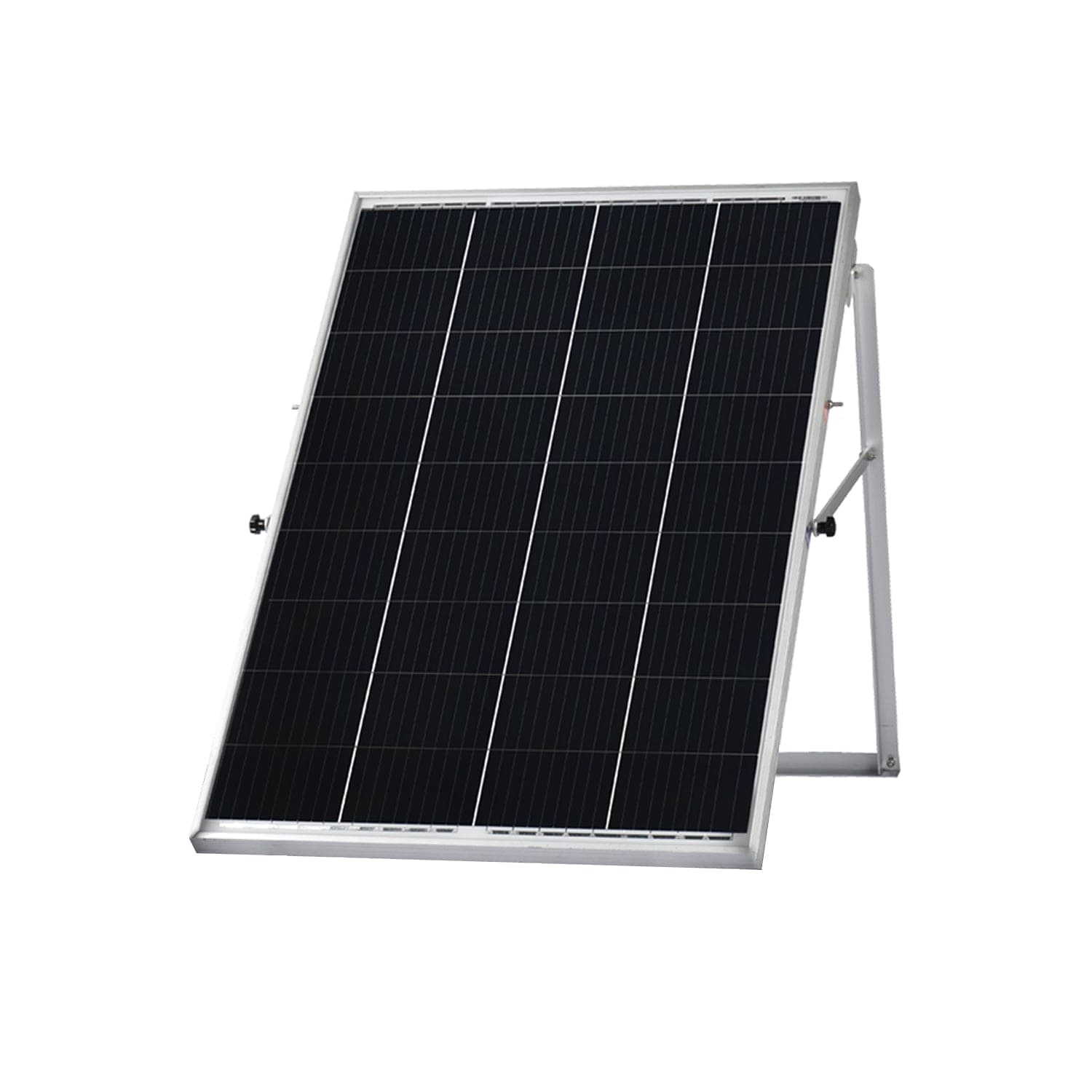

- Monocrystalline solar panel provides up to 100-Watt of recharging power; some assembly required
- Central LCD display shows system information

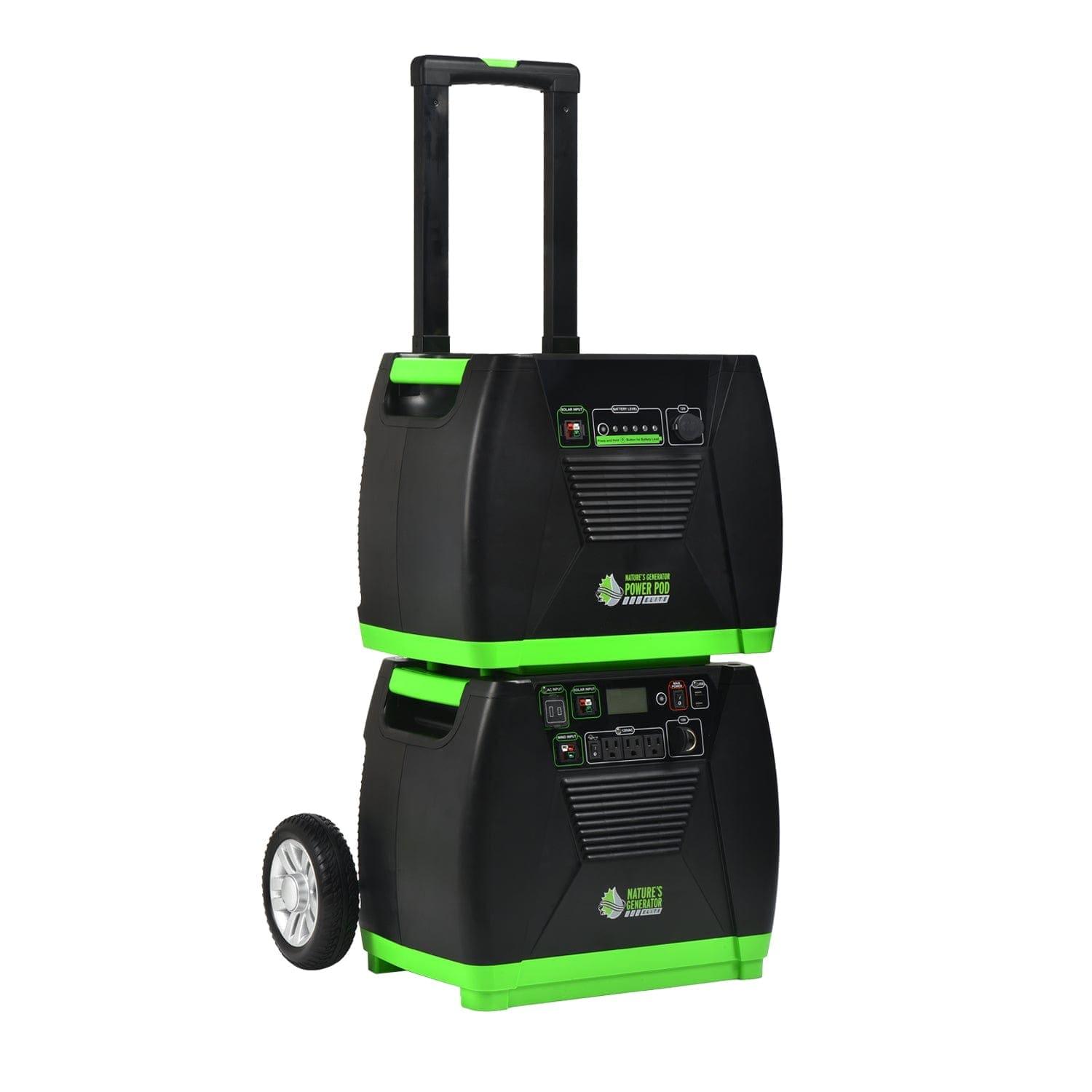

- Universal heavy duty cart included and designed to work with Nature's Generator, Nature's Generator Power Pod or both. Some assembly required.
- Integrated uninterrupted power supply (UPS) function
- 300-Watt solar charge controller and port
- 300-Watt wind generator charge controller and port
- 190-Watt built-in quick charge battery charger
- 2 USB ports deliver up to 3 Amp or 15-Watt output

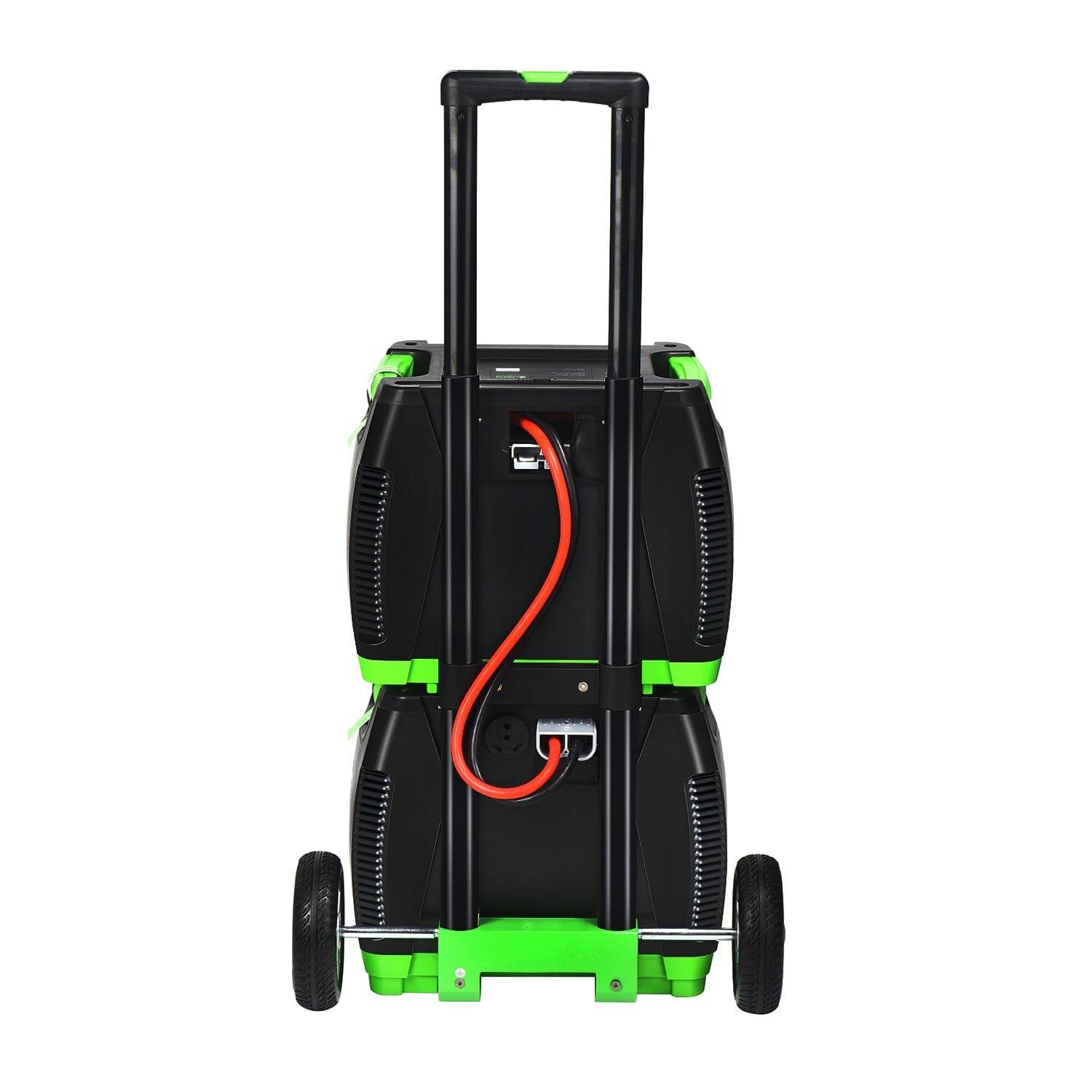

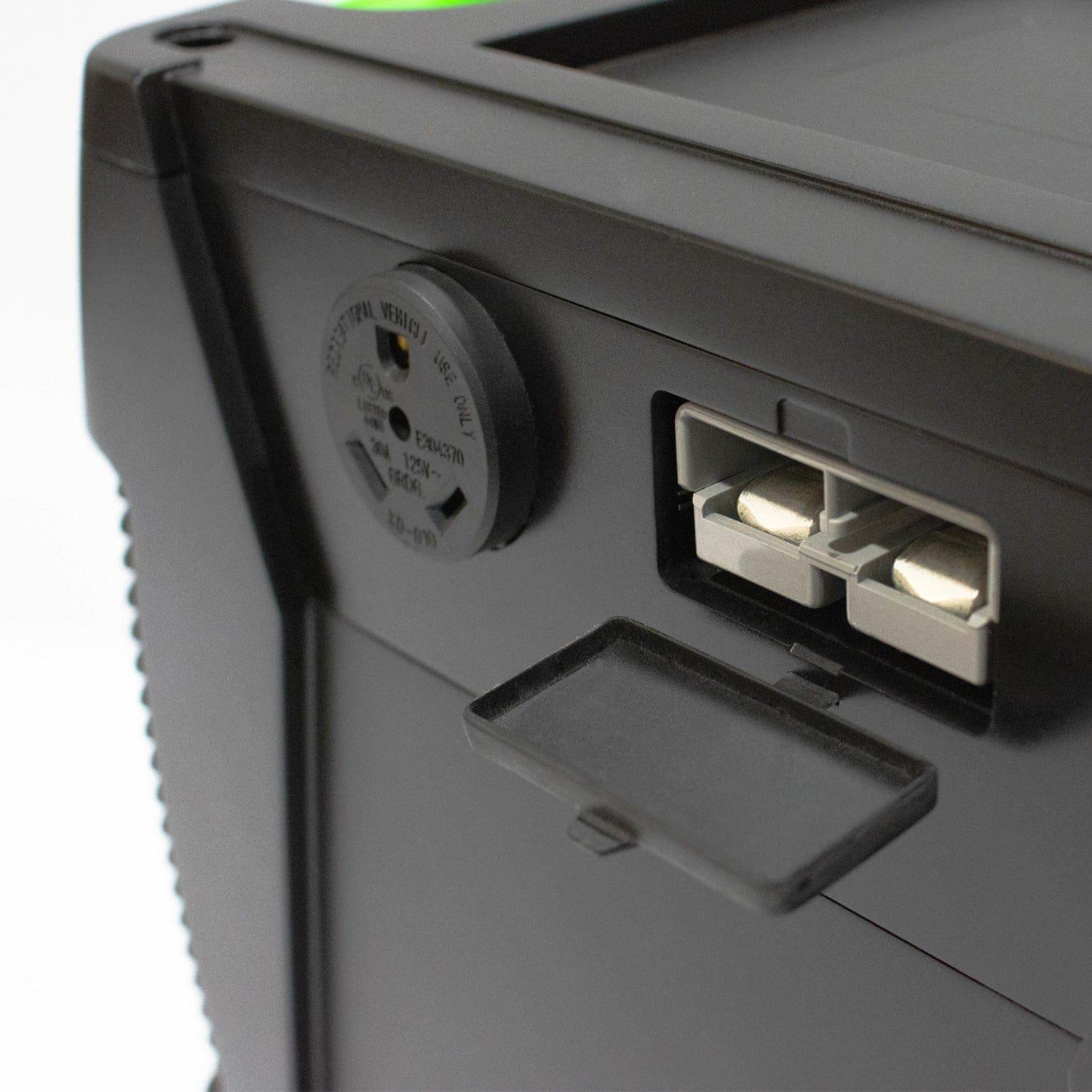

- Built-in 600-Volt / 350 Amp expansion port for connecting an unlimited amount of Nature's Generator Power Pods
How to recharge your Nature's Generator Elite Platinum System?
- Using included AC Cord - Estimated recharge time: 10 - 15 hrs.
- Using the Nature's Generator Power Panel - Estimated recharge time: 10 - 15 hrs.
- Using the Nature's Generator Wind Turbine. (sold separately and charge times can vary)
What can the Nature's Generator power?
Nature's Generator Elite (Capacity 1200Wh)
32" LED TV
20+ Hours
CPAP Machine
13+ Hours
Circular Saw
6+ Hours of Normal Use
SmartPhone
100+ Recharges
Tablet
50+ Recharges
Laptop
20+ Recharges
Corded Drill
13+ Hours of Normal Use
Modem & Router
18+ Hours
Oscillating Fan
20+ Hours
LED Light Bulb
80+ Hours
Mini Fridge
20-30 Hours
Refrigerator
13-20 Hours
Nature's Generator Elite + Power Pod (Combined Capacity of 2400Wh)
32" LED TV
40+ Hours
CPAP Machine
25+ Hours
Circular Saw
12+ Hours of Normal Use
SmartPhone
200+ Recharges
Tablet
100+ Recharges
Laptop
40+ Recharges
Corded Drill
25+ Hours of Normal Use
Modem & Router
35+ Hours
Oscillating Fan
40+ Hours
LED Light Bulb
160+ Hours
Mini Fridge
40-60 Hours
Refrigerator
26-40 Hours
Technical Specification & Warranty
Inverter
- Output Power: 3600W max / 2880 continuous
- Output Wave Form: Pure Sine Wave
- Output Voltage: 120V
- Output Frequency: 60Hz
Ports
- Three 120V household AC outlets
- Two USB ports - 3A of combined power
- One 12V DC port (240W max)
- Expansion Port: 350A Fuse
- Charging AC Input (190W)
- Solar Input (300W Max)
- Wind Input (300W Max)
Battery
- Type: AGM Sealed Lead Acid
- Capacity: 12V 100Ah (1200Wh)
- Keep plugged in or recharge every 4 months of non-use
- Built-in charge controller
- Built-in low battery protection
General
- Product dimensions with cart: 23 × 17 × 22 in(57 × 42 × 55 cm).
- Product dimensions without cart: 18 x 12 x 15 in(47 × 30 x 38 cm).
- Weight out of box: Generator - 120 lbs.
- Operating temperature: 32-104 °F (0-40 °C)
- Storage Temperature: 23–111 °F (-5–45 °C)
- Front LCD Display shows battery level, output information and more
- LCD button turns on the LCD display
- 12 months Limited Warranty
What's in the Box
Nature's Generator
Nature's Generator Elite
- 1 × 3600W Nature's Generator
- 1 × Accessory Box ( Heavy Duty Cart)
- 1 x Power Cord (Inside back compartment)
- 1 × User Guide
Manual & Quick Start Guide
User Manual
*The heavy duty cart is designed to hold two Nature's Generator Power Pod on top of Nature's Generator.
*Assembly required.
Nature's generator Power Panel
Nature's Generator Elite Power Pod
- 1 x Nature's Generator Power Pod Elite
- 1 × User Guide
- Hardware box
Manual & Quick Start Guide
User Manual
The Nature's Generator Power Pod also includes a compartment on the top section of the product. The fuse connector for expansion purposes is stored here. You can also store any other items inside the compartment that you may want to keep handy with your unit.
Nature's generator Power Panel

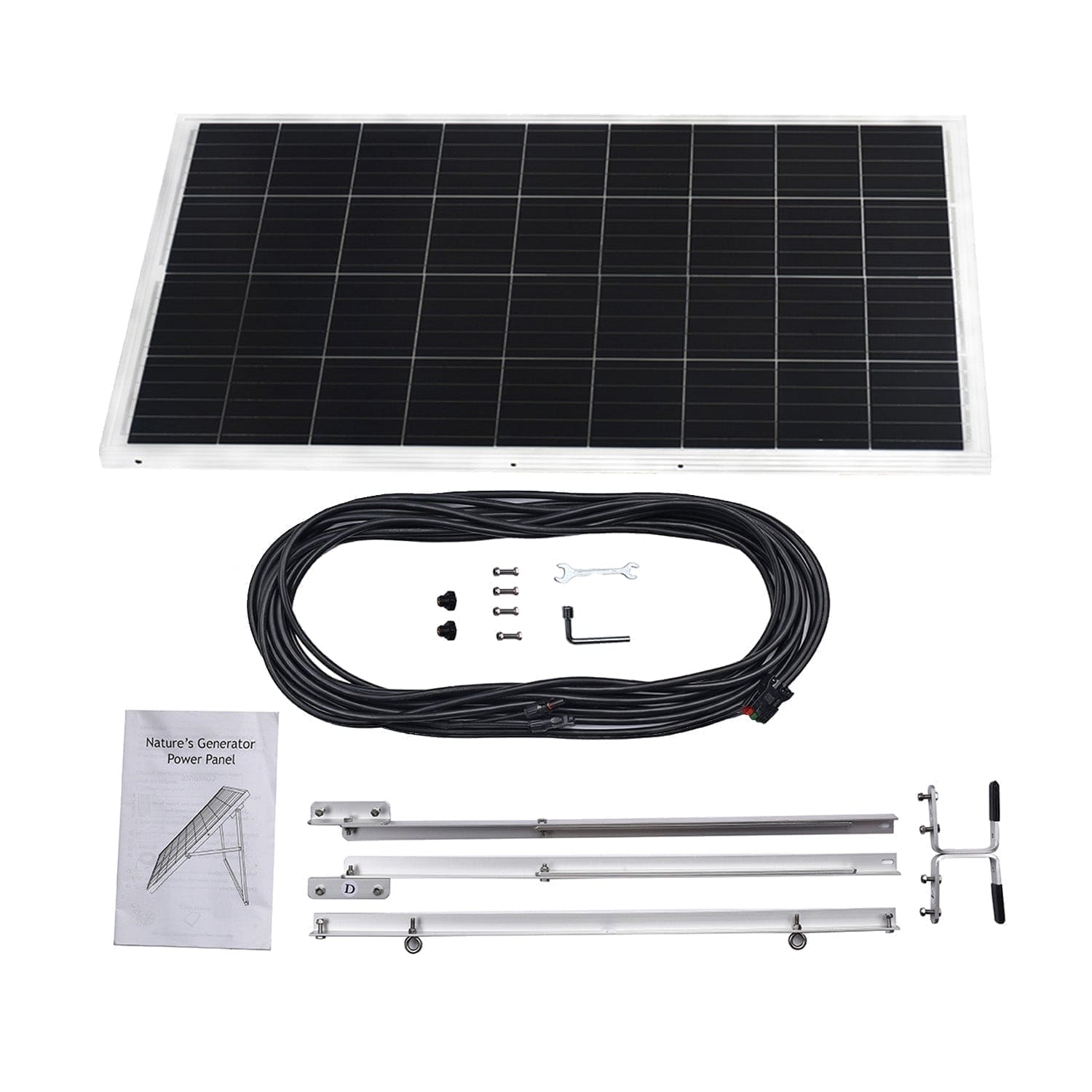

Nature's Generator Power Panel

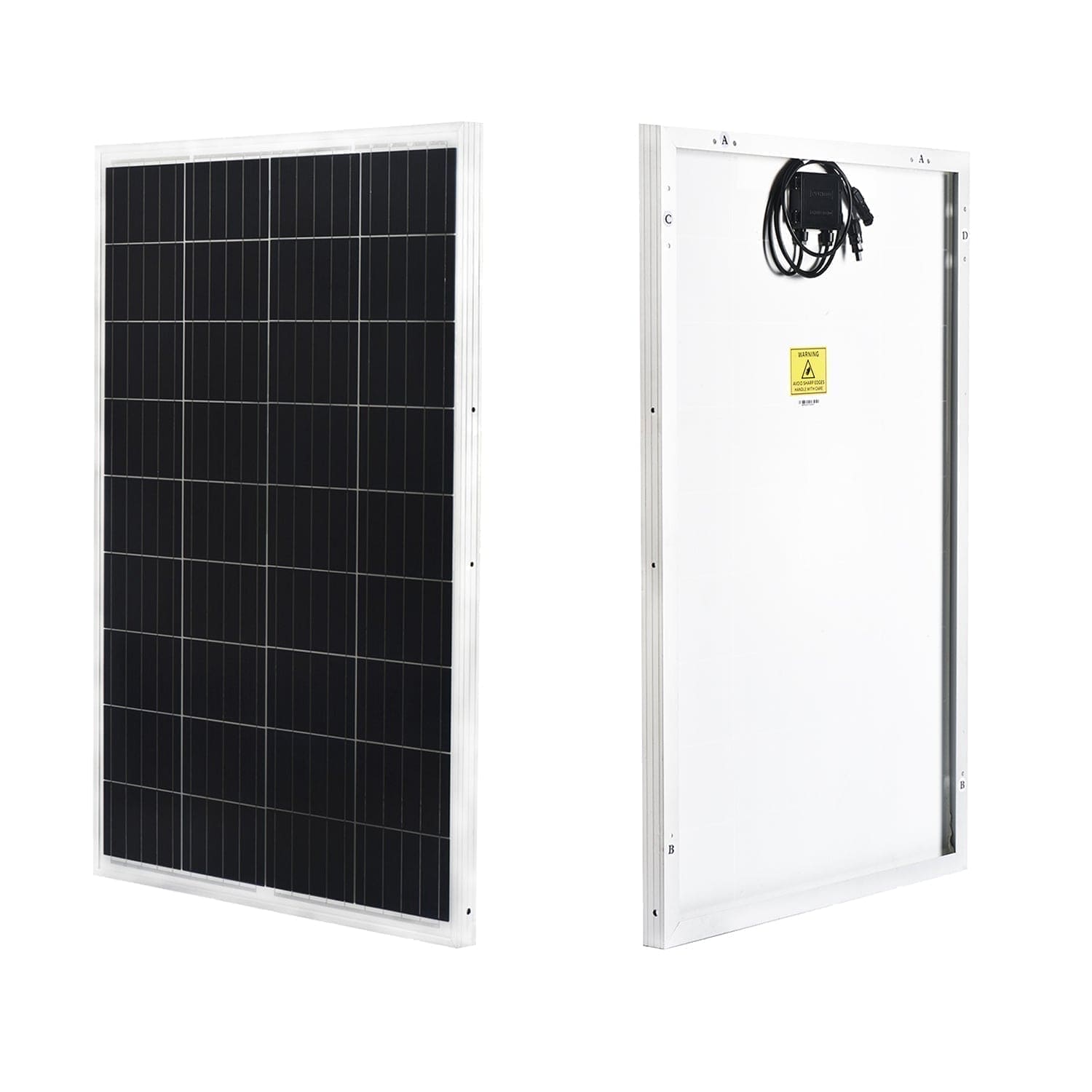

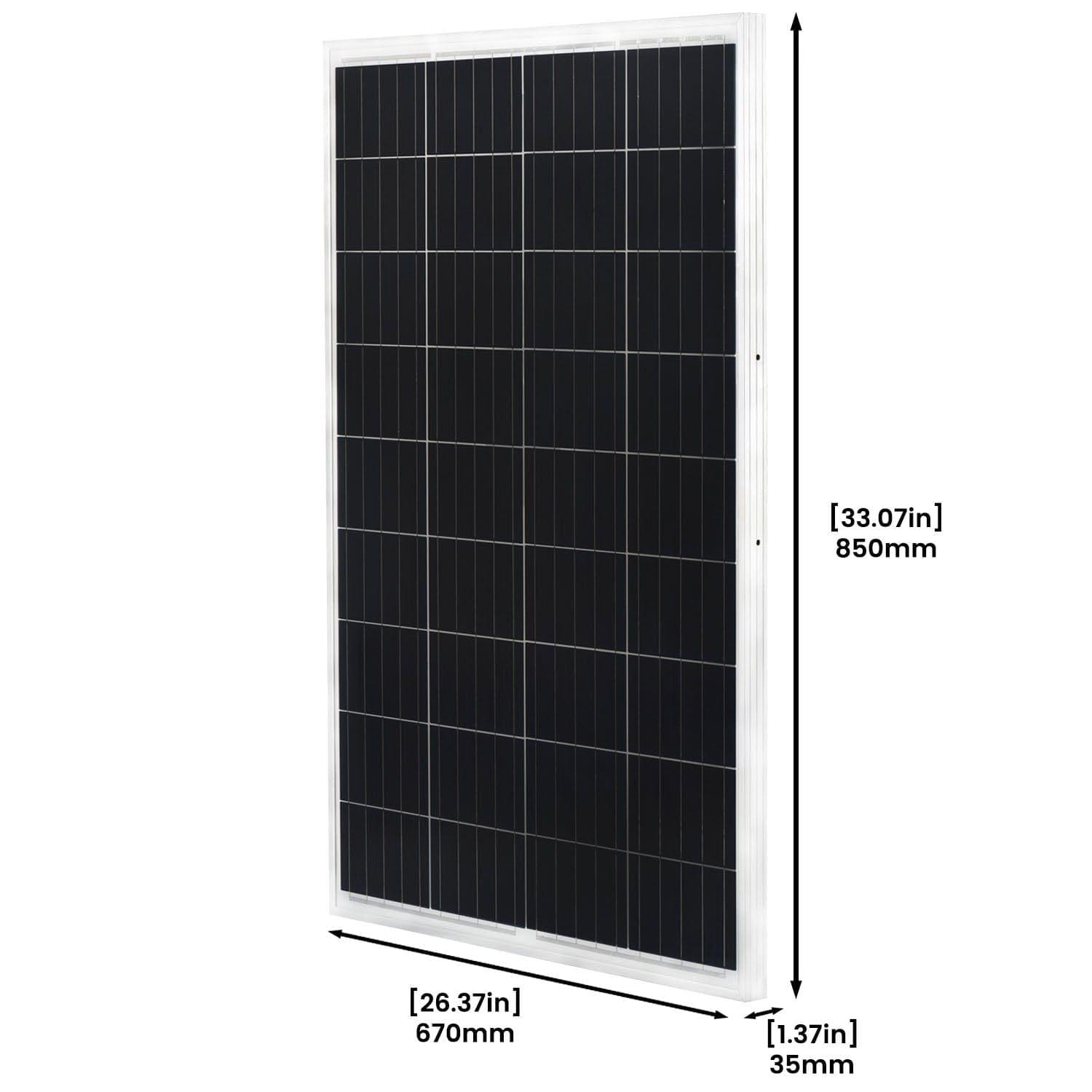

- 4 x 100W Monocrystalline Solar Panel
- 4 × Accessory Box (Stand and Wheels)
- 1 × User Guide
- 2 x UL approved 12 gauge 50 foot panel cable
- 2 x MC4 branch connector
Manual & Quick Start Guide
Power Panel Start Guide
Power Panel Assembly Guide
Nature's generator Power Panel

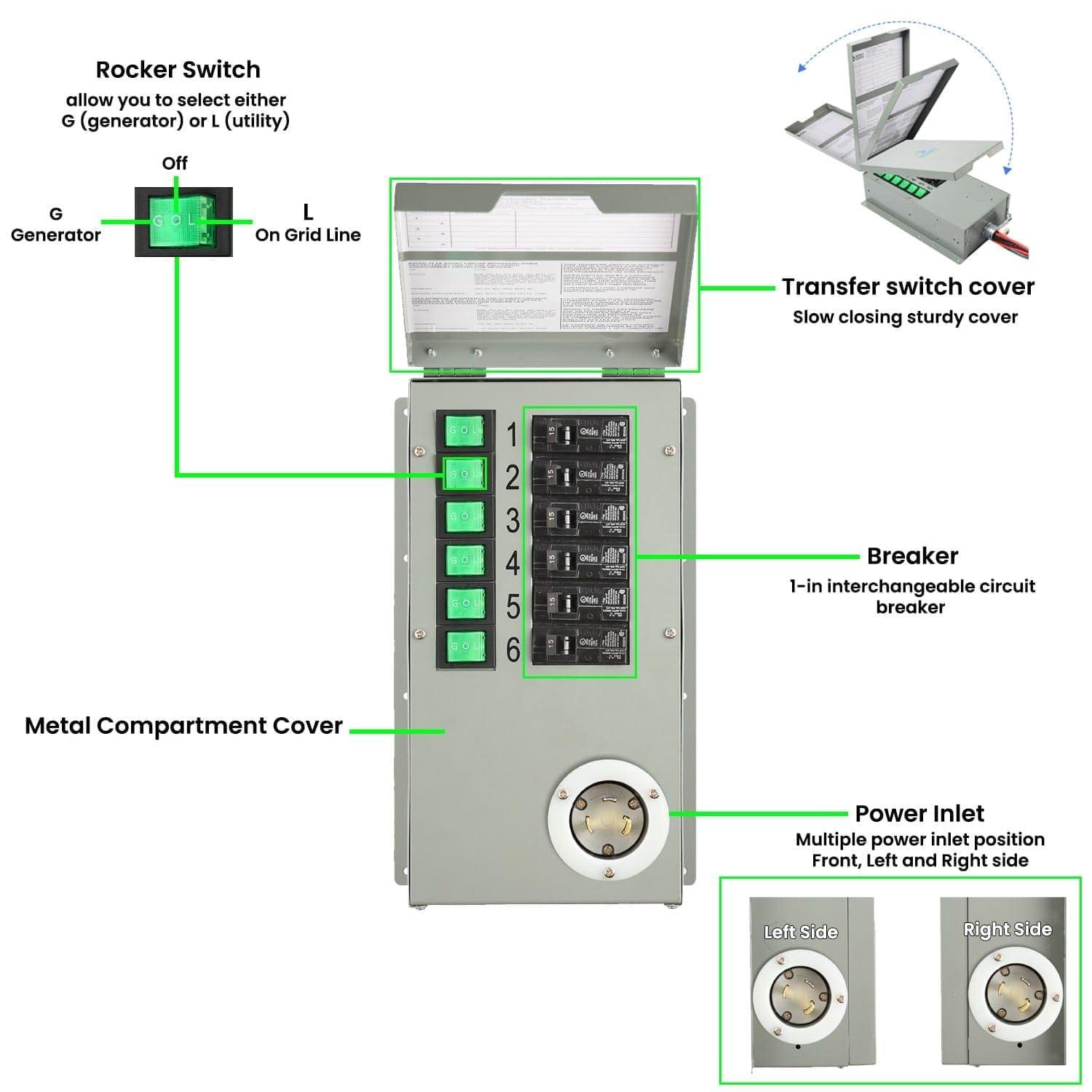

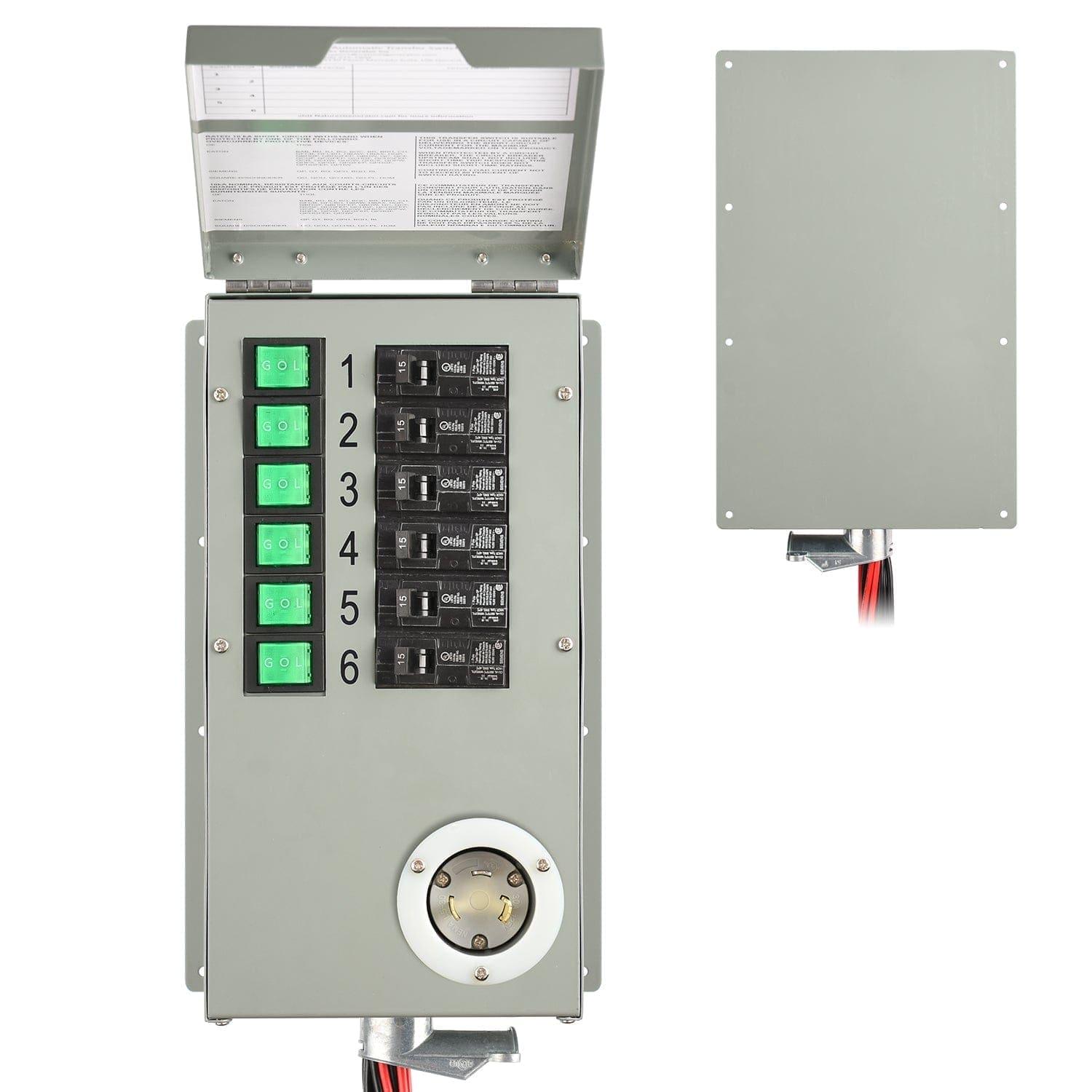

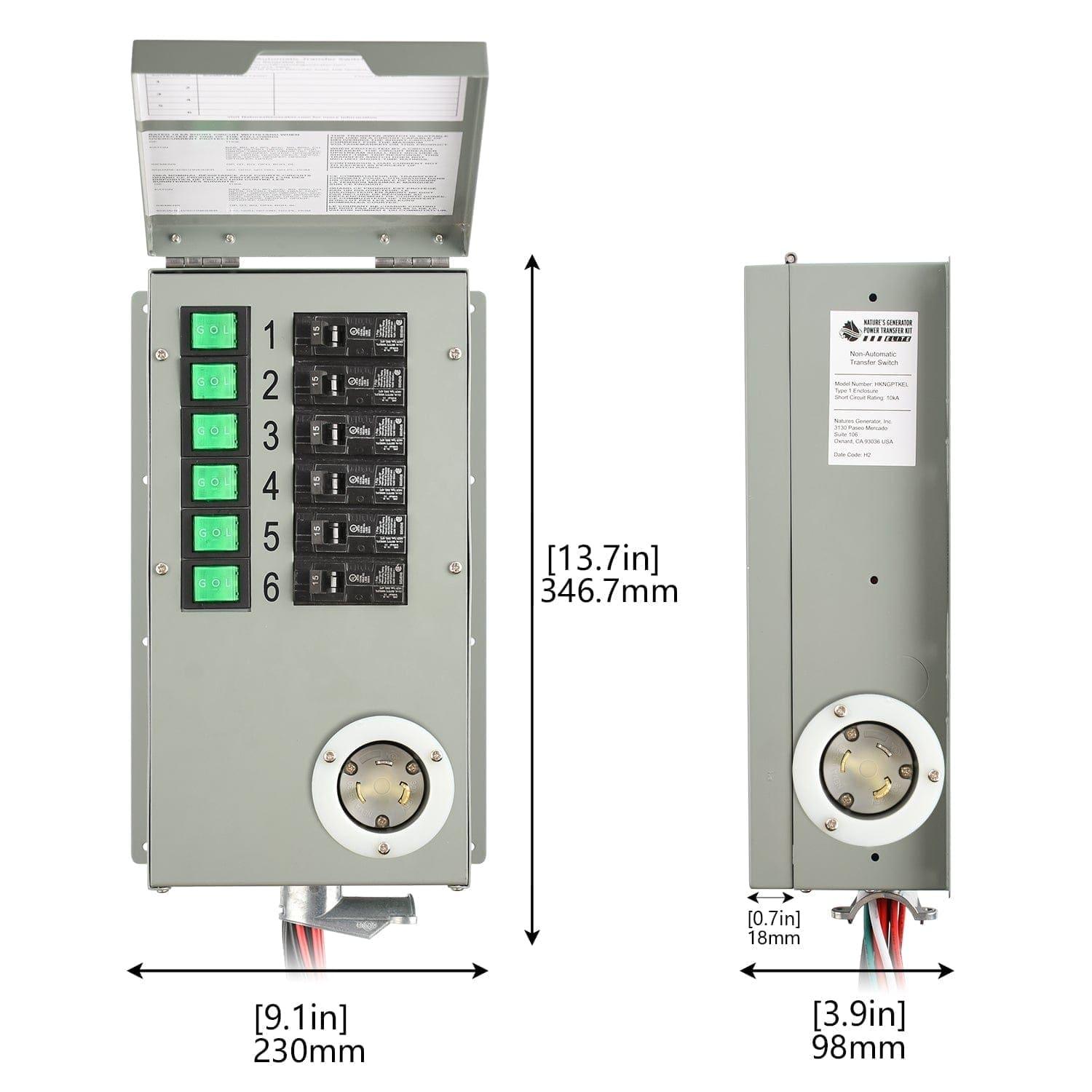

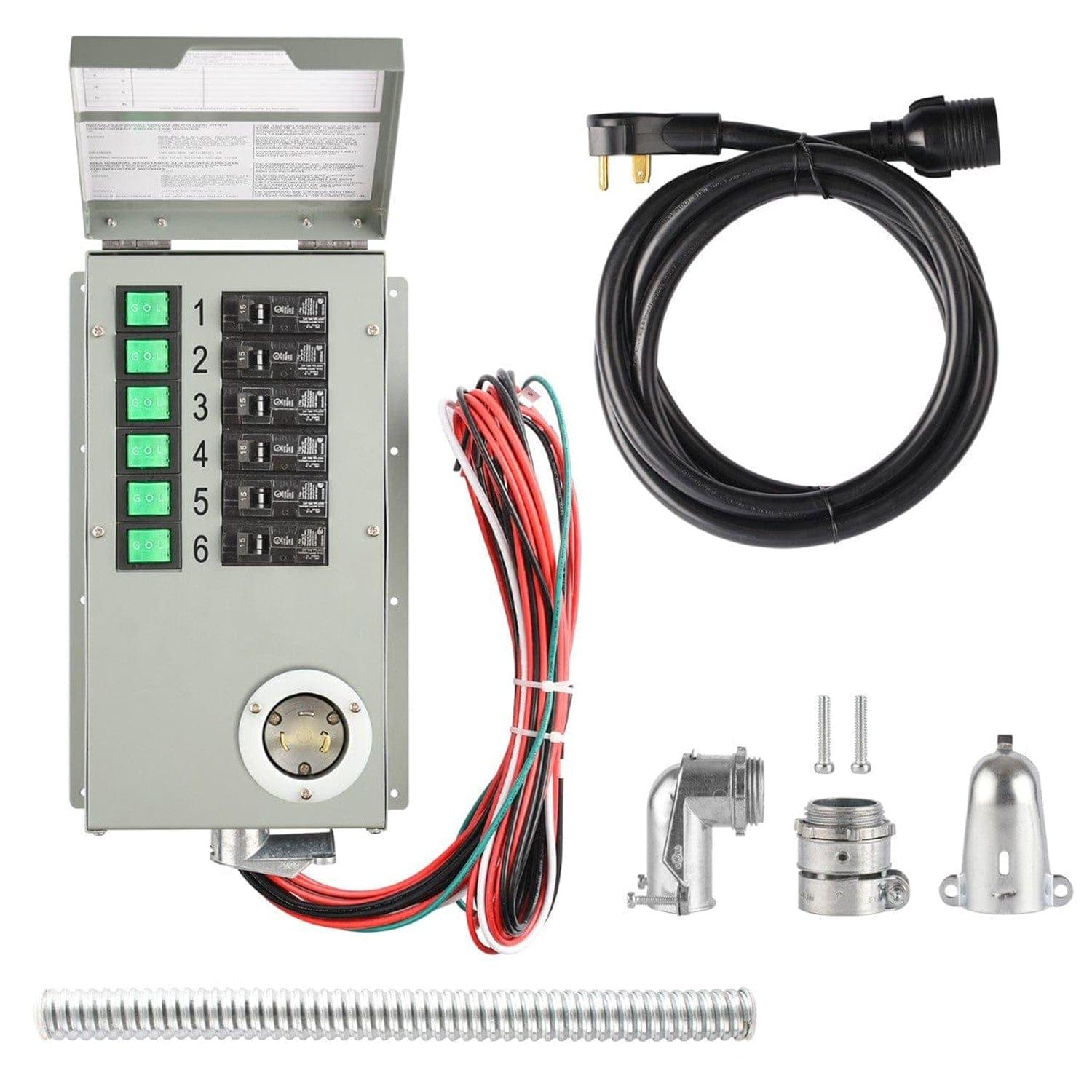

Nature's Generator Power Transfer Kit Elite
- 1 x Power Transfer Kit
- 1 x Conduit for Power Transfer Kit
- 1 x Cable clamps for Power Transfer Kit
- 10 Foot 10AWG Power cord for Power Transfer Kit
- 1 × User Guide
Manual & Quick Start Guide
Power Transfer Kit Elite Manual
*IMPORTANT: Installation of the Power Transfer Kit must be performed by a qualified electrician in compliance with all applicable electrical codes. Do not charge Nature's Generator by wall through AC input port when using Power Transfer Kit.
Question and Answer
QUESTIONS & ANSWERS
Ask a Question-
Hi, Jose. Thank you for your query. 12,000 BTU if converted into watts is 3516-watts approximately. The Nature's Generator Elite Platinum - PE System, has a total battery capacity of 2400WH and a maximum power output of 3600-watts. The total runtime that you're gonna get with this system, based on your power consumption is 0.6 hours or 36 minutes. If you have additional queries, you may send us a direct email at support@naturesgenerator.com.
-
Hello Thomas,
Thanks for your inquiry.
Yes, the total battery capacity of the Elite platinum system is 2400Wh.As per the run time, if the wattage draw is 3,600W continuous, the average run time will be 30 - 40 minutes.
Should you have any concerns or questions, please let me know.
Thanks,
Nature's Generator Support Team -
Hi, Joe. Thank you for your query. It's completely safe using the Generator whilst it's being charged by Solar, Wind or AC. However, charging time may take longer than usual. If you have more questions, you may send us an email to support@naturesgenerator.com
-
Hello Luis,
Our battery life cycle is 4 to 6 years or 500 to 800 recharge cycles.
Thanks,
Natures Generator Support Team
Contact #: 800-975-7909 -
Hello Bobby,
Thanks for your inquiry.
For Nature's Generator Elite Platinum - PE System, 2 solar panels should go to the generator and the other 2 to the power pod.
You can use the MC4 branch connector to daisy chain 2 solar panels.
Should you have any other concerns, please email us at support@naturesgenerator.com
Thanks,
Nature's Generator Support Team -

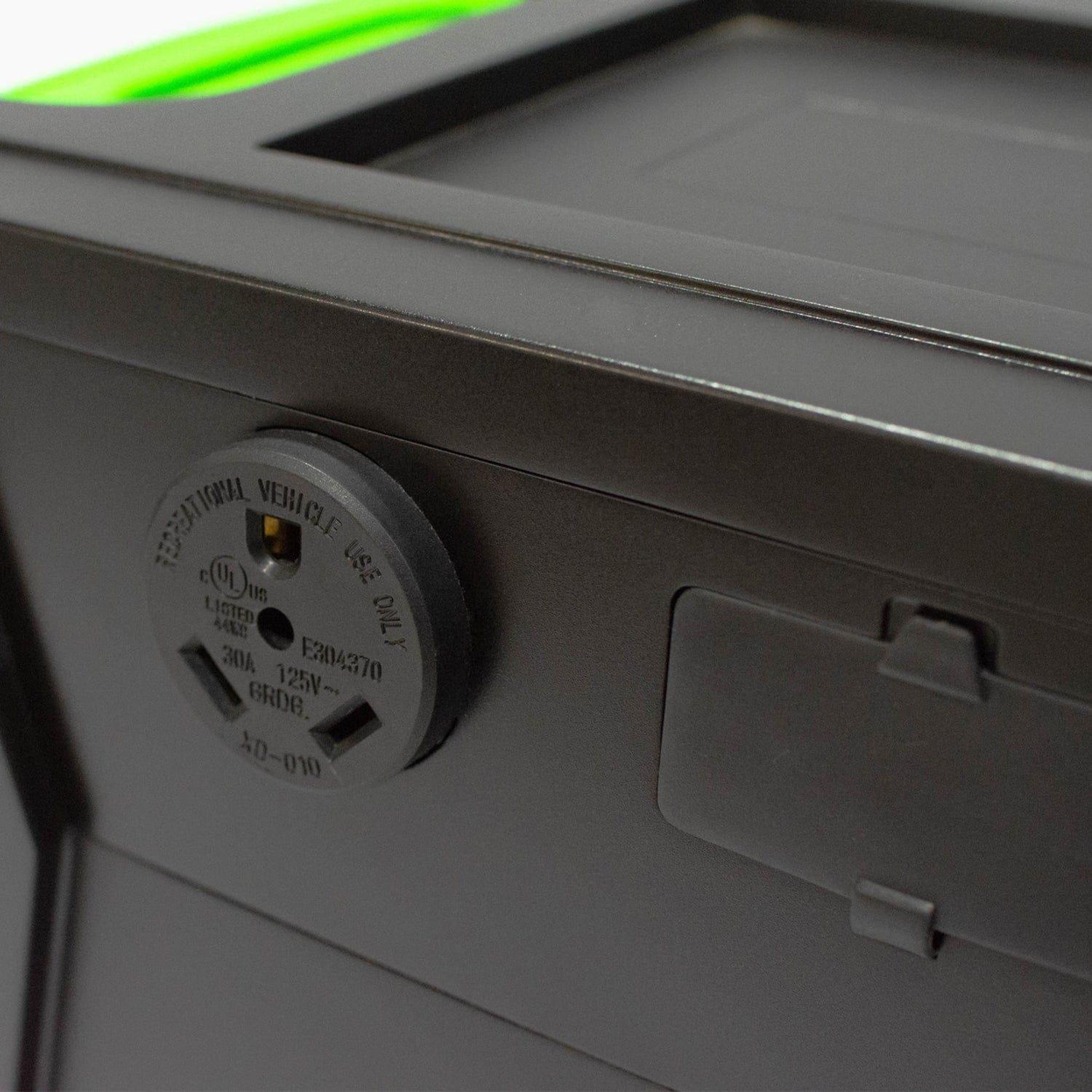

Hello-
The cable it comes with is a 10ft 30amp cable.
Thanks,
Nature's Generator Support Team -
Hello-
Yes, you can always disconnect the generator and take it as you may need.
Please let us know if there is anything else we can assist with.
Thanks,
Nature's Generator Support Team -
Hello-
Thanks for reaching out to us and for your interest in our product!
The transfer kit will be able to provide power to devices as long as the generator has the capacity to do so. To install the trasfer kit, we recommend having a licensed electrician do it, since it is working with the homes electricity. The transfer kit will come with the cable that will be needed to connect the generator to the transfer kit. The transfer kit is designed to be used indoors at it is not weather proof.
Thanks,
Nature's Generator Support Team -
Hello-
Thanks for reaching out to us!
Please see answers to your questions below.
1. Yes, as long as there is sun it will be able to accept a charge.
2. No, the transfer box is not needed to use the generator, but you can use it if you have circuits wired to the home breaker for ease of use.
3. Depending on the wattage the space heater requires, that alone can deplete the battery rapidly. So if you have the space heater and the frige connected at the same time, we dont feel like it would last very long.
Thanks,
Nature's Generator Support Team -
Hello-
Thanks for reaching out to us!
This particular system is also portable the only difference would be the Power Transfer Kit. But being that your electrical panel is located outside, we would not recommend you purchasing the transfer kit as it is designed to be used inside.
Please let us know if there is anything else we can assist with.
Thanks,
Nature's Generator Support Team -
Hello-
The recharge time is based on the four solar panels for the Elite Platinum.
Thanks,
Nature's Generator Support Team -
Hello-
Yes, with the Nature's Generator Elite system, you can add up pto three 100W solar panels to the system.
Thanks,
Nature's Generator Support Team -
Hello-
Thanks for reaching out to us!
Please see questions to your answers below.
1. Are there plans in the near future to manufacture a "Rapid" charger for the Elite Platinum PE System, to reduce charging time?
a. At this moment we do not have any plans to change the charger to a "rapid" style charger.
2. Also, does this system include the Generator + 1 Power Pod or 2 Power Pods?

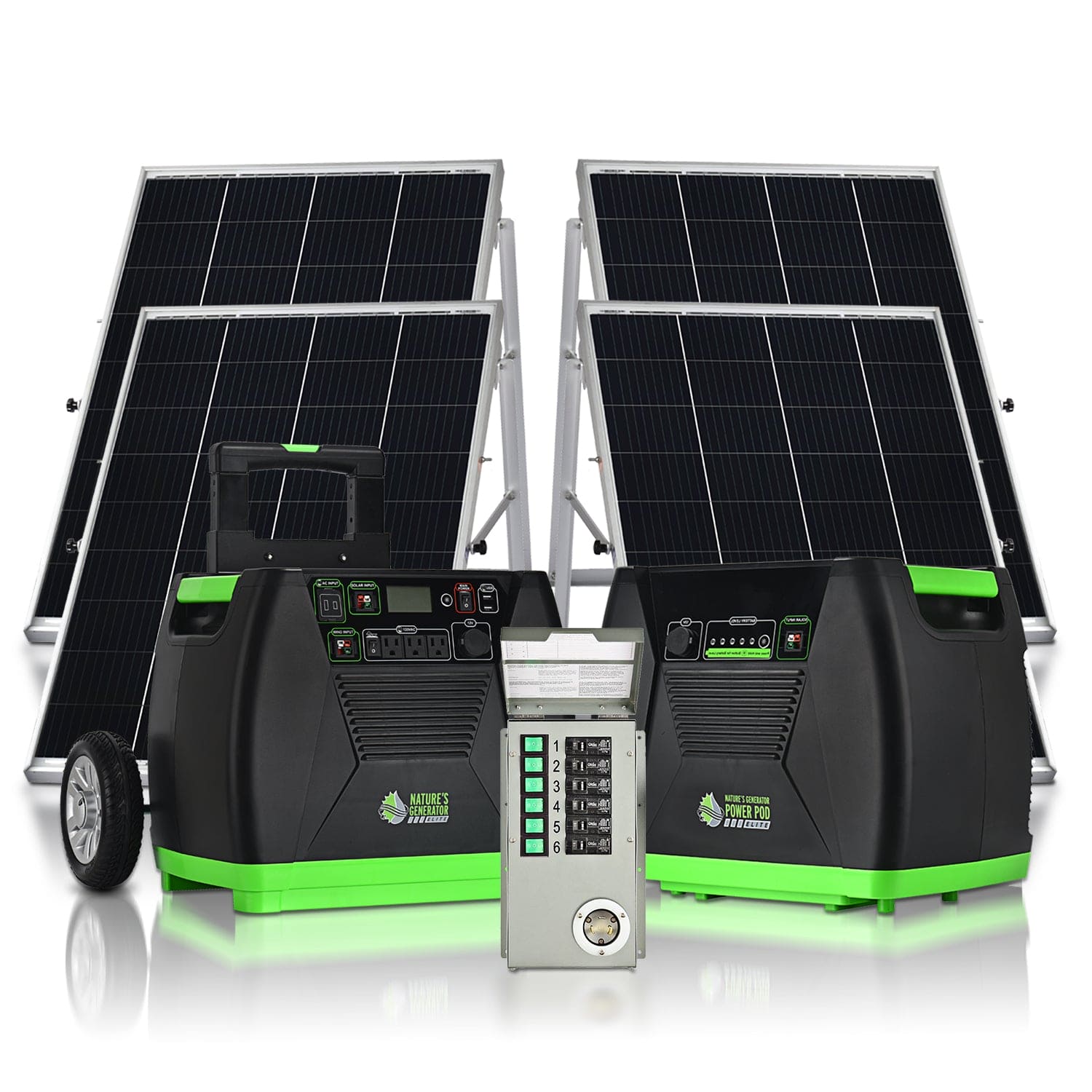

a. The Platinum Elite - PE System comes with 1 Nature's Generator Elite, 1 Power Pod Elite, 4 100W solar panels, Necessary cables and a Power Transfer Kit Elite
3. Besides the generator, what's maximum numbers of Pods that can be used on one cart?
a. You can add as many Power Pods as you may need.
4. Can it handle a refridgerator & fan simultaneously?
a. Yes, it would be able to handle a refridgerator and a fan simultaneously.
Please let us know if there is anything else we can assist with.
Thanks,
Nature's Generator Support Team -
Hello-
This will assist in power the devices, the one that will cause issues and would require additional Power Pods is the window AC unit. They require a good amount of power to operate, so additional Power Pods would be needed to be able to run the AC.
Please let us know if there is anything else we can assist with.
Thanks,
Nature's Generator Support Team -
Hello-
Thanks for reaching out to us!
We desiged the solar panel and charge controller to reange between 17 to 22 volts.
Please let us know if there is anything else we can assist with.
Thanks,
Nature's Genreator Support Team -
Hi Joanne,
Thank you for reaching out. Yes, you can just replace the battery when it's no longer producing any power. Nature's Generator is designed to replace the battery very easily. All you need to do is remove a few bolts and open the top case and then replace the battery. The battery is easy to be accessed and replaced. We have a short video on how to replace the battery of the generator so our customers can use it as a guide. If you have any follow-up questions, you may reach our support directly via (800) 975-7909, or email us at support@naturesgenerator.com. We'll be more than happy to assist you!
Thanks,
Nature's Generator Support Team
